Marker Pen Filter Ink Reservoir Making Machine

Material: polyester thread for inner core, PP plastic for outer covering.

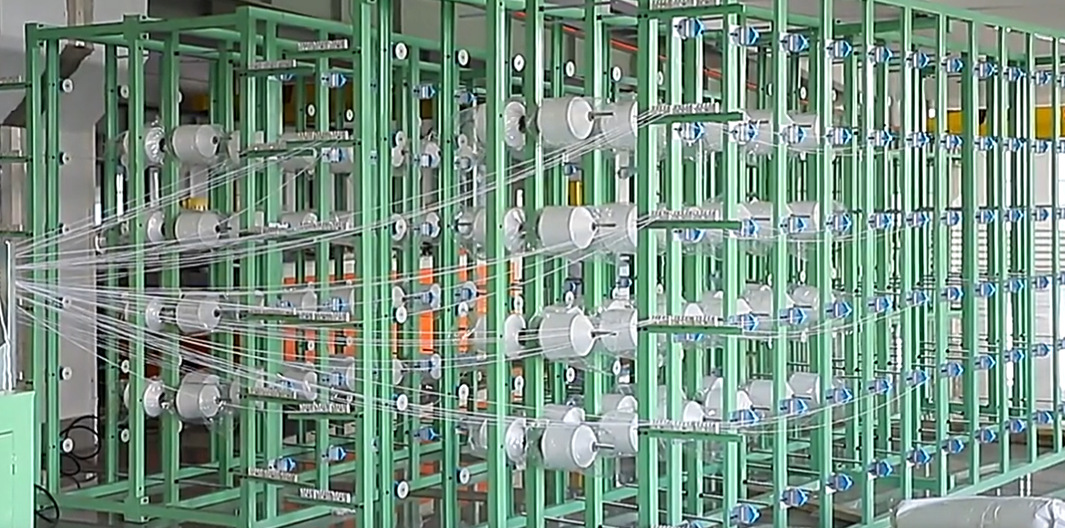

Composition of the production line: payoff frame, wrapping mold, extruder, water tank, traction machine, cutting machine, storage box.
Production line area size: 13000*2300*1700mm

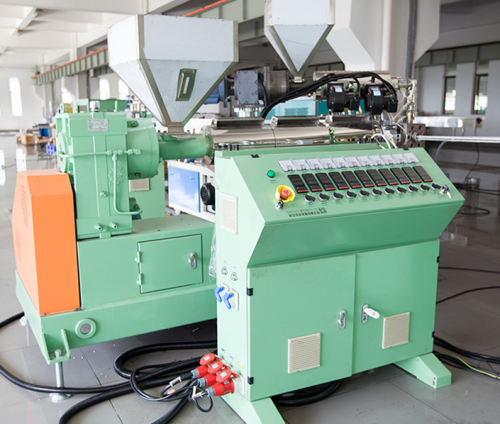

1. Single-screw host: High-speed single-screw extruder is specially designed for different raw materials, equipped with low-noise fan, high-speed hardened gear reducer, intelligent temperature control table, frequency converter control, so that the whole host has a low-temperature melting, good plastification and energy-saving effect and so on.

2 the mold: the use of spiral manifold extrusion die, a unique low-pressure runner design, to ensure low-temperature high plasticization extrusion. For different raw materials, multi-layer co-extrusion mold can be used to reduce costs.

3, cooling water tank: according to the size of the pipe diameter, can be equipped with multi-stage vacuum system to ensure the quality of pipe molding and production speed. Due to the use of reasonable water circulation high-pressure cooling water system, vacuum adjustment device and water temperature automatic control system, high-precision tin-bronze sizing sleeve, for the speed of the speed machine of high speed and high output to provide a strong guarantee.

4, traction machine: special overall transmission device to avoid the independent transmission of the asynchrony, precise pressure adjustment system can be adjusted traction force, with small pressure, traction force characteristics, frequency converter control, traction speed precision stepless adjustable.

5. Cutting machine: It adopts mature cutting technology, with high cutting precision, flat cut without billet front and no dust.

Finished product collection table: through the frequency converter speed regulation and conveyor belt, automatic transmission and collection of finished products, automated production

Material: polyester thread or cotton strips are used in the inner core, and the exterior is covered with PP plastic.

Production line composition: payoff frame, wrapping mold, extruder, water tank, traction machine, cutting machine, storage box.

Production line area size: 15000*2500*170mm

Package and shipment:

Our machines packed in strong seaworthy wooden case

Our Services





Before-sales



·         We will provide free and professional service for consulting on plastic granules production.

·

·         We will arrange you to our current clients to see how our machines work if request.



During sales:



·         Inform you the project processing status on time

·

·         Provide assistance in technical conditions,

·

·         Arrange trial production of your project before delivery, make sure the quality is same as we committment



After-sales:



·         Provide installation and training service

·         Offer enough spare parts

·         Provide 12 months free maintenance.
