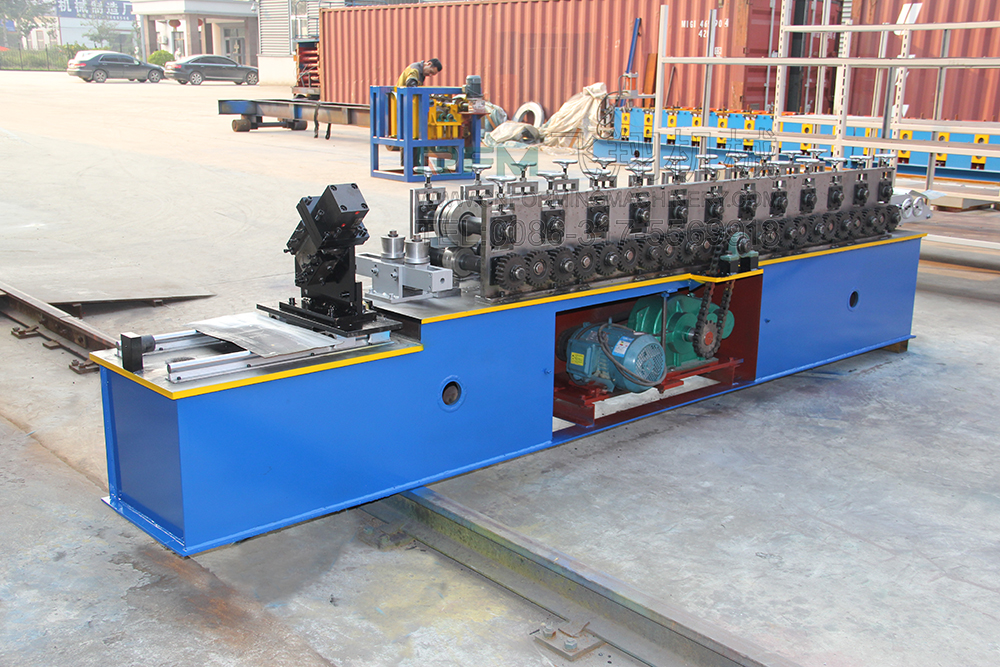

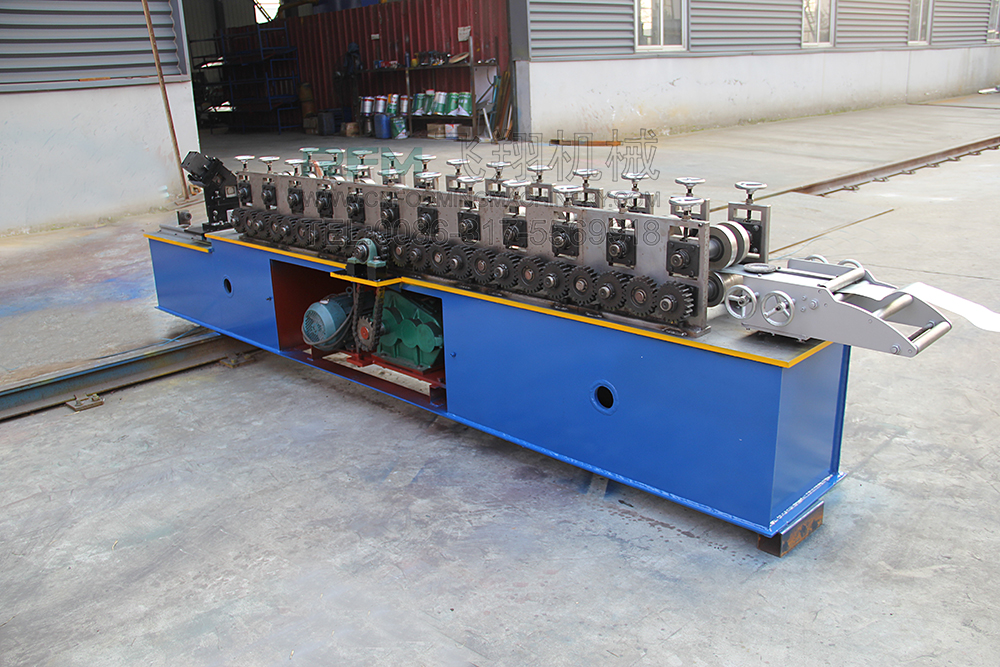

Metal Channels Making Machine
Basic Info
| Model No. | U |
|---|---|
| Brand Name | feixiang |
| Power | 3KW |
| PLC | Delta |
| Blade | Cr12 |
| Roller | Cr12 |
| Shaft | 45#steel |
Product description
Metal Channels Making Machine
Product Description
Products made by Metal Channels Making Machine are suitable to use as building decorations, especially suitable to use in bedroom, kitchen, washroom, corridor and so on.
Material for this machine is galvanized steel plate, snowflake plate and colored steel plate
Manual Un-coiler
? Max Capacity: 5000kgs
? Inner diameter of coil: 400-600mm
? Manual with brake
Leveling Device
? Ensure the material level and straight
? The width can be adjusted

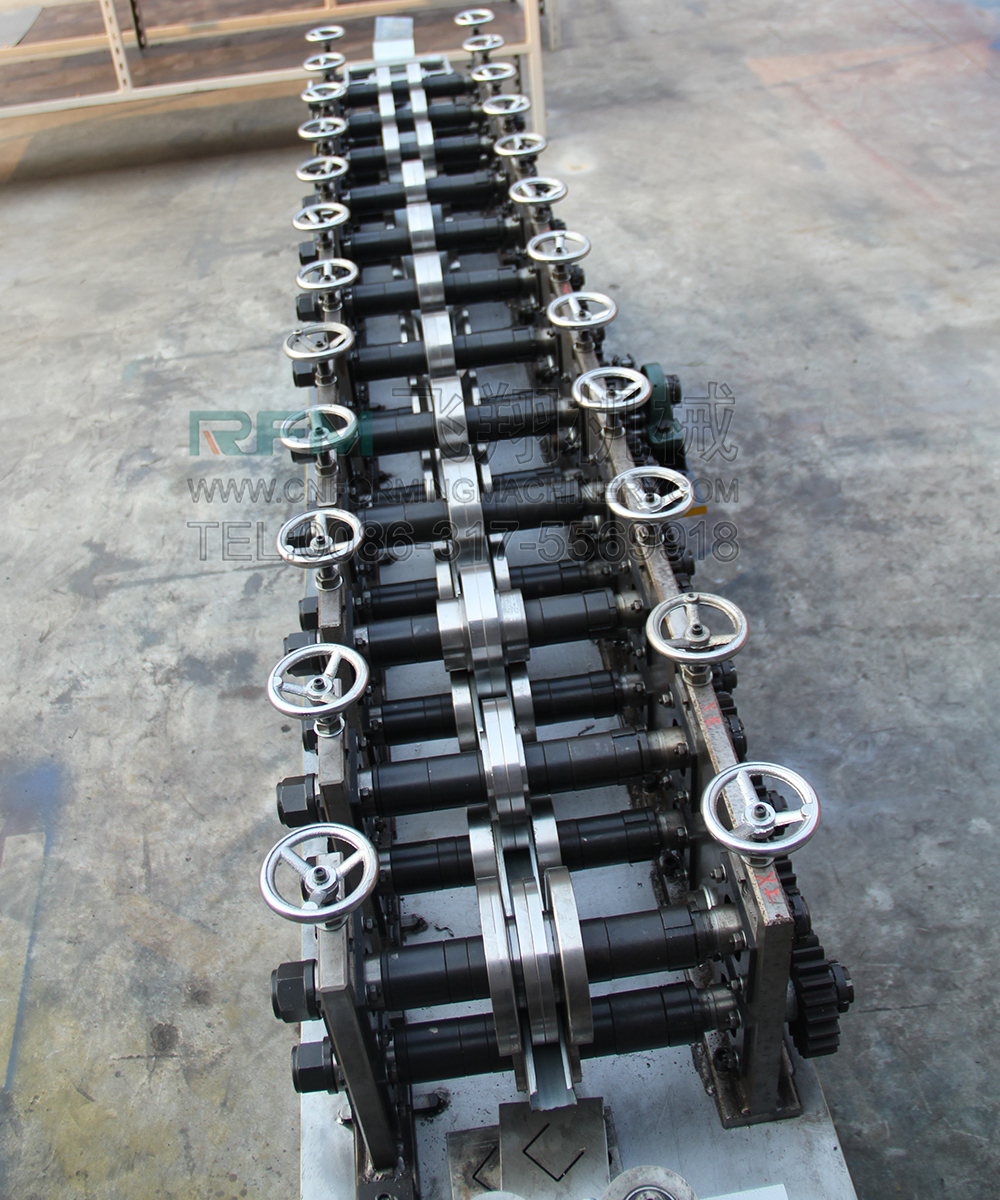

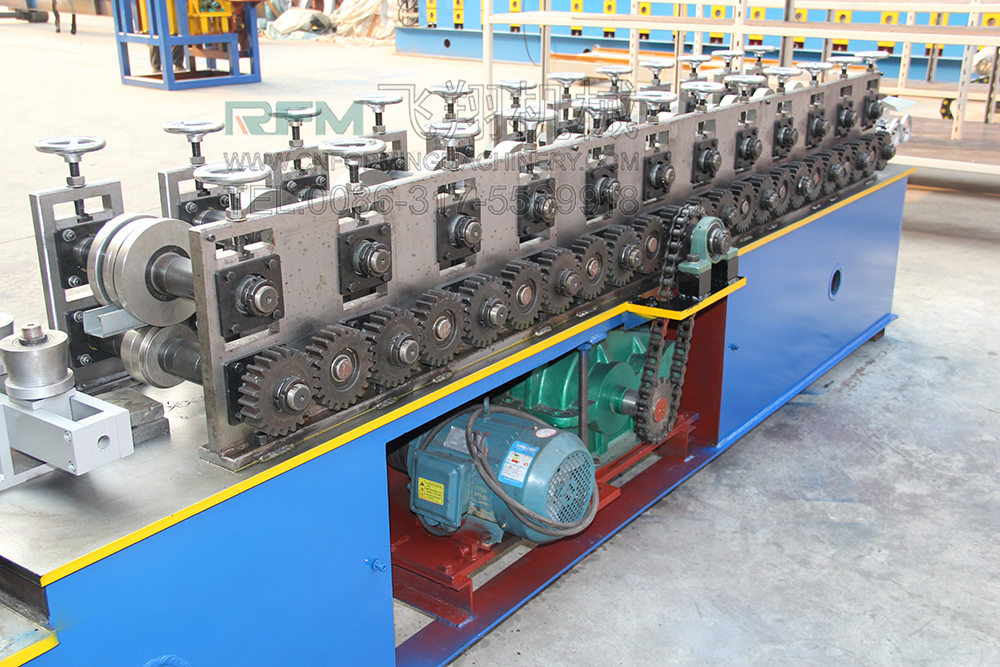

Auto Main Forming System
? Max Feeding width:1220 mm
? Product width: 1000 & 1020 mm
? Thickness of sheet: 0.2-1.0mm
? Motor Power: 5.5 kw forming system
? Roller material: C45 steel
? Diameter of shaft: Upper level 95 mm
? Base Frame: 360 H steel welded..

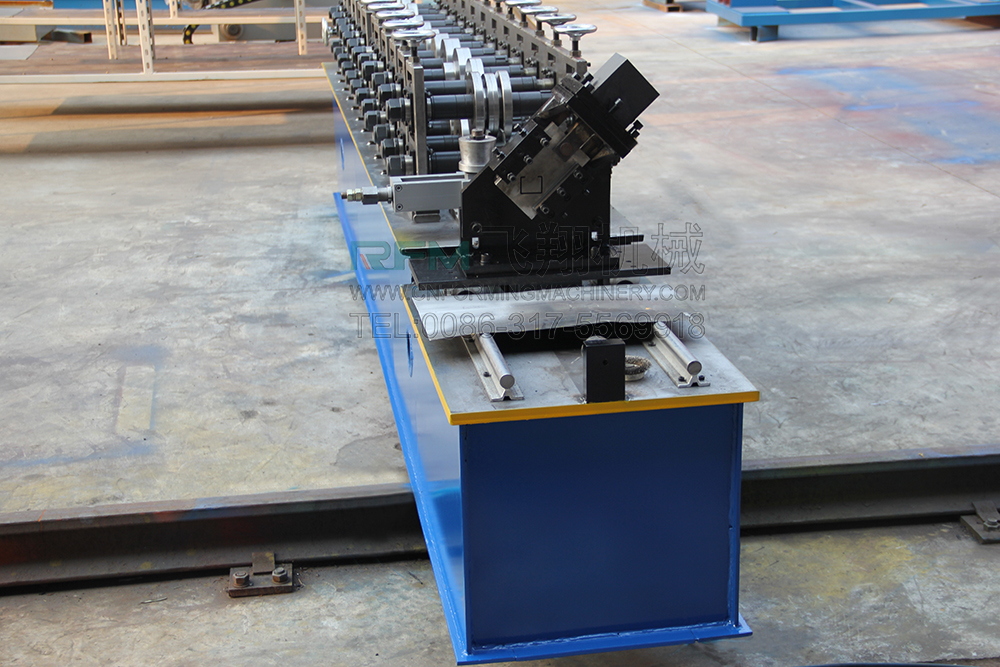

Hydraulic Cutting Device
? Cutting way: pause to cut.
? Oil pump station 1set.
? Hydraulic power: 4 kw hydraulic system.
? Blade Material: CR12 with heat treatment HRC60-62.
Electrical System
? Control system: HMI & PLC control panel.
? Power: 440V 50Hz (as per local requirement)
Run-out Table
? Frame: 8# steel groove welded
? Roller type.
? Quantity: 1 pc
Products made by Metal Channels Making Machine are suitable to use as building decorations, especially suitable to use in bedroom, kitchen, washroom, corridor and so on.
Material for this machine is galvanized steel plate, snowflake plate and colored steel plate
|
Manual Un-coiler
|
? Max Capacity: 5000kgs
? Inner diameter of coil: 400-600mm
? Manual with brake
|
|
Leveling Device
|
? Ensure the material level and straight
? The width can be adjusted |
|
Auto Main Forming System
|
? Max Feeding width:1220 mm
? Product width: 1000 & 1020 mm ? Thickness of sheet: 0.2-1.0mm ? Motor Power: 5.5 kw forming system ? Roller material: C45 steel ? Diameter of shaft: Upper level 95 mm ? Base Frame: 360 H steel welded.. |
|
Hydraulic Cutting Device
|
? Cutting way: pause to cut.
? Oil pump station 1set. ? Hydraulic power: 4 kw hydraulic system. ? Blade Material: CR12 with heat treatment HRC60-62. |
|
Electrical System
|
? Control system: HMI & PLC control panel.
? Power: 440V 50Hz (as per local requirement) |
|
Run-out Table
|
? Frame: 8# steel groove welded
? Roller type. ? Quantity: 1 pc |
Product Description
Technical Parameters:
c profile steel channel machine
|
Equipment operation |
Automatically |
|
Voltage |
380V,50/60Hz or at buyer's request |
|
Thickness of material sheet |
0.3----1.5mm(normally) |
|
Width of material sheet |
As drawing |
|
Control system |
By PLC |
|
Cutting method |
Hydraulic cutting |
|
Material of roller station |
Gcr12 with hard treatment |
|
Formed width |
As drawing |
|
Working speed |
20m/min |
|
Length of finished product |
set in computer, machine will cut automatically |
|
Transmission type |
gears |
A. Decoiler
B. Main forming machine
C. PLC Control box
D. Cutting parts
Hebei Feixiang:
a. Two decades professional cold steel forming equipments manufacturer
b. One comapny with two factory,about 30000 square meter,more than 100 employees
c. National GB/T,CE,ISO9001:2008 Certificates
d. Built business relationship with customers from more than 65 countries and areas
Certificates
Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
Why choose FEIXIANG?
metal furring channel forming machine
*We supply all the technical support,such as engineers,drawings,and instruction manual.
*We send one or more than one engineers to client for installing and adjust all the machinery
*Supply formula guide service and staple raw material purchase.
*We could supply turnkey project to you.
*We have good reputation from our customers both at home and abroad.
