Metal Drive Through Racking System

1 / 1

Metal Drive Through Racking System

$185.00 ~ $220.00 / Set/Sets
Get Latest Price

Basic Info

Model No. DP004
Brand Name Smaco
Usage Warehouse Rack
Material Q235B
Structure Rack
Type Boltless/Rivet Racking
Mobility Adjustable
Weld C02 Weld
Appearance Powder Coating
Thickness 1.5mm -2.0mm
Certificate CE,TUV,AS4008-2012
Loading Capacity 500KG-1500KG/Arm
Show More

Product description

Metal Drive Through Racking System


What are the advantages of our company?

1. Dongguan Smaco is a qualified storage rack manufacturer in China which has ISO 9001-2000 certificate.

2. We are the most patient sales who are willing to listen to your concern and suggest the best proposal.

3. we can send a cut of samples for your reference by express. However we can help you to save a lot of express fee, for we have good long cooperated express agent.

4. Our Safety Design
5. We pay very much attention to the export packages.

6. We will send you information and photos at different production stage of your order. You will get the latest information.

7.  For general orders, we promise to produce within 20 days.



Description:



1. Also known as "into racking type shelf" corridors. This is a not to channel segmentation, continuity of the whole building racking. In the longitudinal direction, tray deposited, based on depth, which makes a followed a high-density storage possible. Goods from the shelves of the unified access, "after be being put first measured with take after take,". The balance weight and moved forward type forklift may easily among access goods into shelves



2. Into racking investment relatively low cost, use and transverse dimensions of bigger, quantity and variety, have less access mode can be scheduled goods, commonly used to store large quantities of the same kind of goods. Because of its storage density of ground space utilization, such as higher, commonly used in the refrigerator storage space where high cost


Features with specification :







Loading Capacity /layer

Usually from 500kg to 5000kg

Also can design according your requirement

Specification of rack Length From 1500mm to 3900mm
Depth From 800mm to 1800mm
Height From 1800mm to 12000mm
Note: Also can design and produce according to your special requirements
Upright specification

88*66*1.5mm

88*66*1.8mm

88*66*2.0mm

100*80*2.0mm

100*80*2.5mm

120*80*2.0mm

120*80*2.5mm

140*80*2.0mm

140*80*2.5mm

Beam Specification 88*40*1.5mm 108*40*1.5mm 125*45*1.5mm 145*50*1.5mm
165*50*1.5mm 165*50*2.0mm

 Drive in Rack Detail for Reference


Drive in Rack

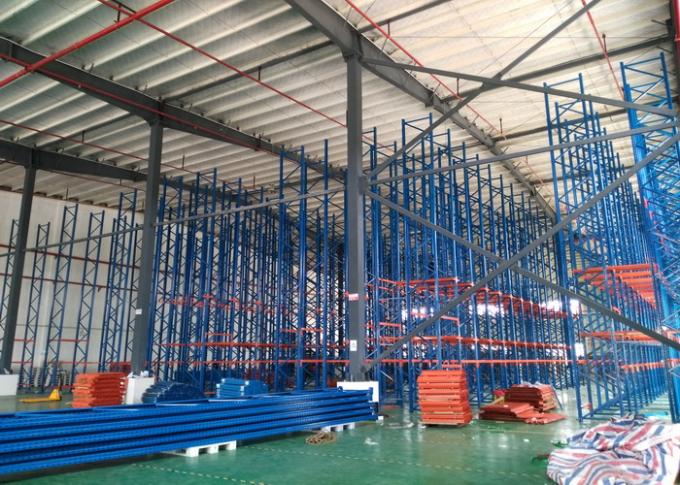

Drive Through Racking
