(1)MaxWidth:1250mm
(2)Inner Diameter: 450mm
(3)out diameter:1500mm
(4)max. loading capacity:5Tons
Search
Sign In Join Free
Video
1 / 7
Metal Panel Sheet Making Processing Machine
$25000.00
≥1 set
$20000.00
≥5 set
$15000.00
≥10 set
Options:
- 8-12m/min
- YX37-840
- 5.5kw
Get Latest Price
You might also like
Basic Info
| Type | Tile Forming Machine |
|---|---|
| Tile type | Steel |
| use | Roof |
| Place Of Origin | Fujian, China |
| Brand Name | XHH |
Show More
Product description
Factory Lifetime Service
CE Certificate
Best Quality：select all best material for roller,shaft,cutter,PLC and driving system
Customized Profile：can design the profile according to customer request

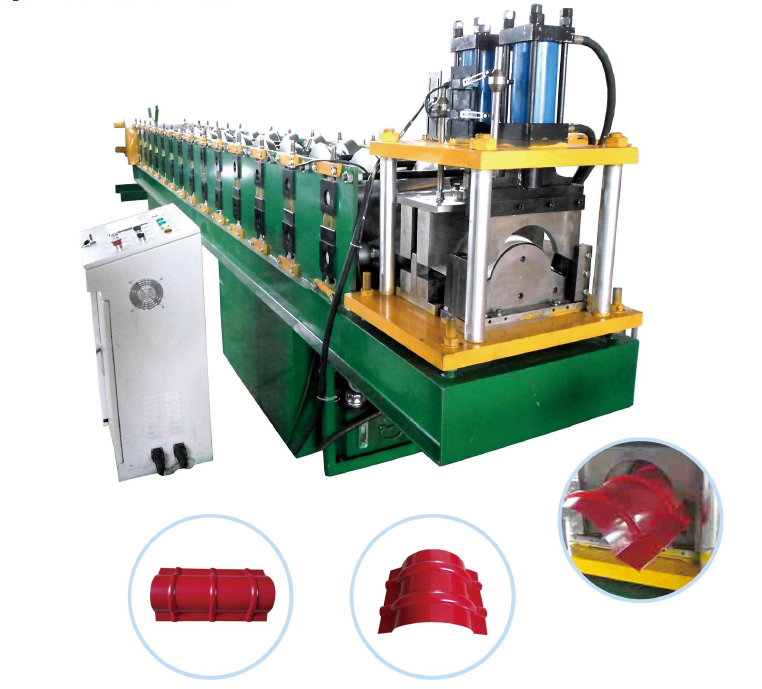

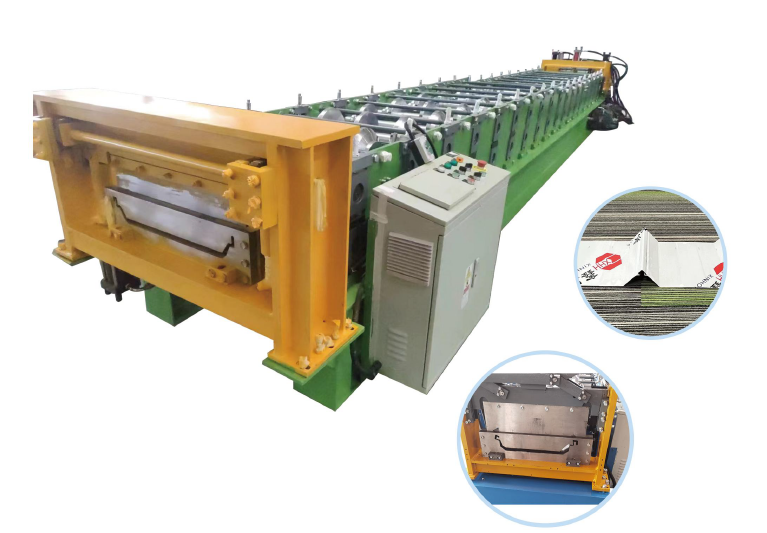

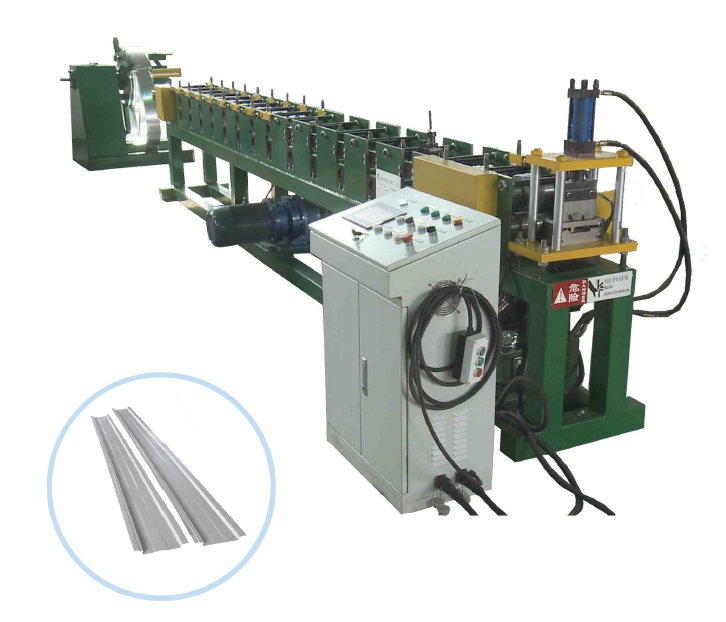

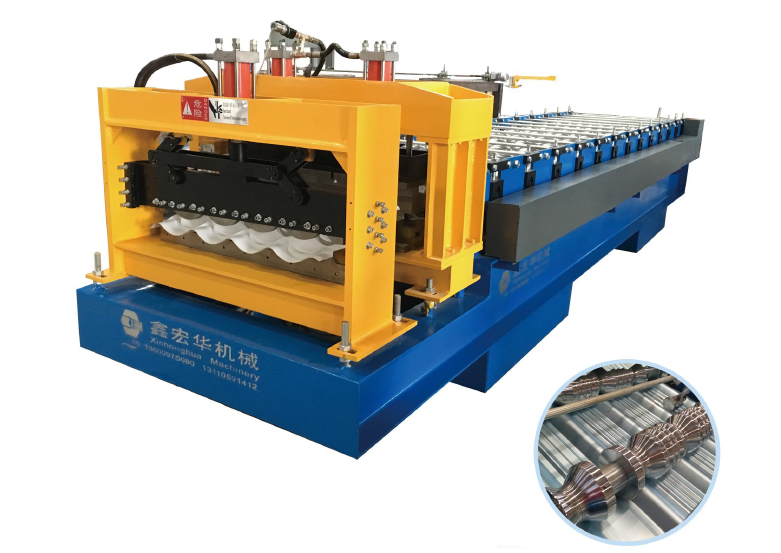

Main Products
We are the roll forming machine manufacturer, and we can give you the most favorable price.
Welcome to consult price!
Products Description

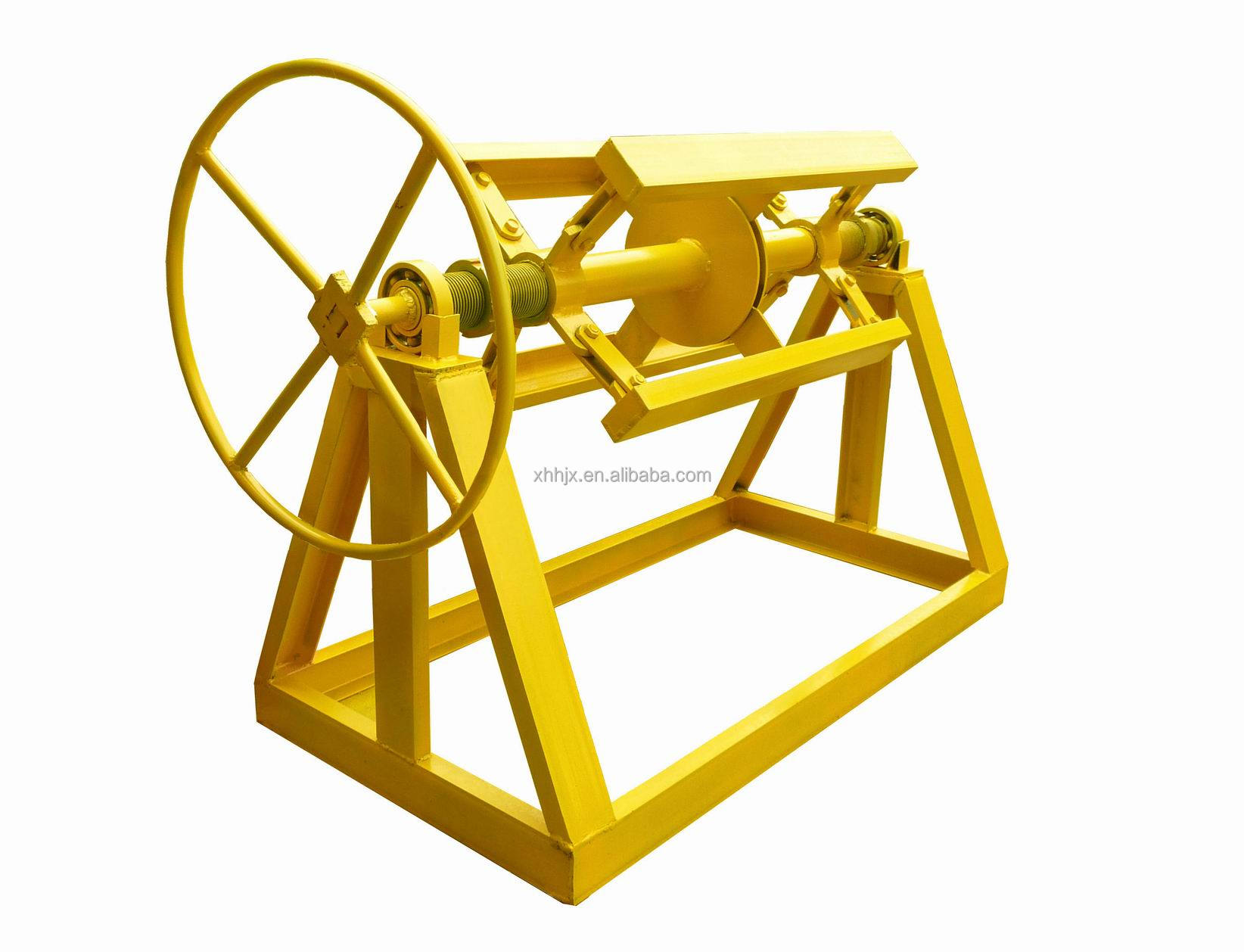

DECOILER

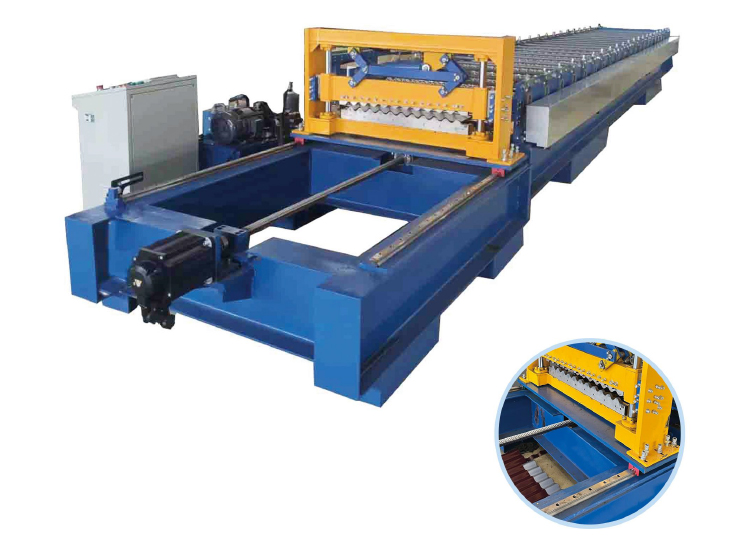

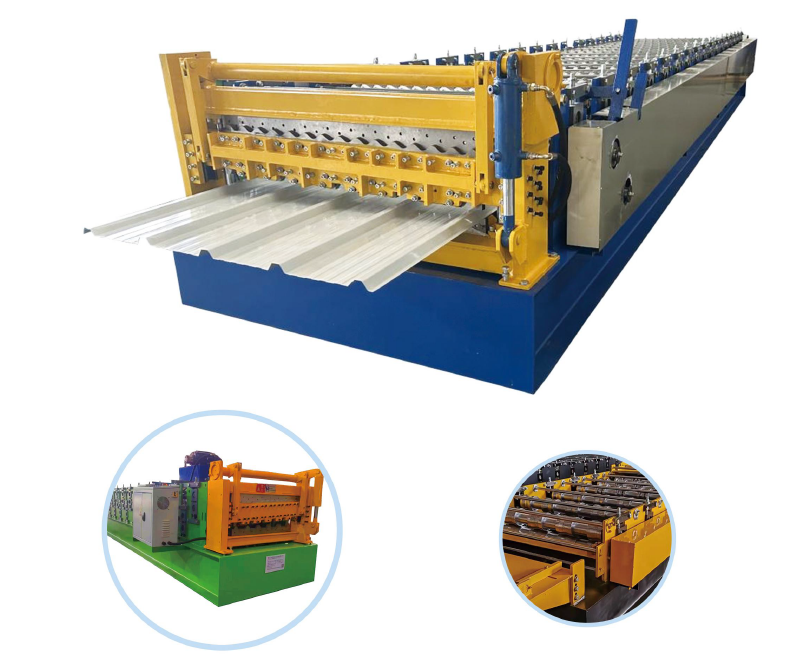

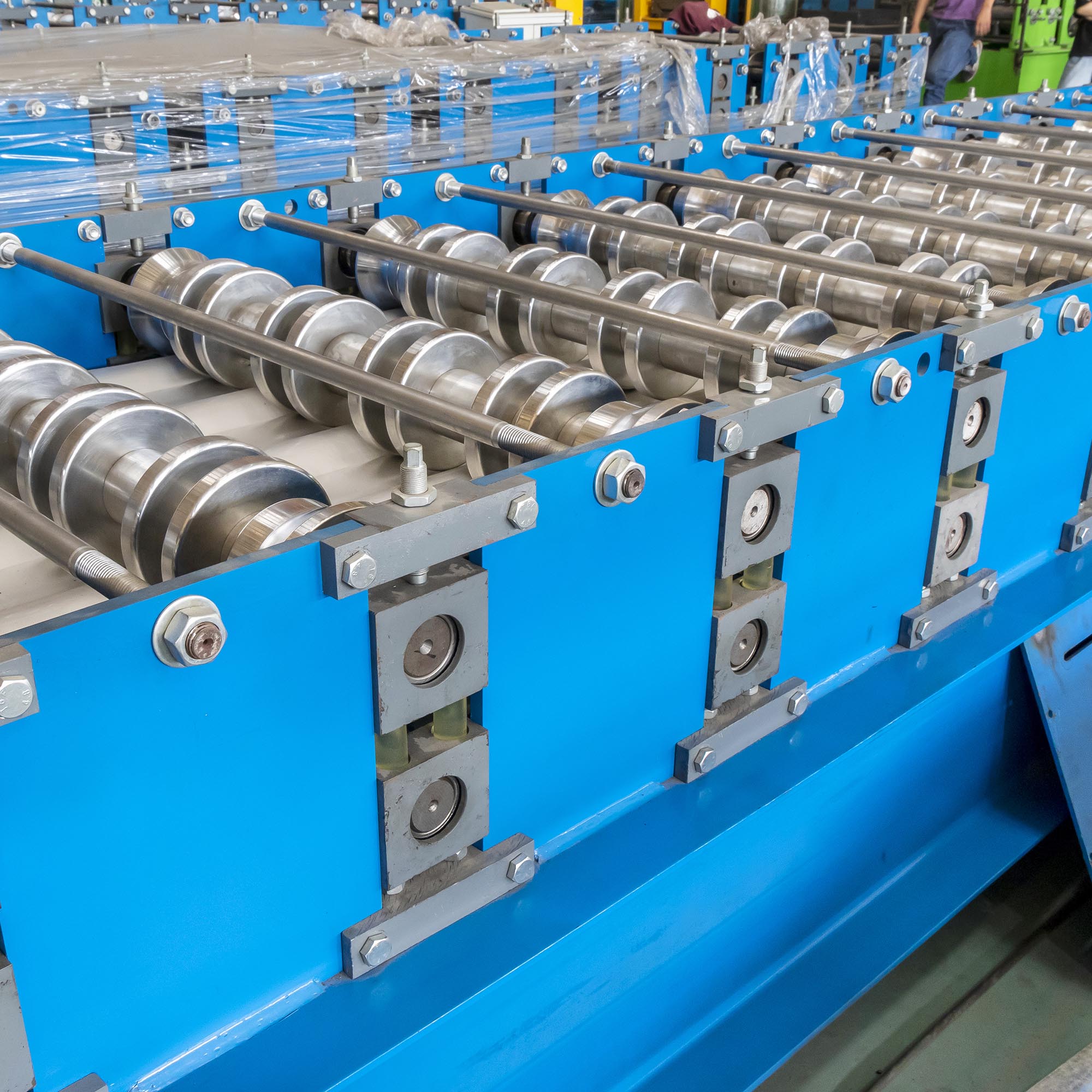

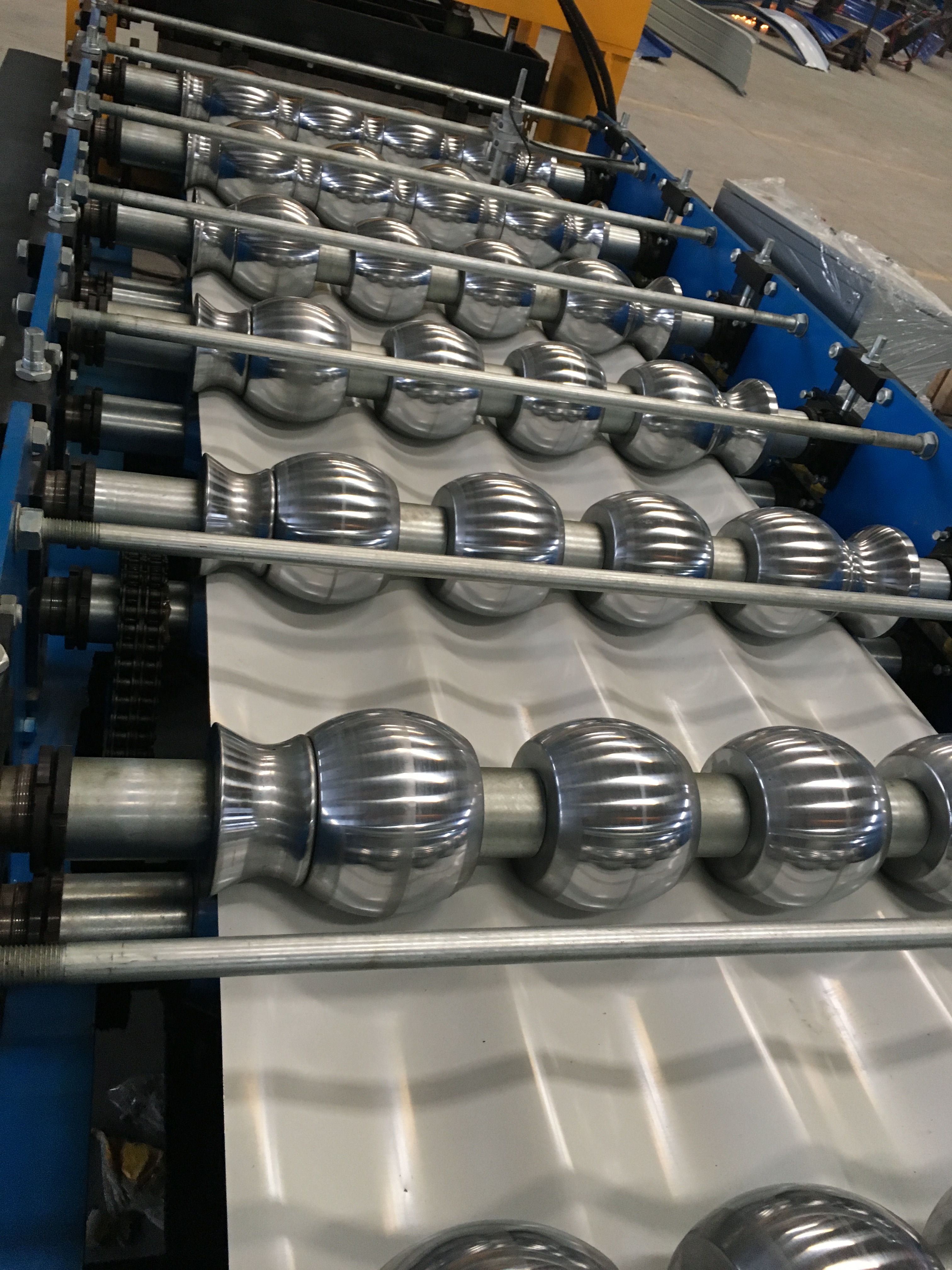

ROLL FORMING MACHINE
(1)Material Thickness:0.3mm-0.8mm PPGI and Gl
(2)No.of Roller Stations:14 to 18steps
(3)Materal for Rollers: high grade 45#steel polished and plated hard chrome
(4)Material for Shaft:40Cr

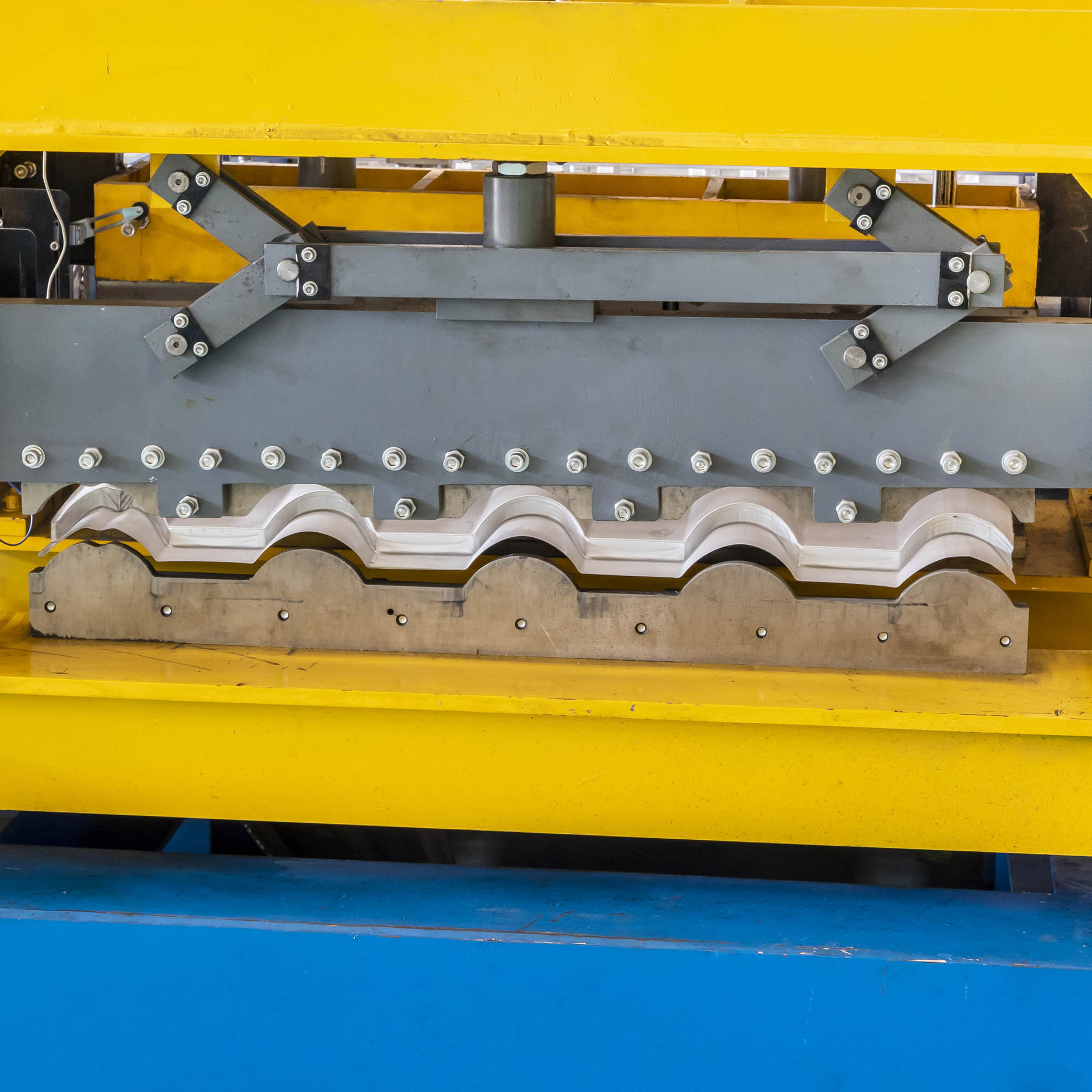

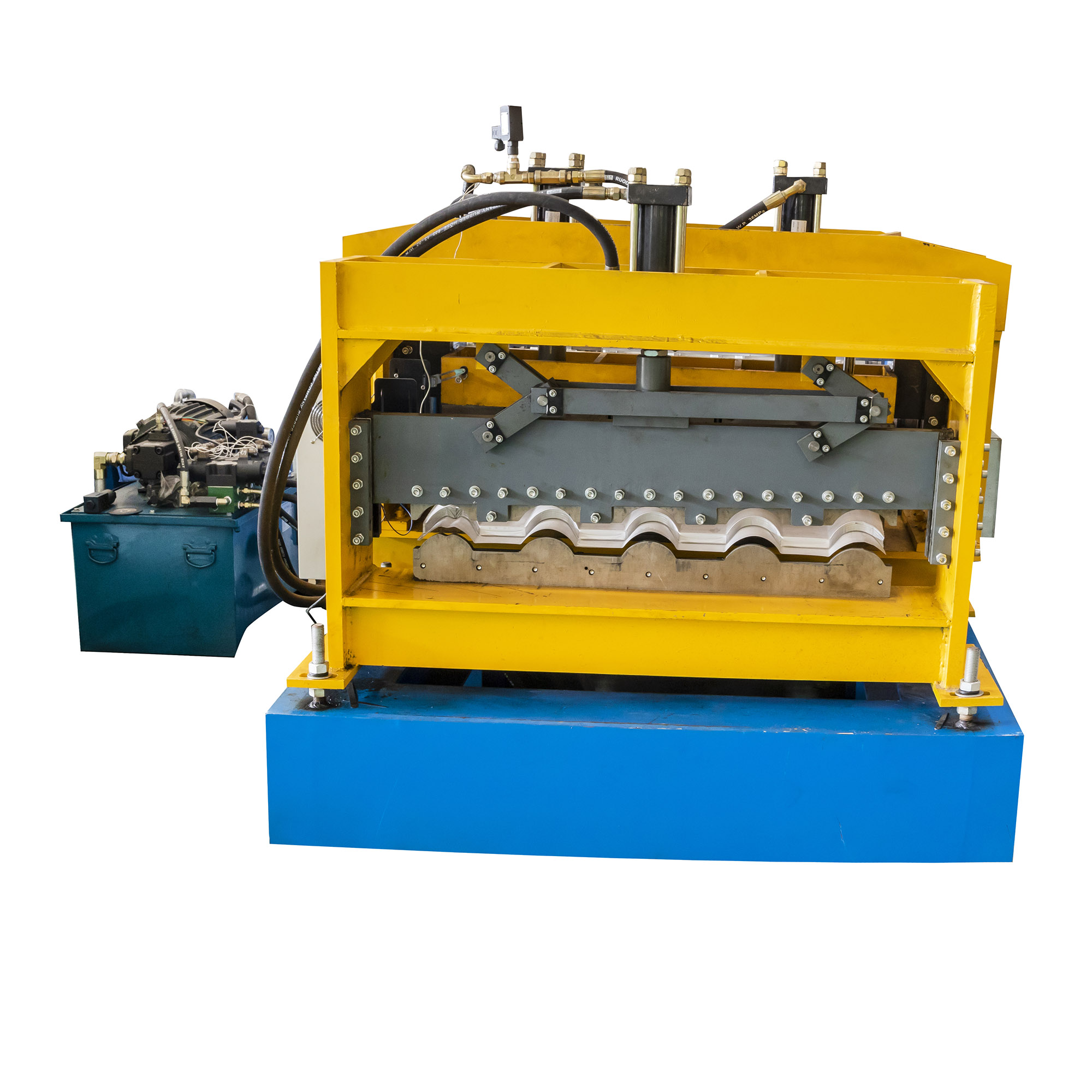

CUT-OFF DEVICE
(1)Material for Cut-off Modular:Crl2mov after treatment
(2)Hardness for Heat Ttreatment:HRC60-62°
(3)Cut-off Type:Hydraulic Cut-off(4)Motor for Hydraulic Stand:2.2KW

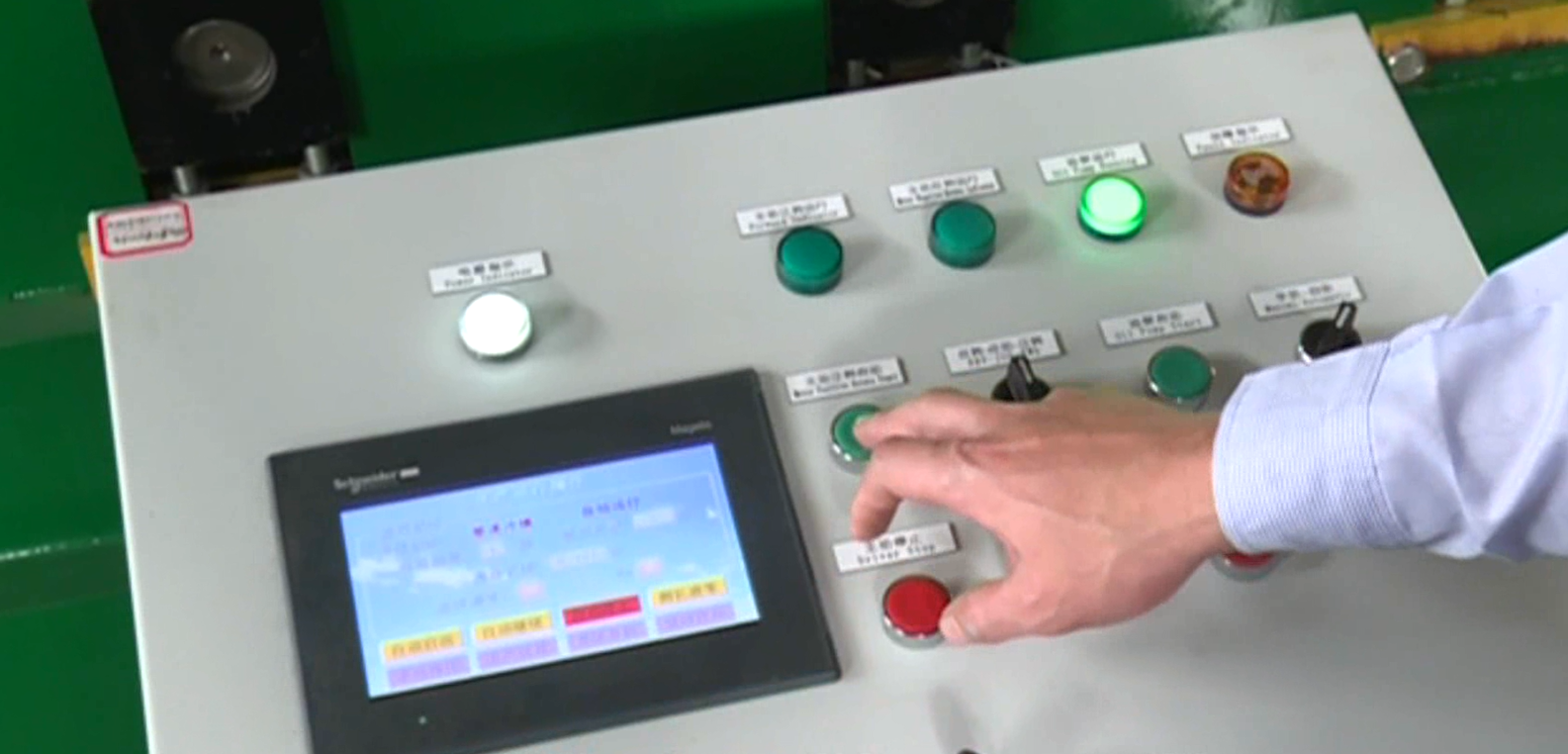

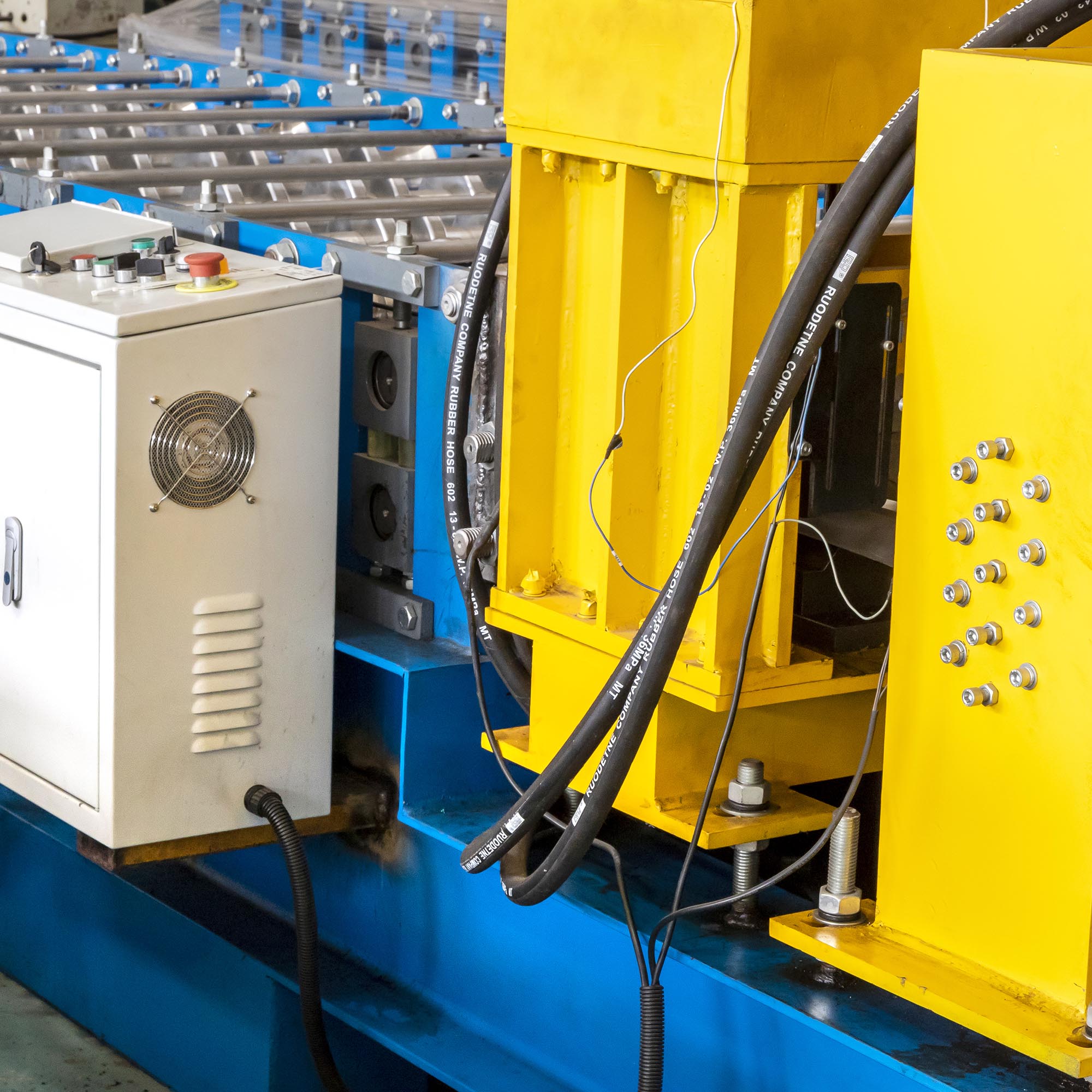

PLC CONTROL BOX
(1)Type:PLC Frequency Contorol Systemwith touch screen
(2)PLC Brand:Schneider
Main Accessories:
(1).Main Forming Machines;
(2).5 Tons Manual Uncoiler;

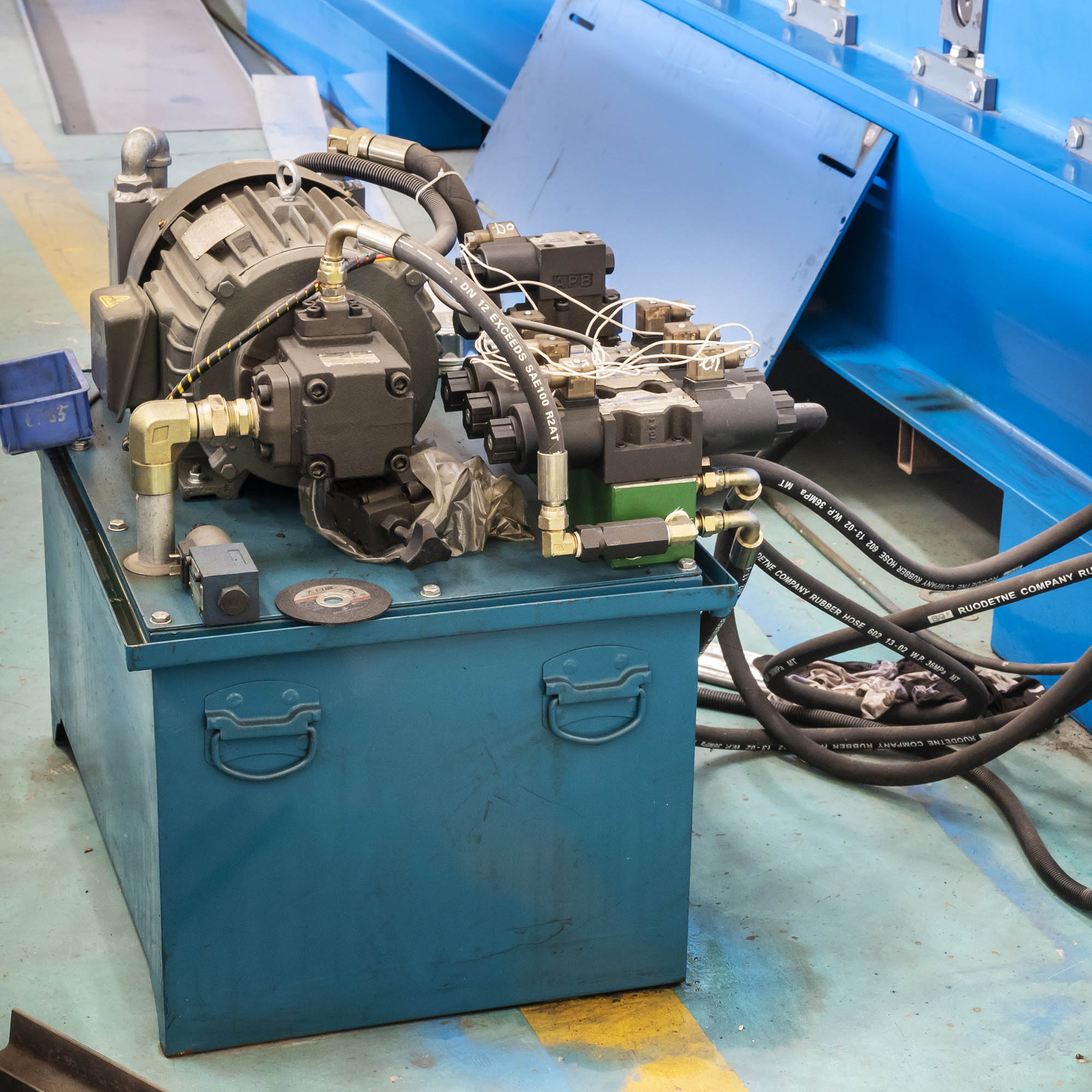

(3).Hydraulic System;
(4).PLC Computer Controlling System With Touching Screen (Brand: Schneider for PLC, touching screen, cencorder and frequency changer)
(5).Hydraulic Forming Cutter;
(6).Tools;
(7).Operation Manual.
(2).5 Tons Manual Uncoiler;
(3).Hydraulic System;
(4).PLC Computer Controlling System With Touching Screen (Brand: Schneider for PLC, touching screen, cencorder and frequency changer)
(5).Hydraulic Forming Cutter;
(6).Tools;
(7).Operation Manual.
Model Number | YX37-840 |
Size | 8000*1500*1600mm |
Weight | 6500KGS |
Motor Power | 5.5KW |
Hydraulic Power | 3.7KW |
Voltage | 380V/50HZ/3PH |
Forming Steps | 12steps |
Processing Speed | 8-12m/min |
Thickness | 0.3mm~0.6mm |
Feeding Material Width | 1000mm; |
Effective Width | 840mm |
Height of Roofing | 38mm |
Can not find the machine you need?
Why not customize it!
We have engineers with experience more than 17 years!
The configuration is not unique, we will provide you with customized services.

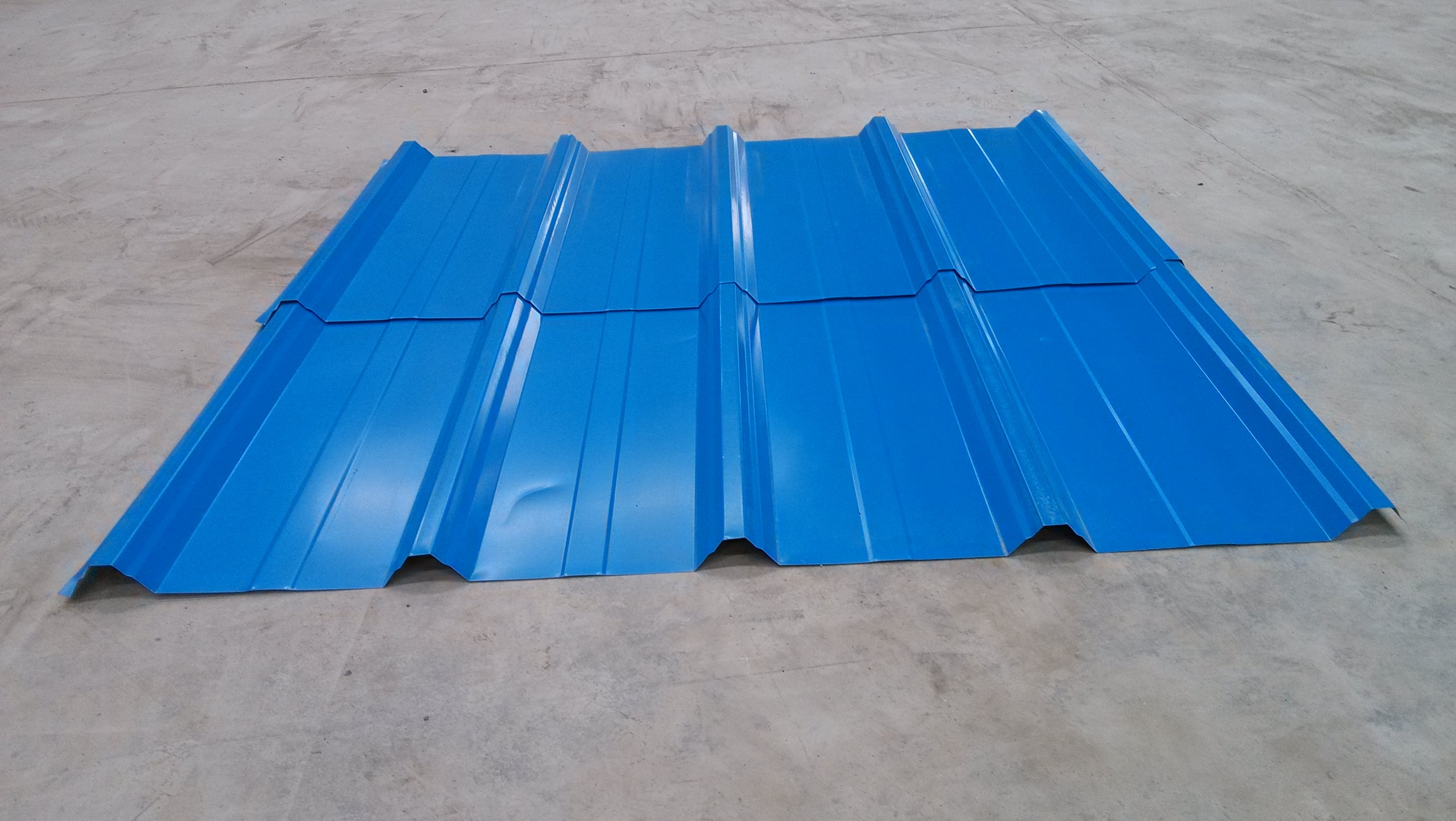

Roofing Sheet Making Machine Overview

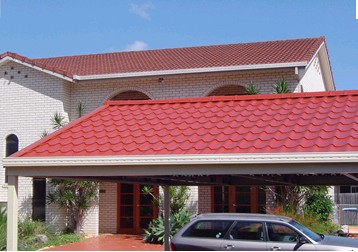

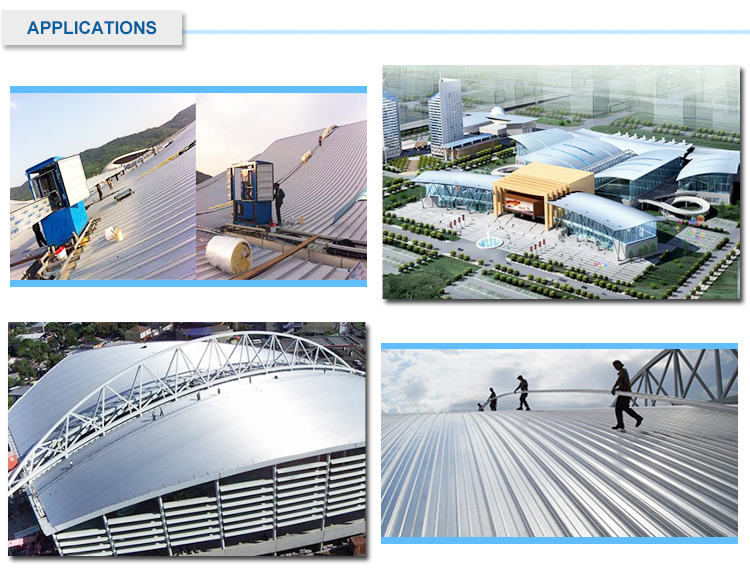

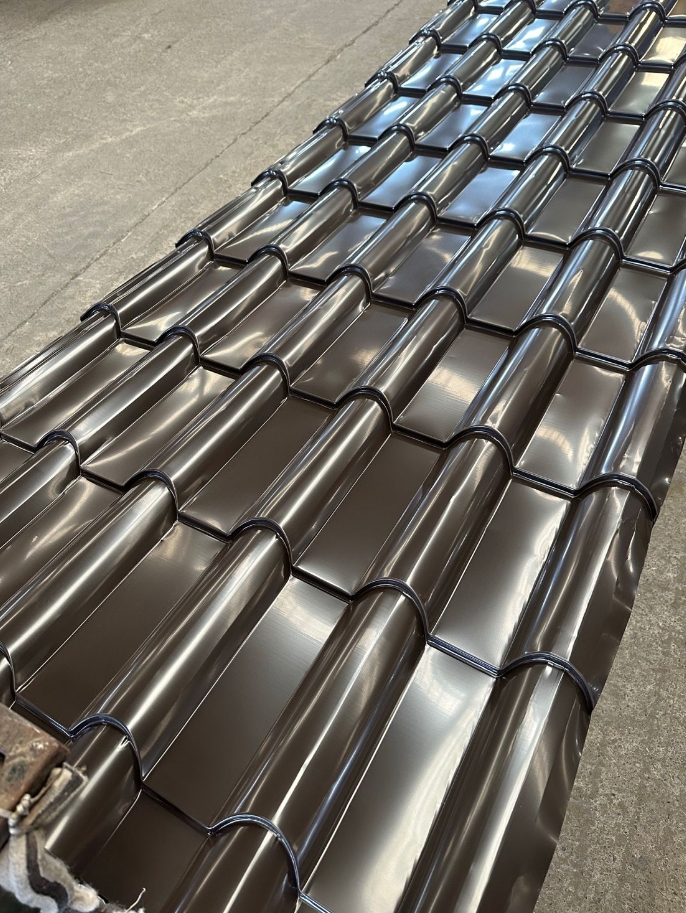

Product Application
XIAMEN XINHONGHUA MACHINERY CO. LTD.(FUJIAN XINHONGHUA MACHINERY CO. LTD) was founded in 2004.as the earlier company which engaged in the manufacture of cold roll forming machines,after the reform and innovation of more than 19 years,and on basis of manufacture of modern management concepts,strong technology,advanced production technology,perfect service system,we have been currently in the domestic leading position,and as good competitor among the same industry of world.
Our company is located in the beautiful scenery,nice island of Xiamen.And have variety of products with stable performance,Always pay attention to improve the existing products and research and develop the new products.We have nearly 100 kinds of professional and technical personnel,with its strong ability of product design and development,to ensure a high level design of our product.For our products with light structure, reasonable design and updating styles,so we become well-know in the steel structure industry.And our products are mainly covered the railway station,city curtain wall,stadium,etc.field and have widely used in national key construction project. High quality products, good service to our products not only sell well all over China,and exported to Southeast Asia,Europe, Africa and Australia more than 40 countries and regions.
