Microcomputer Paper Corner Protector Compression Testing Machine
Basic Info
| Warranty | 1 Year |
|---|---|
| Customized Support | Oem, Odm |
| Place Of Origin | Fujian, China |
| Brand Name | East YQ |
| Model Number | ST-HJB-10K |
Product description
?
Product Brief

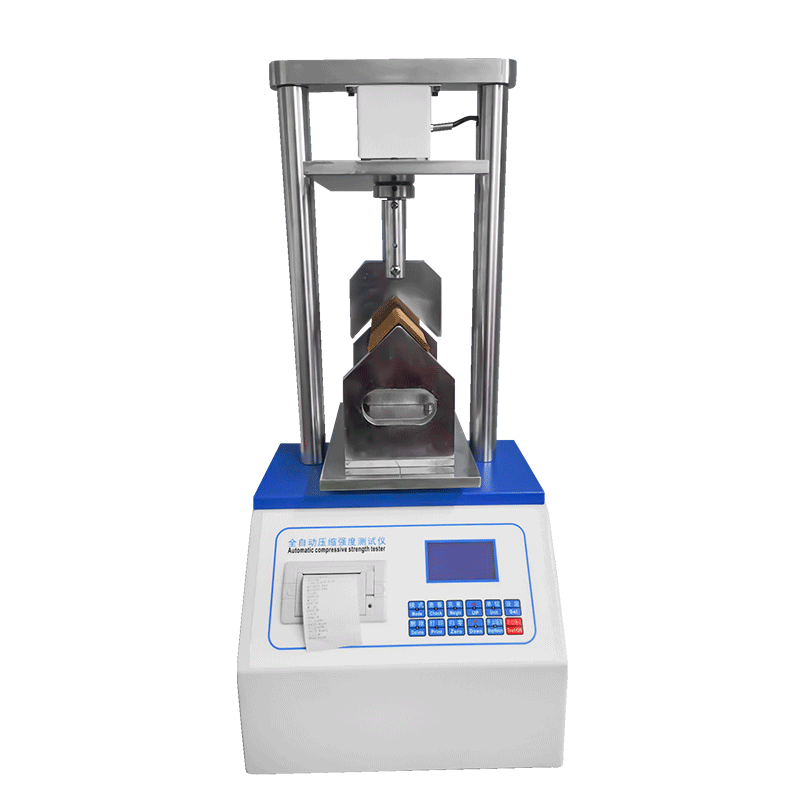

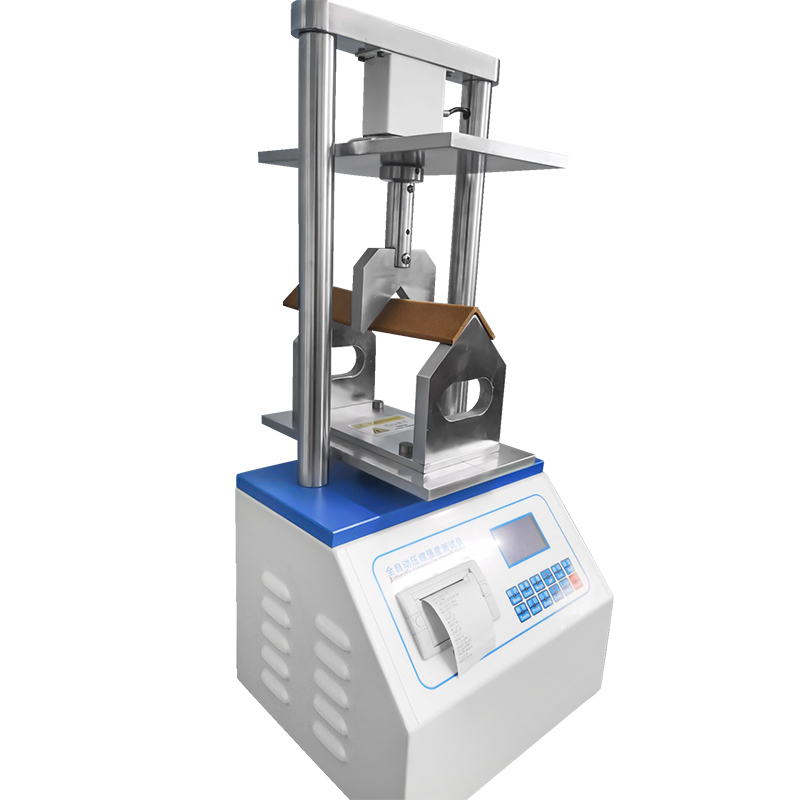

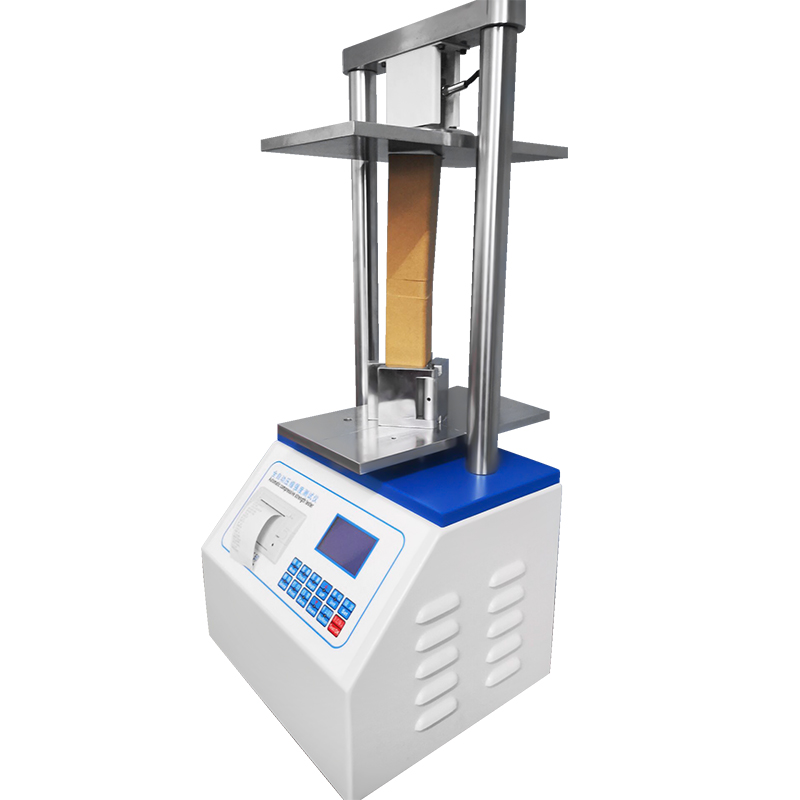

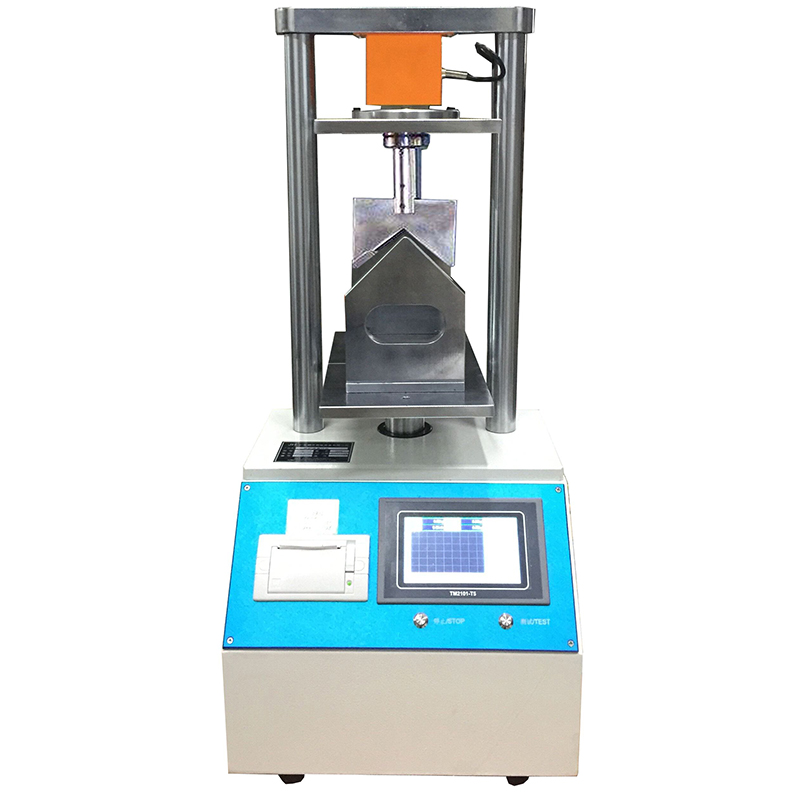

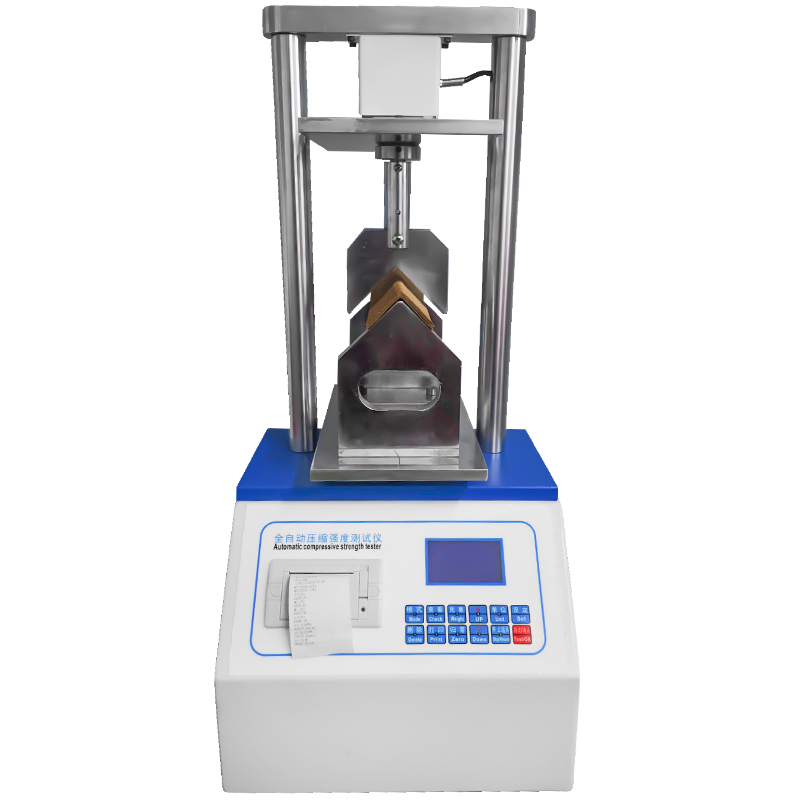

ST-HJB-10K paper corner longitudinal bending strength tester is a testing instrument for testing the compressive strength performance of articles. It is mainly suitable for L-shaped paper corner, U-shaped paper corner, bending paper corner, waterproof paper corner Angles, wrap-around paper corners, special-shaped paper corners, etc., are ideal testing equipment for paper corner protection manufacturers, quality inspection agencies and other departments.
Executive standard:
ISO2872, ISO2874, GB4857.4
Technical Parameters
|
Parameter item |
Technical indicators |
|
|
Pressure measurement range |
10N-10000N |
|
|
Resolution |
0.1N |
|
|
Pressure measurement accuracy |
Indication error |
±2% |
|
Indication variability |
≤2% |
|
|
Zero return error |
±0.2%FS |
|
|
Deformation measurement accuracy |
±1mm |
|
|
Stacking test preset load Relative volatility |
±4% |
|
|
Pressing speed adjustment range |
5mm/min~90mm/min |
|
|
Relative error of pressurization speed |
(5~90)mm/min,±3% |
|
|
Standard pressurization speed |
12mm/min |
|
|
Stacking test tracking pressure application speed |
5mm/min |
|
|
Working stroke of upper pressure plate |
800mm |
|
|
Test interval |
400*600*600mm |
|
|
The parallelism between the upper and lower platen surfaces |
≤1mm |
|
|
Communication output |
(Software sold separately) |
|
|
Test machine dimensions (l*b*h,mm) |
850*600*1100 |
|
|
Test machine weight |
200KG |
|
??
?
Microcomputer Paper Corner Protector Compression Testing Machine
