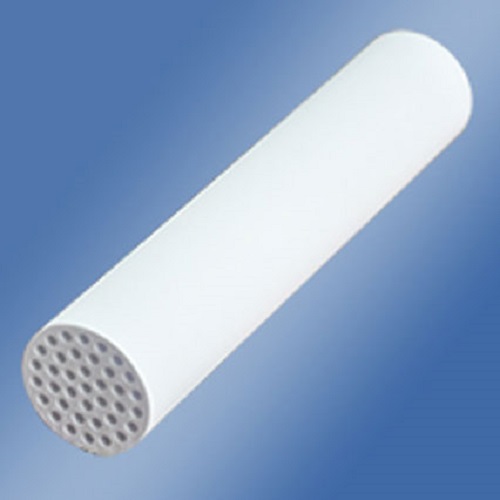

The ceramic microfiltration membrane element ( MF membrane) is made from alumina and zirconia which is an asymmetric membrane structure with multi-channel tubular shape. The pore is on the channel. Driven by operation pressure, the liquid is running in the membrane. The part less than pore size is permeation, the part lager than pore size is concentrated liquid, so as to achieve the separation, concentration and purification purposes.

JIUWU ceramic membrane manufacturer produces the ceramic microfiltration membrane with the pore size 200nm, 500nm, 1200nm and so on.  JIUWU microfiltration system made by high-quality MF membranes element will meet the requirements for your special applications.

OVER VIEW OF MICROFILTRATION CERAMIC MEMBRANE ELEMENT
Ceramic microfiltration membrane is a type of physical filter element where a contaminated fluid is passed through a special pore-sized membrane to separate microorganisms and suspended particles from process liquid. The most common application of ceramic microfiltration membrane is clarification, or removal of suspended solids to produce a clear liquid. It is commonly used in conjunction with various other separation processes such as ultrafiltration and reverse osmosis membrane technology to provide a product stream which is free of undesired contaminants. Examples include clarification of whole cell broths; purification processes in which macromolecules must be separated from other large molecules, enzymes or cell debris; clarification of dextrose and highly colored fruit juices, wine and beer, during which fruit juice membrane and beer membrane filtration will be used; whey de-fatting and casein removal. Ceramic microfiltration membrane systems operate at relatively low pressures and come in a variety of configurations. They are characterized by pore size, ranging from 0.05 micron to 1 micron.

JIUWU company offers a large choice of ceramic microfiltration membranes with different geometries and cut-offs to meet your process requirements in viscosity, molecule size, impurity profile, purity and yield target, etc. as well as cleaning and sanitization procedures.

MF ceramic membrane usually serves as a pre-treatment for other separation processes such as ultrafiltration, and a post-treatment for granular media filtration. Learn more micro filtration technology here!

APPLICATION OF MICROFILTRATION CERAMIC MEMBRANE ELEMENT
Remove suspended solid and reduce SS
Remove proteins, polysaccharides, pigments and other impurities
Remove bacterial
Dehydration
Concentration
Reduce COD/BOD
Membrane technology in food processing
Membrane filtration of milk
Ceramic membranes for wastewater treatment

JIUWU is a professional Ceramic membrane factory, we provide ceramic membrane solution, china membrane, river cleaning technology and etc. Want to know more? Please contact us.
