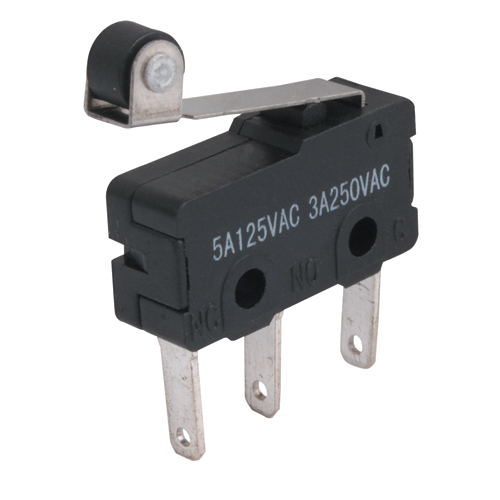

Micro switch Roller Arm,Microswitch with Roller Lever and Microswitch with Roller OK
Basic Info
- Model NO.:MS-2-7
- Number of Switch: Single Control Switch
- Size: Normal Size
- Breaking Capacity: General Type
- Application: Phone, Air-Conditioner, Computer, etc....
- Certification: SGS, UL, cUL ENEC CQC
- Max. Current: 12A/10A/5A
- Electrical Life: 50, 000 Cycles
- Circuit Code: Spdt
- Trademark: KARA
- Specification: RoHS, SGS, UL, cUL, ENEC, CQC
- HS Code: 8536500000
- Pressing Type: Short Lever
- Protection: Dust-Proof
- Environment: ≧250℃﹤400℃
- Breaking Form: Single Type
- Brand: KARA
- Protection Level: IP40
- Max. Voltage: 125/250VAC
- Mechanical Life: 1, 000, 000 Cycles
- Lever Type: Short Straight Lever
- Storage Humidity: 85%Rh Max
- Transport Package: Our Standard Packing or Customized
- Origin: Zhengjia,China
