Basic Info

Model No. FYL-S600C
Brand Name FURD
Type Road Roller
Working Method Vibration
Axle Biaxial Dual-Drum
Engine Type Diesel Engine
Centrifugal Force 27KN
Certification ISO 9001:2008
Condition New
Vibration Frequency 70Hz
Vibration Control Electromagnetic Clutch
Nominal Amplitude 0.5mm
Exciting Force 20kN
Walk Speed 0-4km/h
Water Tank 20L
Engine Model Diesel CF178
Drive Type Hydraulic Station
Static Linear Load 53N/cm
Hydraulic Oil Tank 21L
Show More

Product description

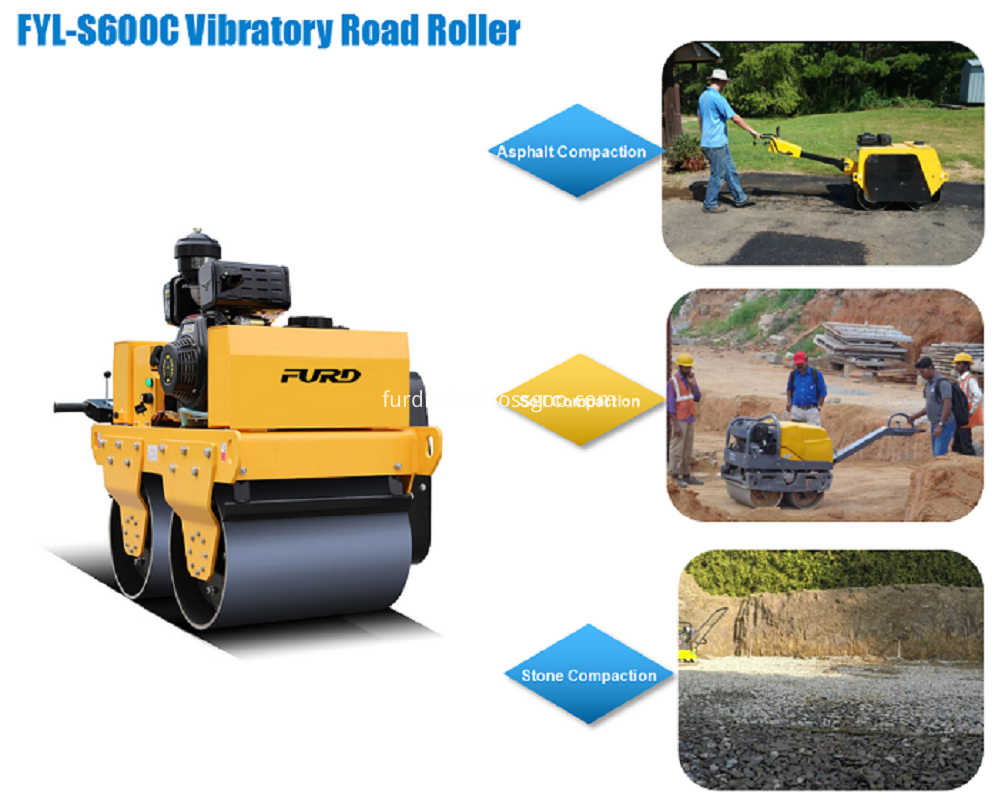

Mini Asphalt Rollers mainly used for narrow area compaction work, such as soil, asphalt, pavements, cycle paths, small roads and small parking areas, and places that need compaction but are difficult to reach with a large roller. FYL-S600C is 550kg Asphalt Hand Roller, adopts air cooled diesel engine and hydraulic station, this Smooth Drum Roller has double drums driving and vibrating, the road roller vibration capacity is 20KN. The engine of FYL-S600 road roller optional  Honda gasoline engine, air cooled diesel engine or water cooled diesel engine.

Smooth Drum Roller


FYL-S600C Mini Asphalt Roller Machine Technical Parameter:

FYL-S600C
Walk Speed 0-4km/h Water Tank 20L
Gradeability 30% Hydraulic Oil Tank 21L
Drive Type Hydraulic Station Engine Model CF178F
Vibration Control Automatic Clutch Power 6 HP
Electromagnetic Clutch
Static Linear Load 53N/cm Steel Wheel Size φ425X600mmX2
Nominal Amplitude 0.5mm Package Size 1450X1100X1200mm
Vibration Frequency  70HZ Net Weight 550kg
Exciting Force 20KN Starting Mode Hand/Electric

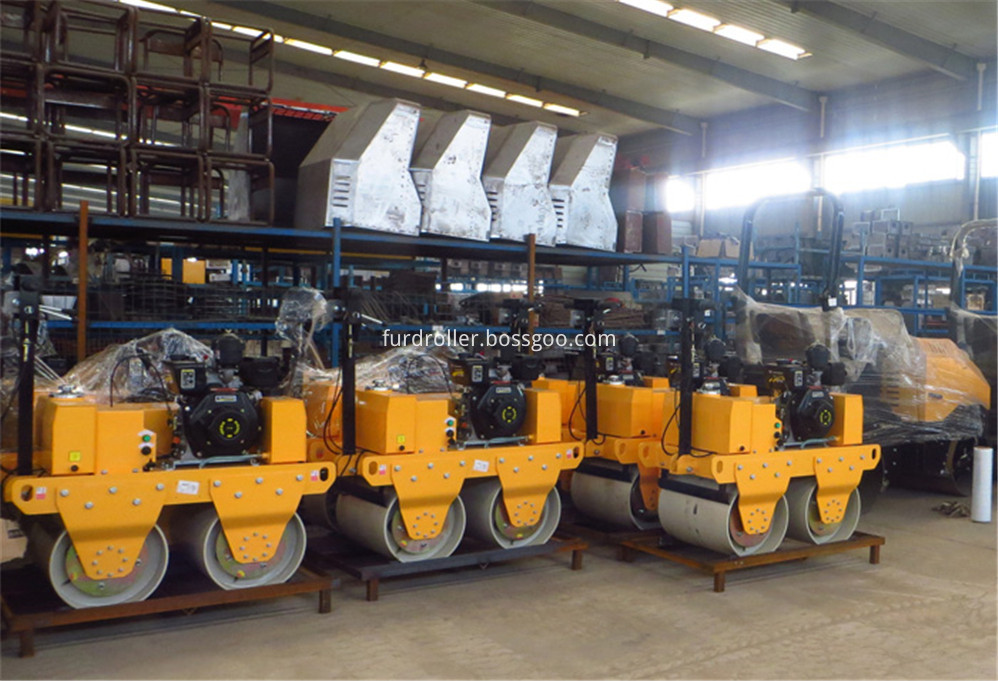

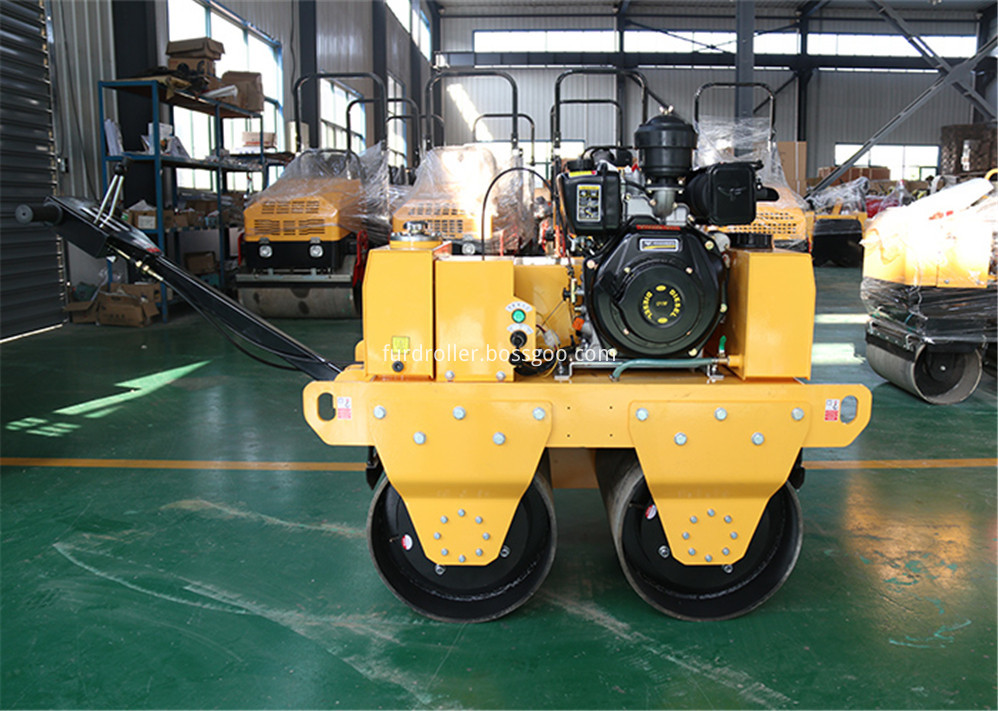

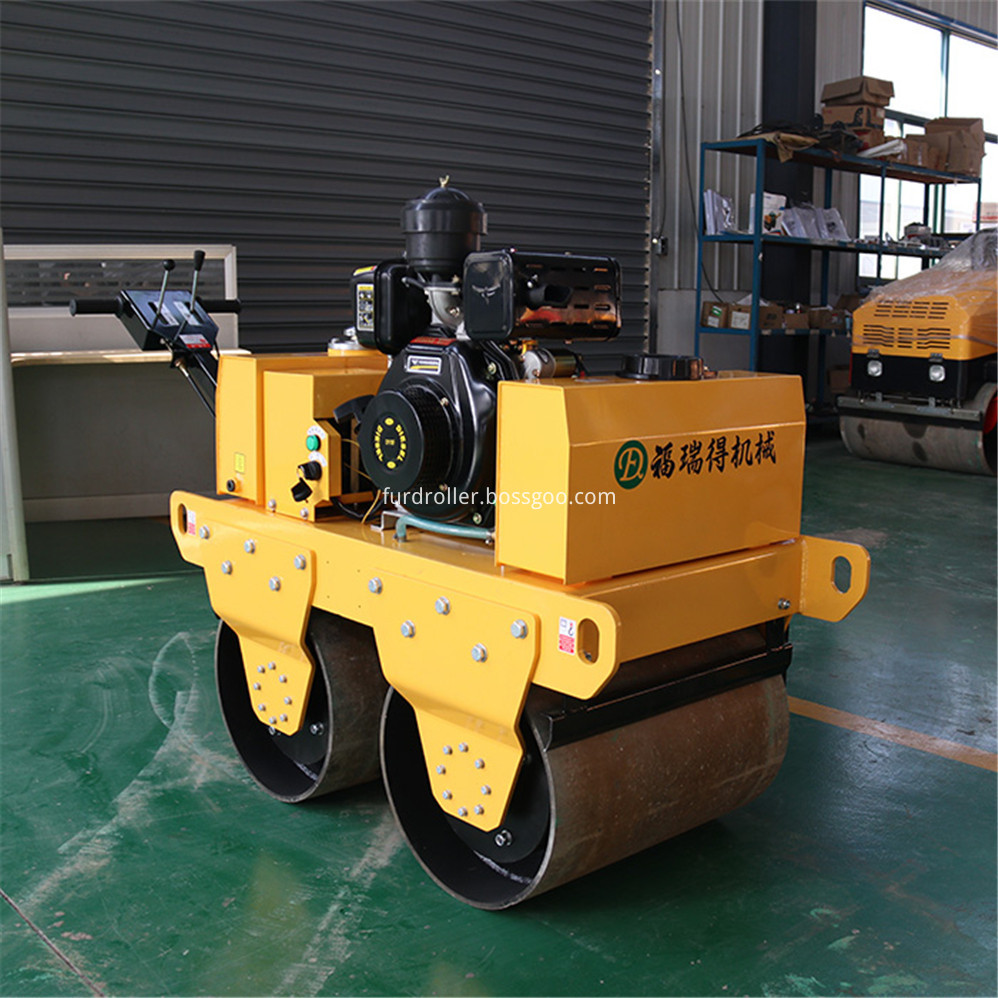

FYL-S600C Asphalt Hand Roller Machine Pictures:

Asphalt Hand Roller

Asphalt Hand Roller

Asphalt Hand Roller



Package & Delivery:

Asphalt Hand Roller


FURD Road Roller Factory:


Jining Furuide Machinery Manufacturing Co., Ltd is high-tech enterprise specialized in research & development and manufacture of Vibratory Road Roller since 2006. Our main products are: Road Roller, Concrete Laser Screed, Concrete Truss Screed, Mobile Light Tower, Road Crack Sealing Machine with CE, EPA, ISO 9001 and ISO1400 certification.

We have professional R&D team in design and producing all of light construction machines, with strict quality control system and continued efforts to ensure high quality of our products.

Our products have good quality and competitive prices, have been exported to more than 50 countries of the world, such as Australia, America, Canada, Russia, Brazil, Qatar, UAE and so on. FURD aim to supply first-class products to the domestic market and the global.

Vibratory Roller Compactor



Thanks to pay attention to our products. We will be appreciate to hear from you for any question. If you need any information, please don`t hesitate to contact us, we will at your service 24hours.

Vibratory Roller Compactor
