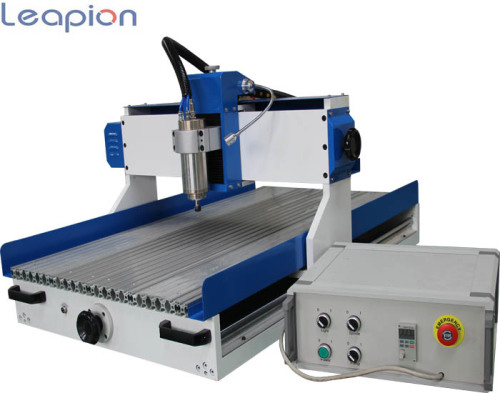

mini cnc router 6090 for advertising

Feature:
Feature

1.Strong steel structure, good rigidity, non-forming, durable.

2. High precision makes it suitable for the arts and crafts advertising industry.

3.Design: interface use of international standard G code instructions, carving compatible at home and abroad, easy to operate it. high quality with reasonable price , economic.

4.High speed driver and stepper motor could enhance work efficiency.

Parameter:

Technical parameter
Model:	LP6090
Processing size (x/y/z)	600*900*120mm
Table structure	Matrix T-Slot aluminum table
Moving mode	Economic gantry moving
transmission	x/y/z axis TBI ball screw drive
Driving system
Motor&Driver	Stepper motor 450A&Leadshine driver M542
Rails & Blocks	Dual linear HIWIN rails imported from Taiwan
Controlling system
Controller	Mach3 Controller
software supported	Type 3, Ucancam, Artcam Pro,
Interface	USB port
Spindle
Spindle mode&power	1.5kw Water cooling spindle
Optical spindle power	2.2kw/3.0kw
Revolving speed	0-24000rpm/min
Working speed	0-15000mm/min
Inverter	1.5kw Fuling inverter
Collets
specification	ER11
Max. diameter	3.175/4/6mm
Unique design
Positioning device	ATC tool sensor
Anti-interference device	Filter in the control box

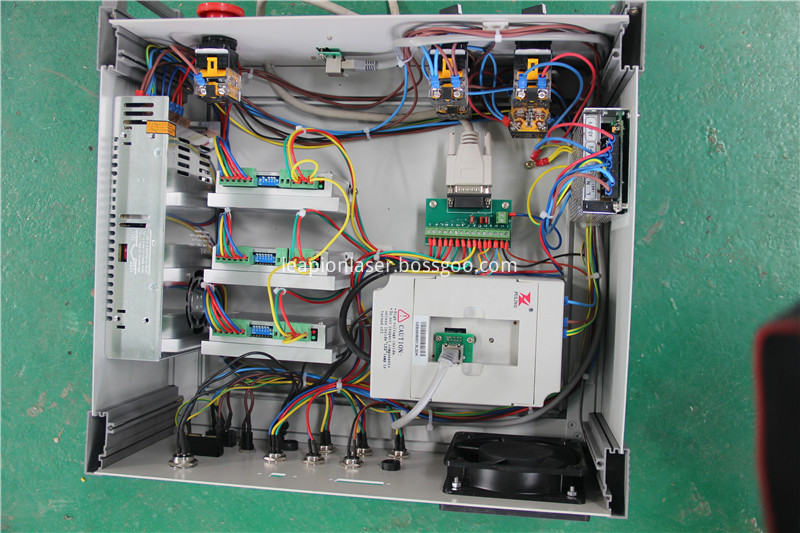

Detailed picture:

Samples picture:

Package:

Company information:

Leapion in laser machine business since 2007, we are a global manufacturing company producing Laser engravers, laser markers,

CNC Router, UV inkjet printers for various applications such as signage, advertising, Woodworking furniture.

Leapion Laser is becoming the word's TOP  in the laser engraving, cutting and marking industry. We are innovators. We are problem solvers.

We are committed to designing and manufacturing the highest-quality laser systems and cnc router machine.

Leapion original concept was to bring CO2 laser engraving systems to both commercial customers, small business owners and the home craftsman.

Over the years we developed larger, more powerful CO2 laser systems and fiber laser cutting and marking machine.

Exhibition

Service:

*2 year guarantee for whole machine; 8 months for laser tube and mirrors
*24 hours technical calling or e-mail service for any technical questions of our machine
*We offer detailed User Manual for machine installation, operation, and also for Software
