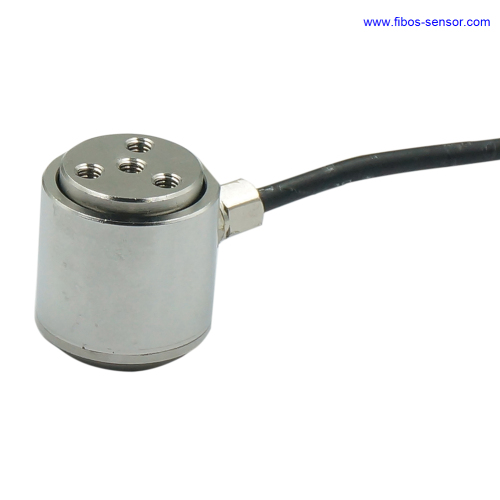

MINI column compression load cell sensor  500n  factory supply

·Mini load cell, low height,  little deformation

·Made of stainless steel

·Could measure pull and push force, high
Dynamic response frequency

·Used in Force Gauge, Injection mold and Mold field, robot grasp and press measuring, force measuring in car assembly

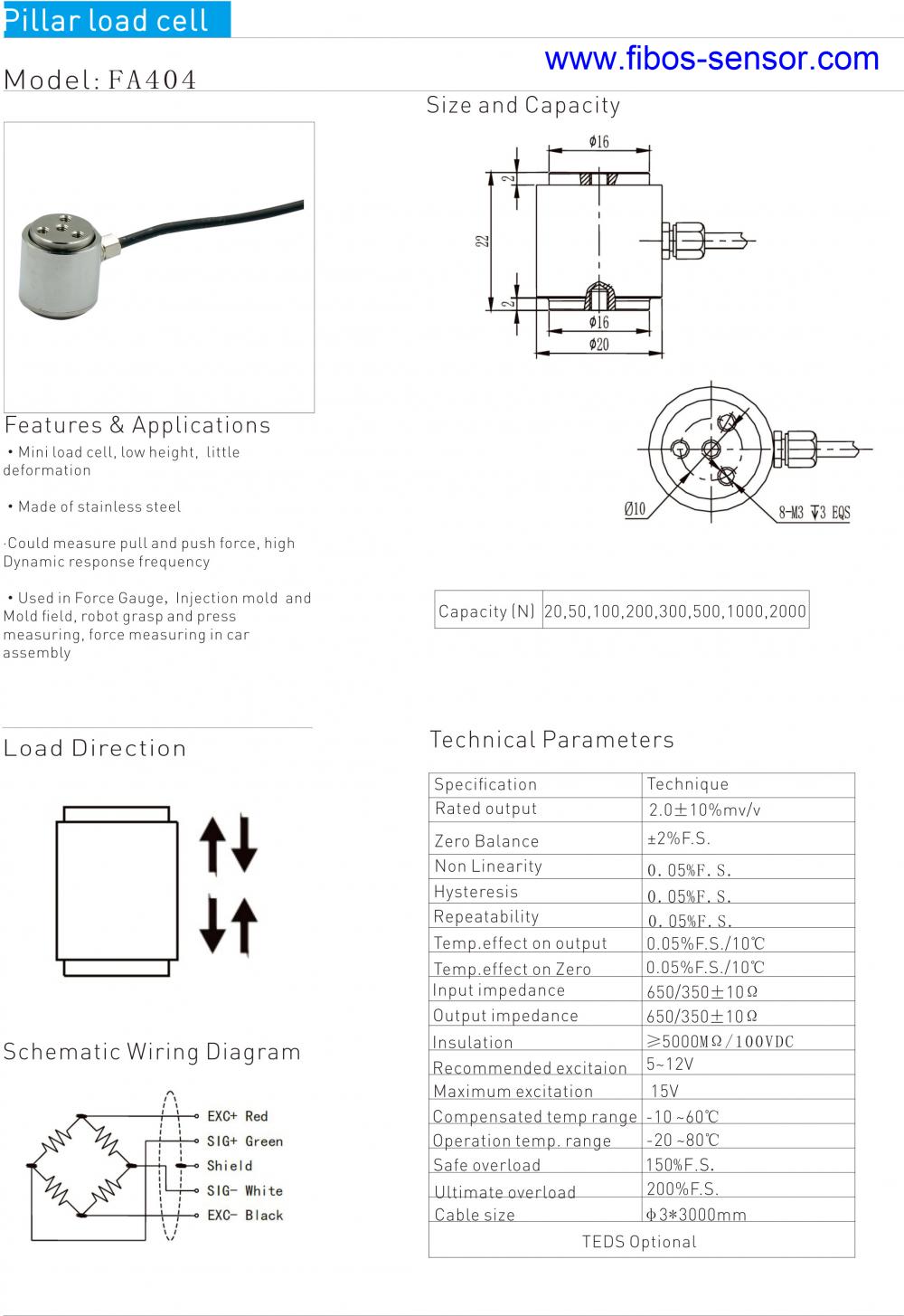

technical parameters
Specifications	Technique
Capacity	20,50,100,200,300,500,1000,2000N
Rated output	2.0±10%mV/V
Zero balance	± 2%F.S.
Non-linearity	0.05%F.S.
Hysteresis	0.05%F.S.
Repeatability	0.05%F.S.
Temp.effect on output	0.05%F.S./10℃
Temp.effect on zero	0.05%F.S./10℃
Input impedance	650/350±10Ω
Output impedance	650/350±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5-12V
Maximum excitation	15V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Cable size	φ3*3000mm
TEDS Optional

Professional customized load sell solution provider



1. MOQ?

Different load cell ,different MOQ. Samples available

2. How long will client get reply from us?
Usually within 12 hours. Please call the sales directly under emergency

3. Price?
Quality first, price reasonable

4. Visit factory?
Visit factory is welcome

5. Lead time?
Load cell sensor in stock, shipped within 1-2 working days.
Load cell sensor not in stock, usually 10-20 work days.

6. Payment terms?
T/T, Western Union, L/C, Escrow, paypal or Cash



7. Delivery?
DHL, Fedex, TNT ,EMS, UPS or by Sea etc.

8. Load cell sensor warranty?
   12 months.

9. after-sale service?

After-sale service is available since the load cell sensors are received. The after-sales service will be done through e-mail, skype, trade manager, telephone, wechat or QQ.
