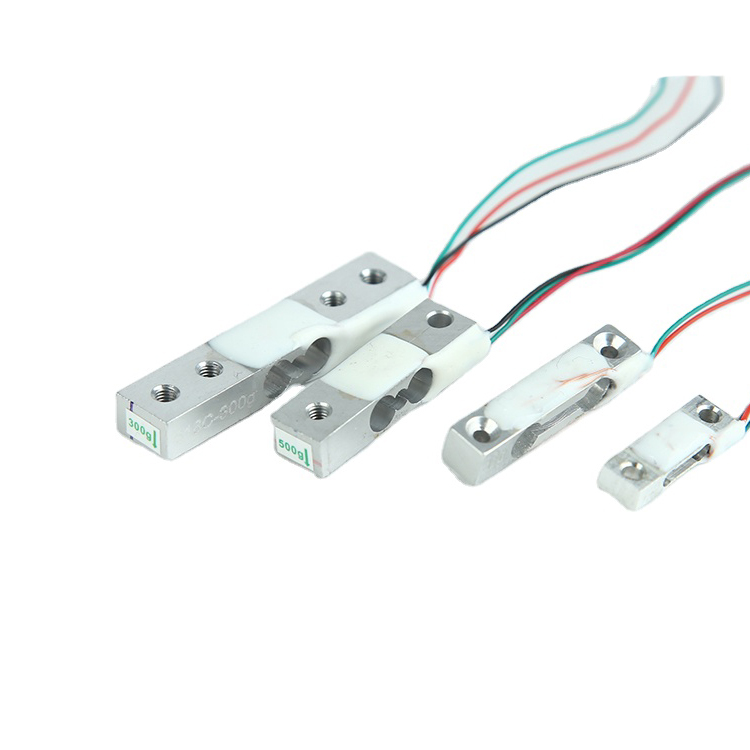

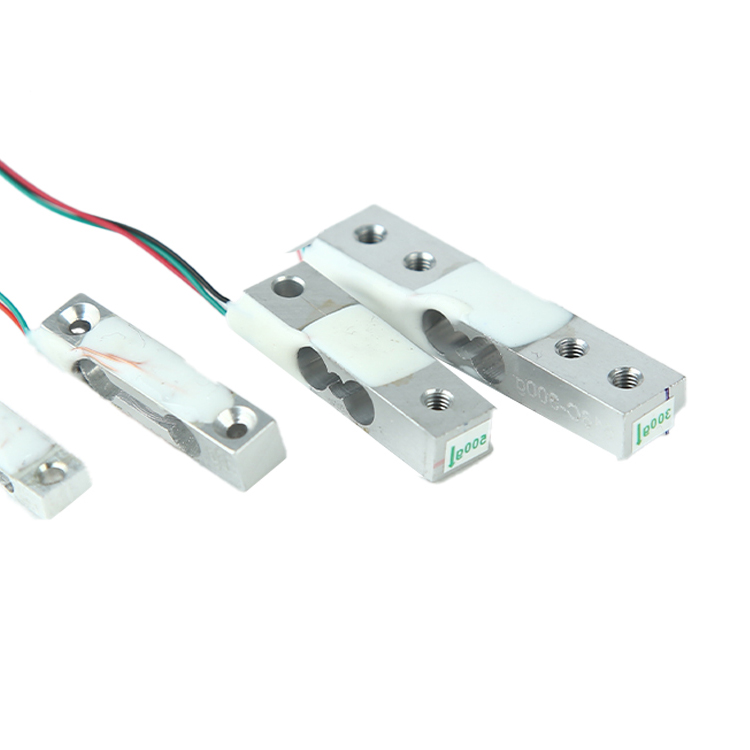

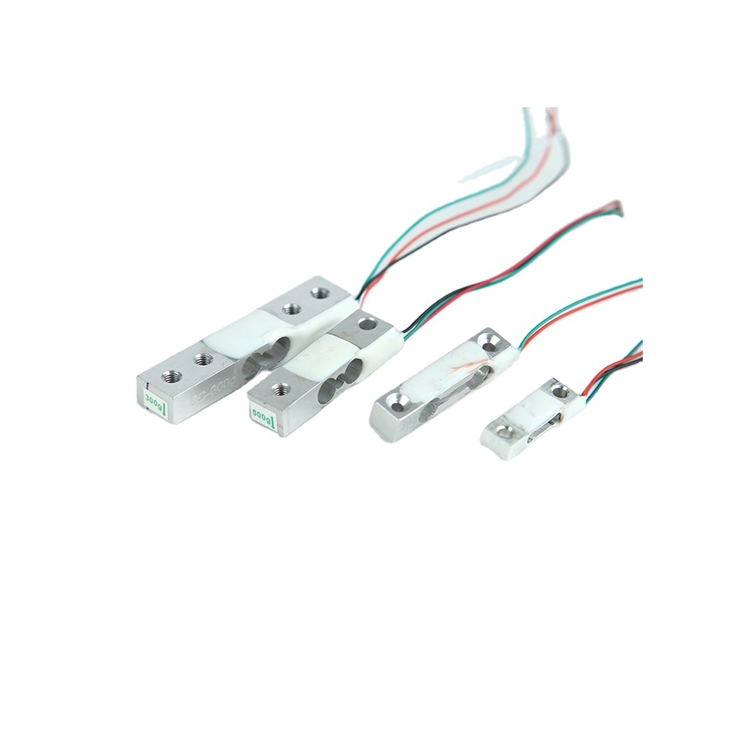

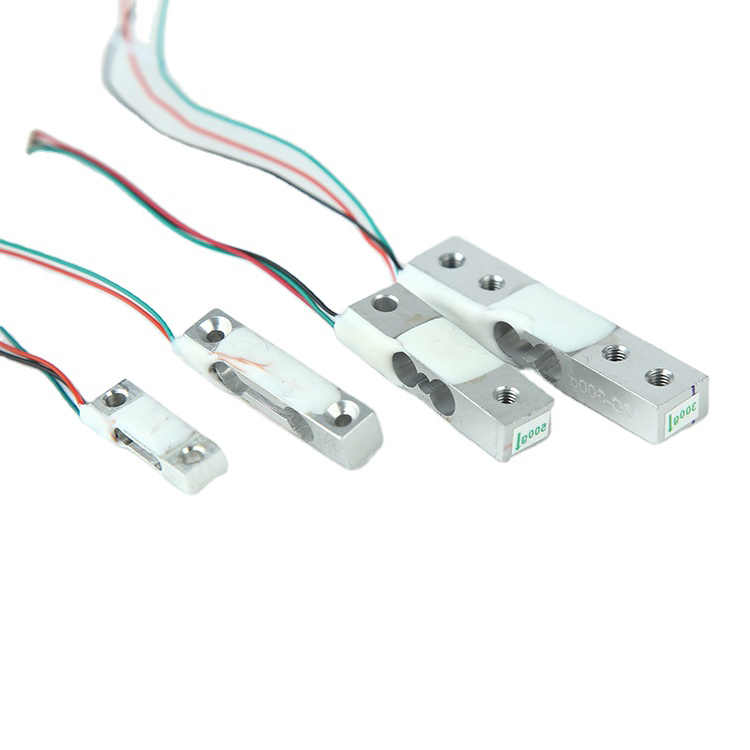

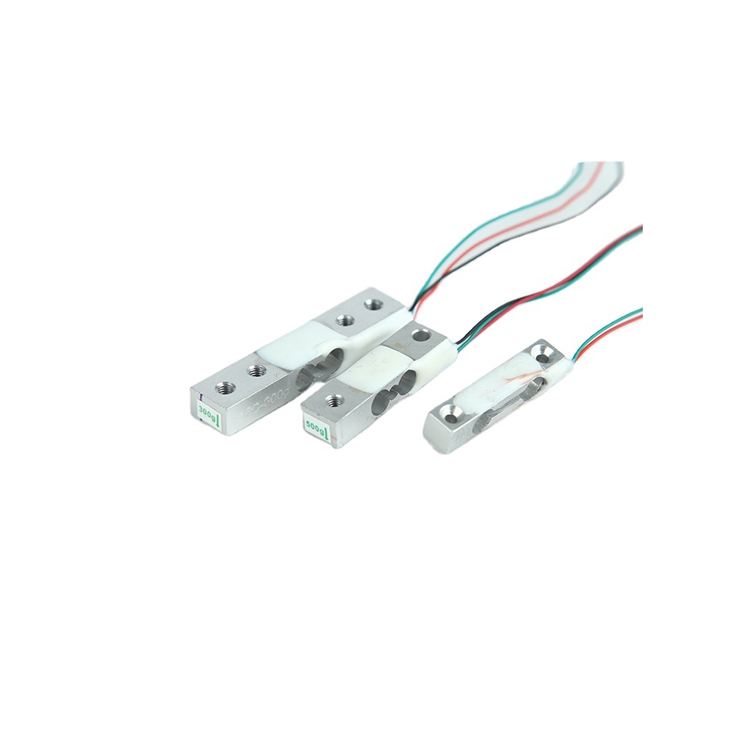

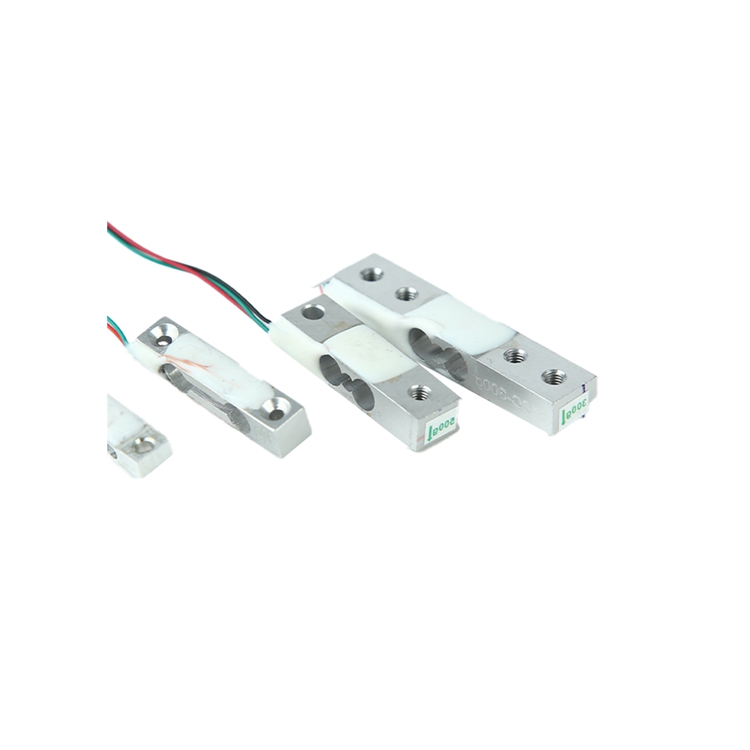

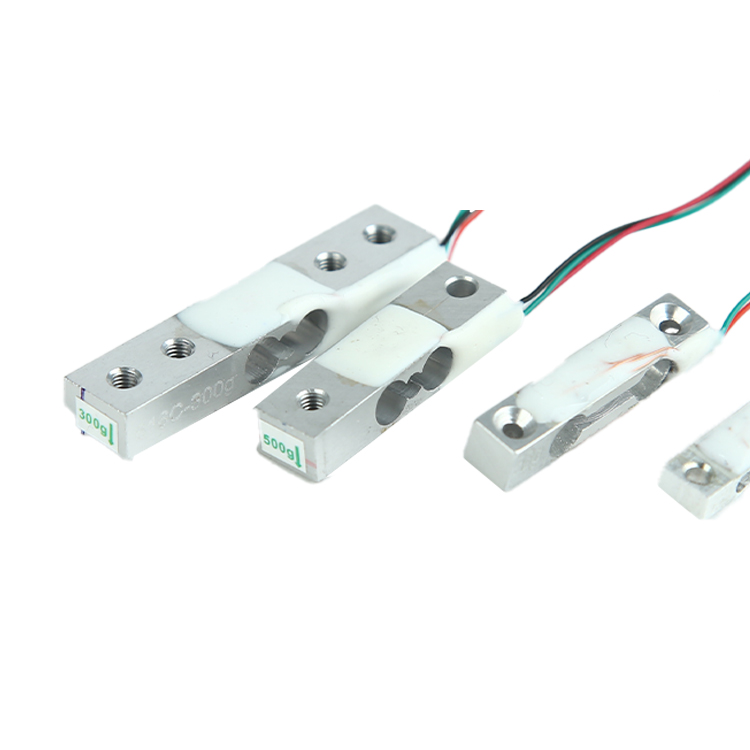

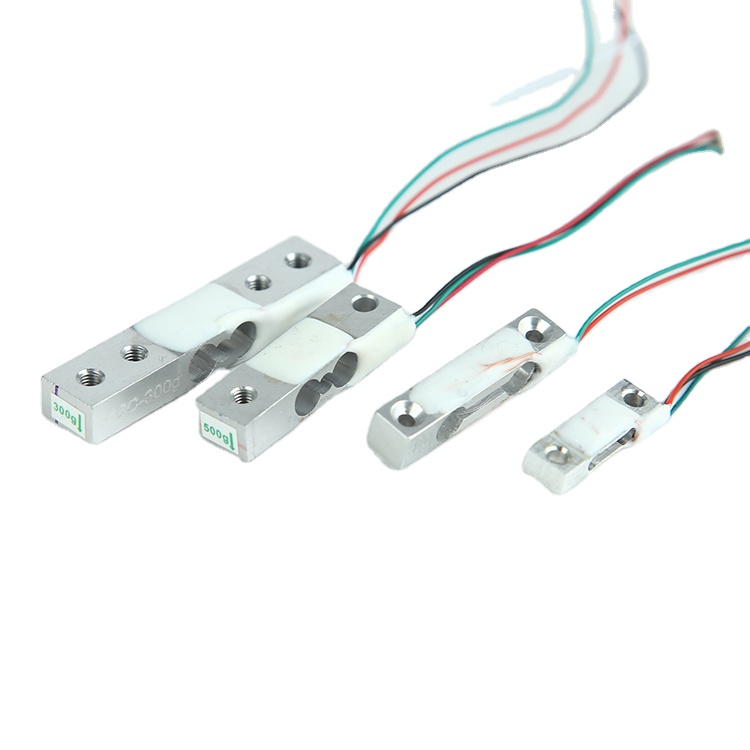

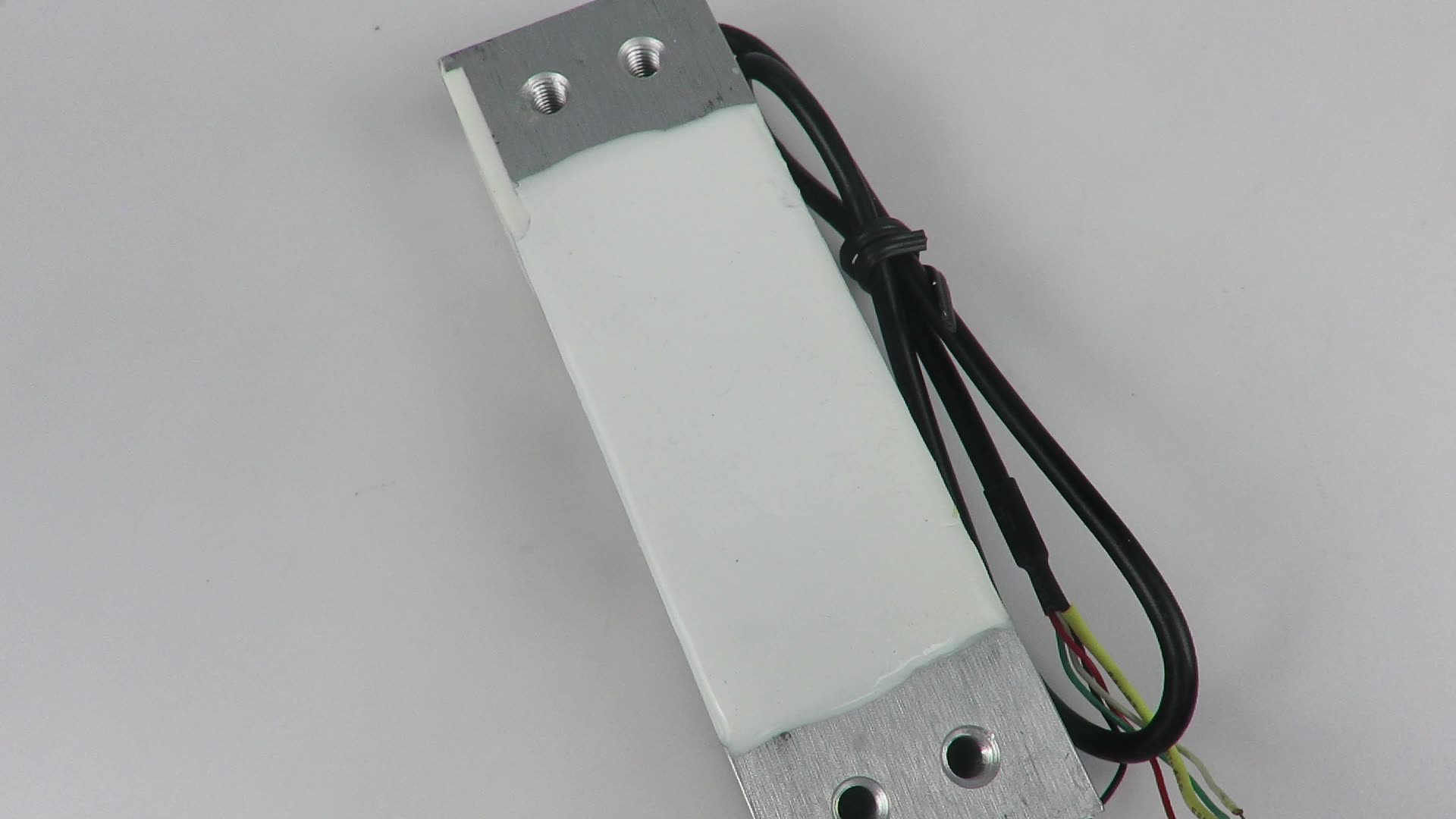

Mini Compression Load Cell

A mini compression load cell is a type of load cell specifically designed to measure compression forces in small-scale applications. These load cells are compact in size, making them suitable for environments where space is limited or where measurements need to be taken in tight spaces.Mini compression load cells typically offer high accuracy, excellent sensitivity, and reliable performance despite their smaller size. They are commonly used in various industries and applications, including laboratory testing, research and development, small-scale automation, and handheld force measurement devices.

These load cells can be found in a range of capacity options to suit different load requirements. They are often constructed using high-quality materials and advanced engineering techniques to ensure durability and long-term stability. Additionally, mini compression load cells may feature built-in overload protection mechanisms to prevent damage from excessive loads.

Product Specifications

Precision	C2	Load cell materia	Aluminium
Comprehensive error(%F.S)	±0.02/±0.017	Plafform size	150*250
Rated output(mv/v)	1.0±0.2	COnnecting  coble	?0.6*220mm
Creep(%F.S/30min)	±0.02/±0.017	Temp. effect on span(%F.S/10℃)	±0.02/±0.014
Zero balance(%F.S)	±1.0	Temp. effect on zero(%F.S/10℃)	±0.03/±0.017
Input resistance(Ω)	1000±10	Compensated temp. range(℃ )	-10~+40
Output resistance(Ω)	1000±3	Use temp. range(℃ )	-20~+60
Insulation resistance(MΩ)	≥5000(100VDC)	Excitation voltage(V)	9~12(DC)
