PRODUCT FEATURES:

• Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
• Wide Input Voltage:9-60V DC.
• GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback.
• Keelin Tracking Service Platform, Keelin APP Client, SMS query
• Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
• Supports ACC status checking and vehicle status notifying.
• Use relay to remotely control the vehicle.
• Multiple protocol support, can be integrated to platform of customers
  OTA upgrade firmware.

Typical application areas : logistics enterprises, fleet management, bus management, insurance, power, oil, telecommunications, taxi, car sales, car rental, vehicle maintenance, technology researchers.

If you are finding GPS Tracking Device for Cars , Real Time GPS Tracking Device for Cars , Hidden GPS Tracking Device for Cars , GPS Mini Tracker, TK115 is your best choice .

PLATFORM/APP:

• Real-time Tracking
• Route Play back
• Cut Oil (Need Relay)
• Vibration Alarm
• Collision / falling Alarm
• Speed Alarm
• Geo-fence Alarm

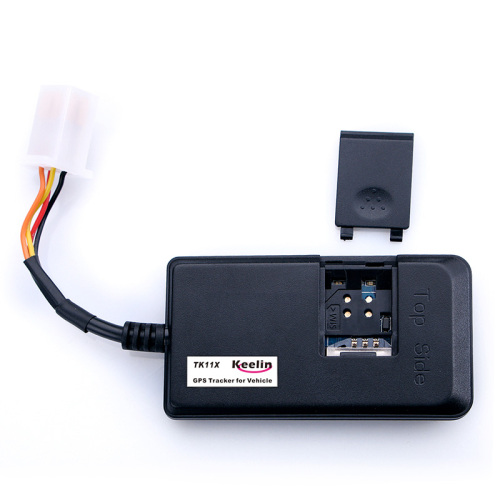

PRODUCT PICTURE:

4.2.1 Power cables and other interface for remote control
The standard input voltage of the terminal is 9V-60VDC, so please choose the our original power cables, the red cable is positive and the black cable is negative; Please ground the positive pole separately or ground it to ground connection, not to any other ground.
Connect the ACC cable (orange cable) to ACC switch of the vehicle, then the position server can get the information about the vehicle power; the ACC cable can also be connected directly to the positive pole of the vehicle power, then the position server think that the vehicle is always ignited.
Connect the 4# cable (yellow cable) to the 86 terminal(with small yellow cable) of the relay. Use cable ties to fix the relay to waterproof place, or use plastic bags to cover the relay..

4.3 Relay wiring
Relay wiring diagram shows how to wire the relay to control the fuel pump:
4.3.1 Connect the 85 terminal(with small white cable) to the positive pole of the vehicle power, connect the 86 terminal(with small yellow cable) to the 4# cable of the terminal.
4.3.2 Cut off the positive pole of the fuel pump, next serial connect the positive pole to the 87a terminal(with think green cable) of the relay, and connect another pole to 30 terminal(with think green cable), showing as in the figure.

Bottom of the relay Wiring Diagram
Notice: Be sure that the voltage of the vehicle power should match up to the working voltage of the relay, or the relay will be damaged.

Keelin terminal monitoring platform is designed by EELINK, we can track, playback the device on the platform server.

Scenarios:

Intallation:
