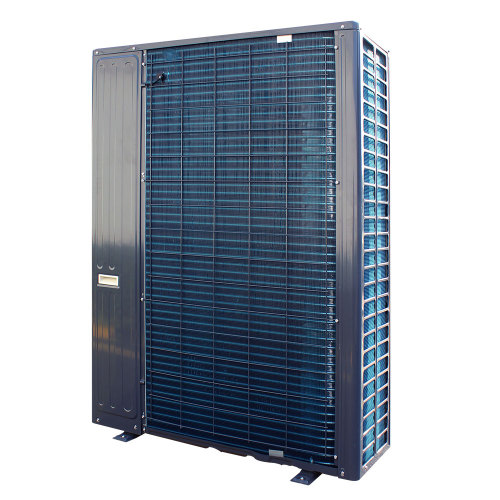

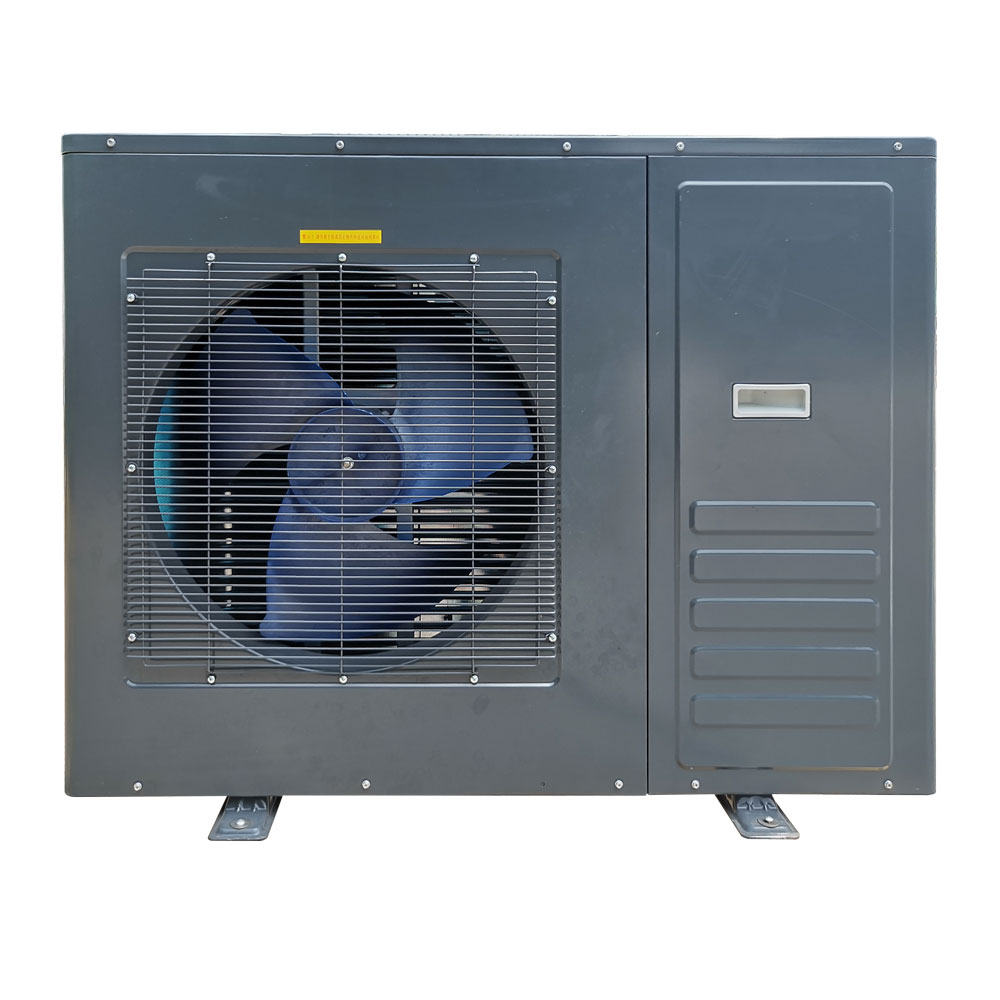

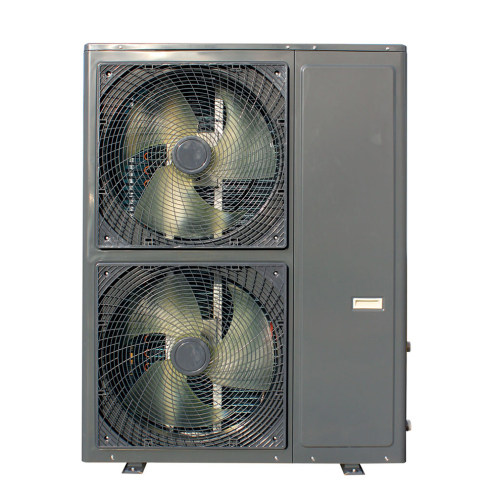

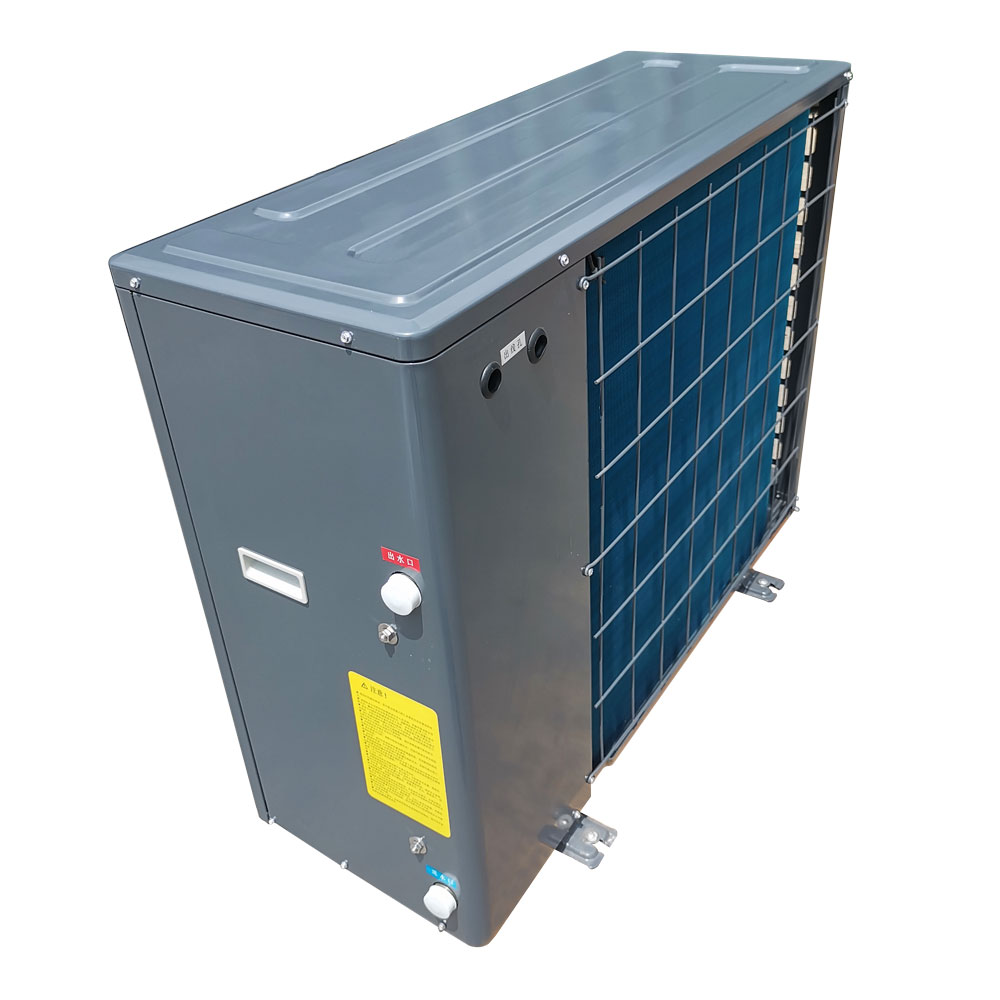

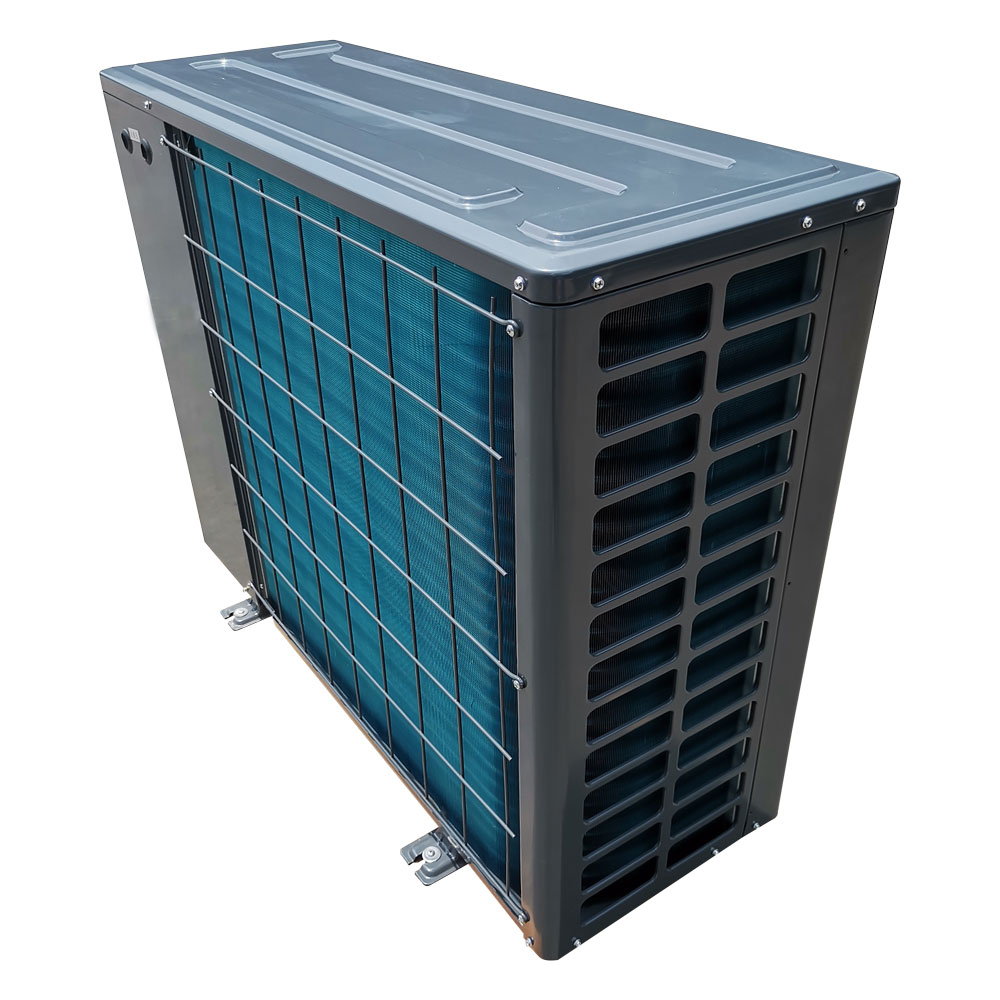

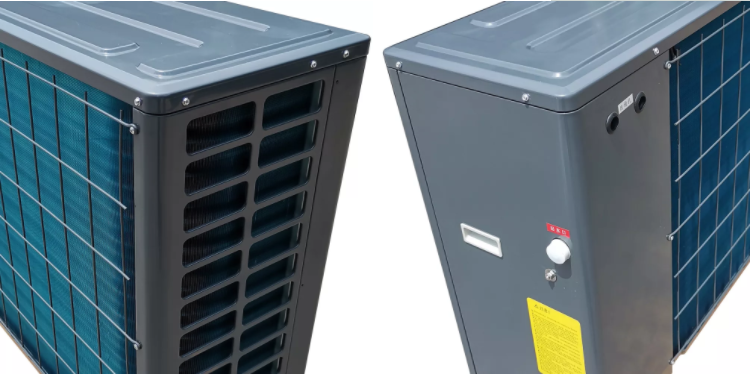

Mini Split Swimming Pool Heat Pump Mitsubishi
Color:
Basic Info
| After-sales Service Provided | Free spare parts, Return and Replacement, Field maintenance and repair service |
|---|---|
| Warranty | 2 Years |
| Application | Hotel, Commercial, Household |
| Power Source | Electric |
| App-Controlled | Yes |
Product description
Ultra-Low Temperature Air Source Heat Pump for Home-Use
Ultra-low operating temperature: as low as -30 ℃.

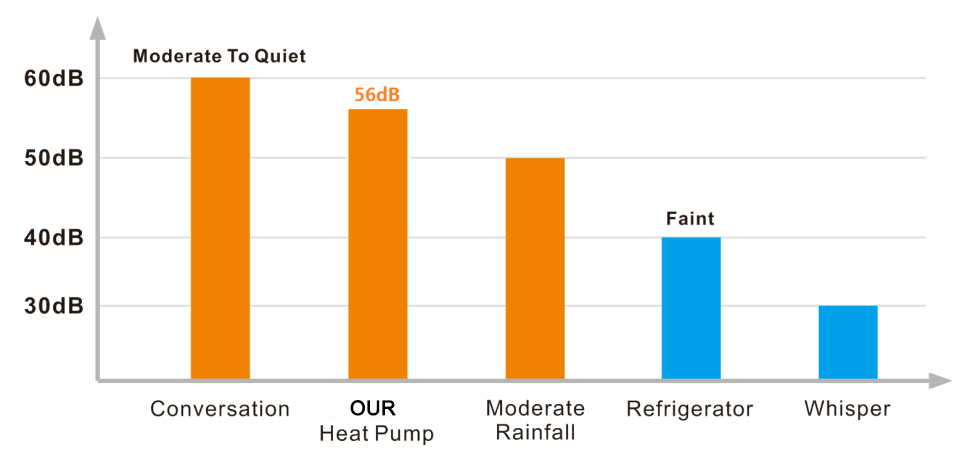

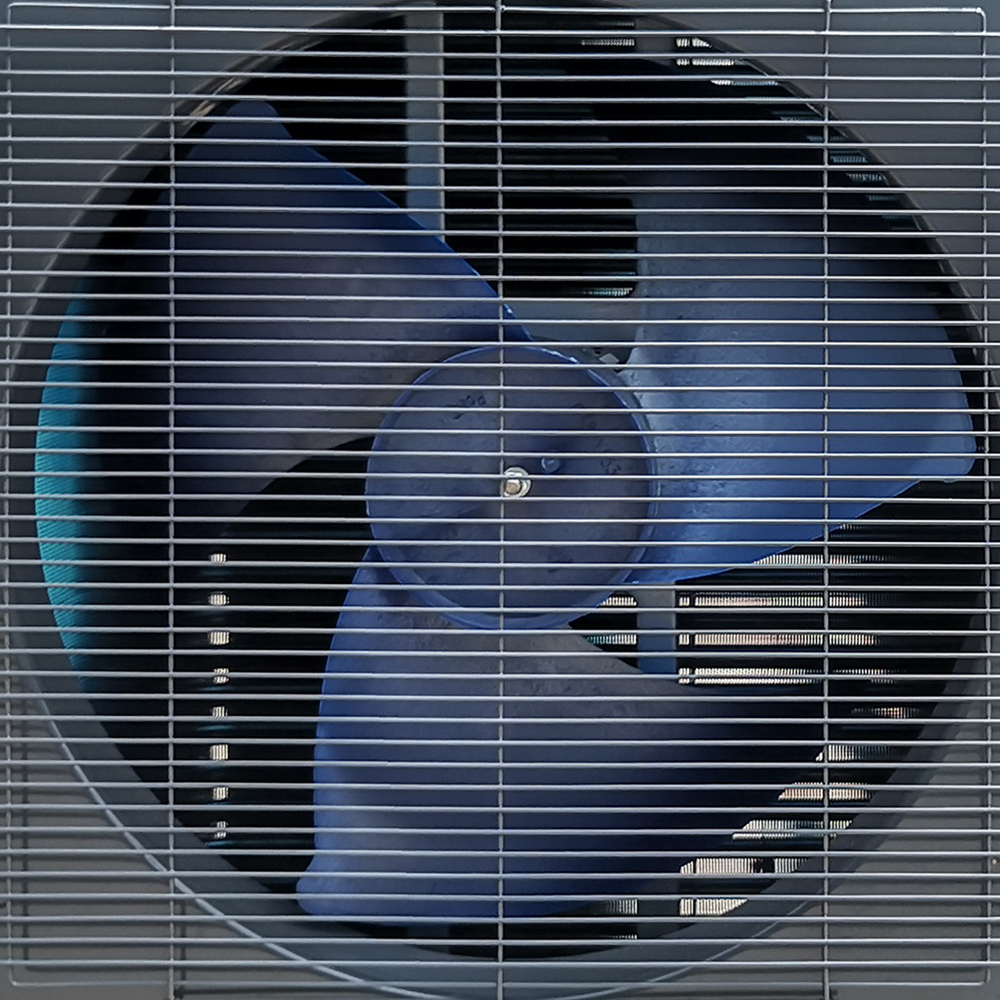

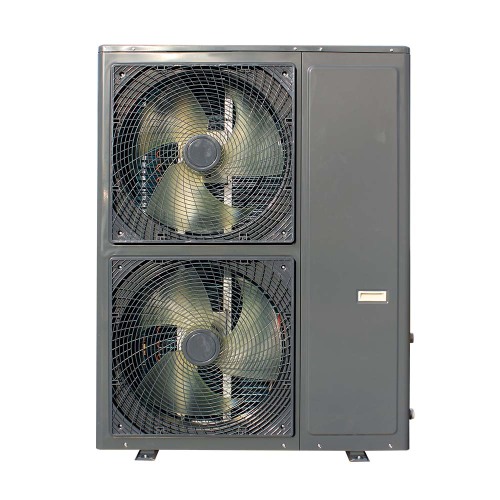

The machine uses double vibration reduction technology, equipped with brushless DC EVI fan
and compressor to reduce the noise.

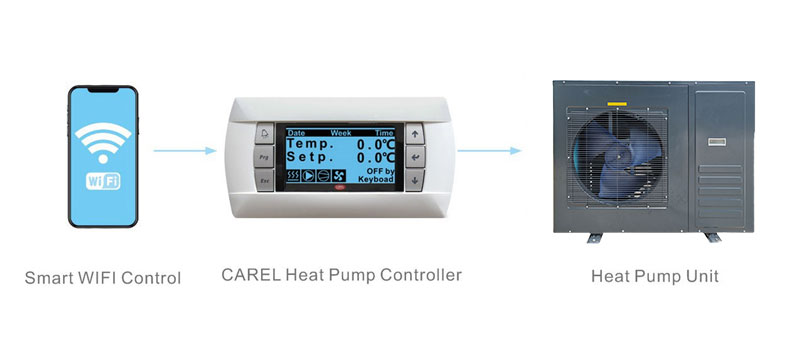

CAREL WIFI REMOTE CONTROLLING SYSTEM
Controlling Temperature by Your Fingertips
|
Model No.
|
020H-BPLNDW
|
030H-BPLNDW
|
050H-BPLNDW
|
060H-BPLNDW
|
080H-BPLNDW
|
100H-BPLNDW
|
|||||
|
Max Power（kW）
|
3.32
|
3.32
|
5.54
|
6.64
|
8.29
|
11.07
|
|||||
|
Max Electricity（A）
|
9.2
|
15.1
|
25.17
|
30.2
|
37.68
|
21.99
|
|||||
|
Water Temp.（℃）
|
50
|
||||||||||
|
Max Water Temp.（℃）
|
55
|
||||||||||
|
Power Supply（V/Hz）
|
220V/50Hz
|
3N 380V/50Hz
|
|||||||||
|
Operating Ambient Temp.(℃)
|
-30℃-43℃
|
||||||||||
|
Heat Exchanger
|
High Efficiency 316 Stainless Steel Plate Heat Exchanger
|
||||||||||
|
Refrigerant
|
R32
|
||||||||||
|
Minimum Noise dB(A)
|
49
|
52
|
52
|
52
|
58
|
65
|
|||||
|
Water Pressure of inlet and outlet unit （kPa）
|
40
|
||||||||||
|
Circulating Water Volume（5℃ temp. difference） （m3/h）
|
1.1
|
1.55
|
2.63
|
3.07
|
4.09
|
5.12
|
|||||
|
IP Level
|
IPX4/I
|
|
|||||||||
|
Tube Size（mm）
|
DN25
|
DN32
|
|||||||||
|
Weight（kg）
|
100
|
106
|
140
|
155
|
180
|
230
|
|||||
|
Dimensions（mm）
|
1050*370*14001160*420*860
|
1050*370*1400
|
1050*370*1400
|
||||||||
|
Installation Dimensions（mm）
|
800*430
|
800*430
|
800*380
|
800*380
|
800*380
|
800*430
|
|||||

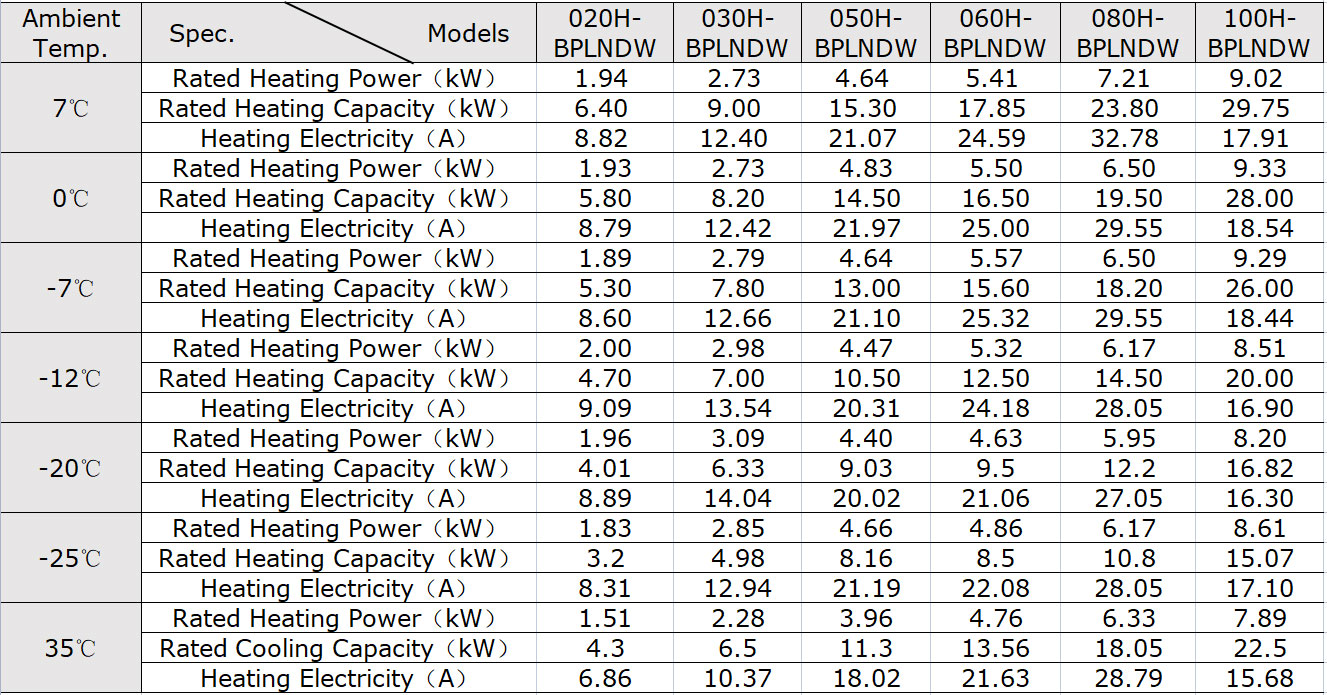

References Based on Different Ambient Temperature
