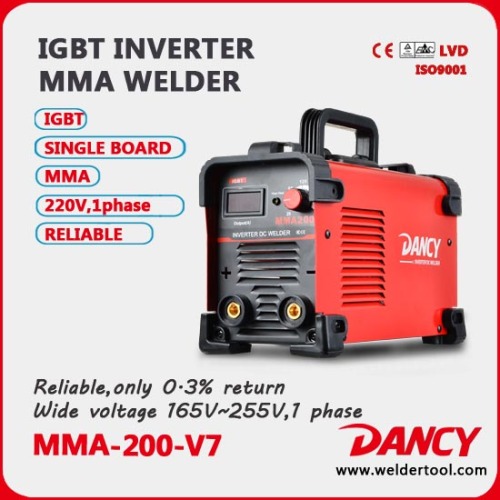

mma-200 single phase portable arc welding machine
mma-200 single phase portable arc welding machine
mma-200 single phase portable arc welding machine
mma-200 single phase portable arc welding machine

1 / 4

mma-200 single phase portable arc welding machine

Get Latest Price

Basic Info

Model No. MMA 200
Brand Name Dancy
Type ARC Welders
Current Direct Current
Model ZX7
Application Container
Warranty 2 Years
Features Reliable,easy Welding,lower Broken Percent
Wide Voltage Workable 165V-265V
Weld Material Carbon Steel,Aluminium,Copper,Stainless Steel,
Technology Inverter IGBT Arc Welding Machine
User Home Use And Fabricator Use
Operation Simple And Easy
Manufacture Yes
Input Voltage 220V±15% (Single Phase)
Electrode Diameter 1.6mm-5.0mm
Show More

Product description

mma-200 single phase portable arc welding machine

mma-200 single phase portable arc welding machine

Advantage:Reliable,easy and simple welding,competitive  price

  1. The main components are designed to put far away from the wind crossing,they are protected against dust.
  2. Frequency is up to 65KHZ,responding faster and accuracy.
  3. Apply SAP technology,protect IGBT and DIODE sharply.We have applied patent for it.
  4. High-power radiator components is settled,high efficiency cooling,extends machines' working life.
  5. We found out 95% of the machine broken because of IGBT damage at short circuit.We apply SAP technology,the voltage drop automatically while machine get short circuit.The reliability of IGBT improve greatly and avoid explosion.
  6. Very high and reliable quality.

Affordable,Light Weight,Extremely small package

  1. Perfectly suitable for home use and fabricator use, portable,manual electrode arc welding.
  2. Excellent performance,simple operation,small package,designed to serve the purpose of household maintenance welding job.

Characteristic

  1. Do it yourself in your home with the way you like.
  2. IGBT Technology, the core adopts advanced IGBT inverter device.
  3. Intelligent Protection, over loading or over heating.
  4. Self-adaptive Arc Force, makes welding much easier.
  5. Anti-Stick, Hot Start, ensures easy removal of the electrode.
  6. Stable & Reliable performance, makes welding enjoyable.
  7. uto compensate voltage fluctuation, takes wider voltage inputs

Product range base on this technology

125amps,145amps.160amps,180amps,200amps,250amps

Technical specification

Model
ARC-180
ARC-200
ARC-250
Input voltage
220V±15% (Single phase)
Input voltage Frequency
50/60Hz
Rated Input power capacity(KVA)
5.7
6.5
8.3
Rated input current(A)
25.9
29.5
34
No-Load voltage(V)
65±5
65±5
65±5
Output current range(A)
20-180
20-200
20-250
Rate output voltage(V)
27.2
28.0
29.6
Duty-cycle at 40℃
60%
Efficiency
≥85%
Insulation class
F
Diameter of Rod
2.5-5.0
Protection class
IP21S
Packing size(MM)
310X200X206
Container Loading 20FT/ 2250PCS ,40FT/4500PCS, 40FT /4800PCS

Circuit board

mma welder V7 model machine inside

Welding Machine case option

FAQ:

Q:Are you a factory or a trading company?
A: We are factory with more than 10 years manufacturing experience and we provide perfect OEM and after-sale service.

Q:How can I pay my order?
A: We accept T/T, Western Union, Alibaba Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.

Q:How about your warranty?
A: We offer 2-year product life guarantee ,and a generous 1 year warranty on al purchases that begins with the bill of lading.

Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.

Q:How can I get the quotation?
A: We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price,please send the message on trade management or call us directly.
