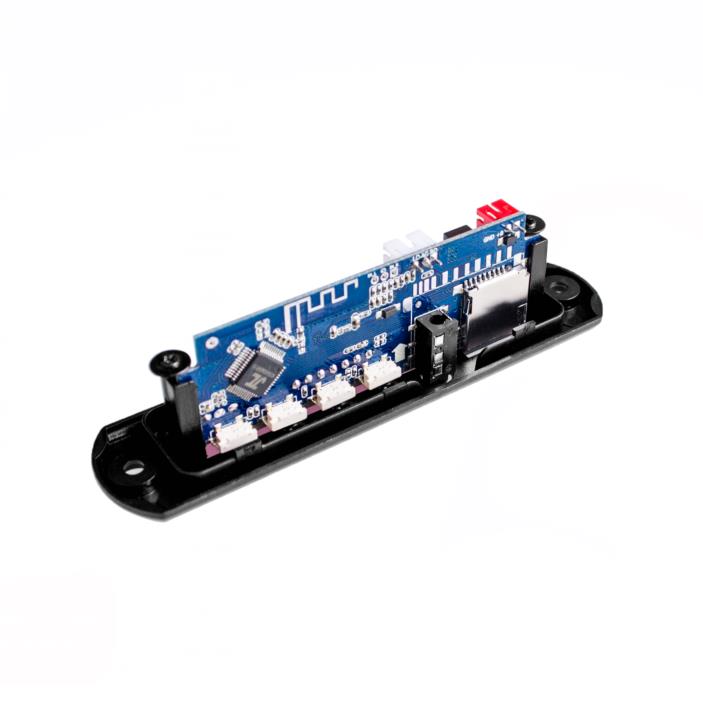

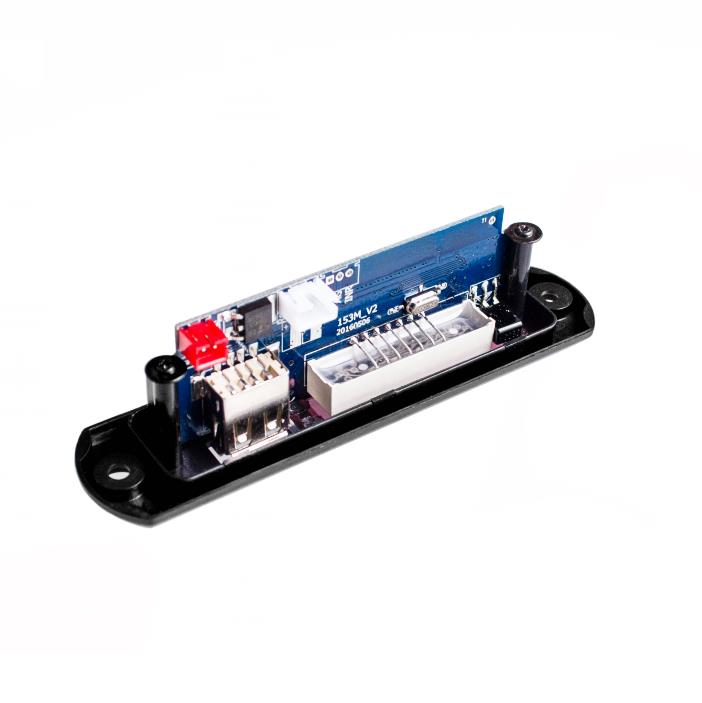

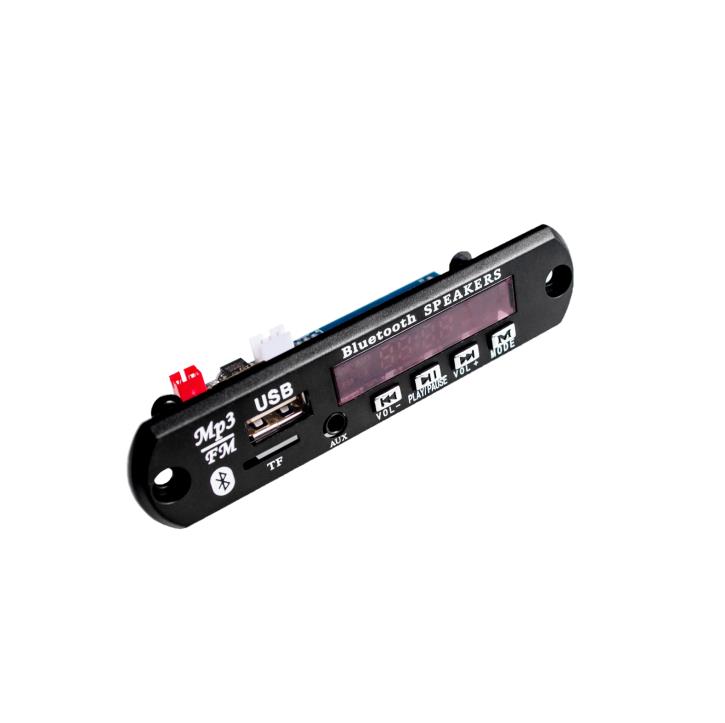

MP3 Decoding Board Module w/ SD Card Slot / USB 2.0 Port / FM / Remote

?

?

- Color: Black + white

- Display Mode: Single cycle and repeat all switch, it is repeat all as opening

- Menu Language: English

- Display Size: 1.5"

- Memory Card Type: SD

- Max Extended Capacity: 8GB

- Audio Formats: MP3 / WMA

- Tuner Bands: FM

- FM Frequency: 85~108MHz

- Other Connections: 1 x USB 2.0 / 1 x SD card slot

- Power Supply: 12V

- Voltage: 7~12V

- The interval between installation hold: 90mm

- Supports external signal switch directly

- Supports wirelss 3.0 EDR

- Supports USB / SD card / wirelss / FM / Line auto switch

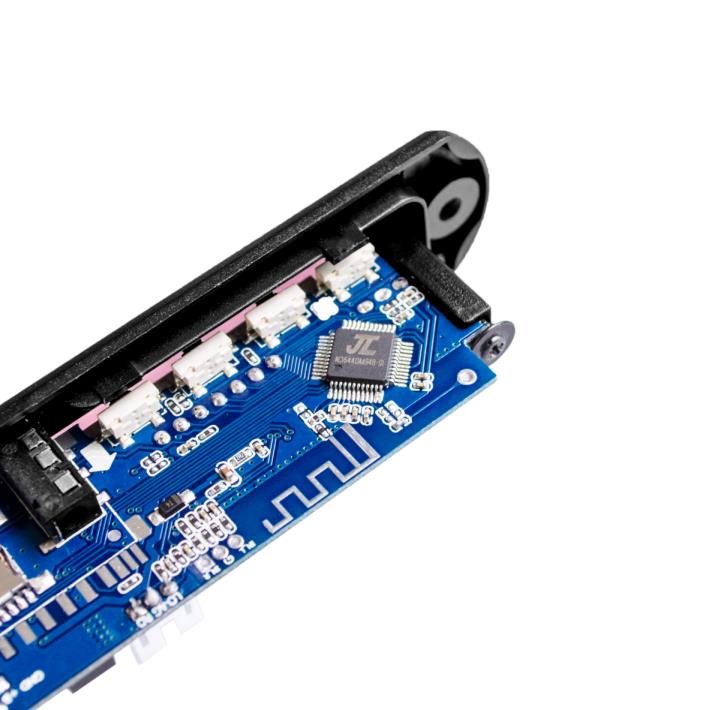

- Built-in MP3 / WMA song decoding chip

- Supports play from USB / SD card / MMC card

- Supports USB / SD card switch PREV / next / fast forward / fast reverse / volume adjustment / play / pause / single cycle / mute / shut off / direct Selection song

- Supports wirelss PREV / next / fast forward / fast reverse / volume adjustment / play / pause / single cycle / mute / shut off

- Supports FAT 16 / FAT 32; Supports MP1 layer / MP2 Layer / MP3 Layer

- Supports 32~320Kbps MP3

- Supports power cut memory function: Remember the song and the volume before power cut

- Working voltage: 12V; Current: 800mA~1A

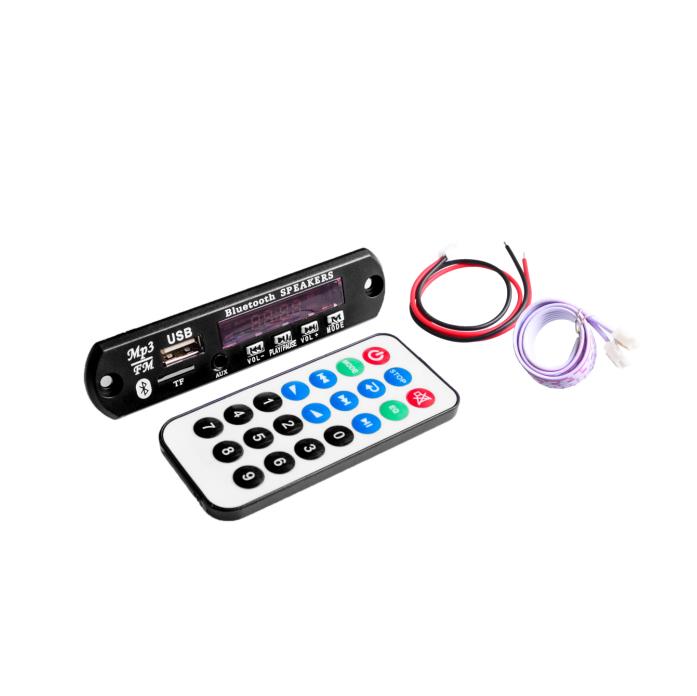

- Including panel + decoder + remote control + 2-pin plug wire with reverse voltage protection + 3-pin audio plug wire

- Packing List:

- 1 x MP3 decoding board

- 1 x Remote control (1 x CR2025 battery, included)

?

?

?

?

?

?

?

?

?
