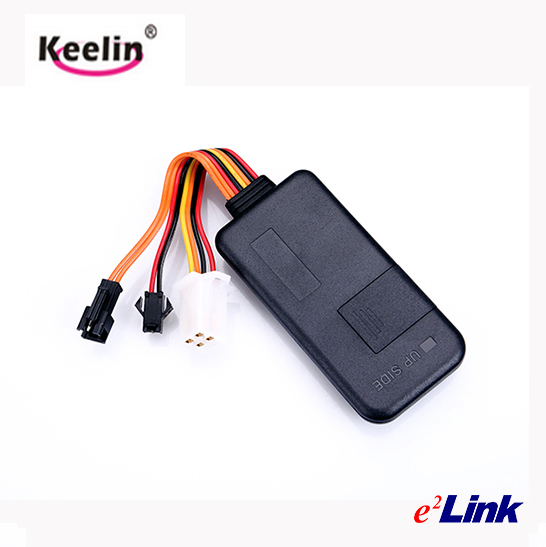

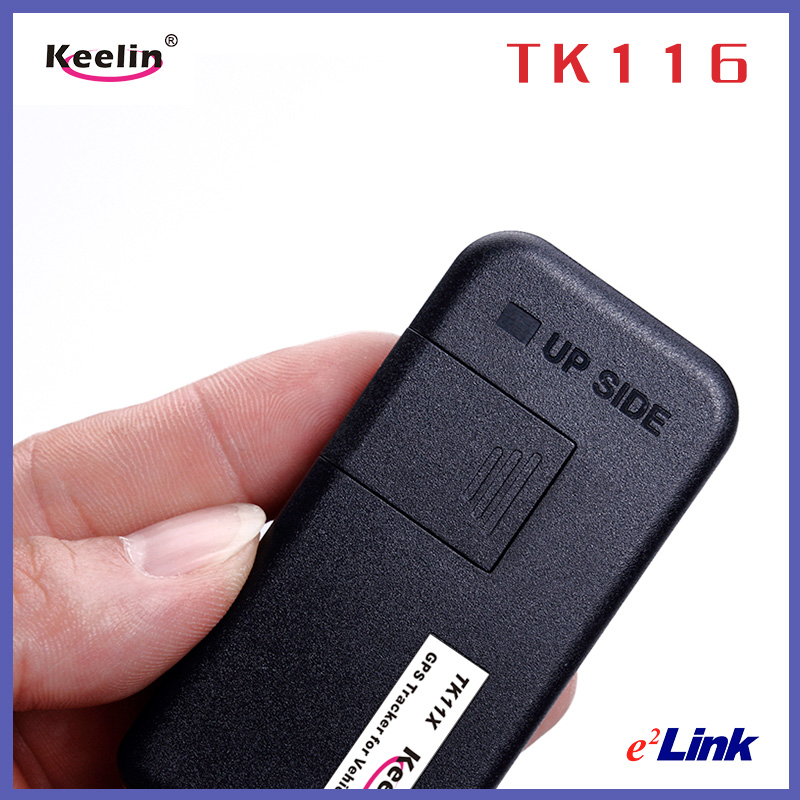

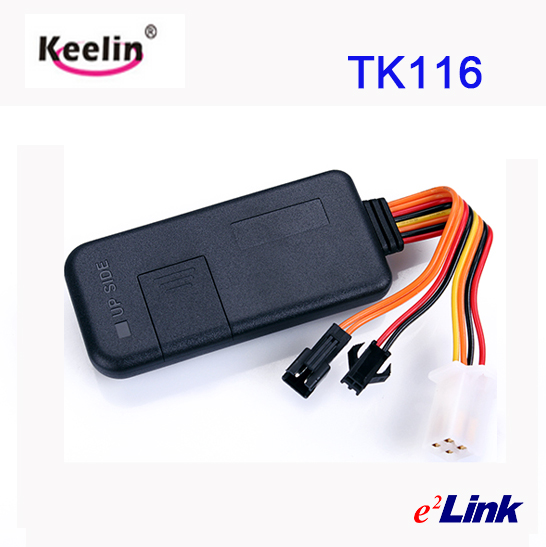

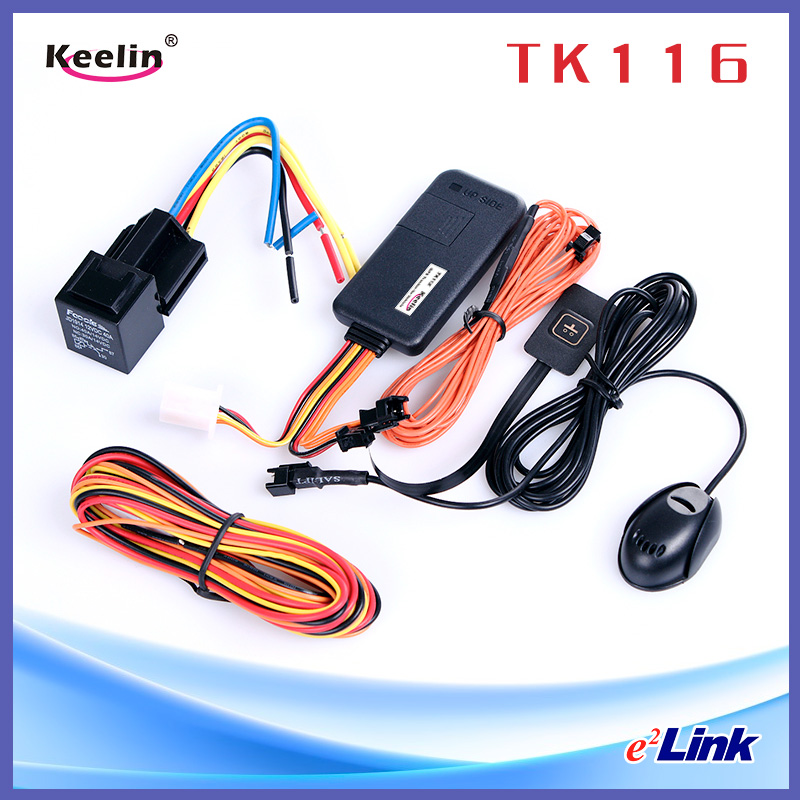

GPS tracker for Car TK116 has a wide range of industrial and commercial application.It can be hidden in the car to avoid found.It is multi-functional GPS tracker which can meet requirements of clients.SOS, Mic, relay is optional if the customer needs.

SOS- call for help.

Mic- listening what is happening inside the car.

Relay- remotely cut off oil.

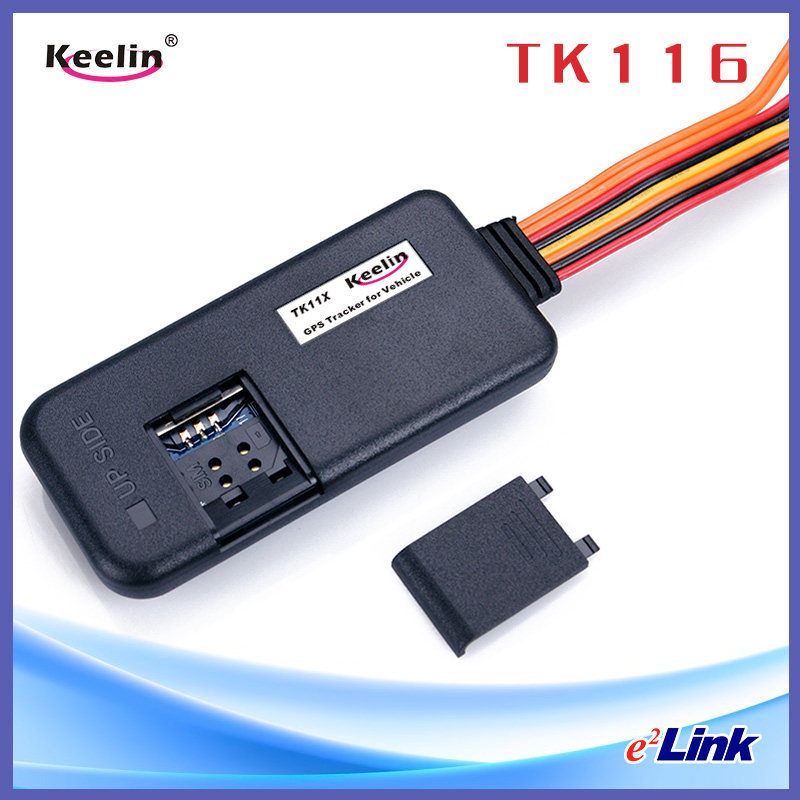

Eelink GPS tracker for car is based on GSM/GPRS network and GPS global positioning system for precise position of vehicle,valuables,children, assets.Each GPS tracker need to install smart SIM card. The SIM card receive signals from satellites per 30 seconds( Timer could be set) and transmit signals by GSM/GPRS network to our server. User could view the real time location and historical route of vehicle on google map by web browser/ mobile android /iOS APP, SMS.

PRODUCT FEATURES:

■ Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
■ Wide Input Voltage:6-36V DC.
■ GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback.
■ Keelin Tracking Service Platform, Keelin APP Client, SMS query
■ Built-in battery, Power disconnect alarm & Low battery alarm.
■ Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
■ Supports ACC status checking and vehicle status notifying.
■ Relay to remotely control the vehicle..
■ SOS button for SOS call.
■ MIC to remotely monitor.
■ Multiple protocol support, can be integrated to platform of customers
■ OTA upgrade firmware.

PLATFORM/APP:
■ Real-time Tracking
■ Route Play Back
■ Cut Oil (Need Relay)
■ SOS Alarm (Need SOS Cable)
■ Listen (Need Microphone)
■ Vibration Alarm
■ Collision / Falling Alarm
■ Speed Alarm
■ Geo-fence Alarm
■ Power Disconnect Alarm
■ Low Battery Alarm

FUNCTION EXTENSION:
■ 1. Default interface: Microphone input port for remote monitoring
■ 2. Can be extended: ADC input port , used for temperature and oil detection
■ 3. Can be extended: External lithium battery port ,used for High capacity battery

■ 4. Can be extended: UART expansion port (TTL level), RS232 serial port expansion application

Hardware Specification
Communication System	GPRS/GSM
Frequency	GSM 850/900/1800/1900MHz
Networks	GPRS
Output Power	Class 4 (33dBm ±2dB) for GSM 850/900MHz
	Class 1 (30dBm ±2dB) for GSM 1800/1900MHz
Receive Sensitivity	-106dBm/GSM 900MHz,GSM 1800MHz
GPS
GPS Chip	MTK high sensitivity GPS chip
Frequency	L1,1575.42MHz C/A code
Channels	66
Location Accuracy	<10 meters
Tracking Sensitivity	- 165dBm
Acquisition Sensitivity	- 148dBm
Location time	Hot start:≤2sec(open sky)
	Cold start:≤35sec(open sky)

Parameter of GPS tracker for car TK116

Voltage	12VDC/24VDC/36VDC
Work current	<30mA@12V
Standby Current	<10mA@12V
GPS positioning accuracy	5-15m
GSM Positioning Accuracy	About 200 m
GPS Frequency	1575MHz
GSM Frequency	850/900/1800/1900MHz
Hot/Warm/Cold Start time	<3s,<15s,<60s
Battery Capacity	20mah
Dimensions (mm)	79.5(L)X38.5(W)X13.5(H)
Operating Temperature	-20℃~70℃
Operating Humidity	20%~80%RH
Weight	45g

 Warranty period
Since the date of purchase, passive waste host has one year warranty.
 After sales
Any of the following circumstances not covered by the warranty, but may be appropriate to pay repair:
1)More than the warranty period.
2)Unauthorized removal or repair damaged.
3)Damage caused by improper installation, use, maintenance, custody.
4)The IMEI label is torn or Obscure.
5)Warranty certificate and product models do not match or warranty certificate be altered.
6)Damage caused by force majeure.

Delivery
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1,200,000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
