Basic Info

Model No.	MV08
Brand Name	A1BEST
Type	Direct-acting
Material	Cast Iron
Connection Form	Flange
Pressure	High Pressure
Actuator	Electric
Seal Surface	Wedge Gate Valve
Thread Position of Valve Rod	Outside Gate Valve
Usage	Safety
Standard	GB
Application	Household Usage

Product description

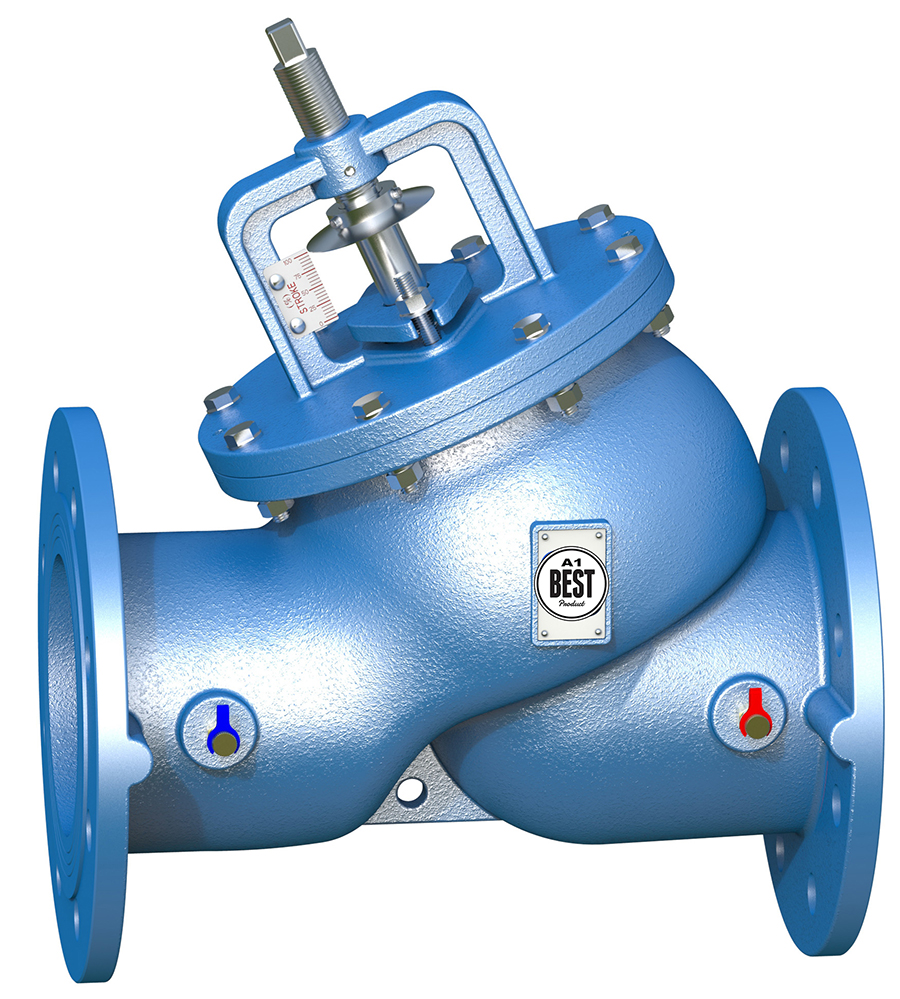

Product Name: MV08 Multi-Function Valve
Feature:
1. Horizontal or vertical installation
2. Ring seal, ensure no leakage
3. Bronze / Stainless steel trim--long service life
4. Position indicator
5. No lubrication needed
6. Metering Connections
7. Removable Cover design, easy to maintain inline

Material
Body: Ductile Iron
Cover: Ductile Iron
Stem: Stainless Steel
Disk: Ductile Iron
Spring: Stainless Steel

Pressure Temperature Rating:

Class	JIS10K/150LB/PN10	JIS16K/PN16
Working Pressure	10kgf/cm2	16kgf/cm2
Temperature	-10°C~120°C	-10°C~120°C

Size	A (mm)	B (mm)	Weight(kg)
DN50(2”)	185	210	12
DN65(2.5”)	229	240	15
DN80(3”)	250	240	24
DN100(4”)	320	310	43
DN125(5”)	370	340	62
DN150(6”)	415	370	85
DN200(8”)	500	530	150
DN250(10”)	605	610	220
DN300(12”)	725	665	370
DN350(14”)	733	715	385
DN400(16”)	990	970	450
DN450(18”)	1000	1125	550
DN500(20”)	1100	1111	680
