Multi-function Valve keeps opening basic constructs

The overall size of the multi-function Valve Job Valve is similar to that of a normal check Valve and consists of a main Valve and external accessories. Multi-function Valve Kit Main Valve includes body, pressure plate and diaphragm, large Valve plate, slow closing Valve plate, seat, stem assembly and other components. The slow closing valve plate is connected with the pressure plate and diaphragm with the stem assembly, and the diaphragm is pressed between the valve cover and the diaphragm seat, and the upward and downward movement of the diaphragm drives the slow closing valve plate up and down. The stem passes through the center hole of the large disc so that the large disc slides along the stem to a certain extent. Normally, the multi-function Valve Keeps Running the large disc against the seat under self-pressure, keeping the Valve in the closed state. Multi-function water pump control valve external accessories are installed on both sides of the valve diaphragm and the valve inlet and outlet pipe, the lower chamber of the diaphragm and the valve inlet side of the connecting pipe is provided with a control valve, filter and a special check valve.

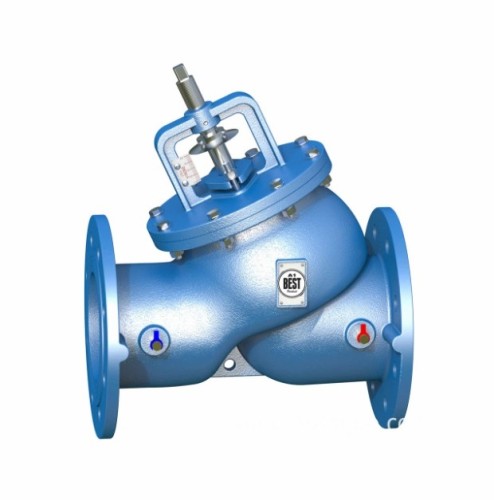

Product name: MV08 multi-function valve

Features:

1. Install it horizontally or vertically

2. Annular seal to ensure no leakage

3. Bronze/stainless steel interior - long service life

4. Position indicator

5. No lubrication required

6. Metering connection

7. Removable cover design, easy maintenance of inline material body: ductile iron cover plate: ductile iron stem: stainless steel disc: ductile iron spring: stainless steel

壓力溫度額定值：
