multi-function valve with handle

$2682.00

≥1 Piece/Pieces

Get Latest Price

You might also like

Multi Function Valve Inspection

1 Set/Sets (MOQ)

Draft of Multi Function Valve

1 Set/Sets (MOQ)

Multi Function Valve of Industrial Valve

1 Set/Sets (MOQ)

Multi Function Valve Spare Part

1 Set/Sets (MOQ)

High best quality with Multi Function Valve

1 Set/Sets (MOQ)

Multi Function Valve Vintage best

1 Set/Sets (MOQ)

Multi Function Valve Work

$2587.00

1 Set/Sets (MOQ)

Multi Function Valve Water Valve

$1692.00

1 Set/Sets (MOQ)

Multi Function Valve Parts

$1138.00

1 Set/Sets (MOQ)

Multi-function Valve with good design ppt

1 Set/Sets (MOQ)

Basic Info

Model No.
Brand Name	A1BEST
Material	Alloy
Certification	Other
Media	Other
Standard	Standard
Connection Mode	Flange
Power	Hydraulic
Type	Self-Operated

Product description

Product Name: MV08 Multi-Function Valve

Stainless steel valves are widely used in chemical, petrochemical, petroleum, papermaking, mining, electric power, liquefied gas, food, pharmaceutical, water supply and drainage, municipal, mechanical equipment supporting, electronic industry, urban construction and other fields. Valve is a control component in pipeline fluid transmission system. It is used to change the channel section and medium flow direction. It has the functions of diversion, cut-off, regulation, throttling, check, diversion or overflow pressure relief.

Feature:
1. Horizontal or vertical installation
2. Ring seal, ensure no leakage
3. Bronze / Stainless steel trim--long service life
4. Position indicator
5. No lubrication needed
6. Metering Connections
7. Removable Cover design, easy to maintain inline

Material
Body: Ductile Iron
Cover: Ductile Iron
Stem: Stainless Steel
Disk: Ductile Iron
Spring: Stainless Steel

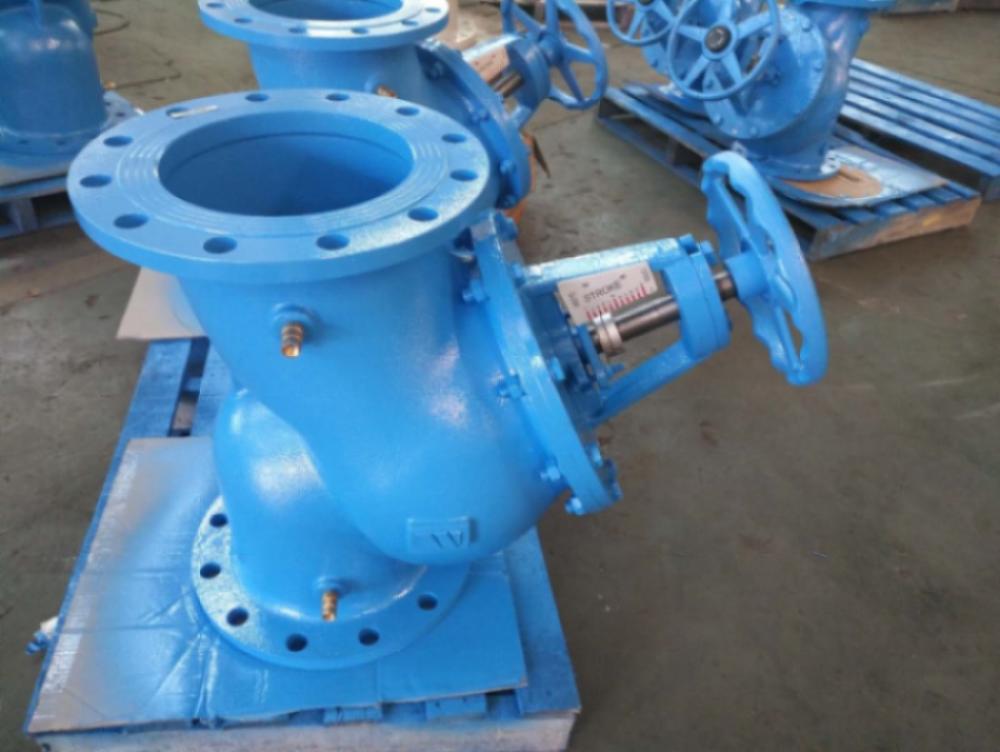

9 Jpg

Pressure Temperature Rating:

Class	JIS10K/150LB/PN10	JIS16K/PN16
Working Pressure	10kgf/cm2	16kgf/cm2
Temperature	-10°C~120°C	-10°C~120°C

Size	A (mm)	B (mm)	Weight(kg)
DN50(2”)	185	210	12
DN65(2.5”)	229	240	15
DN80(3”)	250	240	24
DN100(4”)	320	310	43
DN125(5”)	370	340	62
DN150(6”)	415	370	85
DN200(8”)	500	530	150
DN250(10”)	605	610	220
DN300(12”)	725	665	370
DN350(14”)	733	715	385
DN400(16”)	990	970	450
DN450(18”)	1000	1125	550
DN500(20”)	1100	1111	680
