· Material 304 SUS or 316 SUS of food grade for option.
· According to bag sizes requirements to replace the suitable bag former.
Search
Sign In Join Free
1 / 6

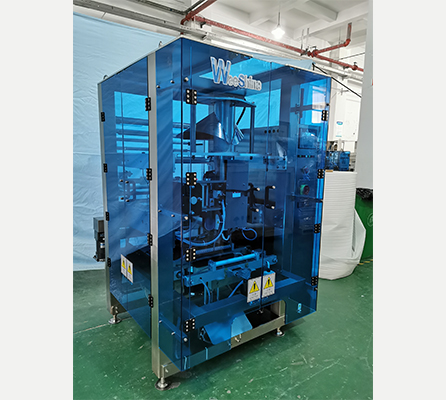

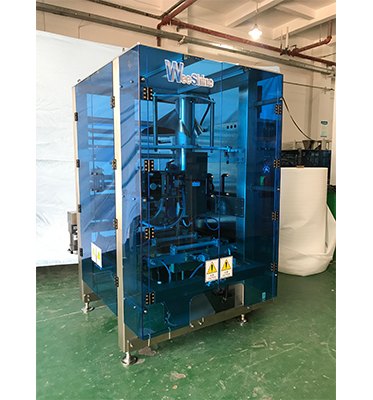

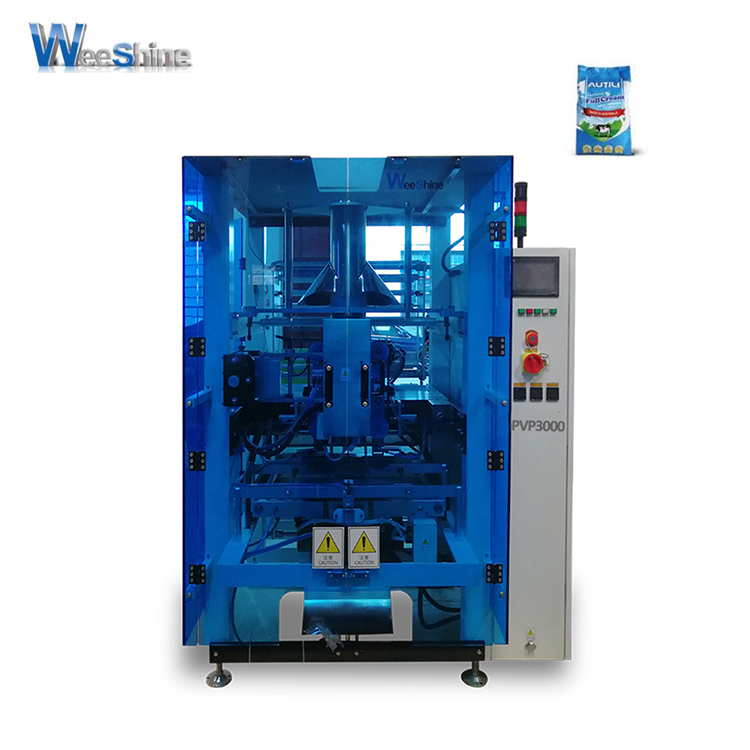

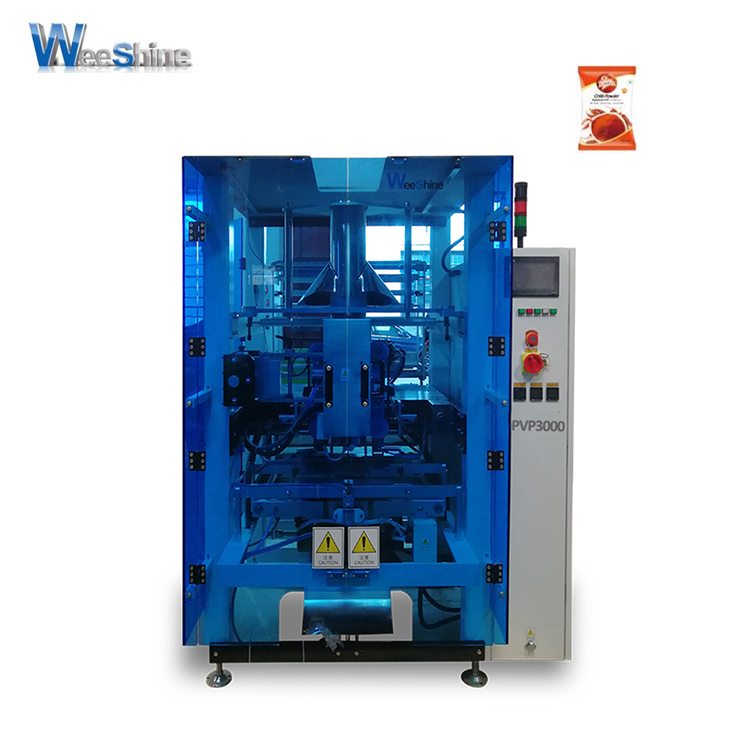

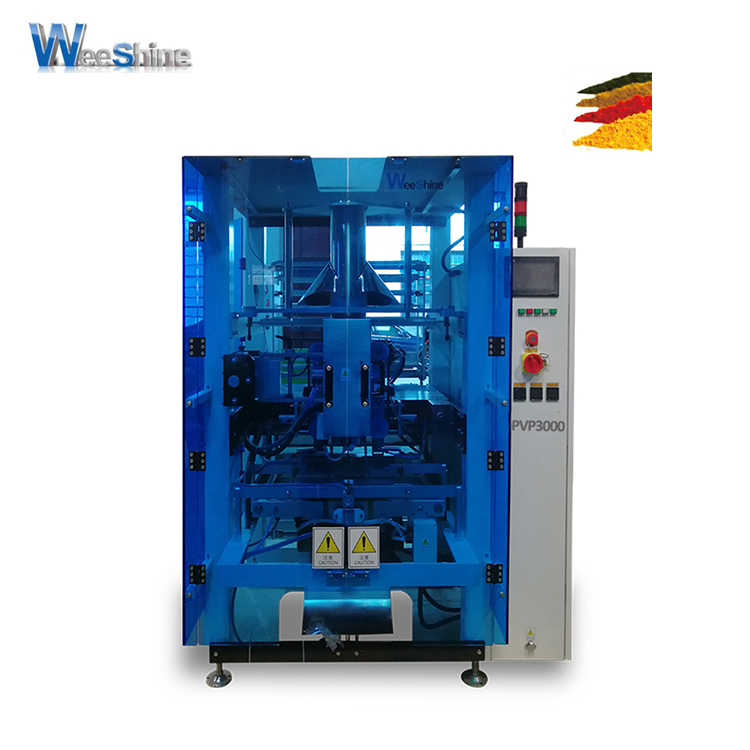

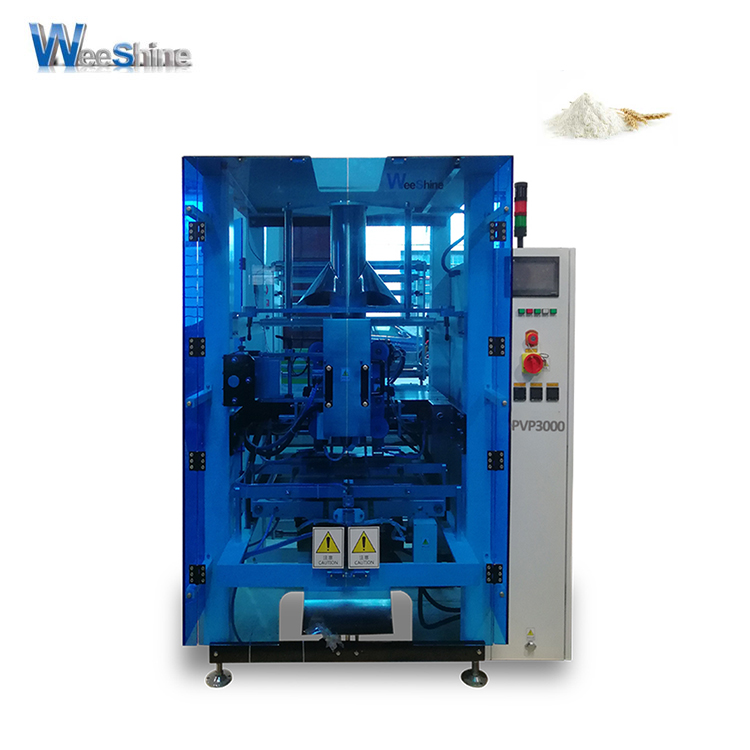

Multi-function Vertical Fill Form Auto Packing Machine
$33000.00
≥1 Set/Sets
$31000.00
≥5 Set/Sets
$30000.00
≥8 Set/Sets
power:
- AC220V,50/60HZ
Options:
- PVP3000
Get Latest Price
You might also like
Basic Info
| Type | Multi-Function Packaging Machine |
|---|---|
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Farms, Flour Industry, Snack Factory |
| After Warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service?Location | Philippines, Thailand, Malaysia, Uae |
| Showroom Location | Philippines, Uae |
Show More
Product description
Products Description
|
Model
|
PVP3000
|
|
Suitable Bag Type
|
Pillow Bag , Gusseted Bag , Quad Seal
|
|
Bag Sizes
|
(W)80-290mm
(L) 100-330mm
|
|
Film Width
|
Max620mm
|
|
Packing Speed
|
10-50bags/min
|
|
Packing Material
|
Laminated Film, PE Film for optional
|
|
Powder Supply
|
AC 3Phase 380V / 3Phase 220V, 50/60Hz,5KW
|
|
Compressed Air Cost
|
6-8kg/m3, 0.35m3/min
|
|

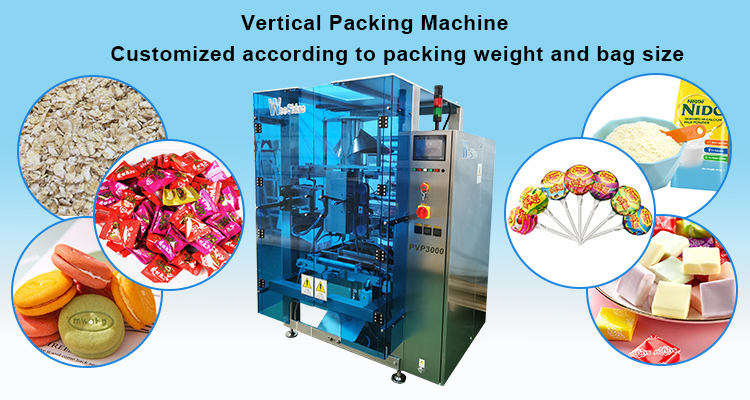

Application
|
Granular materials, such as candy, oat, chocolate, chips, snacks, biscuit, puffed food, nuts, dried fruit, frozen food, vegetable chips etc.
Powder materials, such as albumen powder, milk powder, milk tea powder, nutrition powder, spice powder,coffee powder, chili powder etc.
|
|
Weight
|
850kg
|
|
Dimension
|
(L)1800 * (W)1650 * (H)1890
|
Main Features
1.Equipped with safety protection system, company with hygiene requirements.
2.Use intelligent temperature controller to ensure the artistic and neat seal.
3.With technical parameters storage function, no need to reset while products and packages changing.
4.Equipped with a fault display system to help timely troubleshooting.
5.Form into pillow bag, gusseted bag, linked bag, according to customer requirements.
6.Use PLC servo system, double vacuum belts with servo motor drive film pulling system, servo motor drive horizontal end seal, vacuum pump system, and touch screen as a core control unit, maximize the whole machine's control precision, reliability and intelligentized level.
7.Combine with weigher system, conveyor feeding and discharging, date printing equipment to be a complete packaging line.
8. According to the requirements of customers, different materials are equipped with different measuring equipment.Such as granular material will be provide to a multi-head weigher; powder material will be provide to auger filler.
2.Use intelligent temperature controller to ensure the artistic and neat seal.
3.With technical parameters storage function, no need to reset while products and packages changing.
4.Equipped with a fault display system to help timely troubleshooting.
5.Form into pillow bag, gusseted bag, linked bag, according to customer requirements.
6.Use PLC servo system, double vacuum belts with servo motor drive film pulling system, servo motor drive horizontal end seal, vacuum pump system, and touch screen as a core control unit, maximize the whole machine's control precision, reliability and intelligentized level.
7.Combine with weigher system, conveyor feeding and discharging, date printing equipment to be a complete packaging line.
8. According to the requirements of customers, different materials are equipped with different measuring equipment.Such as granular material will be provide to a multi-head weigher; powder material will be provide to auger filler.
Application

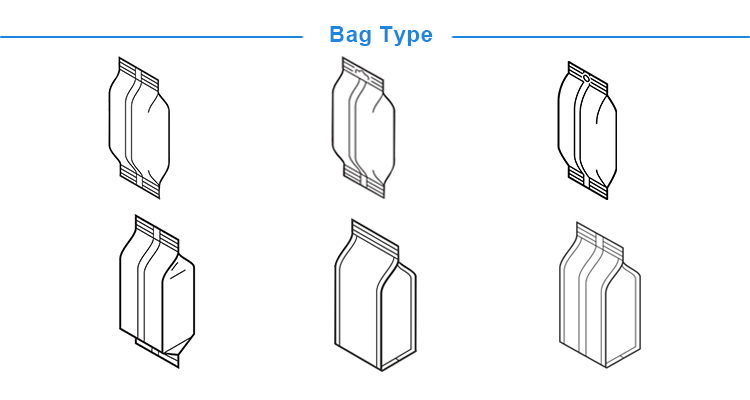

* It can be packed pillow bag, gusseted bag, quad seal bag etc. according to requirements
Details Images

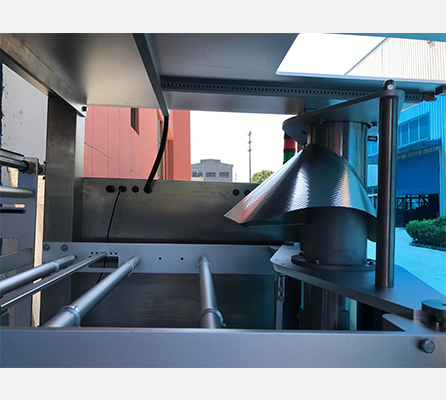

Bag Forming

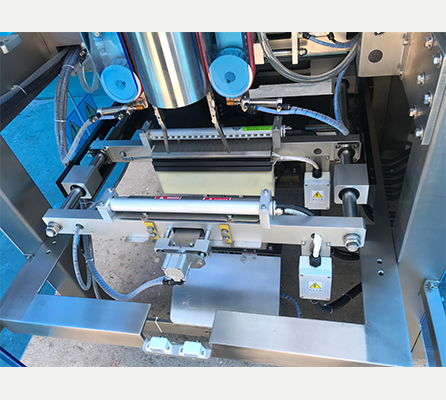

Sealing & Cutting
· Servo horizontal sealing,perfect sealing and accurate cutting.
· With option function.
Such as round hole, euro hole.

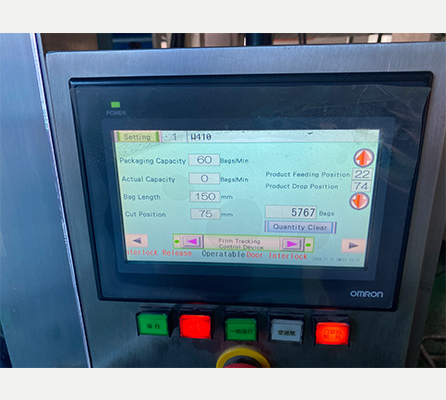

Touch Screen
· PLC control .
· Touch screen Japan Omron brand , adjustment of bag deviation in the touch.
· Data store possibility.
· Easy to operate.
· Data store possibility.
· Easy to operate.

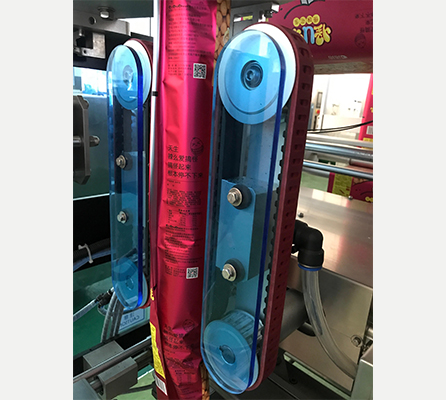

Double Belt Film Pulling
· Vacuum double belt film pulling by vacuum pump, and with better adsorption to keep the bag beautiful.
.
Vacuum Pump
· Vacuum pump for vacuum belt film drawing.

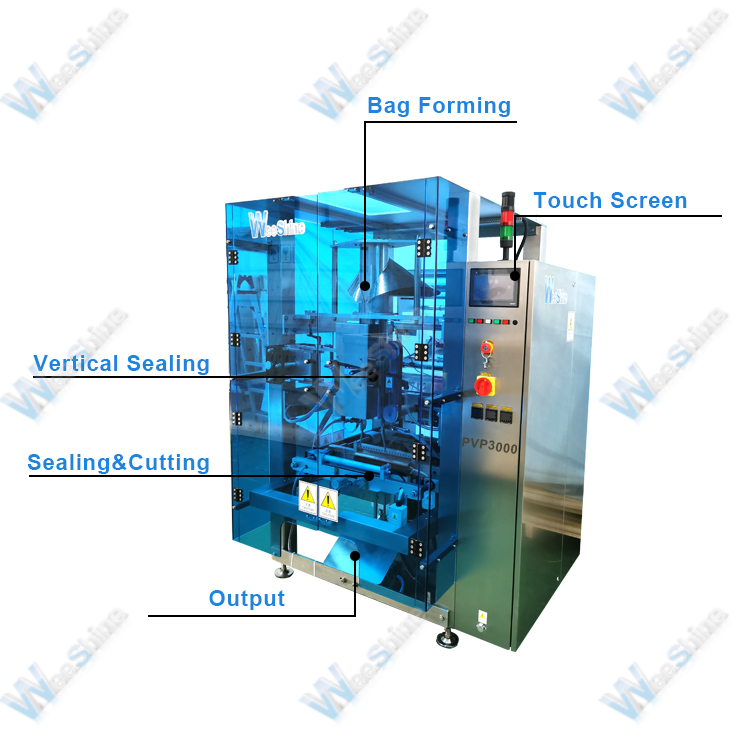

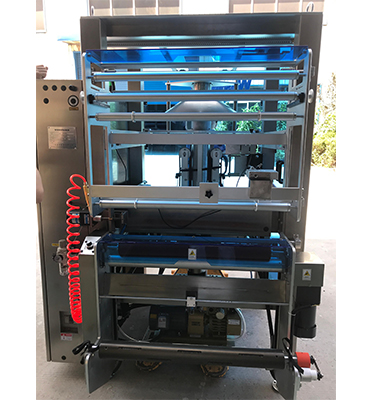

Machine Structure
· Servo drive for film pulling system.
· Servo drive end sealing.
· Servo drive end sealing.
· Vacuum pump.
· Eye mark sensor for film tracking.
· The film can be easy replaced and more intelligent.
· Eye mark sensor for film tracking.
· The film can be easy replaced and more intelligent.
Common Related Equipment
· 10/14/20 Multi-head Weigher
· Auger Filler
· Screw Lifter
· Bucket Elevator
· Platform
· Metal Detector
· Check Weigher
· Rotary Table
Packing & Delivery
Company Profile
About Us
1.A manufacturer of automatic packaging machinery and packaging production line, also automatic conveying systems.
2.With a well-educated excellent technician team has more than 16+ years of experience.
3.With our own factory located in Shanghai, can provide OEM, ODM to our quality customers.
4.Workers have rich experience in comissioning and assembly at domestic and abroad.
5.Provide pre-sale and after-sale services for customers all over the world.
6.Our sales markets in Europe, Southeast Asia, Middle East and others more than 50+ countries.
7.Mainly focus on producing automatic packaging and conveyor system for different kinds of granule strip flaky materials.
8.Applications for nuts, chocolates, candies, biscuits, potato chips, dry fruits, seeds, puffed food, quick frozen products, pet food, baby snacks, medicine etc.
-and powder products, such as flour, milk, rice, coffee powder, spices, seasonings, detergent powder, sugar, salt etc.
9.Provide customized roll film, premade pouch and cans packaging solutions and all life support. 10.Weeshine's packaging solutions will bring you extraordinary experience, to reach win-win cooperation.
3.With our own factory located in Shanghai, can provide OEM, ODM to our quality customers.
4.Workers have rich experience in comissioning and assembly at domestic and abroad.
5.Provide pre-sale and after-sale services for customers all over the world.
6.Our sales markets in Europe, Southeast Asia, Middle East and others more than 50+ countries.
7.Mainly focus on producing automatic packaging and conveyor system for different kinds of granule strip flaky materials.
8.Applications for nuts, chocolates, candies, biscuits, potato chips, dry fruits, seeds, puffed food, quick frozen products, pet food, baby snacks, medicine etc.
-and powder products, such as flour, milk, rice, coffee powder, spices, seasonings, detergent powder, sugar, salt etc.
9.Provide customized roll film, premade pouch and cans packaging solutions and all life support. 10.Weeshine's packaging solutions will bring you extraordinary experience, to reach win-win cooperation.
FAQ
1.How do I know the packing machine model is suitable for my product?
Weeshine: Please advise all the below details of your product and we will check for you.
(1.)Product details
(2.).Bag shape
(3.) Bag size for each weight bag: Film width, bag width & bag length
(4.) Filling weight per bag
(5.)Packing film material
(6.) Production capacity per hour.
(7.) Other requirements
2. How about the delivery time?
Weeshine: All our machines are tailor-made as different customers have different requirements, delivery will be within 15 working days for the small packing machines. It takes longer time for the large-scale machine.
3. Can you offer some video or pictures of the packing machine?
Weeshine: Yes, of course. We also could help you to test your product on our packing machine and record a video for your reference if you could send some samples to us.
4. Are you factory or trading company?
Weeshine: We are the factory, and especially R&D, manufacture and sell various packing machines. We have engaged in the packing R&D and production over 16+years.
5. How can we make sure about the machine quality after we make the payment?
Weeshine: We will send you the pictures and videos for you to check the quality, you are welcome to check the quality by yourself before shipping as well.
Weeshine: Please advise all the below details of your product and we will check for you.
(1.)Product details
(2.).Bag shape
(3.) Bag size for each weight bag: Film width, bag width & bag length
(4.) Filling weight per bag
(5.)Packing film material
(6.) Production capacity per hour.
(7.) Other requirements
2. How about the delivery time?
Weeshine: All our machines are tailor-made as different customers have different requirements, delivery will be within 15 working days for the small packing machines. It takes longer time for the large-scale machine.
3. Can you offer some video or pictures of the packing machine?
Weeshine: Yes, of course. We also could help you to test your product on our packing machine and record a video for your reference if you could send some samples to us.
4. Are you factory or trading company?
Weeshine: We are the factory, and especially R&D, manufacture and sell various packing machines. We have engaged in the packing R&D and production over 16+years.
5. How can we make sure about the machine quality after we make the payment?
Weeshine: We will send you the pictures and videos for you to check the quality, you are welcome to check the quality by yourself before shipping as well.
