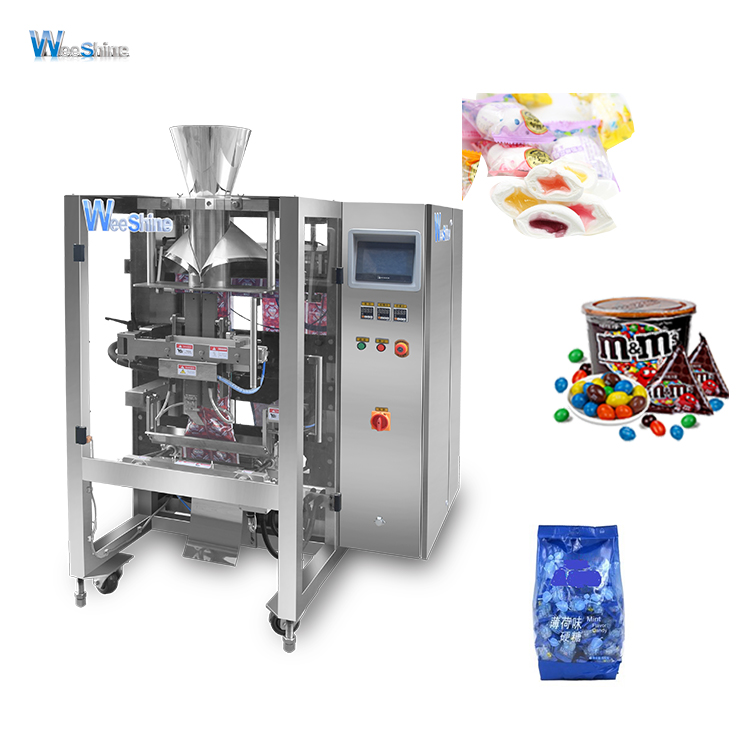

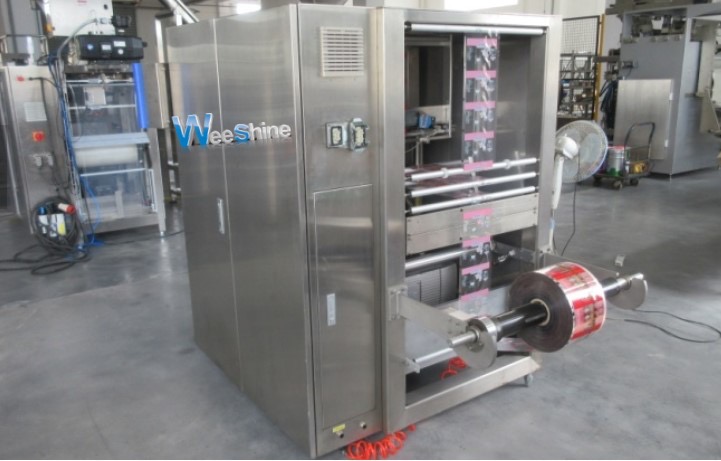

Multi-function Vertical Pillow Candy Packaging Machines
$8000.00
≥1 Set/Sets
$7500.00
≥3 Set/Sets
$7000.00
≥6 Set/Sets
power:
- AC220V,50-60Hz
Options:
- WPV250
Get Latest Price
You might also like
Basic Info
| Type | Packaging Line |
|---|---|
| Applicable Industries | Food & Beverage Factory, Food Shop, Flour, Snacks, Nuts,Puffed Food, Seeds, Grains |
| After Warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service?Location | Philippines, Indonesia, Uae |
| Showroom Location | France |
Show More
Product description
Products Description
Applications
Weeshine WPV series packing machine suitable for automatically weighing and packaging all kinds of granule, block, strip, sheet and irregular shape material products,such as puffed food, candy, biscuits, quick frozen products, snacks, seeds, nuts, medicines, pet food, hardware items, etc.

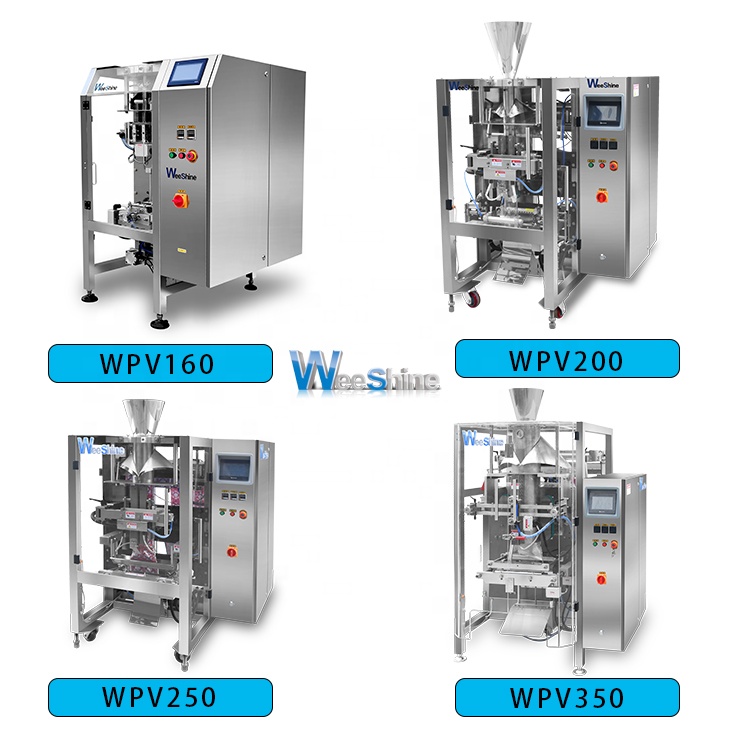

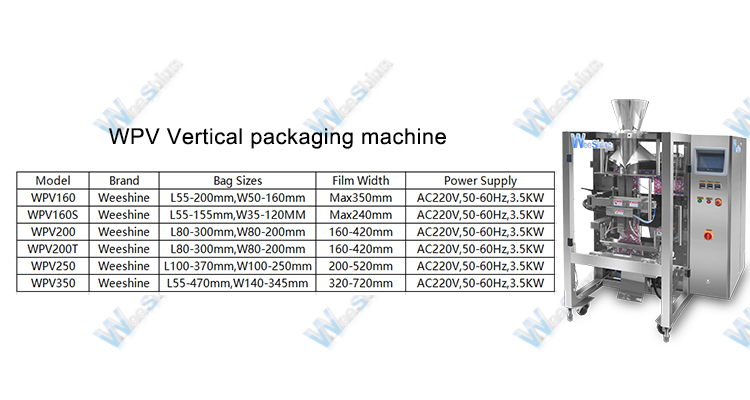

Model | WPV200 | WPV250 | WPV350 | ||
Bag size | (L) 80-300mm (W) 80-200mm | (L) 100-370mm (W) 100-250mm | (L) 150-470mm (W) 150-350mm | ||
Film width | Max.420mm | Max.520mm | Max.720mm | ||
Film thickness | 0.04-0.10mm | 0.04-0.10mm | 0.04-0.10mm | ||
Measuring range | Max.1000ml | Max.2000ml | Max.5000ml | ||
Packing speed | 15-70 bags/min | 10-65 bags/min | 15-40 bags/min | ||
Air consumption | 0.65Mpa, 0.4m3/min | 0.65Mpa, 0.4m3/min | 0.65Mpa, 0.6m3/min | ||
Packing material | All laminated film such as PET/PE, PET/AL/PE, Nylon/PE, etc.; PE (confirm when order) | ||||
Power supply | 220V/380V 50-60Hz | 220V/380V 50-60Hz | 220V/380V 50-60Hz | ||
Power | 2.8 KW | 3KW | 4 KW | ||
Dimension | L1350 x W1050 x H1450mm | L1350 x W1200 x H1550mm | L1650 x W1380 x H1820mm | ||
Weight | 450kg | 550kg | 800kg | ||
Main Feature
1. PLC and HMI controller, servo motor film driving system, easy to operate and maintain.
2. Advanced photocell tracking system to ensure the cutting position accuracy.
3. Separate circuit boxes for power control and pneumatic control, low noise, good tightness and much more stable for machine working.
4. Finish the procedure of measuring, filling, bagging, gas flushing (exhausting), sealing, cutting and counting automatically.
5. Have error indicating system, helping handle the trouble immediately.
6. The device of gusset bag, linked bag, punching device for optional.

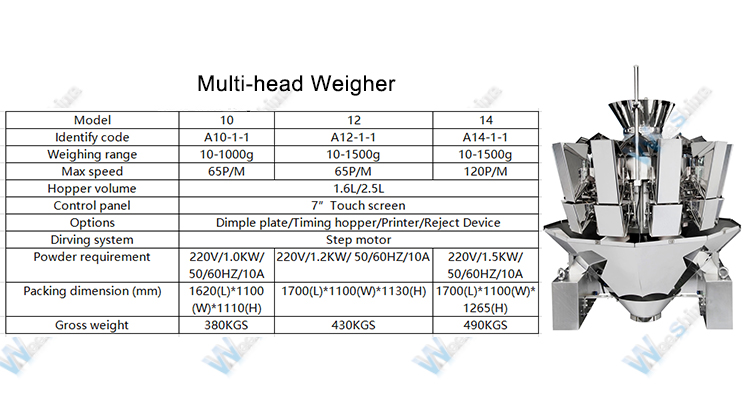

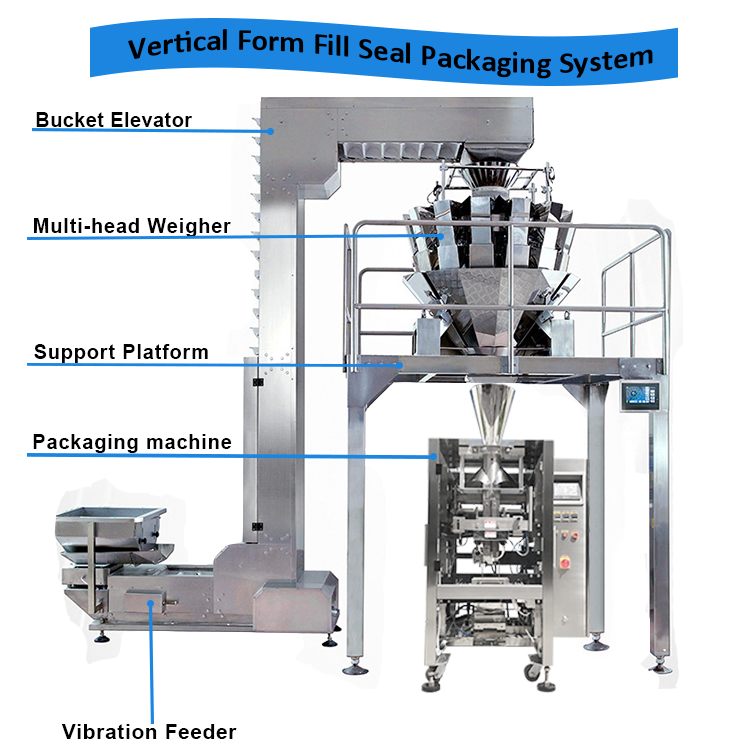

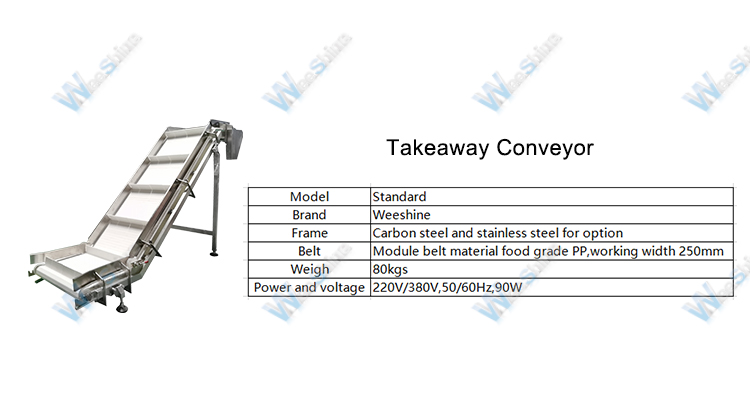

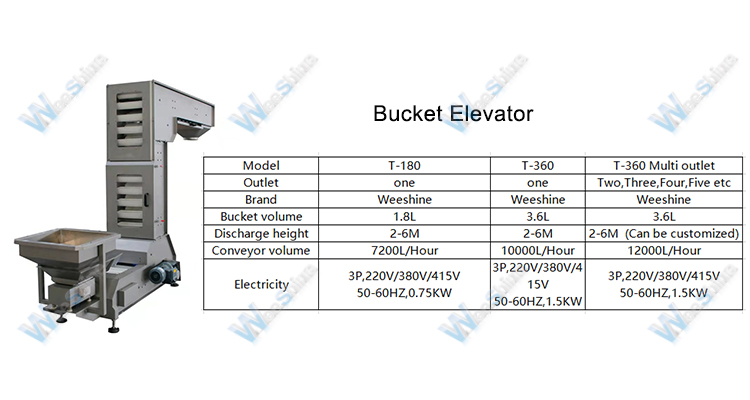

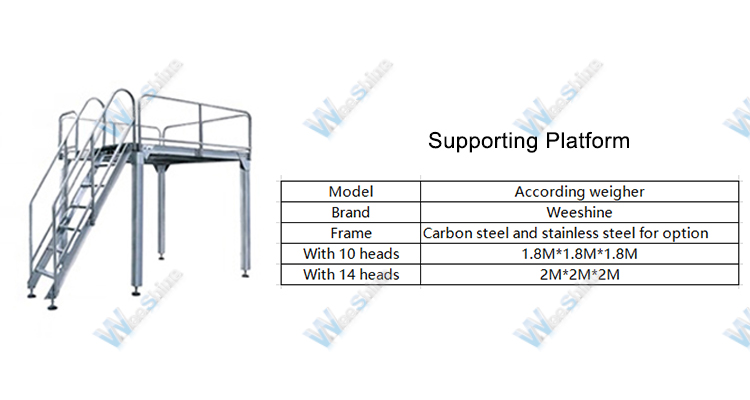

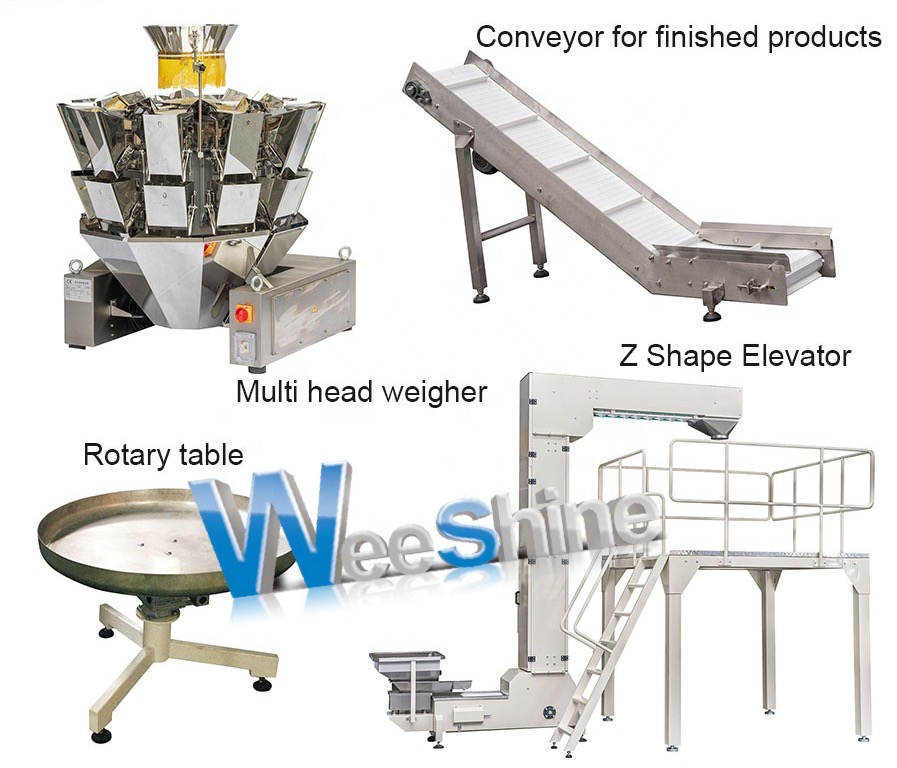

Combined Parts

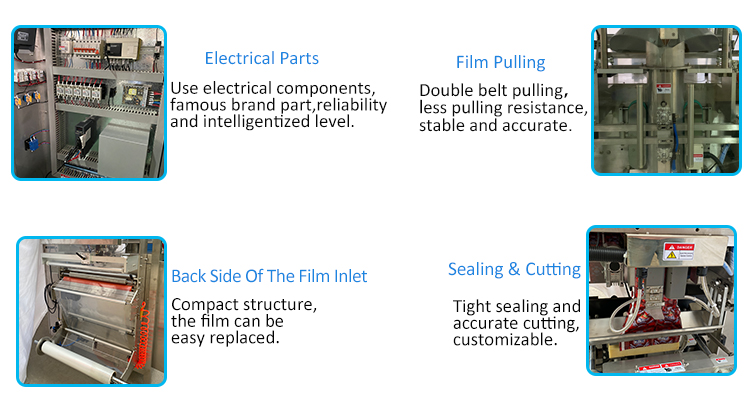

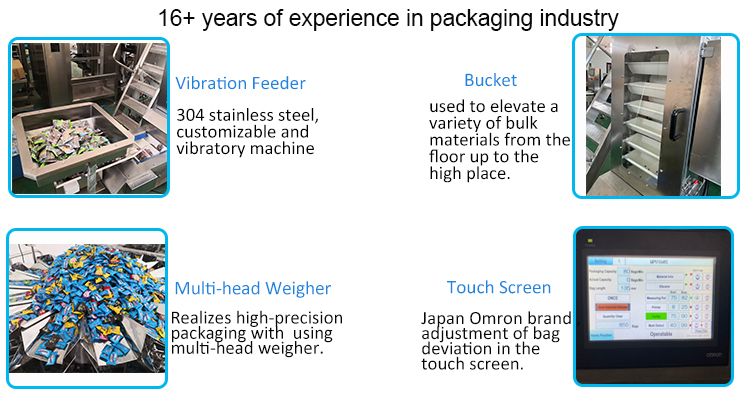

Details Images

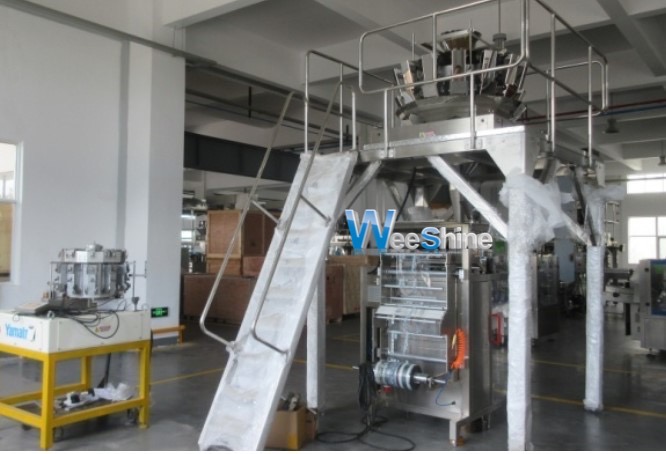

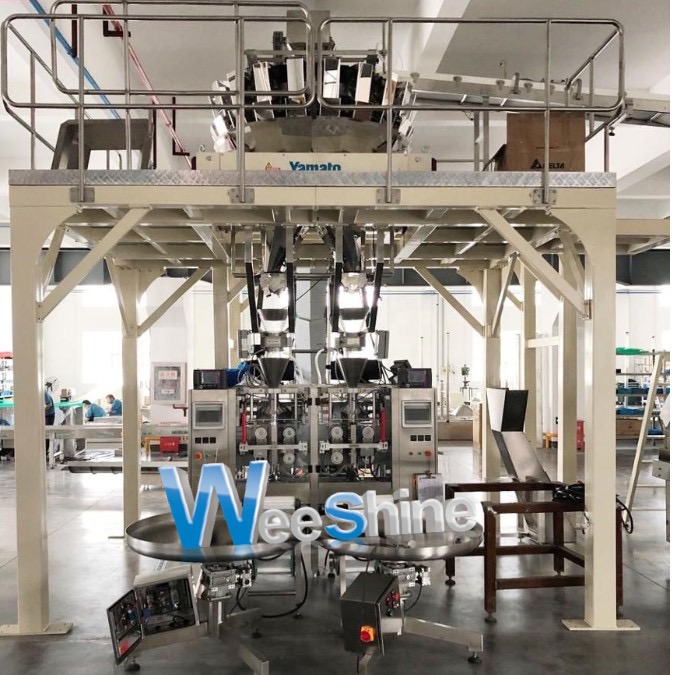

Application
Company Profile
About Us
1.A manufacturer of automatic packaging machinery and packaging production line, also automatic conveying systems.
2.With a well-educated excellent technician team has more than 16+ years of experience.
3.With our own factory located in Shanghai, can provide OEM, ODM to our quality customers.
4.Workers have rich experience in comissioning and assembly at domestic and abroad.
5.Provide pre-sale and after-sale services for customers all over the world.
5.Provide pre-sale and after-sale services for customers all over the world.
6.Our sales markets in Europe, Southeast Asia, Middle East and others more than 50+ countries.
7.Mainly focus on producing automatic packaging and conveyor system for different kinds of granule strip flaky materials.
8.Applications for nuts, chocolates, candies, biscuits, potato chips, dry fruits, seeds, puffed food, quick frozen products, pet food, baby snacks, medicine etc. -and powder products, such as flour, milk, rice, coffee powder, spices, seasonings, detergent powder, sugar, salt etc.
9.Provide customized roll film, premade pouch and cans packaging solutions and all life support. 10.Weeshine's packaging solutions will bring you extraordinary experience, to reach win-win cooperation.
Process&Delivery
FAQ
1.How do I know the packing machine model is suitable for my product?
Weeshine: Please advise all the below details of your product and we will check for you.
(1.)Product details
(2.).Bag shape
(3.) Bag size for each weight bag: Film width, bag width & bag length
(4.) Filling weight per bag
(5.)Packing film material
(6.) Production capacity per hour.
(7.) Other requirements
2. Customer: How about the delivery time?
Weeshine: All our machines are tailor-made as different customers have different requirements, delivery will be within 15 working days for the small packing machines. It takes longer time for the large-scale machine.
3. Customer: Can you offer some video or pictures of the packing machine?
Weeshine: Yes, of course. We also could help you to test your product on our packing machine and record a video for your reference if you could send some samples to us.
4. Are you factory or trading company?
Weeshine: We are the factory, and especially R&D, manufacture and sell various packing machines. We have engaged in the packing
R&D and production over 16+years.
5. How can we make sure about the machine quality after we make the payment?
Weeshine: We will send you the pictures and videos for you to check the quality, you are welcome to check the quality by yourself
before shipping as well.
Weeshine: Please advise all the below details of your product and we will check for you.
(1.)Product details
(2.).Bag shape
(3.) Bag size for each weight bag: Film width, bag width & bag length
(4.) Filling weight per bag
(5.)Packing film material
(6.) Production capacity per hour.
(7.) Other requirements
2. Customer: How about the delivery time?
Weeshine: All our machines are tailor-made as different customers have different requirements, delivery will be within 15 working days for the small packing machines. It takes longer time for the large-scale machine.
3. Customer: Can you offer some video or pictures of the packing machine?
Weeshine: Yes, of course. We also could help you to test your product on our packing machine and record a video for your reference if you could send some samples to us.
4. Are you factory or trading company?
Weeshine: We are the factory, and especially R&D, manufacture and sell various packing machines. We have engaged in the packing
R&D and production over 16+years.
5. How can we make sure about the machine quality after we make the payment?
Weeshine: We will send you the pictures and videos for you to check the quality, you are welcome to check the quality by yourself
before shipping as well.

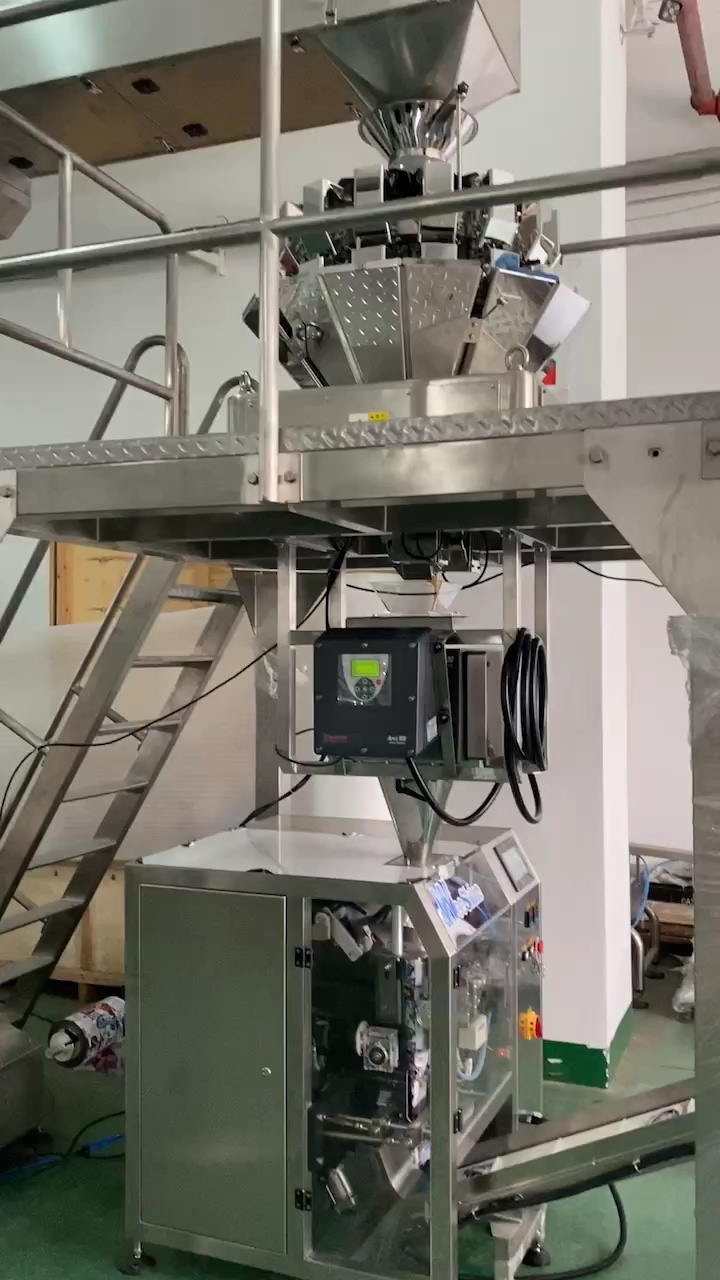

Video
