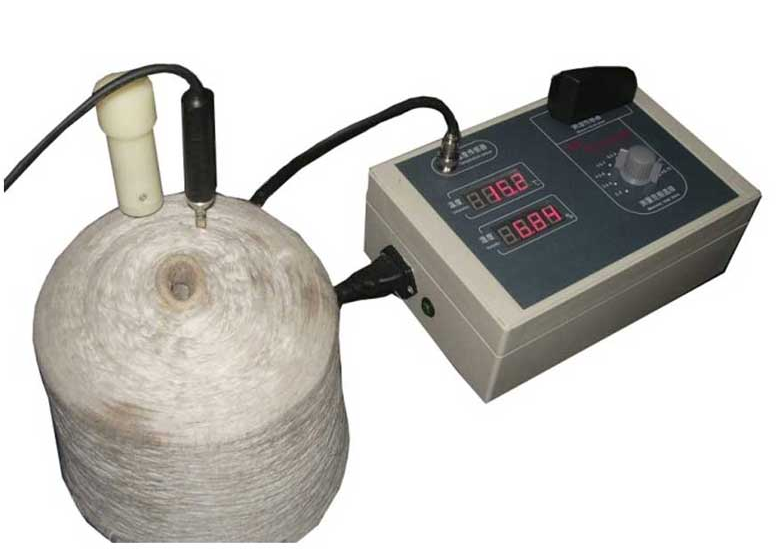

Bobbin Yarn Humidity Tester

MODEL NO.

YG201B Cotton Yarn Moisture Tester

Application:

YG201B Bobbin Yarn Humidity Tester which integrates functions of temperature and moisture testing, is widely used in moisture testing of, pure cotton bobbin yarn, blended bobbin yarn and other chemical yarn.

This meter has been designed according to Physics electric property of fibers; the electric resistance of sample should be in range of 3.8×104Ω~2×1012Ω

Related Standards:

Note: this  Yarn Humidity Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.

Features:

• Large testing range can perform test for different kind bobbin yarns and provide the accuracy result;

•  Equipped with temperature meter to correct the test result;

• Long probe design;

• Portable aluminum alloy box.




Key Specification:




• Working conditions:               Temperature:      5℃~35℃

• Relative humidity: ≤65%,when using 2 or 3 shift;

• ≤85%, when using shifts from 4 to 11

• Measuring voltage                 DC100V±2V

• Display Accuracy                  temperature 0.1℃, humidity: 0.1%

• Temperature range and error         5℃~35℃, ±0.5℃

• Power Supply                    220V±22V, 50HZ, 3W

• Dimension                      240mm×160mm×120mm

• Weight                         3kg

• Selected Material of Meter         ABS engineering material

• Packing                        Portable aluminum alloy box






Measuring Scope: Moisture Regain Range and error

Variety:	Moisture Regain Range	error
Pure cotton bobbin yarn	3.0%~5.0%	±0.2
Pure cotton bobbin yarn	5.0%~12.0%	±0.1
Cotton/polyester (65/35) blended bobbin yarn	3.0%~7.5%	±0.2
Polyester/Cotton (65/35) blended bobbin yarn	1.8%~4.5%	±0.2
Polyester/Viscose (65/35) blended bobbin yarn	2.6%~8.2%	±0.2
Polyester/Viscose (80/20) blended bobbin yarn	2.0%~3.8%	±0.2
Viscose bobbin yarn	7.0%~17.0%	±0.2

Attention: the error here is calculated by comparing to the result of oven drying method





Standard configuration:

No.	Item	Quantity
1	Main machine	1 set
2	Electronic probe	1 set
3	Temperature probe	1 set
4	Power cable	1set
5	Portable aluminum alloy box	1set

Good service and quantity .

 A. We supply one year warranty and 12 hours service per day .

 B. Our skilled engineer can go to your company for installation service

 C. Our Cotton Yarn Moisture Tester adopts top quality material including imported parts, most of the critical component are adopting first class brand .

 D. Our company passed ISO and have strict quality control before delivery goods

 E. We can customized and also supply OEM service

 F.. We also can supply different language user's manual . The

    user manual of Cotton Yarn Moisture Tester can help you operate our machine easily.

 G ; we supply operation video if customer need it . .

 Payment and delivery :

A..We accept payment  such as TT , Western union, and L/C,DP etc . you can contact with us if you need

B. Normally we can delivery time in 3-4 weeks it depend on we have stock or not .

FAQ

 Q: Are your company a trading one or a factory?
A:Factory + trader , 30  years focusing on test instruments field

 Q What's about delivery time ?
A: Generally about 2-3 Weeks ,  If we have stock , we can arrange shipment within 3 days after re-tester in our factory , Some machine need customized. Deliver time is longer .
Q: What about the warranty with after - sales services?
A: The testing machine is guaranteed for 12 months by Hefei Fanyuan Instrument
of course .we can help you to repair your problem controller freely ,even it's not from our factory.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

 Q:What about  services and quality?
A:Each Cotton Yarn Moisture Tester must be carried out 100% quality examination and test when shipping and delivery goods.
Each of our product provide video training to show you how to install & operate.
We can arrange engineer to train the operation of equipment to customer's company when you need.
our products are widely recognized and trusted by users.
