Multi Functions E-stop Enable Button Manual Pulse Generator
$98.00
≥1 Set/Sets
Get Latest Price
You might also like
Basic Info
| Model No. | LDG |
|---|---|
| Brand Name | LANDER |
| place of origin | China |
| Warranty | 12 Months |
| E-stop Button | Optional |
| Supply Voltage | Dc5v-30v |
| Output Type | Voltage, Line Driver |
Show More
Product description
Products Description

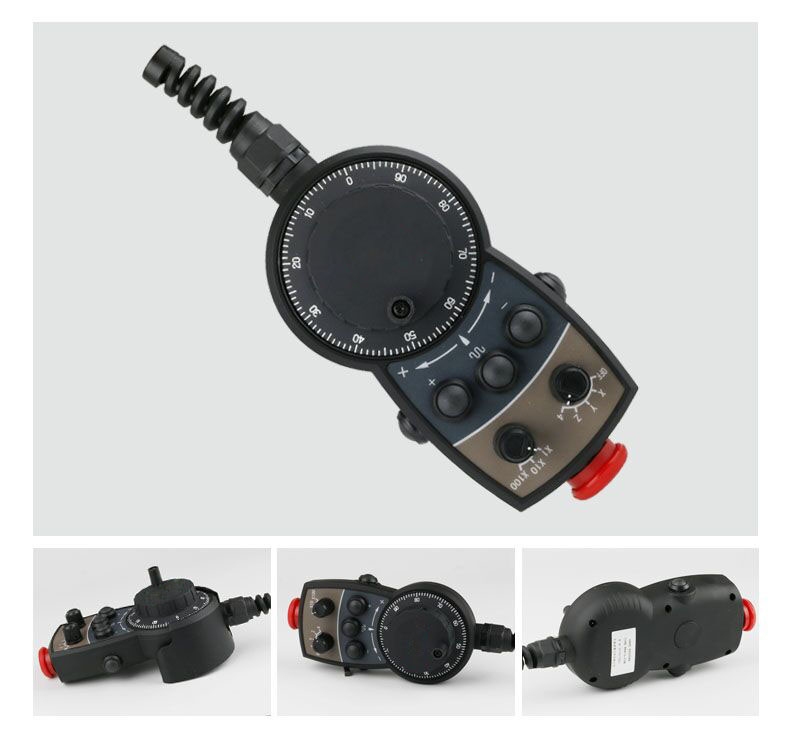

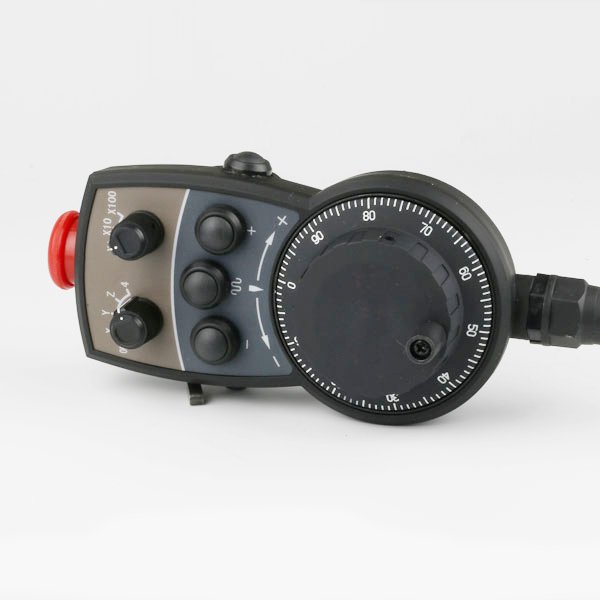

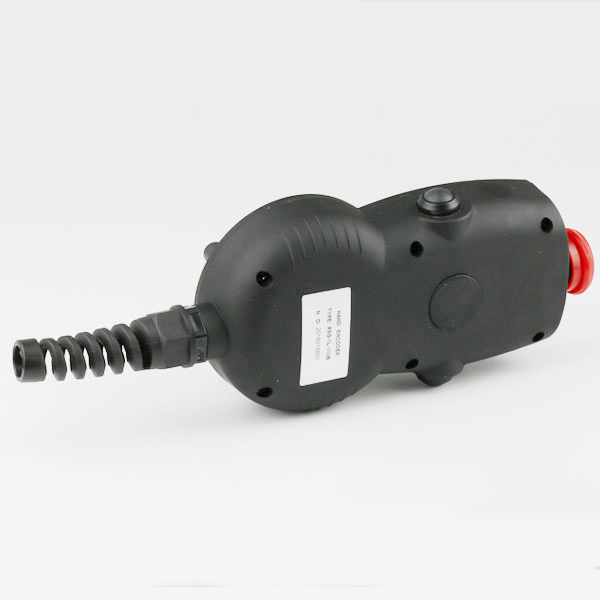

Multi Functions E-stop Enable Button Manual Pulse Generator
Manual Pulse Generator is a kind of AB phase signal pulse generator and electirc pulse generator, suitable for manual pulse input of CNC machine tools, milling machines, etc., using terminal connection, suitable for various industrial machinery and equipment. Manual Pulse Generator is also known as handwheel pulse generator.
It is included to incremental encoder and optical rotary encoder. Except incremental encoder, absolute encoder and linear encoder are also supplied.
Emergency stop switch.
Enable operation switch
6-axis selection switch, 4-bit rate selection switch
Suitable for manual pulse input applications, including CNC machine tools and grinders
Features:
* Good reliability, long life, anti-jamming performance.
* Stainless steel shaft has a higher stability and protection.
* Metal shell is more solid and anti-impact.
* Bearing load heavy, anti-oil and water.
* Applicability to a wide variety of mechanical and industrial control.

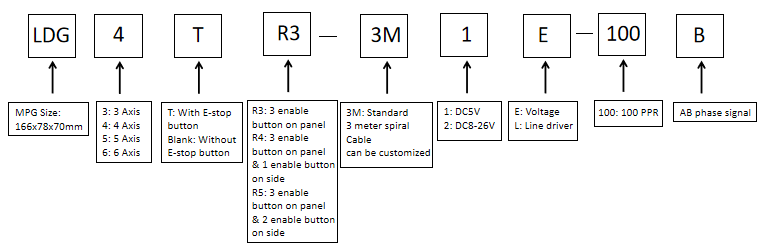

Model Selection Guide

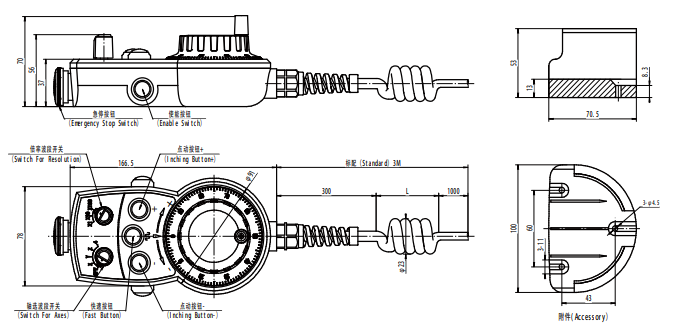

Manufacturing Dimensions
Product Paramenters
Electrical Specifications
Mechanical Specifications
Supply Voltage DC(V)
5-15V/10-30V
5 ±0.5
Slew Speed
600r/min
Output Model
Voltage
Line Driver
Normal Rotational Speed
≤200r/min
Current Consumption(mA)
≤60
≤120
Dial Life
3×105 turns(≤200r/min)
Output Voltage(V)
VH
≥Vcc-1
≥2.5
Environmental Specifications
VL
≤0.5
≤0.5
Operating Temperature
-10-+60°C
Rise/Fall time(ns)
≤1
≤1
Weight
Appr. 650g
Frequency Response(kHz)
≤100
≤100
Protection Class
IP 65
