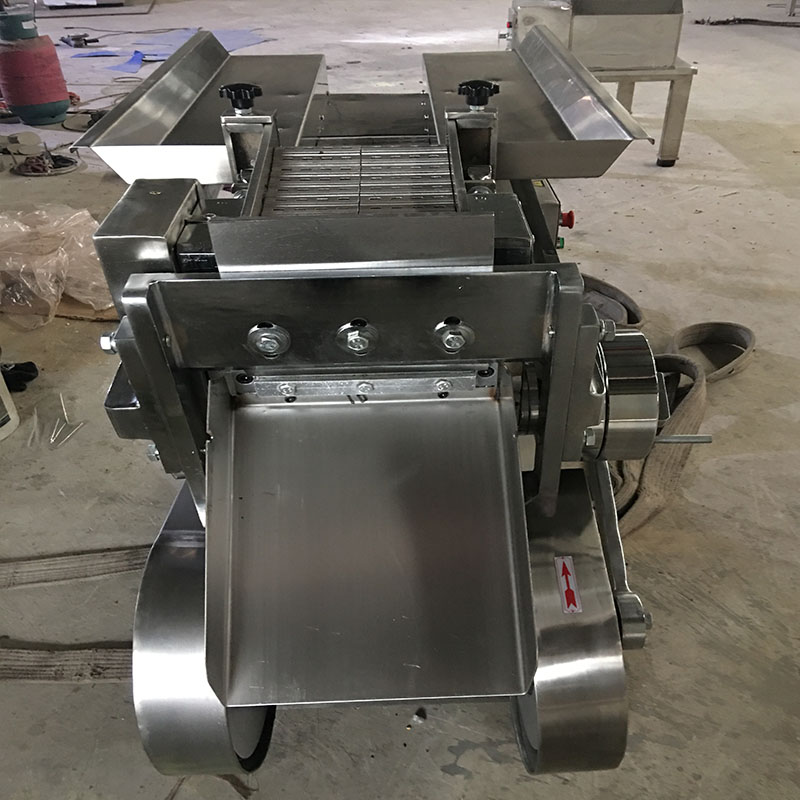

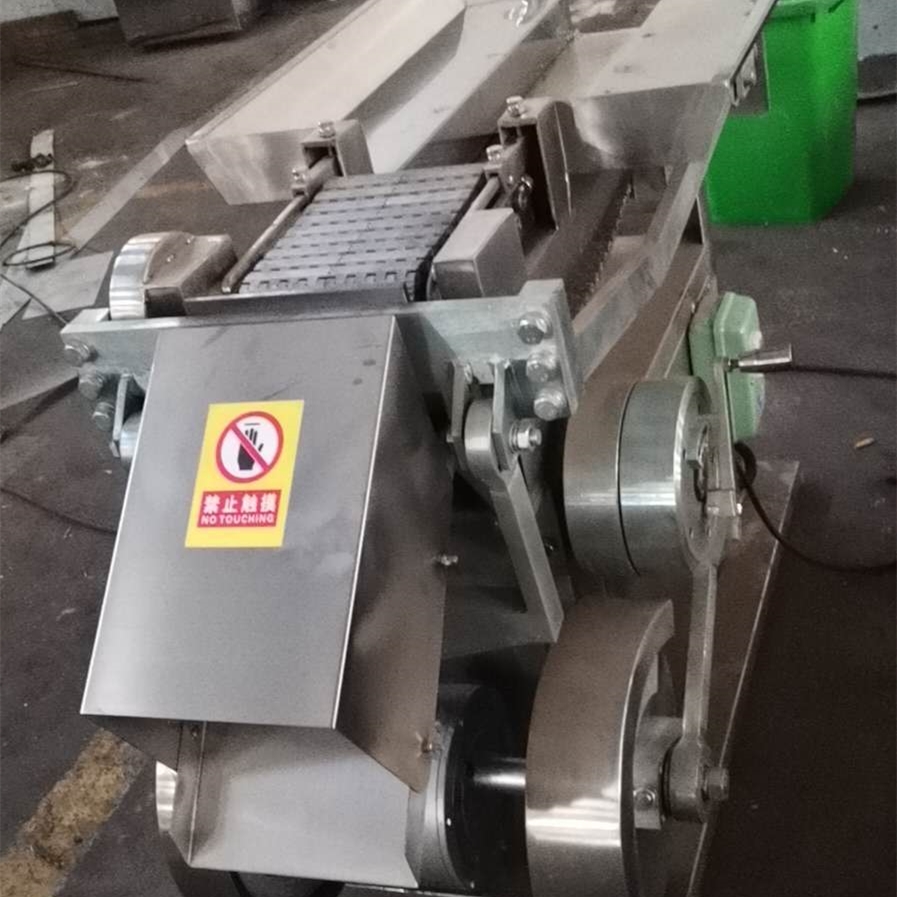

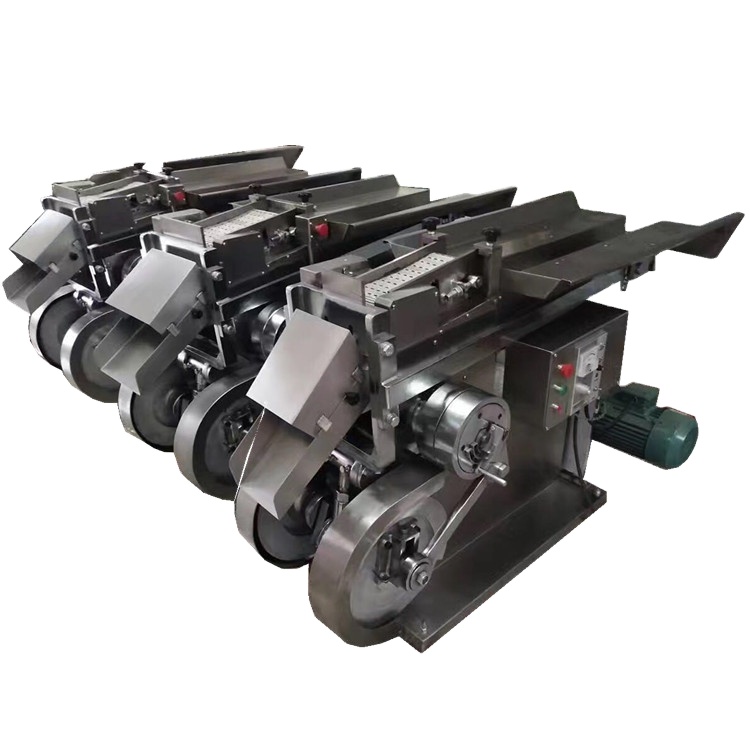

Multi-purpose Cutting Machine: Efficiently Process Roots, Fruits, Leaves, Grass, and Herbs
$5500.00
≥1 set
Options:
- WQJ-200
Get Latest Price
You might also like
Basic Info
| Applicable Industries | Farms, Retail, Food Shop, Food & Beverage Shops, Other |
|---|---|
| Showroom Location | None |
| Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Hot Product |
Show More
Product description
Products Description
Application
It can be used for batch production and small batch production of materials such as rhizomes, vines and leaf grasses. It can also be used for slicing and shredding of materials in food, aquatic products and industries.

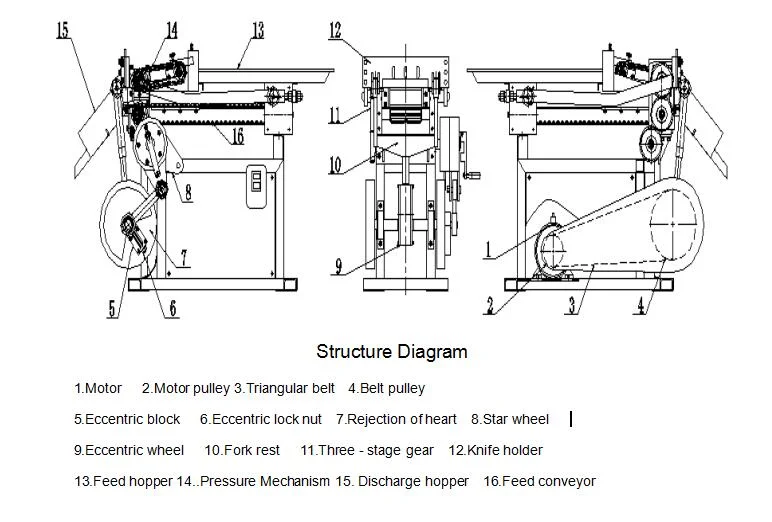

Structure
This machine is composed of motor, shifting mechanism, tool holder, stepping and returning, adjustable knife frame machinery, etc. Due to the advanced step feeding, the cut piece shape is even, and the feeding distance can be freely controlled. The bad condition that caused the material to be squeezed will not happen. Due to the reasonable layout, the machine is easy to operate and lightweight.
Working principle
Since the power source is from the same motor, the movement of the transmission part and the cutting part is not only a separate system, but also a close and interrelated overall movement. When the eccentric wheel---five-star friction wheel--- gear--- the sprocket shaft is in the stepping process (feeding the material), and the knife holder is in the movement from the upper edge of the knife door to the uppermost position and then falling back to the upper edge, the entire knife door is opened, so that the medicine feeding movement can be completed. When the eccentric wheel--five-star friction wheel--gear--the sprocket shaft stops feeding and is in the motion gap (the rocker moves in the opposite direction, the five-star wheel disengages), the crankshaft moves from the upper position to the lower position, that is, the knife holder moves from the upper knife edge to the lower edge to complete the cutting.
Technical Parameters
Model | WQJ-200 | WQJ-300 | |
Knife door size (mm) | 200×50 | 300×60 | |
Cutting thickness (mm) | 0.5-15 | 0.8-30 | |
Capacity (kg/h) | 50--600 | 100-1000 | |
Motor power (kW) | 3 | 4 | |
Dimensions (mm) | 1700*900*960 | 1800*900*960 | |
Material of construction | 304 SUS | 304 SUS | |
Weight (kg) | 490 | 550 | |
Cutting speed (time/minute) | 0-350 | 0-350 | |
Power (V/Hz) | 380/50 or custom | ||
Details Images

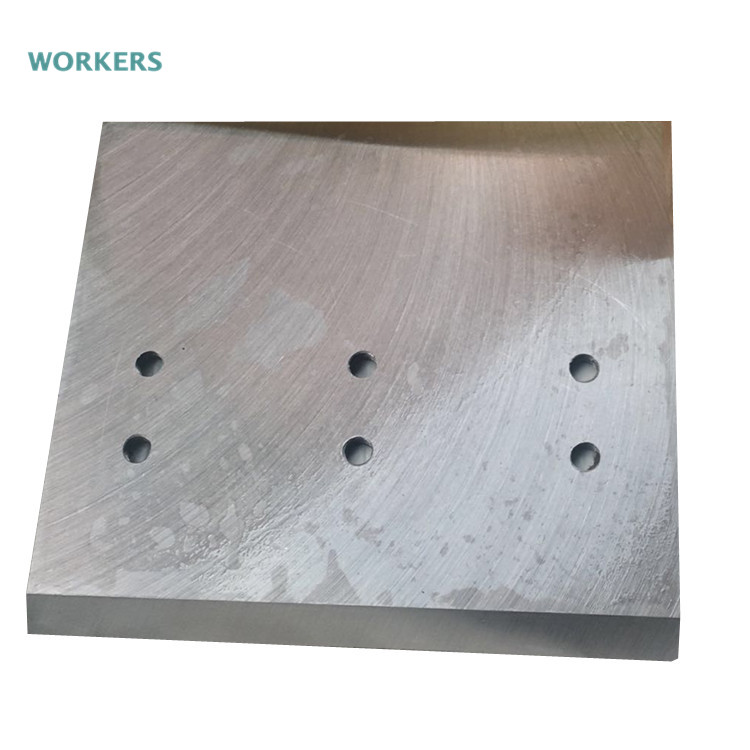

knife

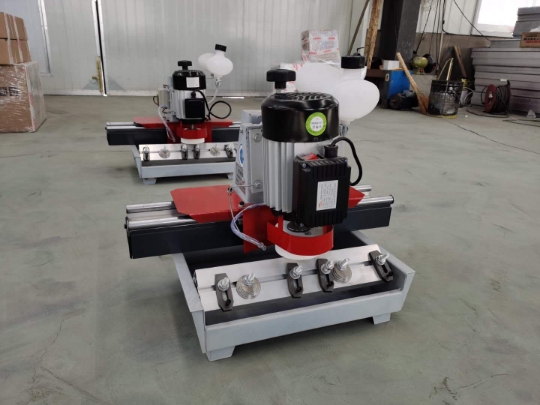

Knife sharpener

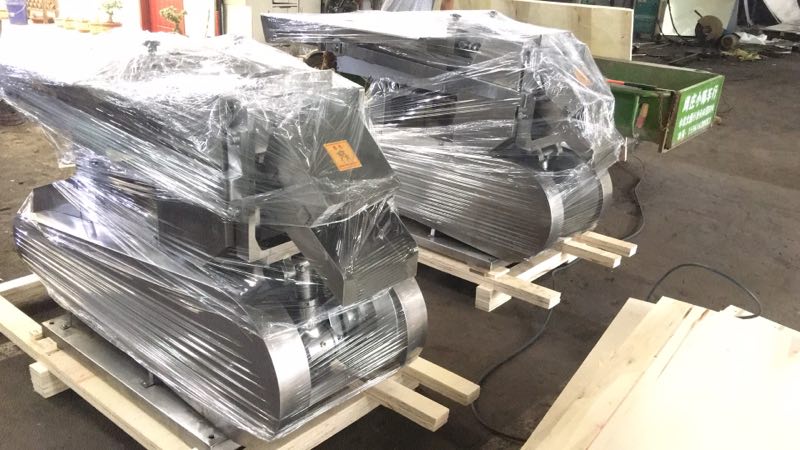

Packing & Shipping
Video
Professional Slicers for Popular Herbs and Roots: Hot Sale Leaf Cutting Machine, Licorice Root Slicer, Ginger Slicer, and Huangqi Slicing Machine1
Professional Slicers for Popular Herbs and Roots: Hot Sale Leaf Cutting Machine, Licorice Root Slicer, Ginger Slicer, and Huangqi Slicing Machine1
Professional Slicers for Popular Herbs and Roots: Hot Sale Leaf Cutting Machine, Licorice Root Slicer, Ginger Slicer, and Huangqi Slicing Machine1
