Multiple Stage High Performance Single Phase Power Supply Filter

1 / 6

Multiple Stage High Performance Single Phase Power Supply Filter

$180.00

≥1 Piece/Pieces
$150.00

≥10 Piece/Pieces

Get Latest Price

You might also like

Encrypted Metal Pinpad for Vending kiosk

$135.00

1 Piece/Pieces (MOQ)

Customized PCI EPP For ATM CDM CRS PCI Approved EPP for Diebold Wincor Hyosung ATM

$135.00

1 Piece/Pieces (MOQ)

PCI Approved PINPAD for ATM WINCOR EPP V5 V6 V7 V8

$135.00

1 Piece/Pieces (MOQ)

Wincor Diebold ATM Spare part EPP V6 V5

$135.00

1 Piece/Pieces (MOQ)

PCI Approved EPP Metal pinpad for ATM Vending kiosk

$135.00

1 Piece/Pieces (MOQ)

Trackball module Mouse for Ultrasonic inspection machine

$39.99

1 Piece/Pieces (MOQ)

3X4 Numeric keypad for Vending kiosks,Gas dispenser

$29.00

10 Piece/Pieces (MOQ)

PCI 5.0 EPP For ATM

$160.00

1 Piece/Pieces (MOQ)

ATM Part

$160.00

1 Piece/Pieces (MOQ)

ATM EPP

$160.00

1 Piece/Pieces (MOQ)

Basic Info

Model No.	SE8098D
Brand Name	Sunson or OEM
Material	Stainless Steel
Weight	0.85kg
Certification	Other
Panel Size	100*100mm
Application	ATM And CRS
Encryption	Des/Trides
Additional	Rkl/Rfu

Product description

Multiple Stage High Performance Single Phase Power Supply Filter

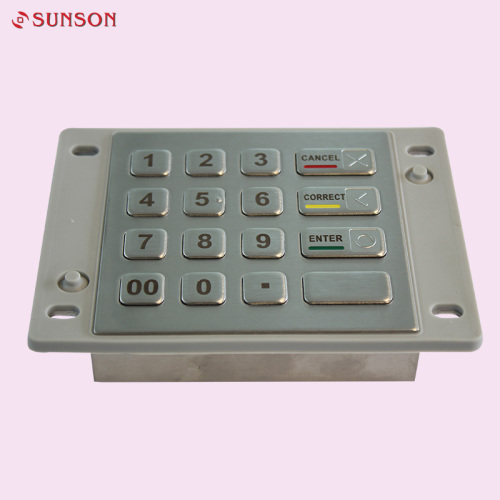

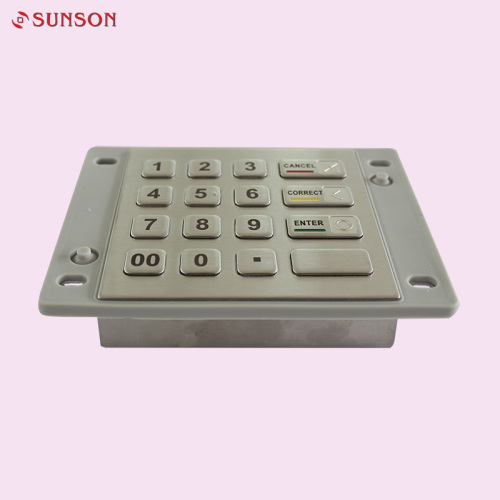

Advanced EPP for ATM CDM CRS is one of the lastest PCI Version approved EPP, it is suitable for ATM and CRS such kind of payment kiosk machine.

Features:

?PCI 5.0 approved EPP

?Support DES/3DES and AES

?Support RSA and RKL

?Default: USB interface (HID)

?Equipped with HW removal switch

?Stainless steel surface with laser engrave letters on button

?One click SDK for WOSA/XFS 3.2

?Remote firmware update

?Support DUKPT

?Multi-layer Key management

?Multi-tamper-detection mechanism

Wincor ATM Keypad

Specifications:

?Panel size: 100*100mm

?Weight: ab. 0.85kg

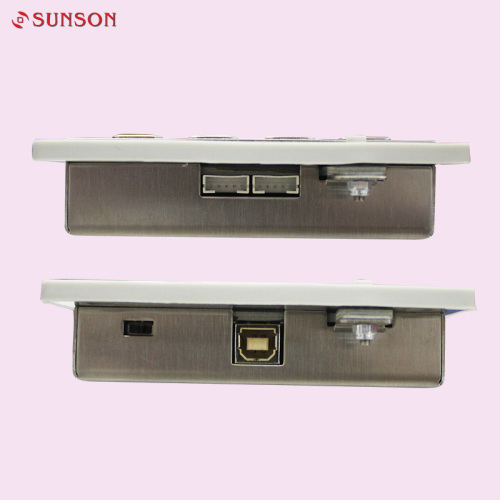

?Interface:Standard USB 2.0 interface (HID)

?Voltage: 5.0V±10%

?Consumption: ≤0.5W(dynamic) ≤0.2W(static)

?Reliability:MTBF>20000H MTTR<30min

?data protection:data will be kept for more than 8 years against power-off

Support Algorithm:

?RSA: support more than 2048 bit

?DES,3DES:ANSI X3.92,ANSI X9.52

?PIN operation:ANSI X9.8(ISO9564.0,ISO9564.1,ISO9564.3),IBM3624

?MAC operation:ANSI X9.9,ANSI X9.19

?Security standard:ISO13491

Encrypting and decrypting speed:<0.1S(8 bits DES

Applications:

?Cash-ref terminals:such as ATM,ADM,CDM,CRS etc

?Unattended Payment Terminals: such as UPT in gas station

?Self-service terminals: such as E-bank terminal, ticket vendors, vendor, auto gas dispenser, etc.

Sunson Profile

Company Info 1 Company Info 2 Certification Exhibition

FAQ
Q1: Can you customize the metal keyboard or keypad?
A1: Yes, we can customize language & layout for you freely.
If you have big order need customized size, surface etc., tailor made service is also available.

Q2: How long is the warranty for your products?
A2: The standard warranty is 1 year from the date of delivery, but can extended if extra cost paid.

Q3: Can you provide free sample?
A3: We can provide you sample for approval, but there is a sample charge, which can be returned when your order qty reaches a certain number.

Q4: What is EPP?
A4: EPP is short of Encrypted PIN Pad, an Encrypting PIN Pad is an apparatus for encrypting an identifier such as a PIN entered on a keypad. These are used in Automated teller machines or self-service kiosk to ensure that the unencrypted PIN is not stored or transmitted anywhere in the rest of the system and thus cannot be revealed accidentally or through manipulations of the system.

Q5: What kind of support can you provide on software development?
A5: We can provide you complete SDK for you to development software, we also have a strong engineers and customer service team to provide you technical support.
