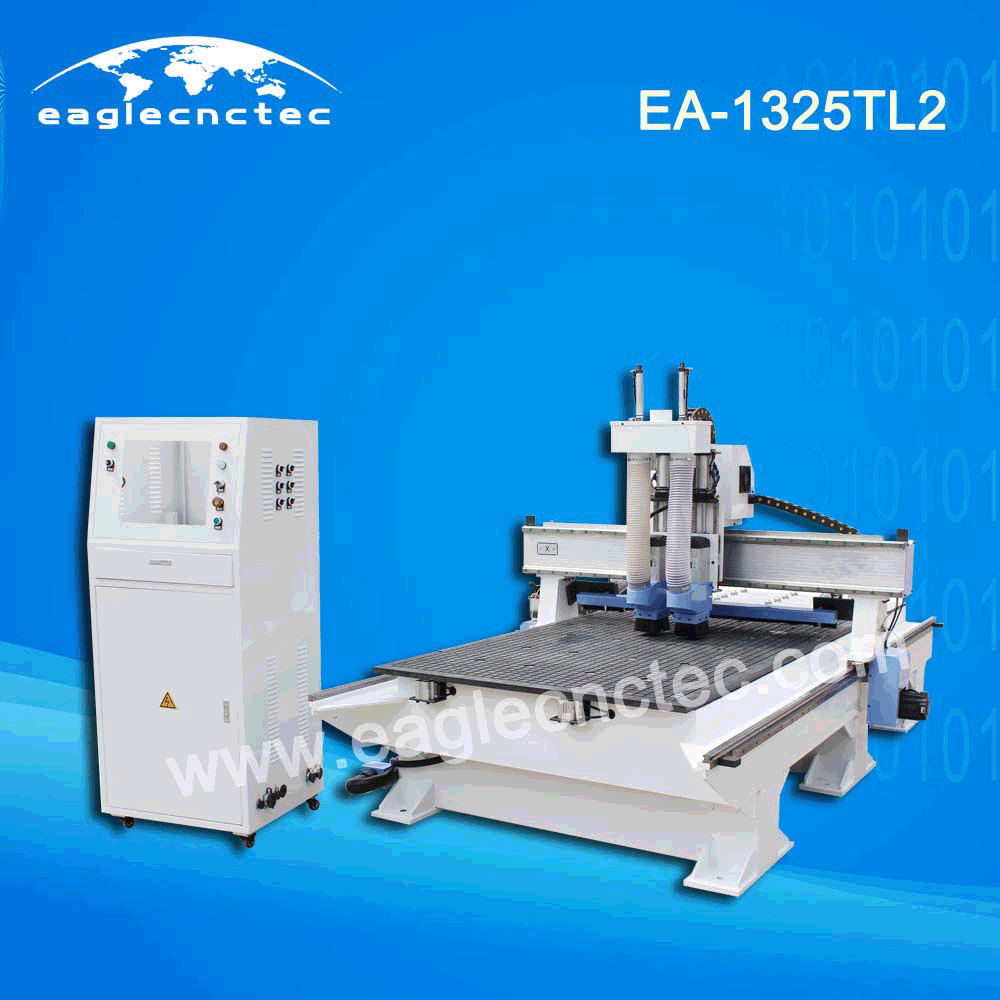

Nesting CNC Router with Nesting Software

Materials good for nesting cnc router with pneumatic atc

Solid wood, MDF, plastic, PVC, acrylic, and other nonmetal materials

Application

Plate fitment production includes Cabinet, Wood door, Wardrobe, office furniture and etc.

Technical Parameter

Working Size (X Y Z)           1300x2500x200 mm

Driving Motor                      Servo

Controller                           NC Studio

Repositioning                      ±0.02mm

Resolution                          ±0.0025mm

Command                          G-code

Max.Traveling Speed          45,000 m/min

Max.Working Speed            20,000 m/min

Body Construction               Heavy duty type

Work-Holding                      By vac-sorb

Vacuum Pump                    5.5KW, water-ring, 230CBM/hour flow rate

X Y Transmission                Helical rack and pinion, HIWIN square linear guide way

Z Transmission                   Taiwan TBI rolling ballscrew, HIWIN square linear guide way

Spindle                               6.0kw, air cooling, 0-18000 rpm variable speed

Collet Size                          ER32, available diameter of cutter 3.175-20mm

Tool Magazine                    Pneumatic tool changer, 2 tools

Working Power                   AC 380V/50-60Hz, 3 Ph 4 Wire

Max.Power Consumption     20KW

Small Electronics                Schneider, Omron, CHINT

Net Weight                         2000 KGS
