Basic Info
| Model No. | NQ |
|---|---|
| Brand Name | TY |
| status | New |
| warranty period | Unavailable |
| Applicable industry | Energy &Amp; Mining |
| Where to provide local services (in which countries are there overseas service outlets) | None |
| Showroom location (in which countries are there sample rooms overseas) | None |
Product description

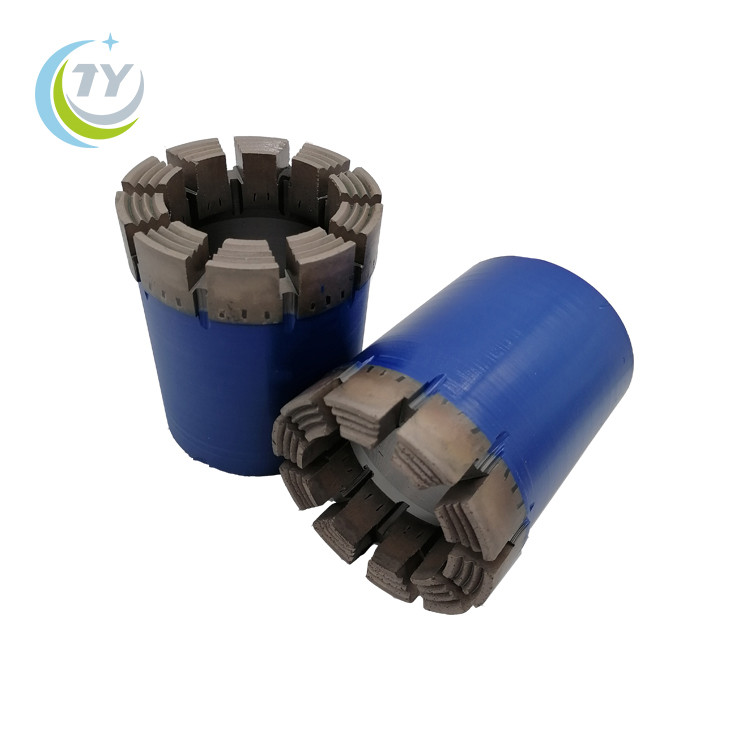

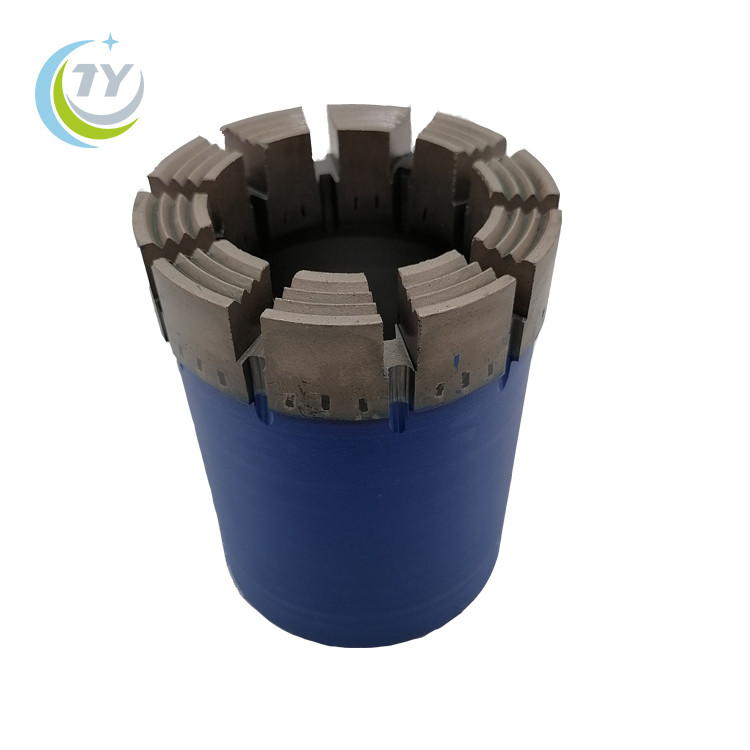

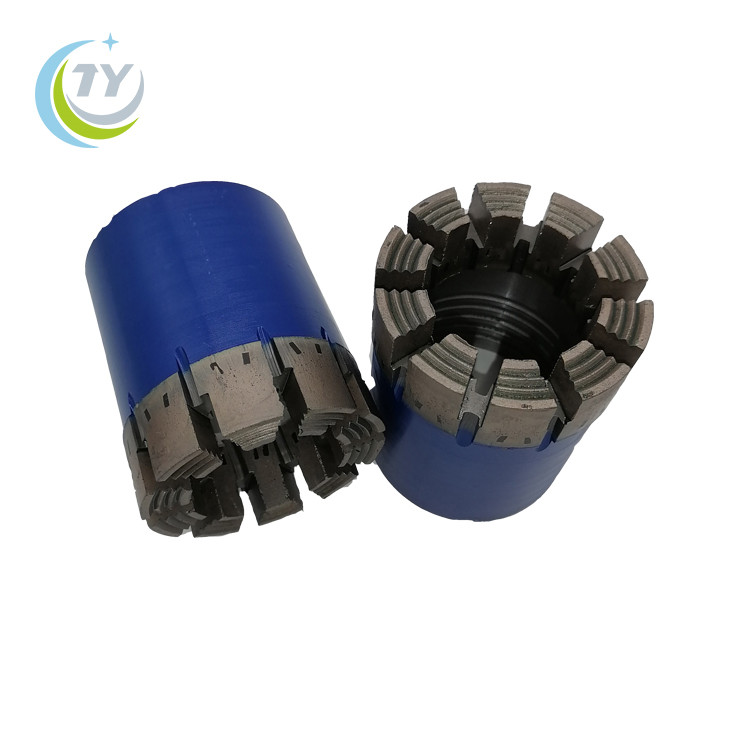

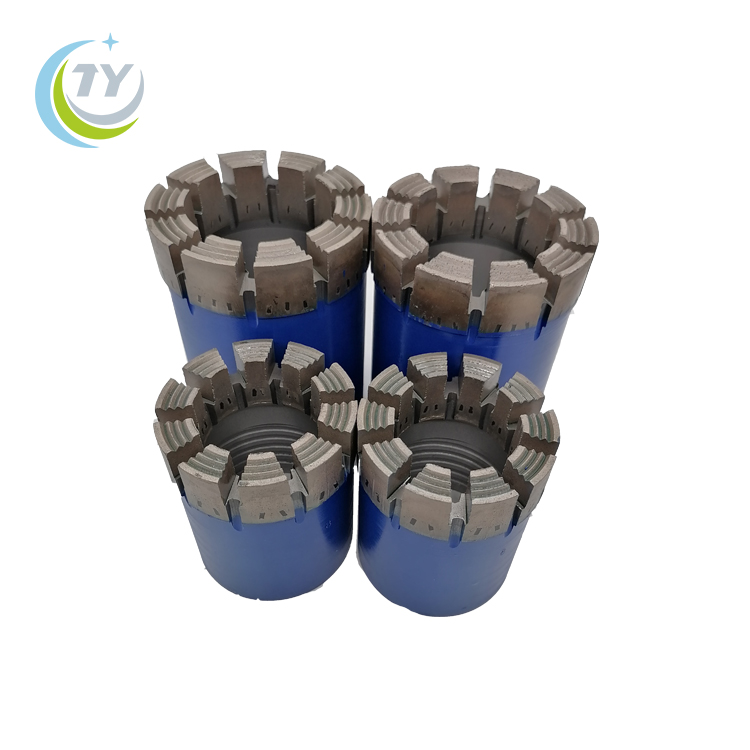

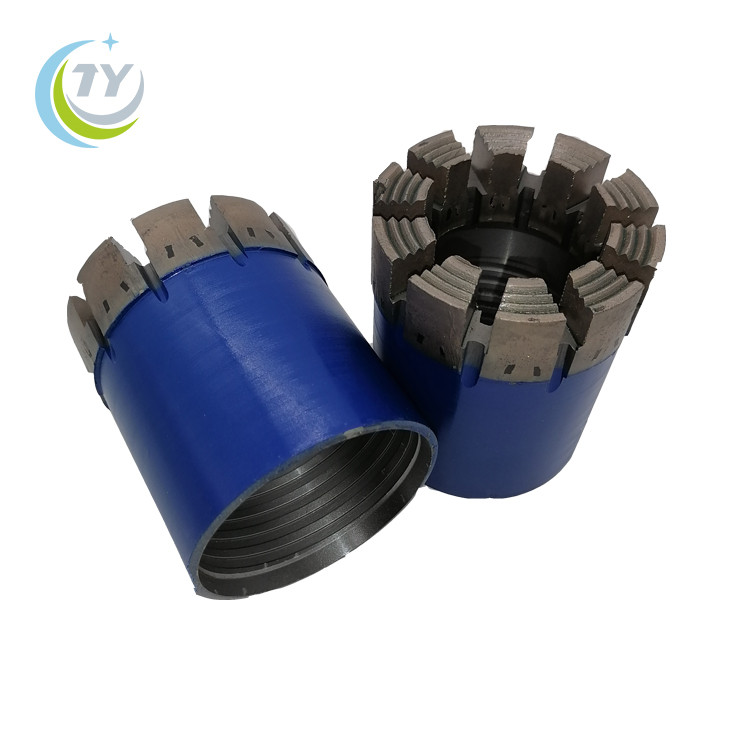

NQ diamond bit is widely used in hole drilling for mining, water well drilling and sample coring for geological drilling and soil testing. For NQ core bit, we supply bit hardness S1 ~ S12 and matrix height with 10mm, 12mm, 14mm and customized. NQ diamond bit have long service life and can work in any formation especially in hard formation.


Parameters of impregnated diamond core bit
Bit size
Core bit
Reaming shell
Bit size
Outside diameter
Insider diameter
Outside diameter
AQ
47.75
27.1
48
ATW
47.75
30.22
AGM
47.75
30.43
BQ
59.69
36.52
59.9
BQ3
59.69
33.65
NQ
75.44
47.75
75.7
NQ2
75.44
50.8
NQ3
75.44
45.21
NMLC
75.44
52.12
HQ
95.76
63.63
99.24
HQ3
95.76
61.24
HMLC
98.98
63.63
PQ
122.3
85.09
121.61
PQ3
122.3
82.93
TT46
46.18
35.4
46.3
T2-46
46.18
31.82
T2-56
56.13
41.83
56.3
TT56
56.13
45.41
T2-66
66.12
51.81
66.3
T2-76
76.12
61.82
76.4
T2-86
86.13
71.83
86.4
T2-101
101.12
83.82
101.4
Pacakging and shipping

Company information
Xi'an Heaven Abundant Mining Equipment Co.,Ltd founded on 2010 at Xi'an Shaanxi province of China. We are mainly engaged in the spare parts fro mining and construction, such as PDC Drill Bit, Tricone Bit, PDC Cutter, Rock Drilling Tool, Diamond Core Bit, Drill Pipe, cutting tools etc. We also deputy famous oil exploration drilling bit in the domestic market, the purchasing team is very familiar with the domestic production of oil drill manufacturers and products performance, which can provide you with high quality products. We do export business since 2014, till now we have clients in more than 50 countries and feedback is good. Welcome international friends to come to negoate businessness and expand our products to more area, we belive quality products combined good service will bring both sides more brliant future.

Clients visit

Buyer feedback






Except for impregnated core bit, we also supply other type core bit, non core PDC bit, tricone bit, carbide bit, cutting tools, rock drilling tool and PDC cutters etc. Welcome to contact us if you are interested in our products.
