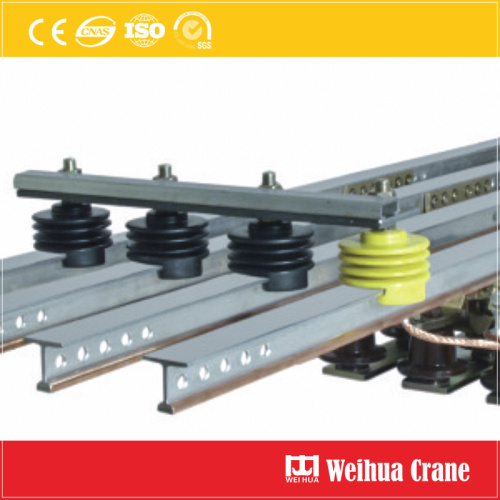

The open solid conductor system is composed of a ladder type copper rod and a channel steel or a T shape copper row and a groove type aluminum. It is supported by high-strength special insulators to form a mobile sliding line that feeds lifting equipment.

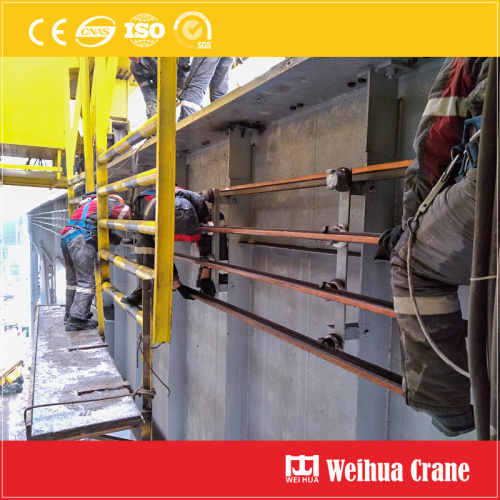

The length of the conductor bar section is usually 6m and the insulation bracket installation spacing is generally 3m. This open solid conductor system is usually for large tonnage overhead crane such as metallurgy industry crane, ≥200 tons ladle cranes, etc. The power supply current is usually ≥800A, 1000A, 1600A, etc. Weihua provides various kinds of crane components for overhead crane, gantry crane, suspension crane, and jib crane, etc.

Features of Open Solid Conductor System:

1. Reliable operation, no power interruption failure.

2. Used in harsh environments such as high temperature, high dust, high corrosive gas.

3. Strong mechanical strength, no deformation, withstand strong short-circuit surge current.

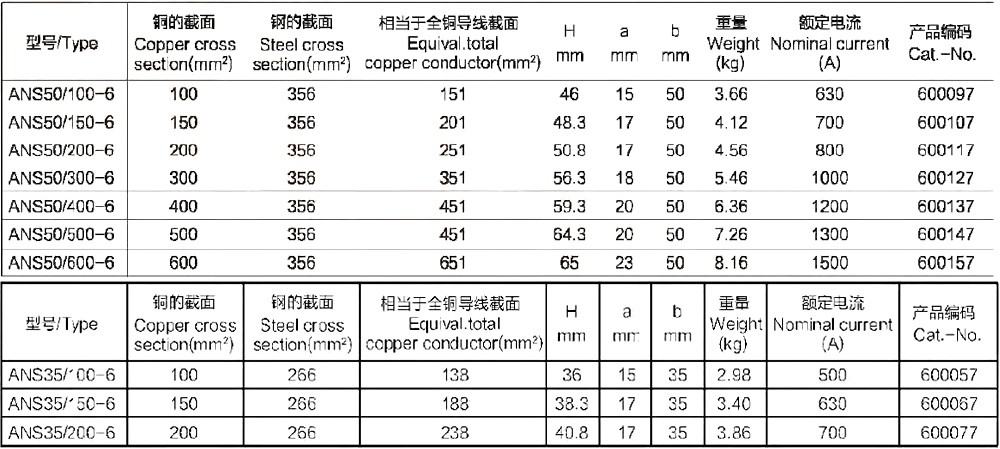

4. The current carrying capacity can be set according to the user's needs, which can be up to 3000A, and the voltage level can reach more than 5KV.

5. Adopt copper or copper-aluminum conductor material, which can greatly reduce the power loss of the rail.

6. By using auxiliary cable, it can form a low-impedance conduct line, and the impedance of the wire is reduced.

7. The conductor material can be slipped on the upper or lower end of the rail.

8. Extra heat dissipation surface, compact structure, convenient installation and maintenance.
