Basic Info

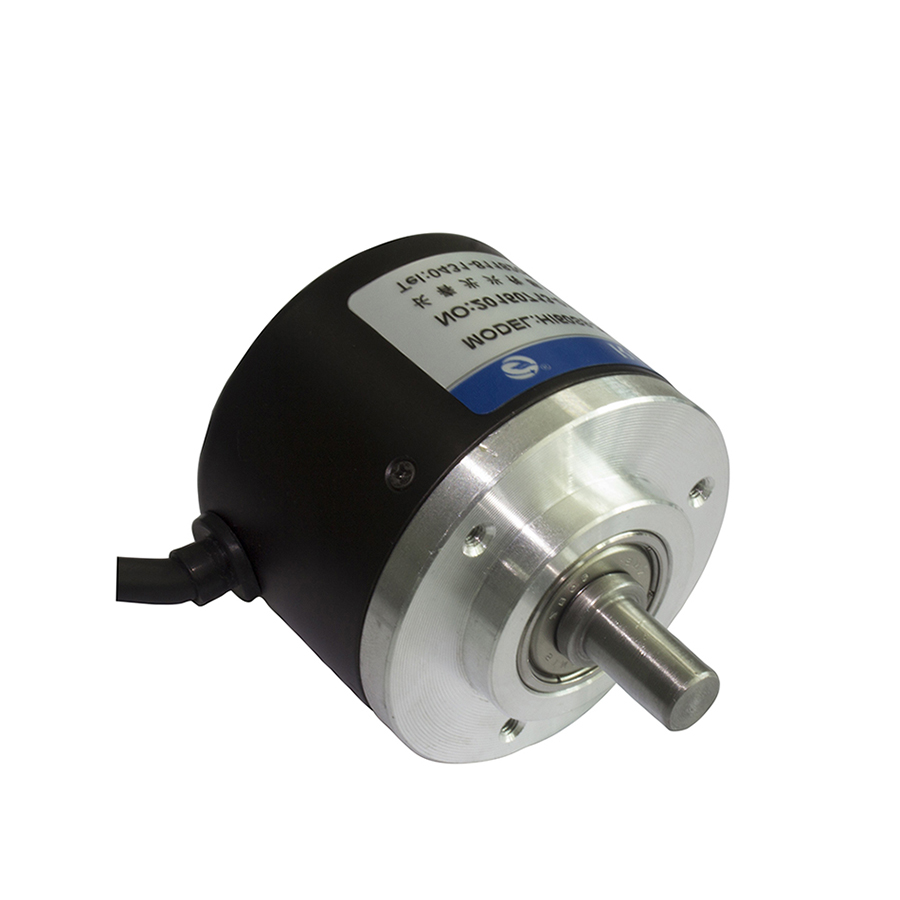

Model No.	HI50S
Brand Name

Product description

The multi-turn encoder records the physical absolute position of the number of turns. Therefore, the multi-turn can obtain a longer and farther absolute position than a single turn

Electrical parameters
Resolution	10-5000P/R	10-5000P/R
Circuit characteristics	Current type (C)	Voltage type (E)
Voltage	DC(5-26)V	DC(5-26)V
Current consumption	80mA Max.	100mA Max.
Signal high level	VH＞Vcc-0.7V	VH＞Vcc-0.7V
Signal low	VL＜0.5V	VL＜0.5V
Output signal	A B or A B Z	A B or A B Z
Response frequency	300KHz Max.	300KHz Max.
Signal rise time	/	Max.1μs
Signal fall time	/	Max.1μs
Insulation resistance	Above 50MΩ (DC500V megohmmeter)	Above 50MΩ (DC500V megohmmeter)
Short circuit protection	Have	Have
Power reverse wiring protection	Have	Have

Electrical parameters
Resolution	10-5000P/R	10-5000P/R
Circuit characteristics	Push-pull (F)	Differential (L)
Voltage	DC(5-30)V	DC(5-30)V
Current consumption	125mA Max.	80mA Max.
Signal high level	VH＞Vcc-0.7V	VH＞Vcc-0.7V
Signal low	VL＜0.5V	VL＜0.5V
Output signal	A B or A B Z	A A B B or A A B B Z Z
Response frequency	300KHz Max.	300KHz Max.
Signal rise time	Max.1μs	Max.1μs
Signal fall time	Max.1μs	Max.1μs
Insulation resistance	Above 50MΩ (DC500V megohmmeter)	Above 50MΩ (DC500V megohmmeter)
Short circuit protection	Have	Have
Power reverse wiring protection	Have	Have

Mechanical parameters
Spindle diameter	Φ6mm,Φ8mm,Φ10mm (can be customized)
Protection level	IP52
Shaft speed	6,000rpm Max.
Shaft load	Radial: 30N Axial: 20N
Impact resistance	980m/s (2 X Y Z three directions each 3 times, each lasting 6ms)
Vibration resistance	50m/s^2 (10～200Hz X Y Z each direction for 2 hours)
Starting torque	1.5×10^-2N.m（25℃）
Moment of inertia	2×10^-5 kgm^2
Product weight	About 0.35Kg
Working humidity	35～85%RH (no condensation)
Operating temperature	-10～70℃ Storage temperature -25～85℃
Angular acceleration	1×10r^4ad/s 2
