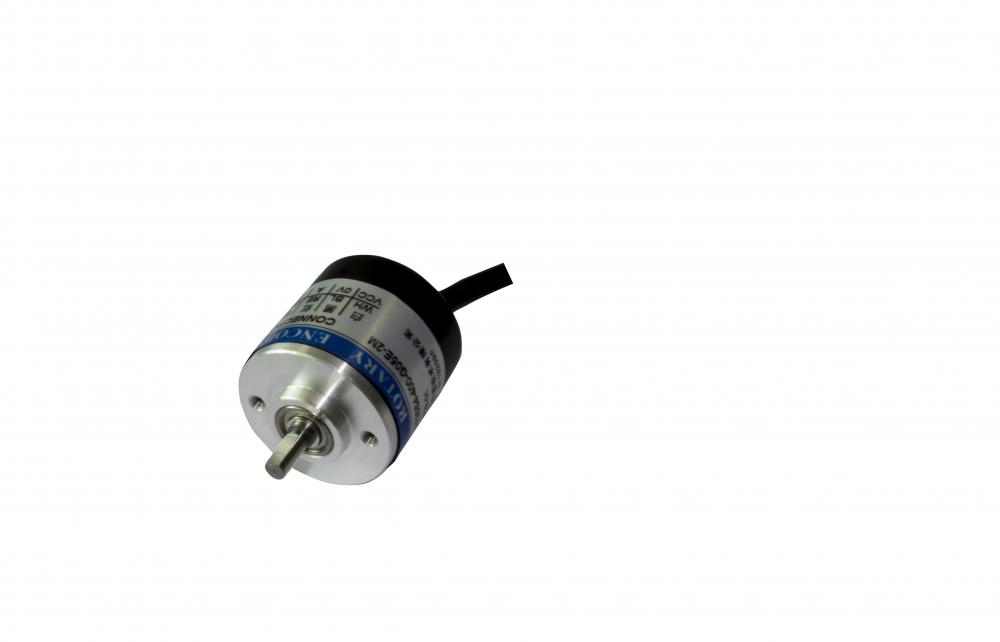

Optical encoder types encoder
Basic Info
| Model No. | HI25S 4 |
|---|
Product description
At present, the series of encoders are very complete, generally dedicated, such as elevator dedicated encoders, machine tool dedicated encoders, servo motor dedicated encoders, etc., and the encoders are all intelligent, and there are various parallel interfaces. Communicate with other devices
Electrical parameters
Resolution
10-1024P/R
10-1024P/R
Circuit characteristics
Current type (C)
Voltage type (E)
Voltage
DC(5-26)V
DC(5-26)V
Current consumption
80mA Max.
100mA Max.
Signal high level
VH＞Vcc-0.7V
VH＞Vcc-0.7V
Signal low
VL＜0.5V
VL＜0.5V
Output signal
A B or A B Z
A B or A B Z
Response frequency
100KHz Max.
100KHz Max.
Signal rise time
/
Max.1μs
Signal fall time
/
Max.1μs
Insulation resistance
Above 50MΩ (DC500V megohmmeter)
Above 50MΩ (DC500V megohmmeter)
Short circuit protection
Have
Have
Power reverse wiring protection
Have
Have
Electrical parameters
Resolution
10-1024P/R
10-1024P/R
Circuit characteristics
Push-pull (F)
Differential (L)
Voltage
DC(5-26)V
DC(5-26)V
Current consumption
125mA Max.
80mA Max.
Signal high level
VH＞Vcc-0.7V
VH＞Vcc-0.7V
Signal low
VL＜0.5V
VL＜0.5V
Output signal
A B or A B Z
A A B B or A A B B Z Z
Response frequency
100KHz Max.
100KHz Max.
Signal rise time
Max.1μs
Max.1μs
Signal fall time
Max.1μs
Max.1μs
Insulation resistance
Above 50MΩ (DC500V megohmmeter)
Above 50MΩ (DC500V megohmmeter)
Short circuit protection
Have
Have
Power reverse wiring protection
Have
Have
Mechanical parameters
Spindle diameter
Φ4mm (customizable)
Protection level
IP52
Shaft speed
6,000rpm Max.
Shaft load
Radial: 4.9N Axial: 9.8N
Impact resistance
980m/s (2 X Y Z three directions each 3 times, each lasting 6ms)
Vibration resistance
50m/s^2 (10～200Hz X Y Z each direction for 2 hours)
Starting torque
1×10^-3 N.m（25℃）
Moment of inertia
2×10^-5 kgm 2
Product weight
About 0.08Kg
Working humidity
35～85%RH (no condensation)
Operating temperature
-10～70℃ Storage temperature -25～85℃
Angular acceleration
1×10r^4ad/s 2
