The production line follows a standardized five-link workflow, with configurations tailored to specific ore properties:

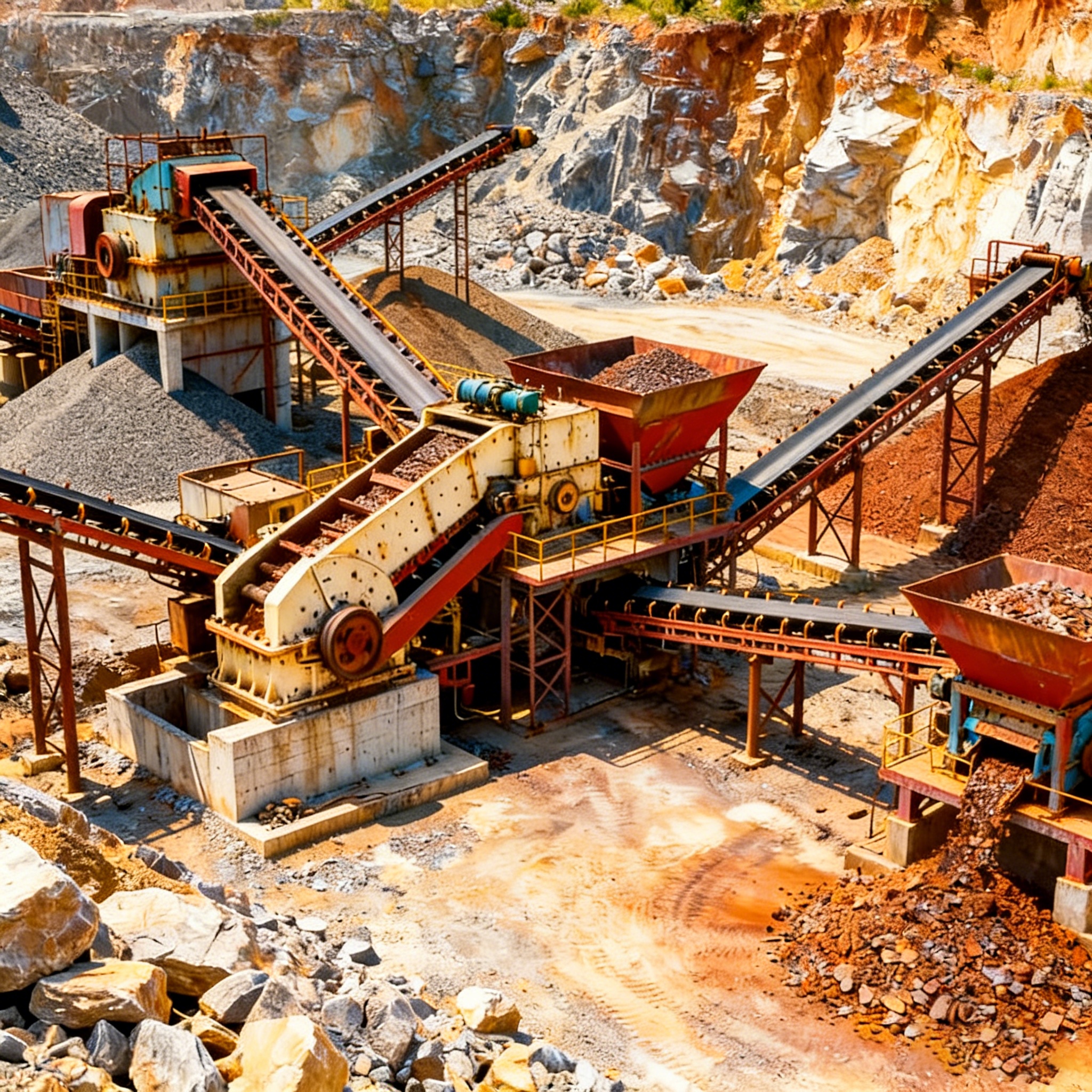

Crushing Workshop

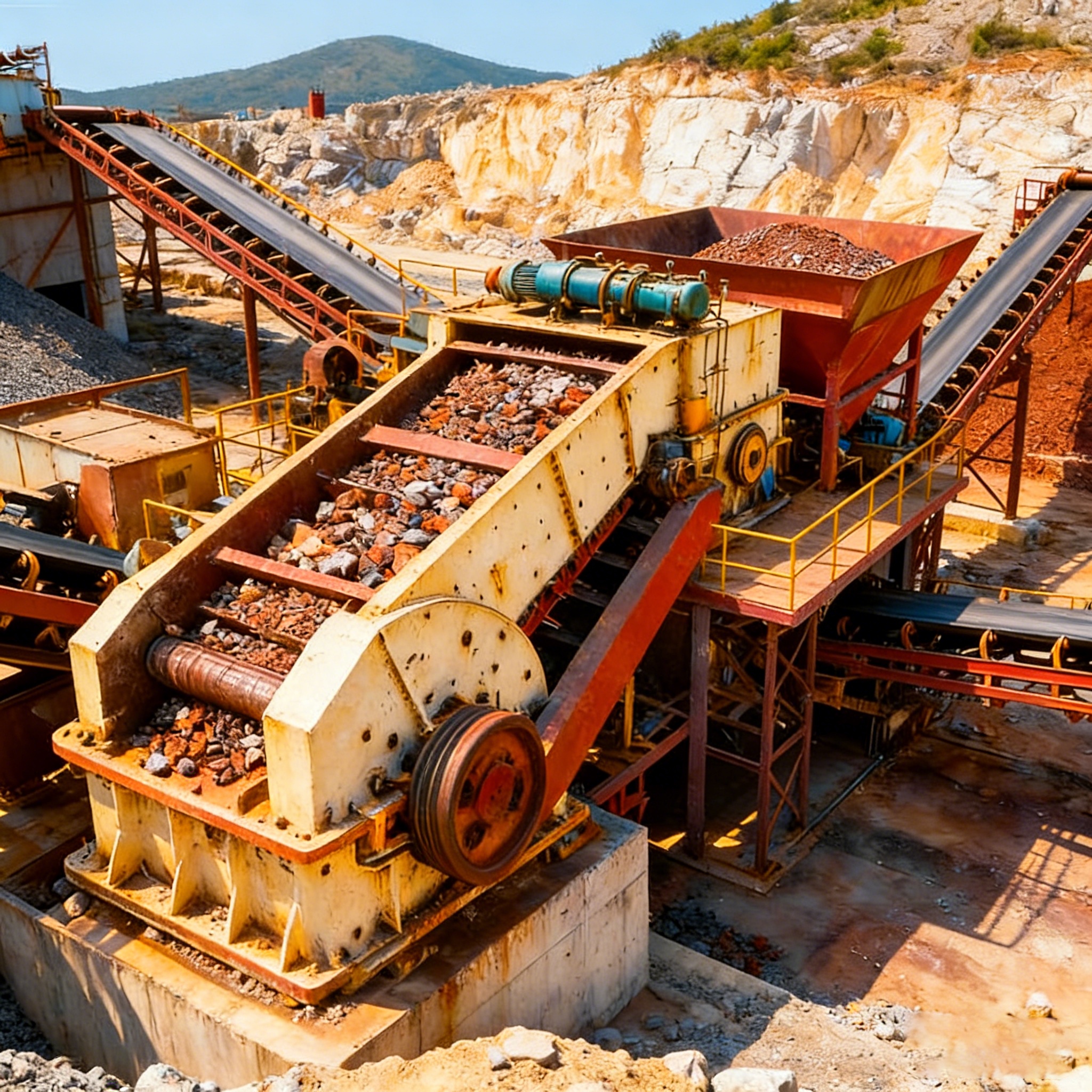

??Primary Crushing: Heavy-duty jaw/horizontal gyratory crushers with a processing capacity of 2500-3500 t/h?to handle run-of-mine ore.

??Secondary/Tertiary Crushing: High-stability cone/impact crushers for "more crushing, less grinding" to optimize particle size.

??Screening: Circular vibrating screens with closed-circuit design to separate oversize particles for re-crushing, ensuring uniform feed material.

Grinding & Classification

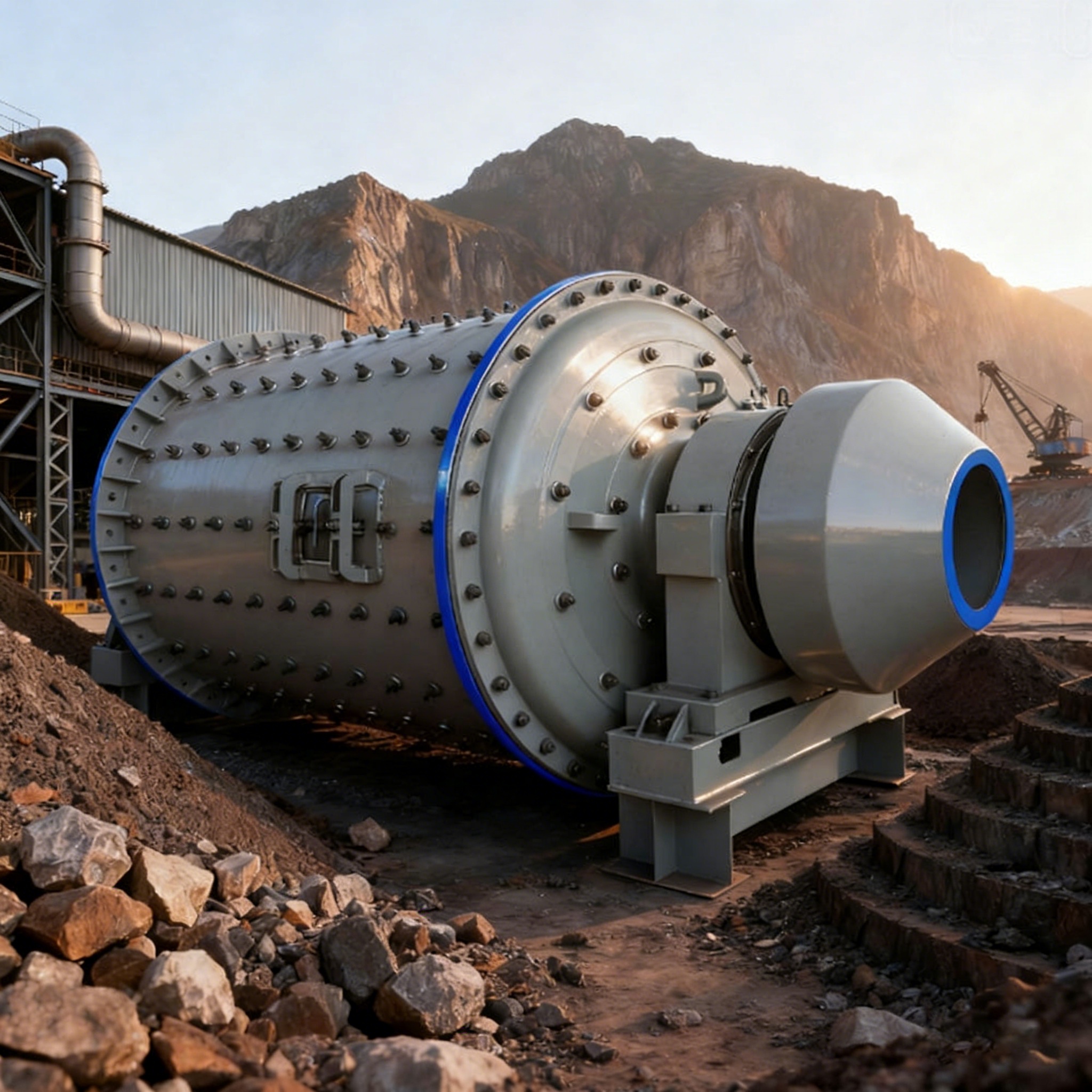

??Grinding: High-efficiency ball mills (grid-type) ground to -200 mesh (55-60% fineness) in a closed circuit with classifiers/hydrocyclones.

??Intelligent Control: Integrated grinding audio analyzers optimize feed and ball addition rates, ensuring consistent grinding efficiency and reducing energy waste.

Separation Section

??Magnetic Separation: Permanent drum separators (0.1-0.3T) for magnetite iron ore purification, magnetic minerals adsorbed on the cylinder surface.

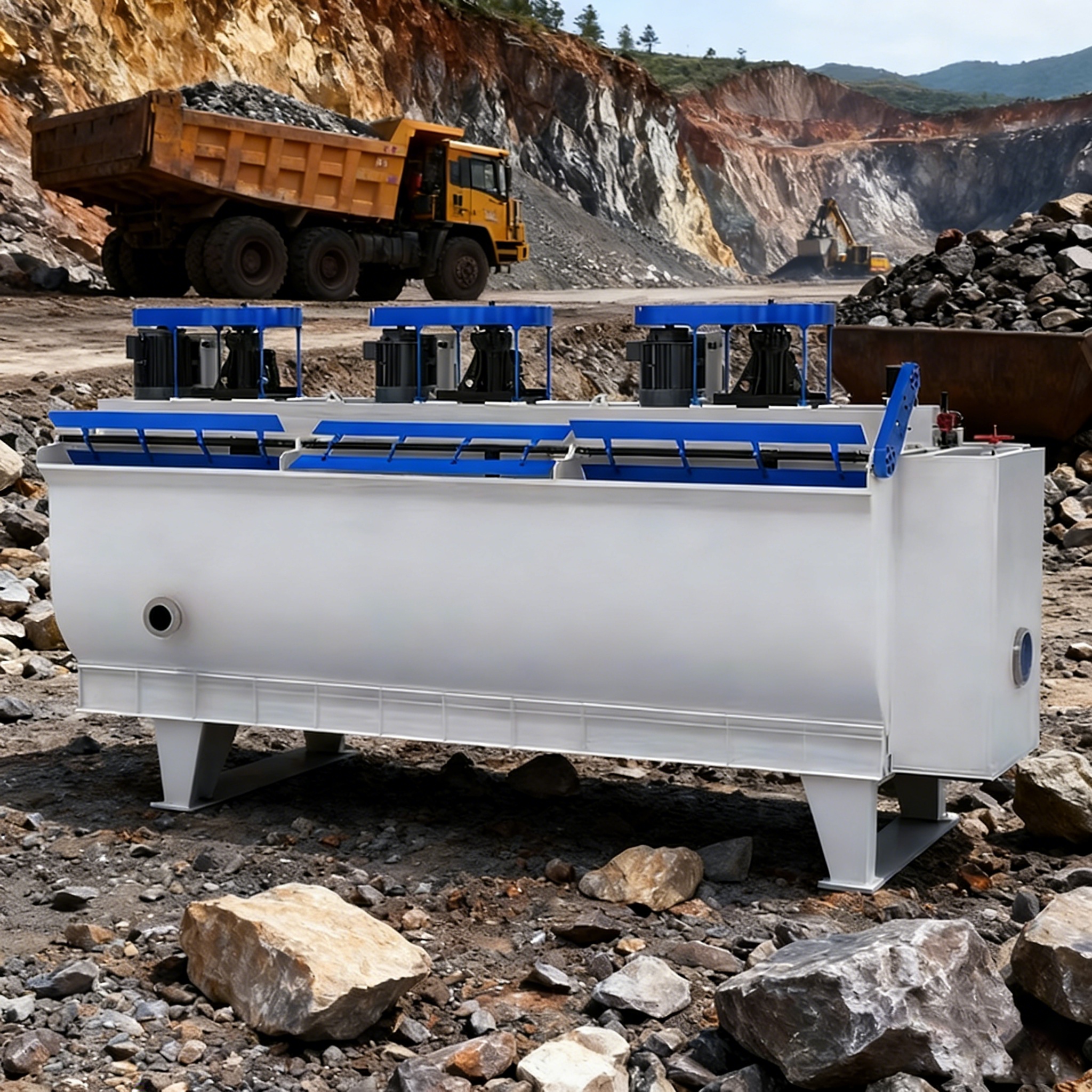

??Flotation Separation: Mechanical/aerated flotation machines for copper/lead/zinc sulfide ores, controlled by reagent addition to maximize mineral recovery.

??Gravity Separation: Jig machines for coarse gold recovery; Knelson centrifuges (80-150G) for fine gold enrichment under high centrifugal force.

Dehydration

??Concentration: Large-diameter deep cone thickeners (10-30m) to condense pulp to 60-70% density.

??Filtration: Vacuum/pressure filters to reduce concentrate moisture to ≤15%, meeting storage and transport specifications (e.g., copper concentrate moisture ≤12%).

Tailings Treatment

??Dry Discharge: Pressure filtration technology to lower tailings moisture to <15%, eliminating slurry runoff and reducing environmental risk.

??Backfilling: Paste tailings systems for underground gof filling, promoting resource circularity and zero-discharge mining.

Our sand and gravel aggregate production lines boast extensive and all-round coverage, and we offer a complete range of configurations from individual standalone equipment to full turnkey production lines, including Crushing Equipment, Sand Making Equipment, Screening Equipment, Feeding Equipment, Mining Conveyor and Mobile crusher. We provide customized crushing and processing solutions for a full spectrum of materials including bluestone, limestone, basalt, granite, pebble, coal gangue, calcite, quartz stone, dolomite, iron ore, barite, diabase, tuff and high calcium limestone, as well as targeted processing solutions for kaolin. We also deliver professional crushing solutions for industrial solid wastes such as slag and tailings, and comprehensive treatment solutions for construction & demolition waste. In addition to fixed production line solutions for various materials, we also supply flexible Mobile Crawler Unit Solutions to meet diverse on-site operation needs of sand and gravel aggregate production.
