Optimizing Electrical Systems: Exploring Active Filters for Harmonic Current Reduction and Reactive Energy Compensation

$800.00 ~ $15000.00 / set

Material:

  • Metal clad

Size:

  • 800mm*1000mm*2200mm
Get Latest Price

Basic Info

Model No.
Brand Name
place of origin China
Brand Name ZHONGDIAN
Model Number ZD-AMS
Color 70135/70132
Product Name Rated current APF active power harmonic filters panel
Rated Voltage Low voltage
Phase 3 phase 3 wire,3 phase 4 wire
Rated Frequency 50Hz/60Hz
Compensation current 30~600A
Filter range 2nd~50th order harmonics
Harmonic filtering rate ≥85%
Response Time <7ms
certificate IEC
Key Words APF
Show More

Product description

Product Description

APF active power harmonic filters?

The wide application of nonlinear power equipment produces a lot of distorted current harmonics, which cause harmonic voltage when flowing in power grid. This harmonic pollution threatens the safety and stability of power system seriously. Together with electromagnetic interference, power factor reduction, are the three major public hazards for power system.
ZD-AMS active power filter(APF/AHF for short) is a perfect comprehensive solution to power quality problems with power grid such as harmonic wave(can filter 2nd to 50th harmonic interference completely), reactive power, and 3 phase load unbalance.APF is connected in parallel in power grid, to detect the harmonic wave in power grid in real time, generate the reverse-phase compensation current through the converter, and dynamically filter the harmonic wave in power grid. The operation of APF is unaffected by power grid structure and load type, and it will not produce harmonic oscillation with the system, thus perfectly realizing harmonic wave control of various loads. APF can also realize dynamic reactive compensation, and control the capacitor switching, to improve the power factor of power grid. Meanwhile, APF has the function of controlling the 3 phase load current unbalance, thus comprehensively solving various power quality problems with power grid. ?

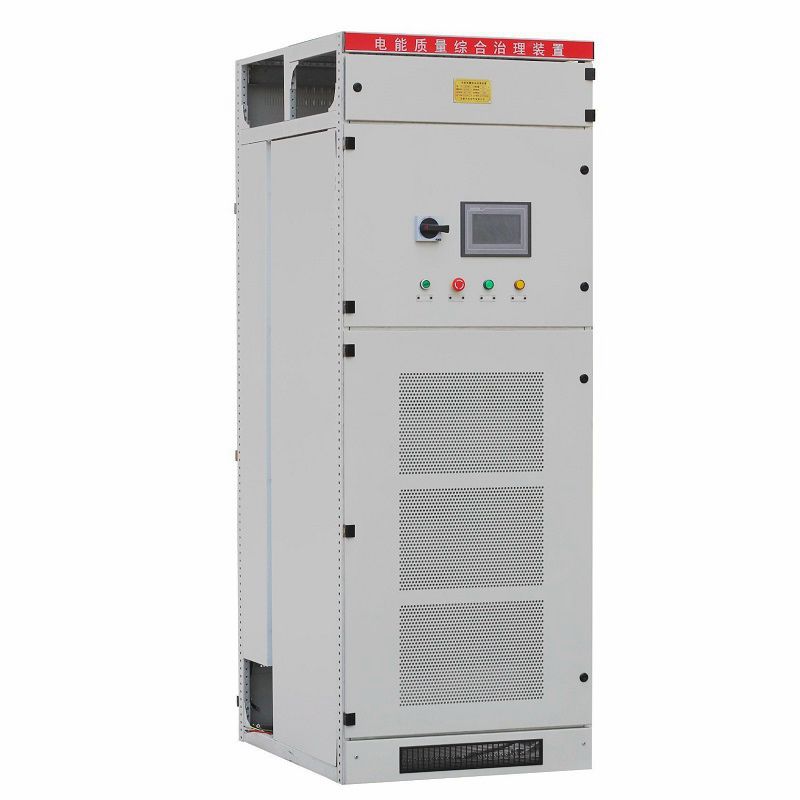

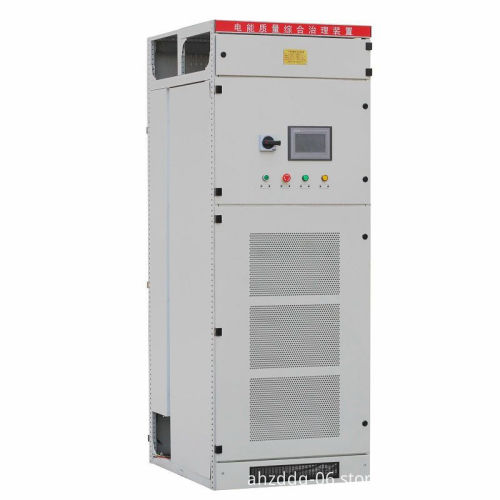

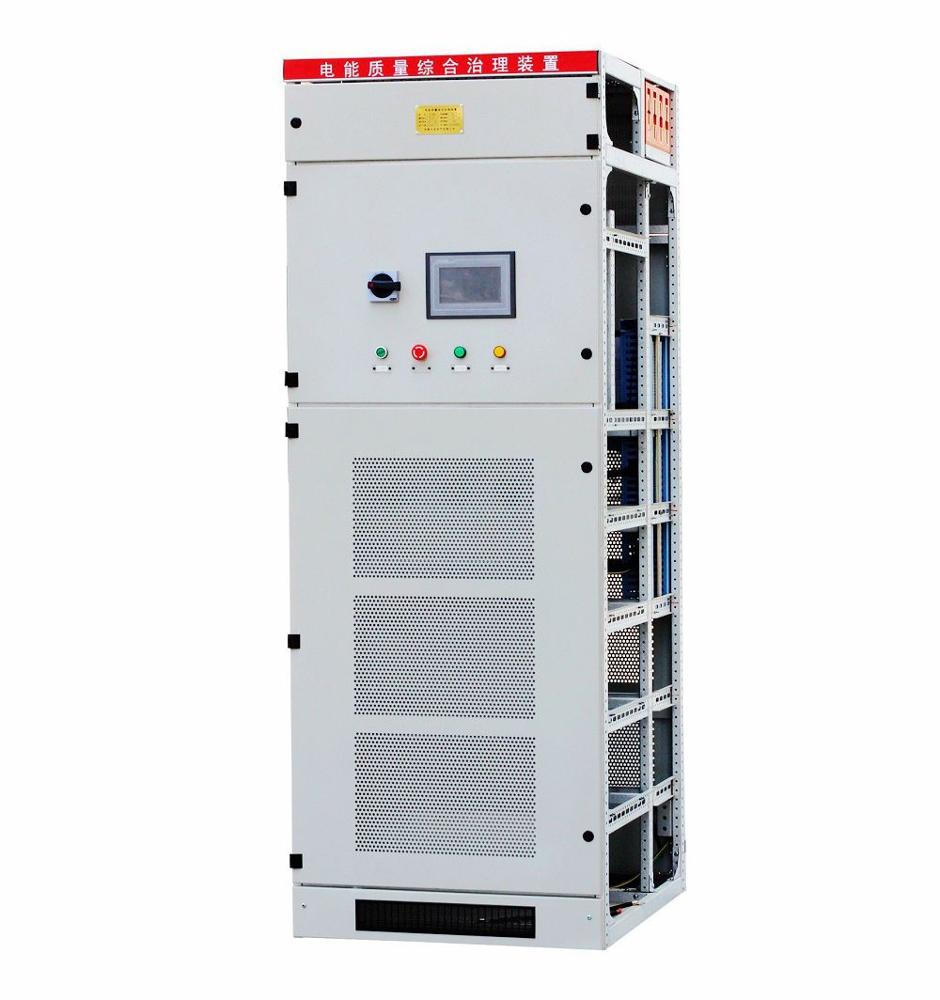

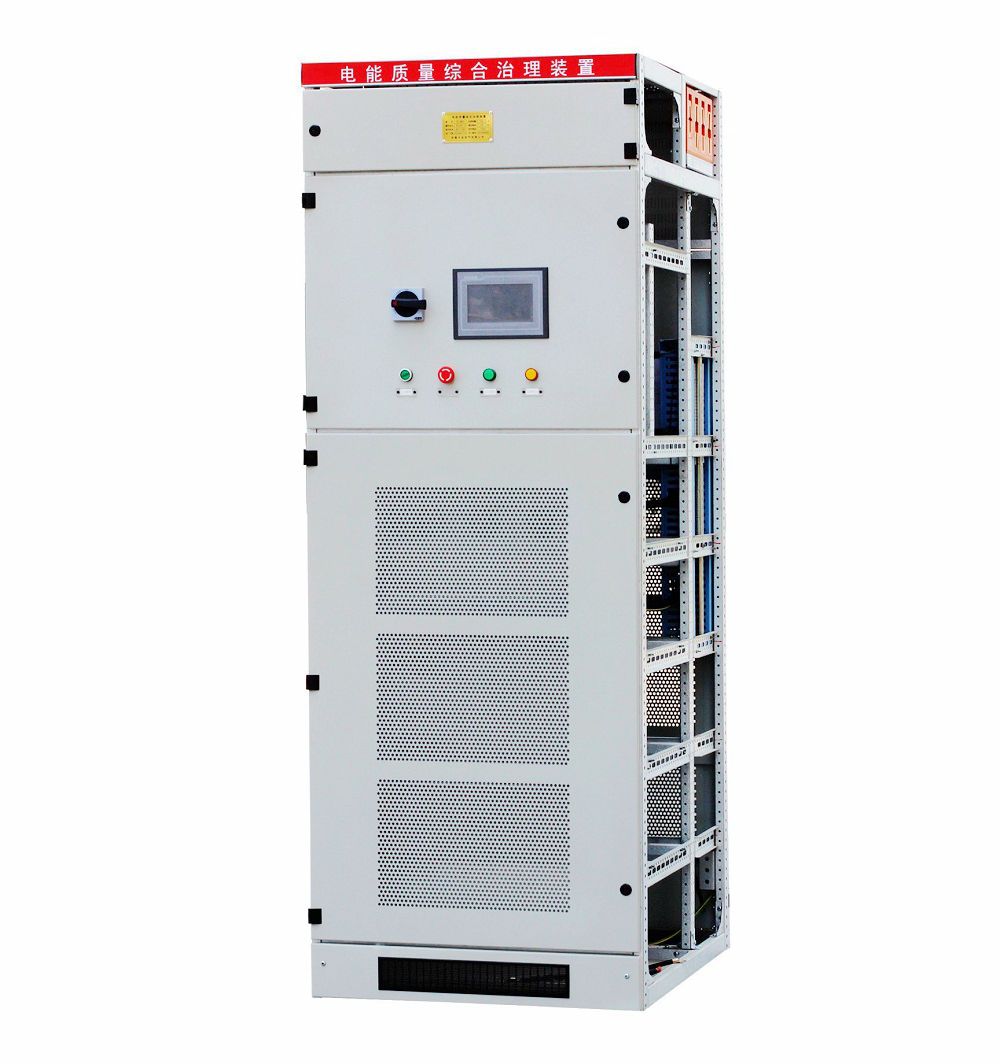

Rack Type APF modular with Cabinet

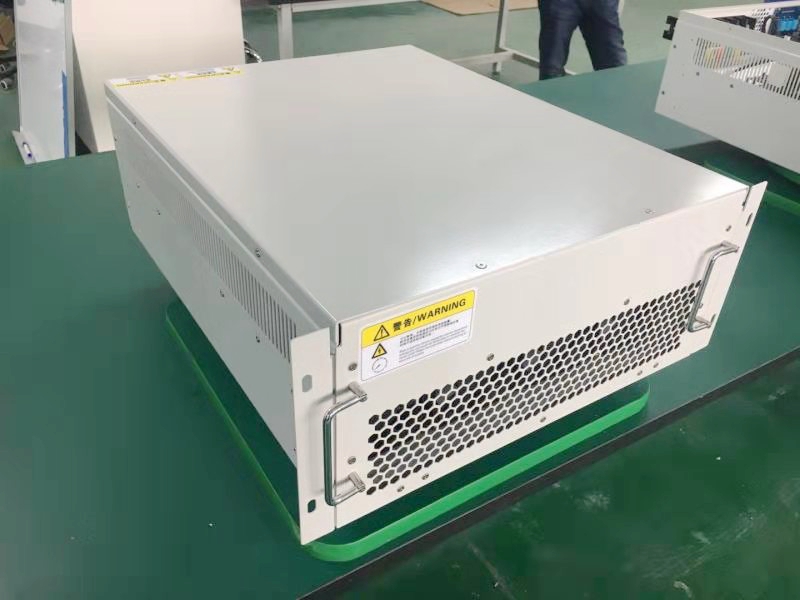

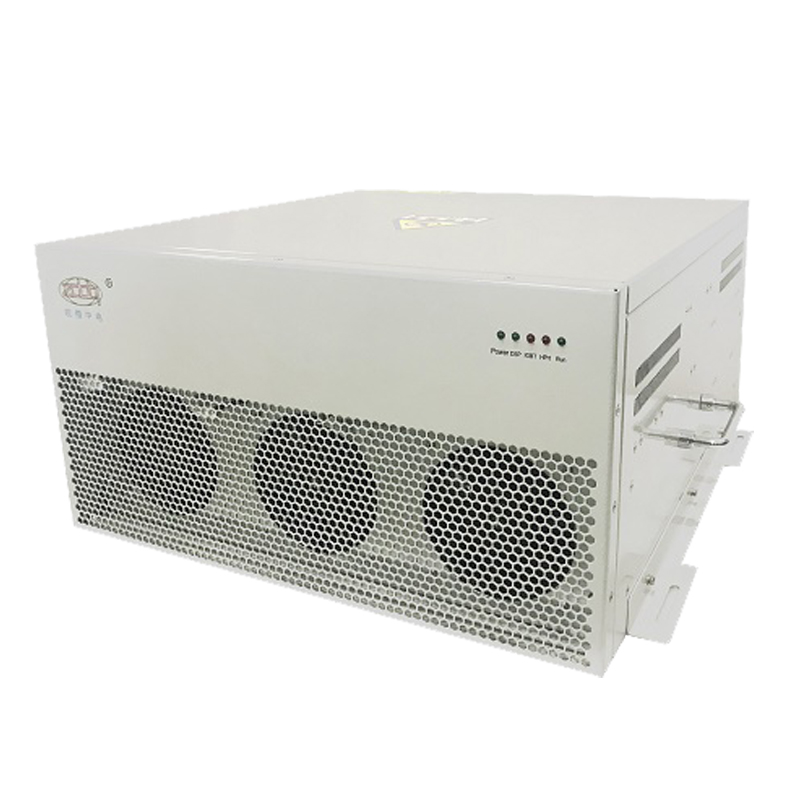

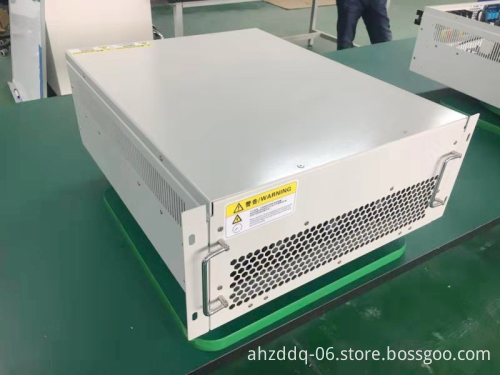

Compact Wall Mounted APF module?









Electrical properties
Rated voltage
AC, low voltage
Operating frequency
50Hz/60Hz
Electrical connection
Three-phase four-wire
Filter range
2~50-order harmonics (the order can be chosen)
Filtering control effeciency
Harmonic filtering rate ≥85%; THDi<5% after systematic control
Compensation current of each cabinet
30~600A
Compensation mode
Including: Harmonic compensation, reactive compensation, and three-phase load unbalance compensation function; one or more compensation modes could be set.
Three-phase unbalance compensation effect
The degree of unbalance of three-phase active current of the system is less than 5% after compensation within the rated capacity.
Response time
<7ms
Active loss of system
<3%
Output current limit
Automatically limited within 100% of rated capacity to output
Number of units connected in parallel
≤10 units (single CT)
MTBT
>100,000 hours

Control characteristics?
Controller
IGBT
Control algorithm
Self-adaptive control algorithm
Communication mode
Adopt Modbus remote communication protocol; communication interface adopts RS485 and CAN bus, supporting mobile phone APP operation.

Structural characteristics
Level of protection
IP20
Noise
<60db (<45db during low-speed operation)
Installation method
Module embedded installation

Environmental requirements?
Ambient temperature
-20~55℃
Relative humidity
Maximum 95%, without condensation
Altitude above sea level
≤1,500m at rated capacity;

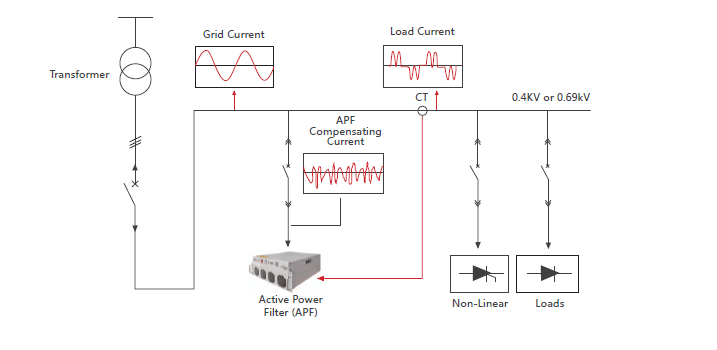

?APF Working Principle

APF??Series is connected in parallel with non-linear loads, and uses one set of current transformers (CT) to detect the load current. It calculates each order harmonic current , and then generates a compensating current with the same amplitude but opposite phase angles to the detected harmonic current, which cancels out the original load harmonics.

The APF not only eliminates harmonic current from the load side, but it also mitigates harmonic voltage caused by harmonic currents. The APF system can also improve power factor (PF) and correct load imbalances in the power system.

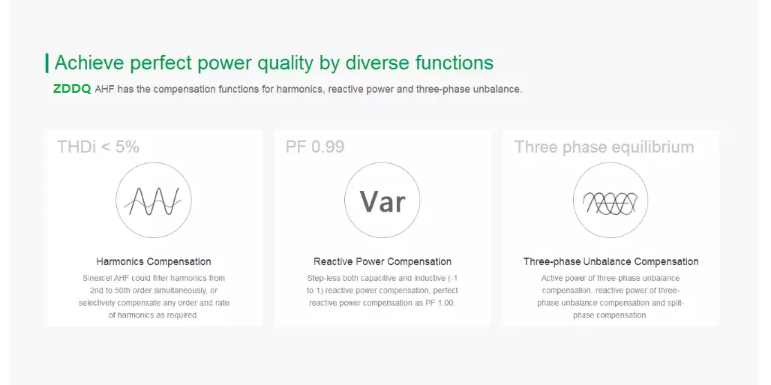

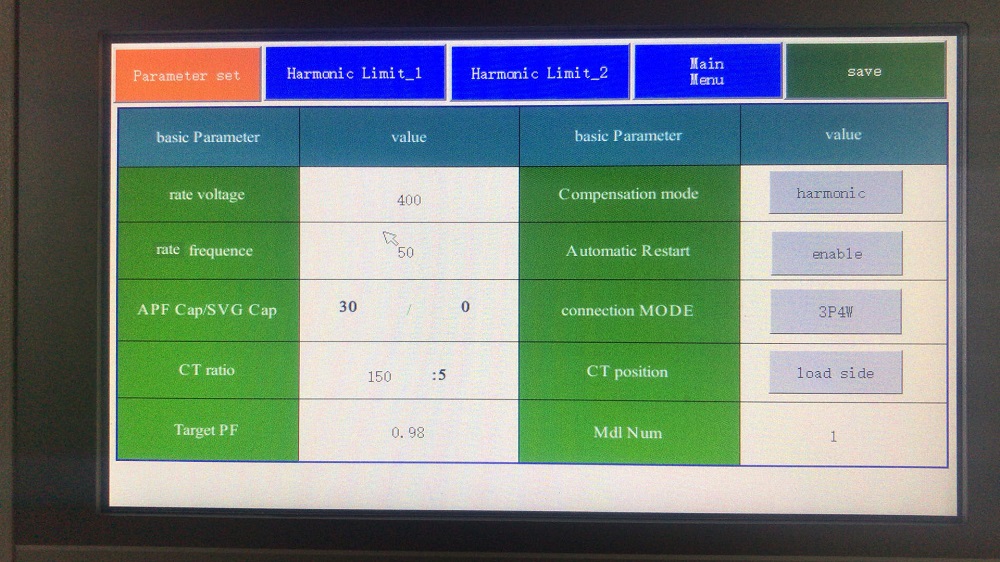

Main function

AHF power quality?analysis and solution equipment


◆Flitering harmonic pollution.?

?

◆Dynamic reactive power compensation.


◆Correct 3 phase unbalance.

?

Central Mangement

Reference Table of Model Selection for Central Management



Transformer capacity / KVA
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? AHF Configuration Capacity (A)

Building/ Subway

Medical / Tire / Metallurgy
Manufacturing factory/ ? ? ? ? ? ? ? ? ?New energy/ Automobile
Performing arts center /Silicon ? ? ? manufacture / ?Oil exploitation
Chemical
THDi
10%
15%
20%
25%
30%
200
35
50
50
60
100
250
35
50
75
75
100
315
50
60
100
100
125
400
50
75
100
125
150
500
60
100
125
150
180
630
100
125
160
200
250
800
100
150
200
250
300
1000
125
200
250
300
350
1200
160
250
300
400
450
1600
200
300
400
500
550
2000
250
360
500
600
700
2500
300
450
600
700
850
Design Scheme
Data Required For Design
1.Rated voltage of power system
2.Total volume of harmonic needed for compensation within power system
3.Compensation capacity required by power system
4. Installment requirements and cable arrangement

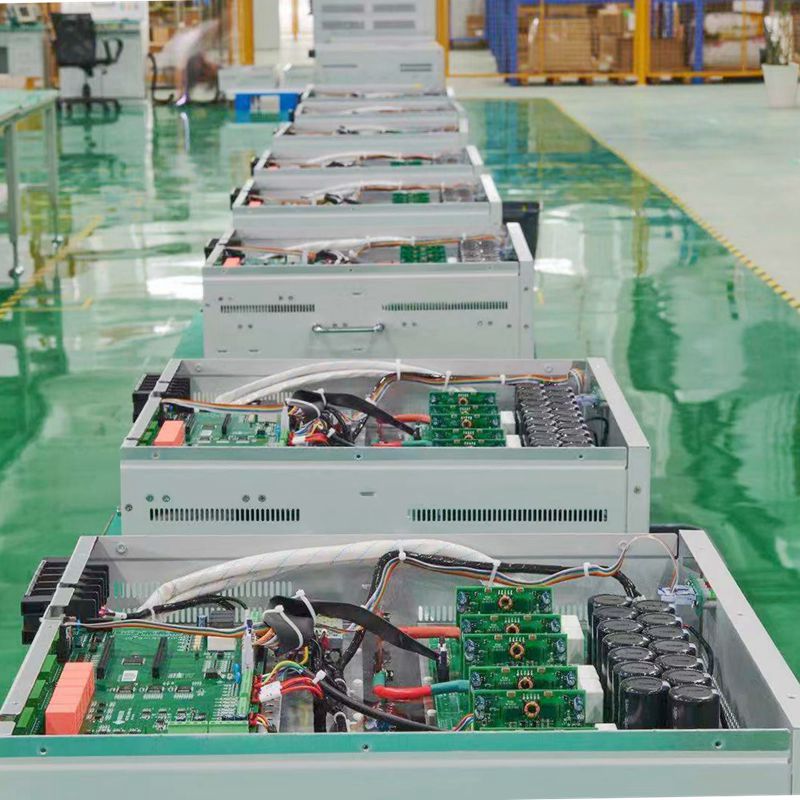

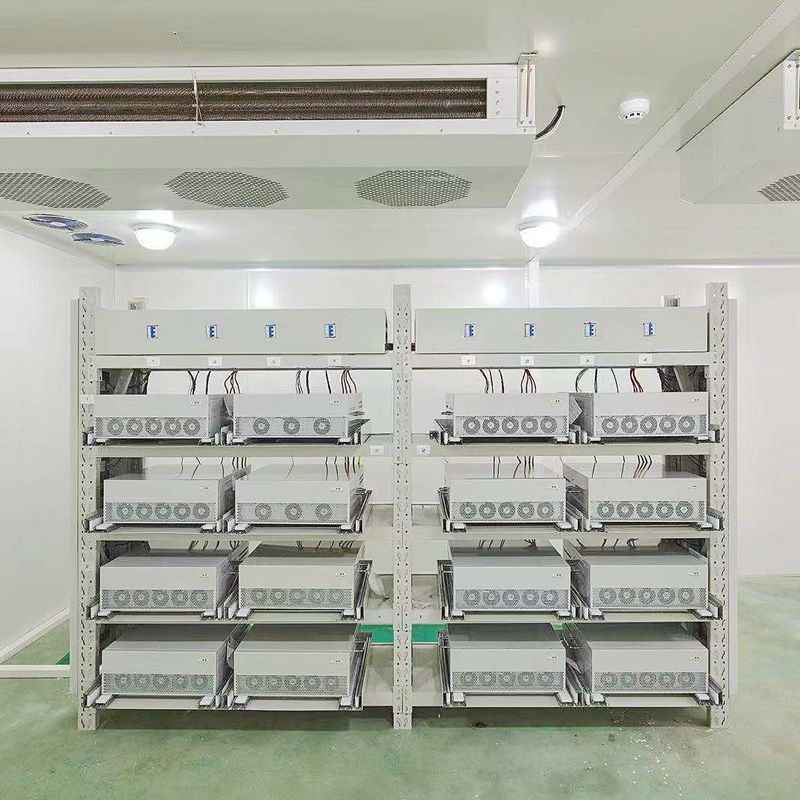

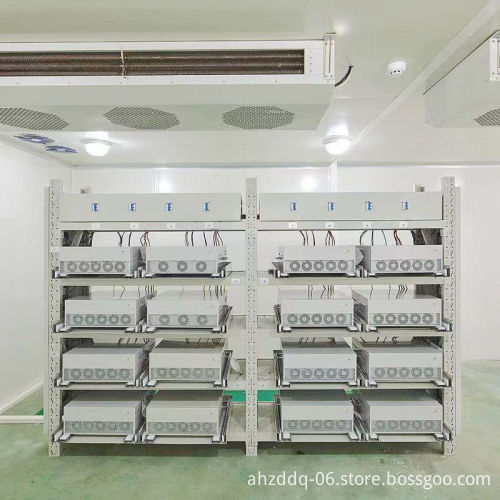

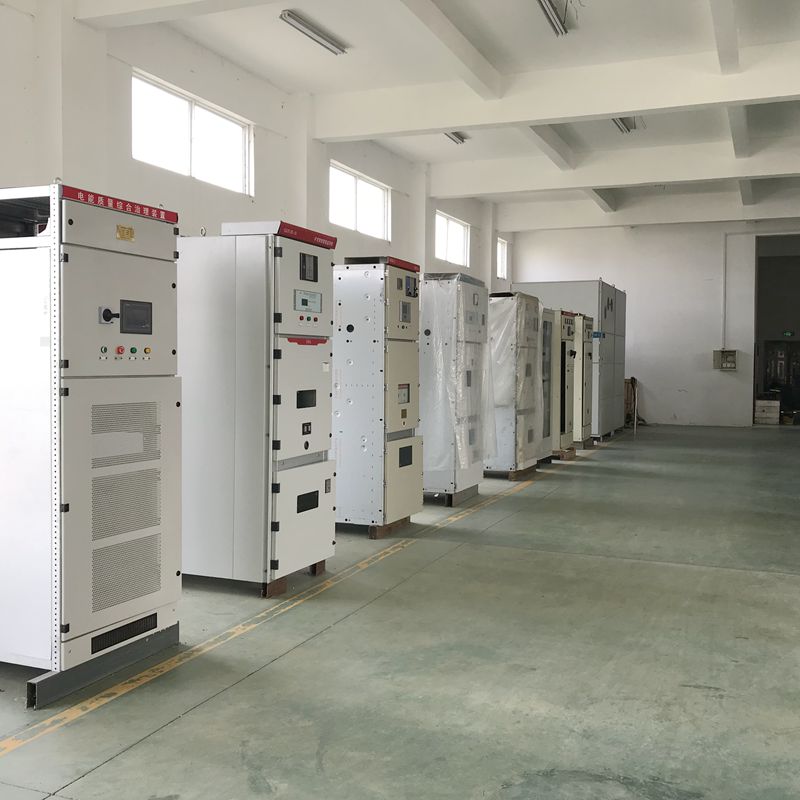

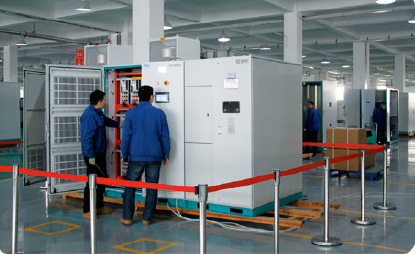

Factory
Our Service

Pre-Sales Service

* Inquiry and consulting support.?

* Sample testing support.?

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.?

* Engineers available to service machinery overseas.
