Outdoors Zero Phase Split Core Current Transformer

1 / 5

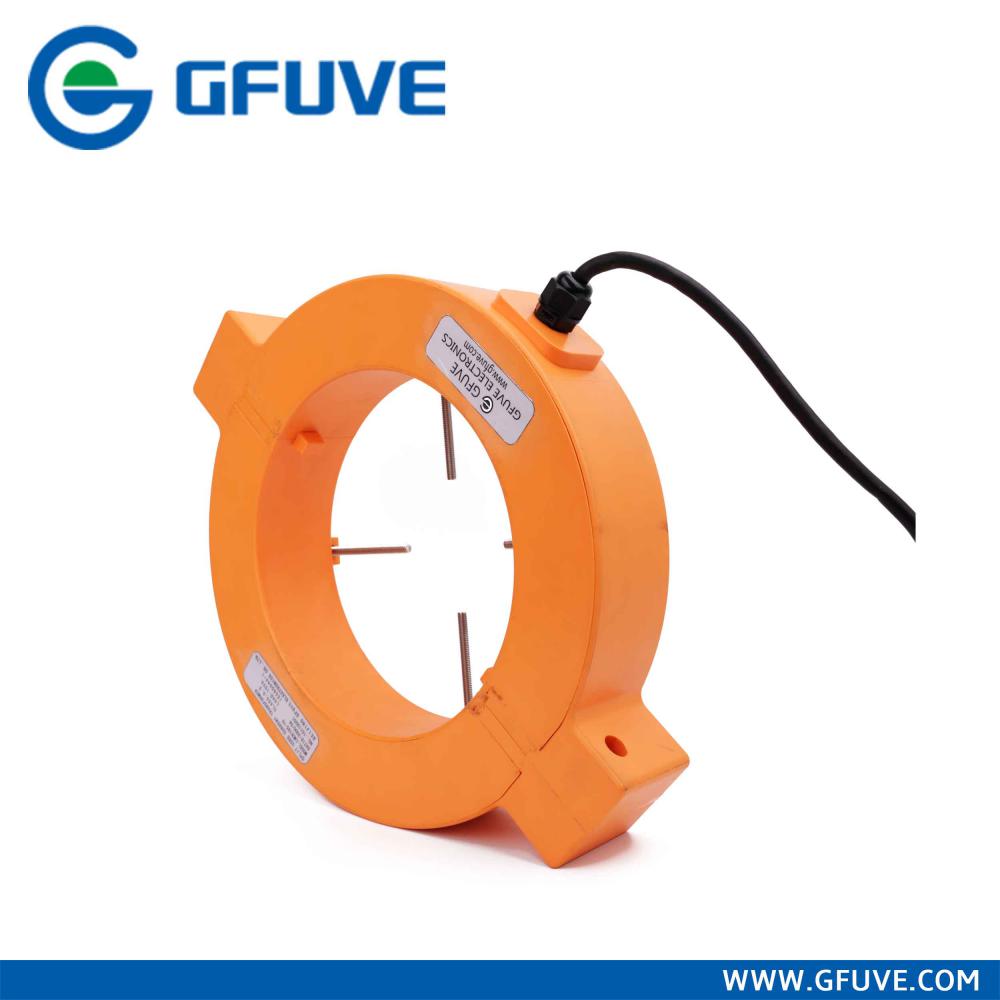

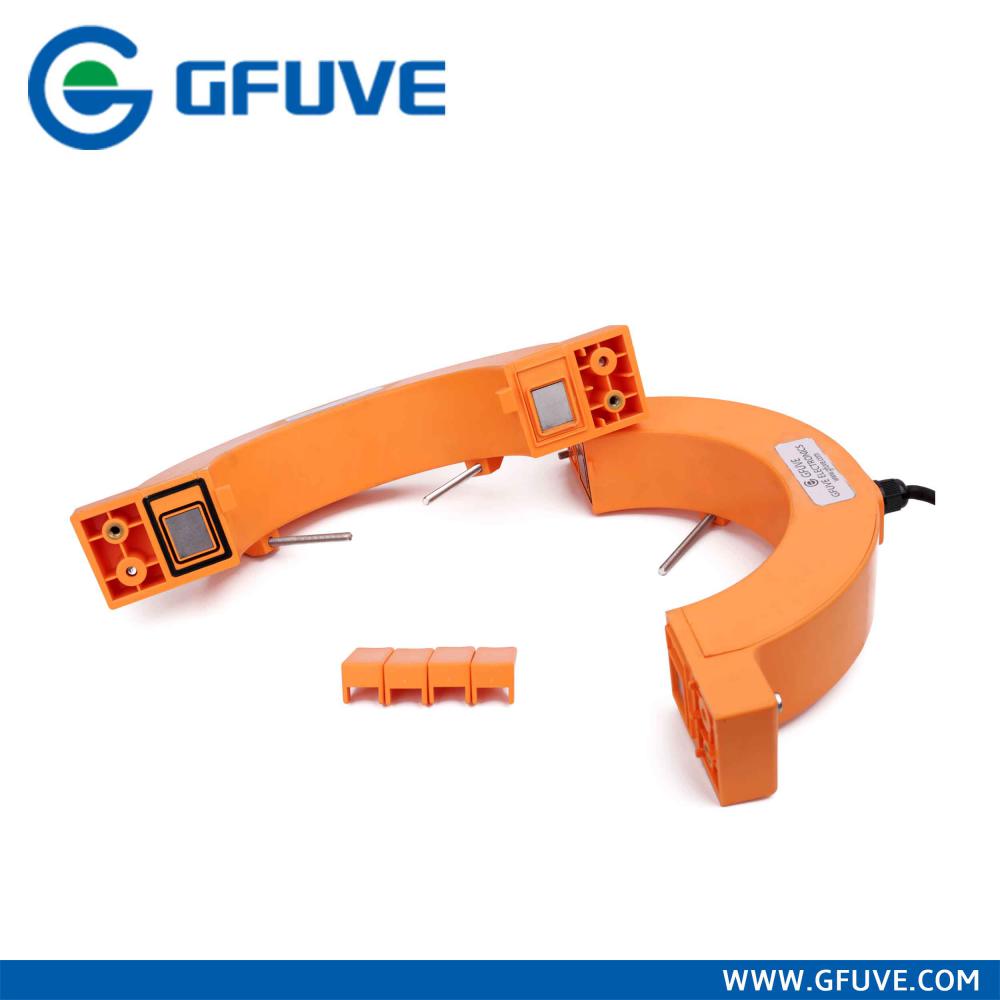

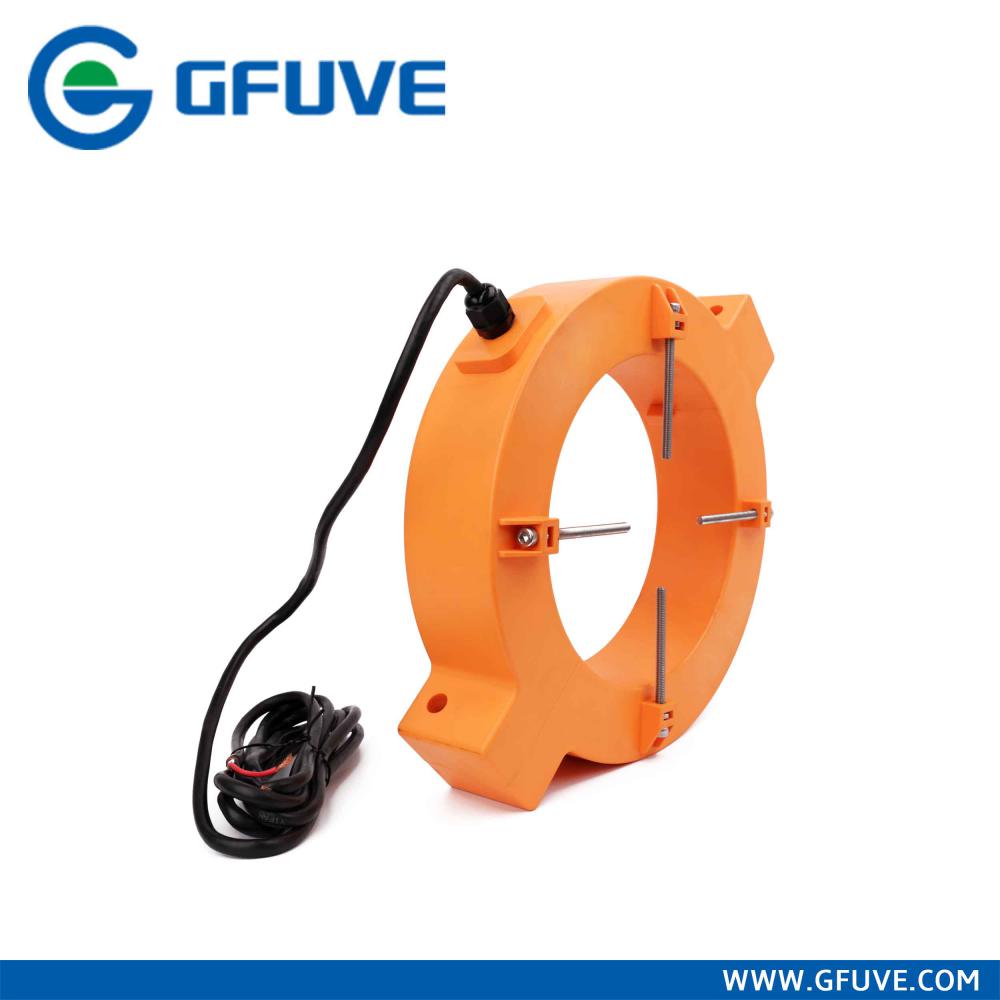

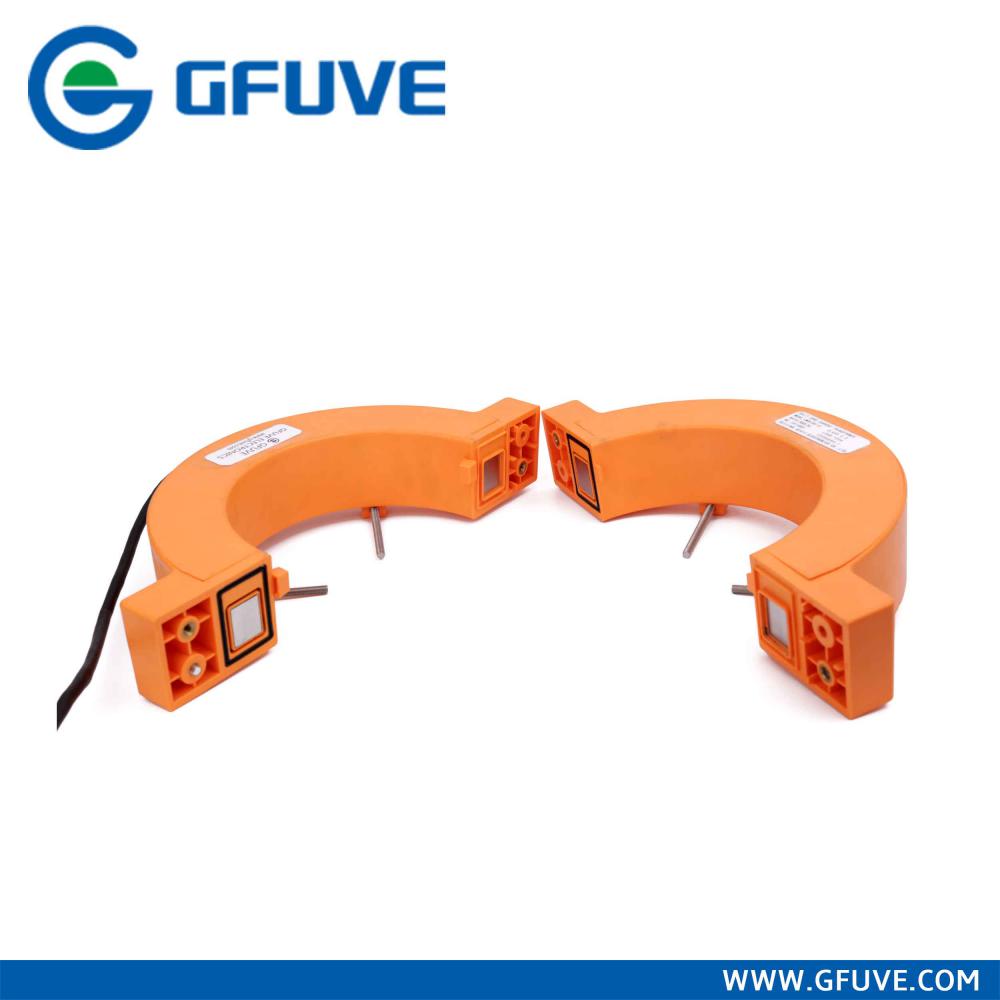

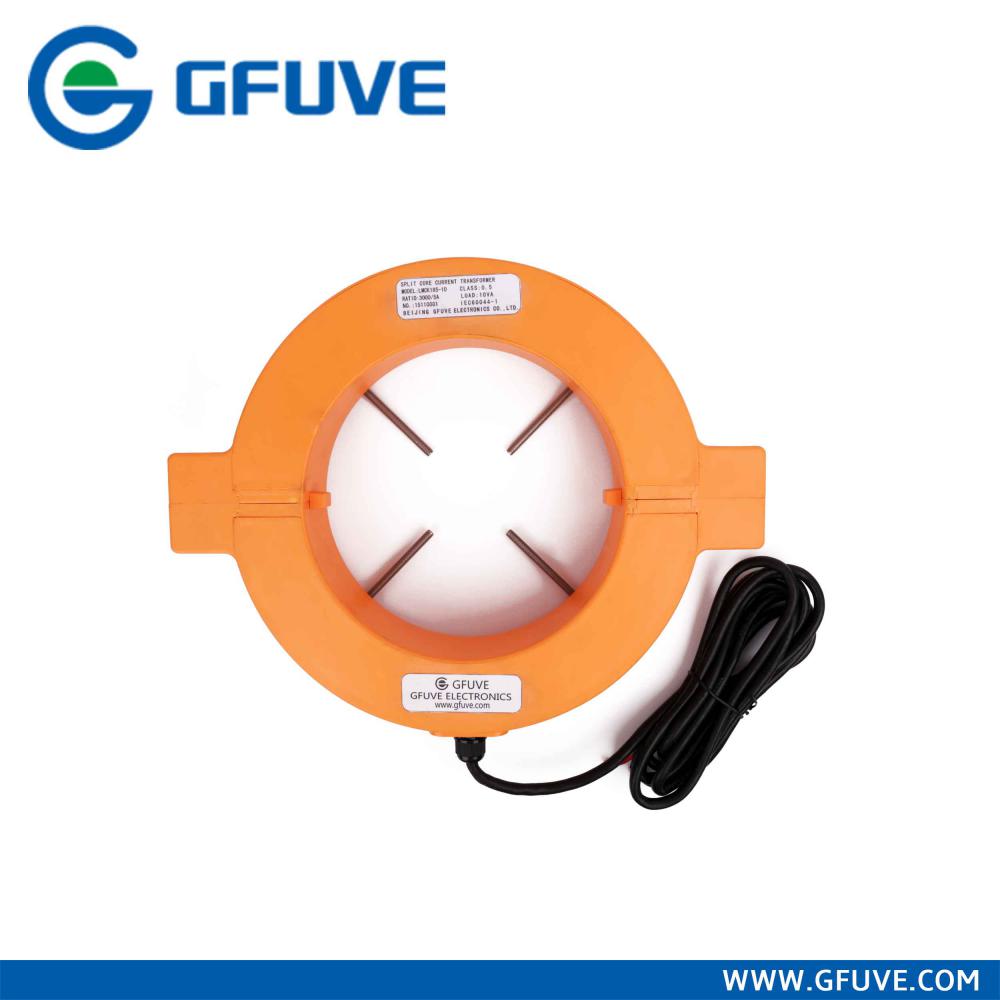

Outdoors Zero Phase Split Core Current Transformer

$185.00 ~ $185.00 / Set/Sets

Get Latest Price

You might also like

Current Transformer Split Core Type for Protection device

1 Bag/Bags (MOQ)

Medium Voltage Split Core Current Transformer

1 (MOQ)

GFLZZ0967-10C5 Indoor High Accuracy 0.2 10-4000A Current Transformer

$110.00

3 Set/Sets (MOQ)

GFLZZ0956-10C4 Indoor High Accuracy 0.2S 10-4000A Current Transformer

$135.00

3 Set/Sets (MOQ)

GFLZZ0946-10C2 Indoor High Accuracy 0.2S 5-3150A Current Transformer

$120.00

3 Set/Sets (MOQ)

Cast Resin Bushing Type Voltage Instrument Current Transformer

$180.00

3 Set/Sets (MOQ)

Outdoors Waterproof Split Core Current Transformer

$130.00

3 Set/Sets (MOQ)

10KV 35KV Window Type Split Core Current Transformer

$170.00

3 Set/Sets (MOQ)

Window Type Split Core Current Transformer

$180.00

3 Set/Sets (MOQ)

Wireless Split Core Wound Primary Current Transformer

$165.00

3 Set/Sets (MOQ)

Basic Info

Model No.	LMCK185-10
Brand Name	GFUVE
Type	Electromagnetic
Output Signal Type	Analog Output
Production Process	Integration
Material	Metal
Accuracy Grade	0.5G
IP Rating	IP65
Application	Other
Rated Secondary Current	5A Or 1A
Environment	Outdoors Or Indoors
Range Of Primary Rated Current	300-3000A
Range Of Rated Load	≤25VA
Safety Factor Rating	(FS) < 5
Dimensions (W×D×H) (mm)	350×283×55
Standards	IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006
Accuracy	0.5%, 1%
Rated Frequency	50/ 60Hz
Aperture (mm)	Φ185

Product description

Outdoors Zero Phase Split Core Current Transformer LMCK185-10 is a kind of Split Core Current Transformer from current transformer manufacturer GFUVE.

LMCK series outdoor current transformers are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, has the characteristics of Small magnetic circuit loss and can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case (ABS&PC) which is flame retardance anti-moisture, stable performance, no maintenance.

Technical parameters
Standards	IEC60044-1; IEC 61869-2; ANSI C57.13; NTC 2205; GB1208-2006
Accuracy Class	0.5%, 1%
Range of primary rated current	300-3000A
Range of Rated load	≤25VA
Rated frequency	50/60Hz
Rated secondary current	5A or 1A
Secondary winding power frequency withstand voltage	3kV, 1min
Safety Factor Rating	(FS) <5
Flame retardant ABS plastic shell inside, jaw waterproof apron.
Mechanical parameters
Aperture (mm)	Φ185
Dimensions (W×D×H) (mm)	350×283×55
Weight (kg)	4.5
Working conditions
Operating temperature	-35°C to +55°C, not exceeding +40°C
Environment	outdoors or indoors
The height of above sea level	0- 3000m
Conditions	No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed.
