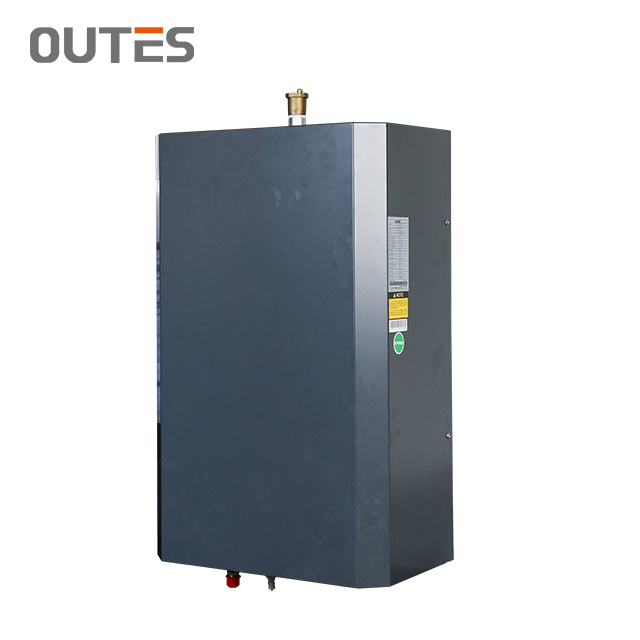

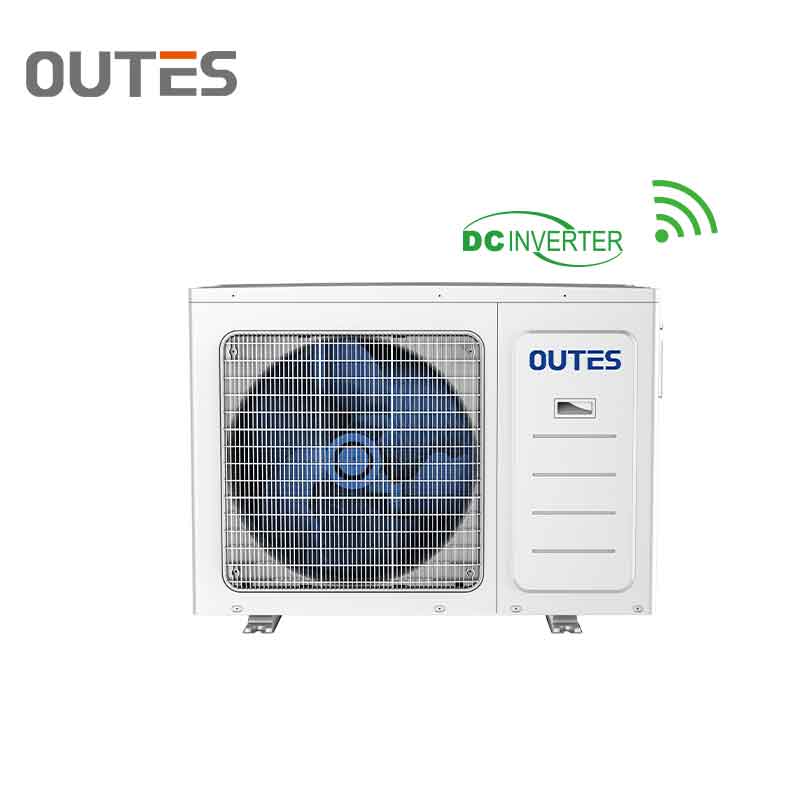

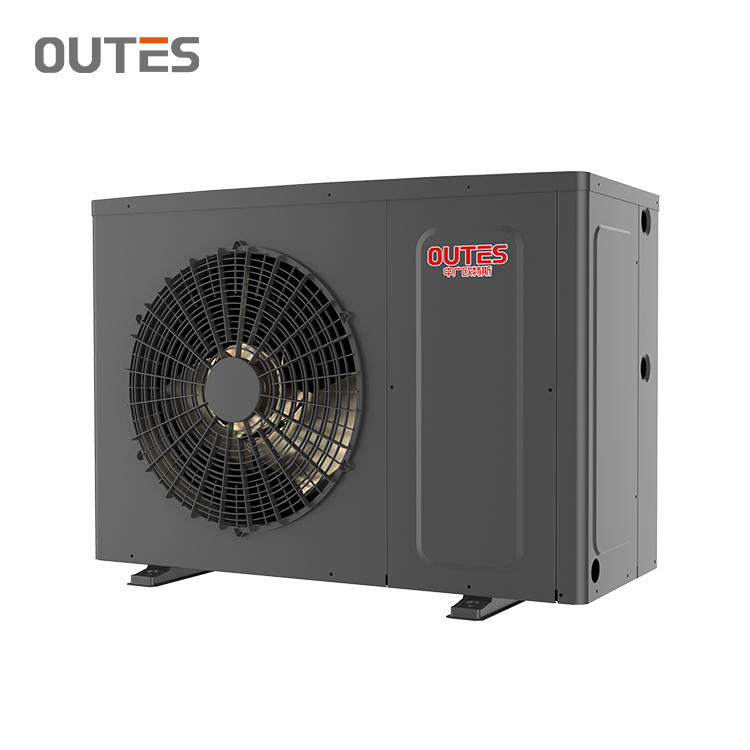

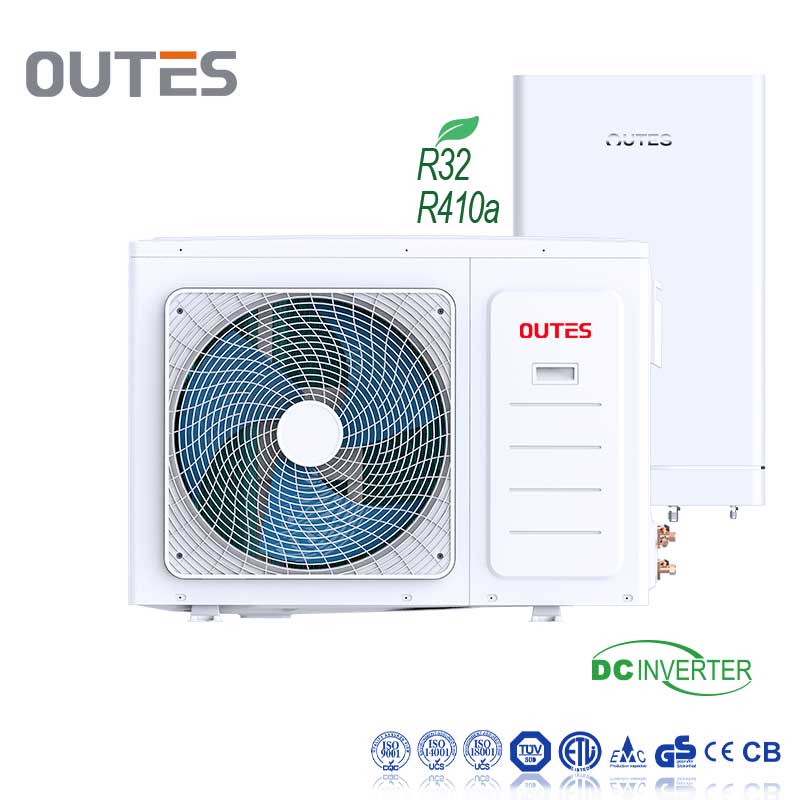

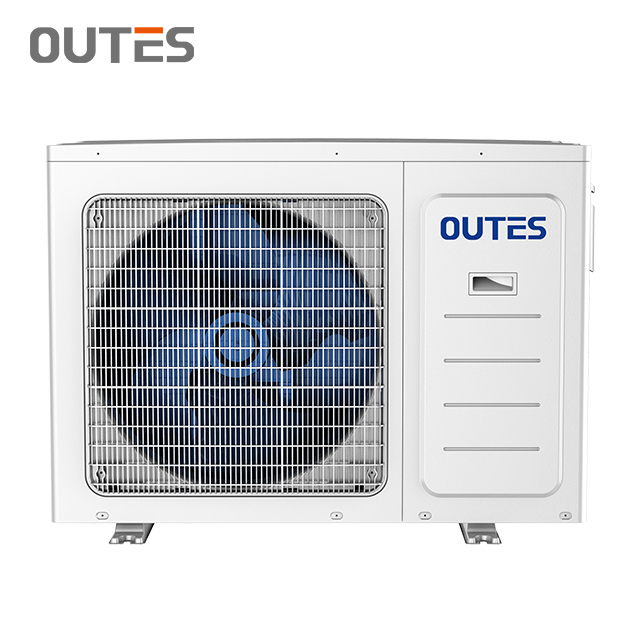

OUTES Air Source R32 Mini Split Heat Pump Water Heater
$1650.00
≥1 carton
$1450.00
≥20 carton
$1250.00
≥100 carton
Get Latest Price
You might also like
Basic Info
| After-sales Service Provided | Free spare parts |
|---|---|
| Warranty | 2 years |
| Application | Household |
| Power Source | Electric |
| App-Controlled | Yes |
Show More
Product description
Recommend Products
PRODUCT DETAILS

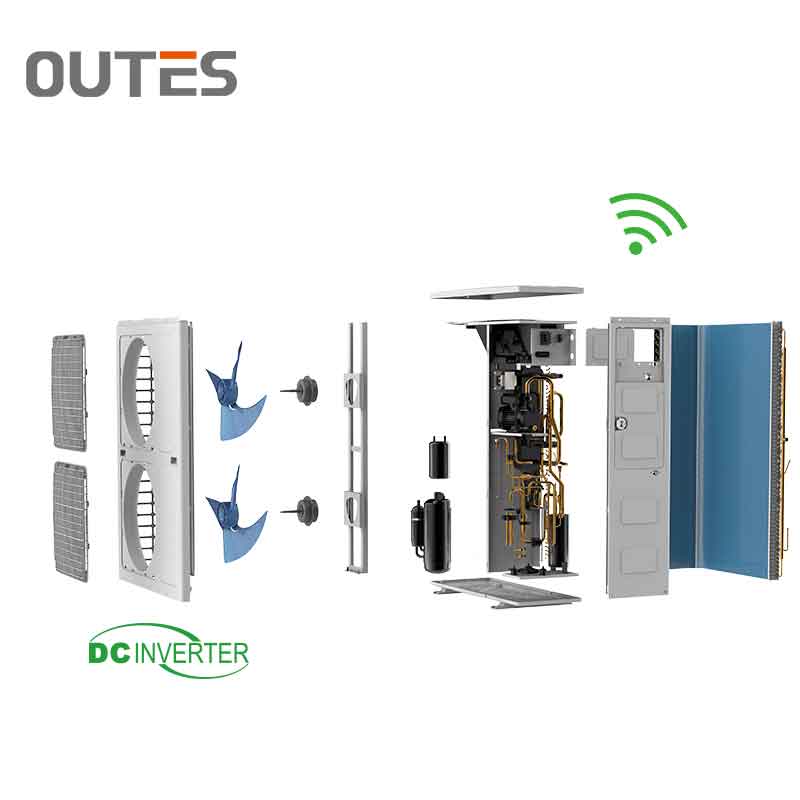

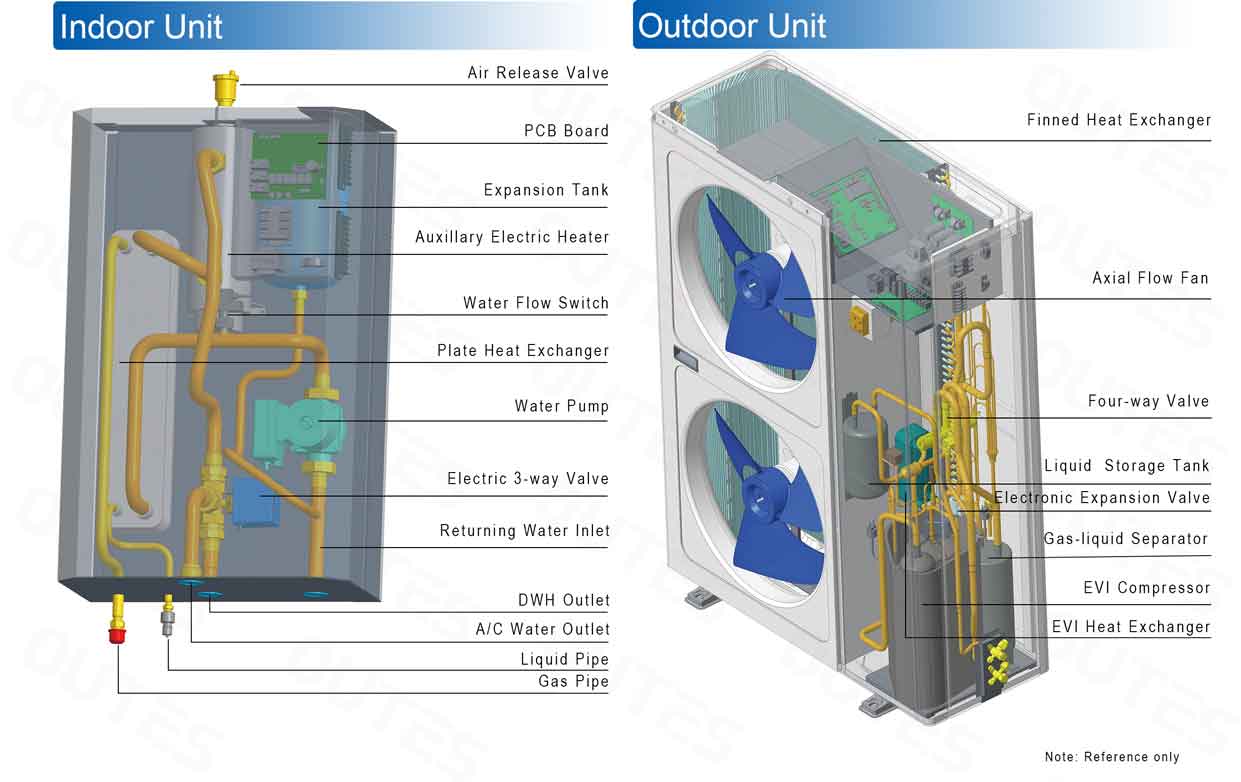

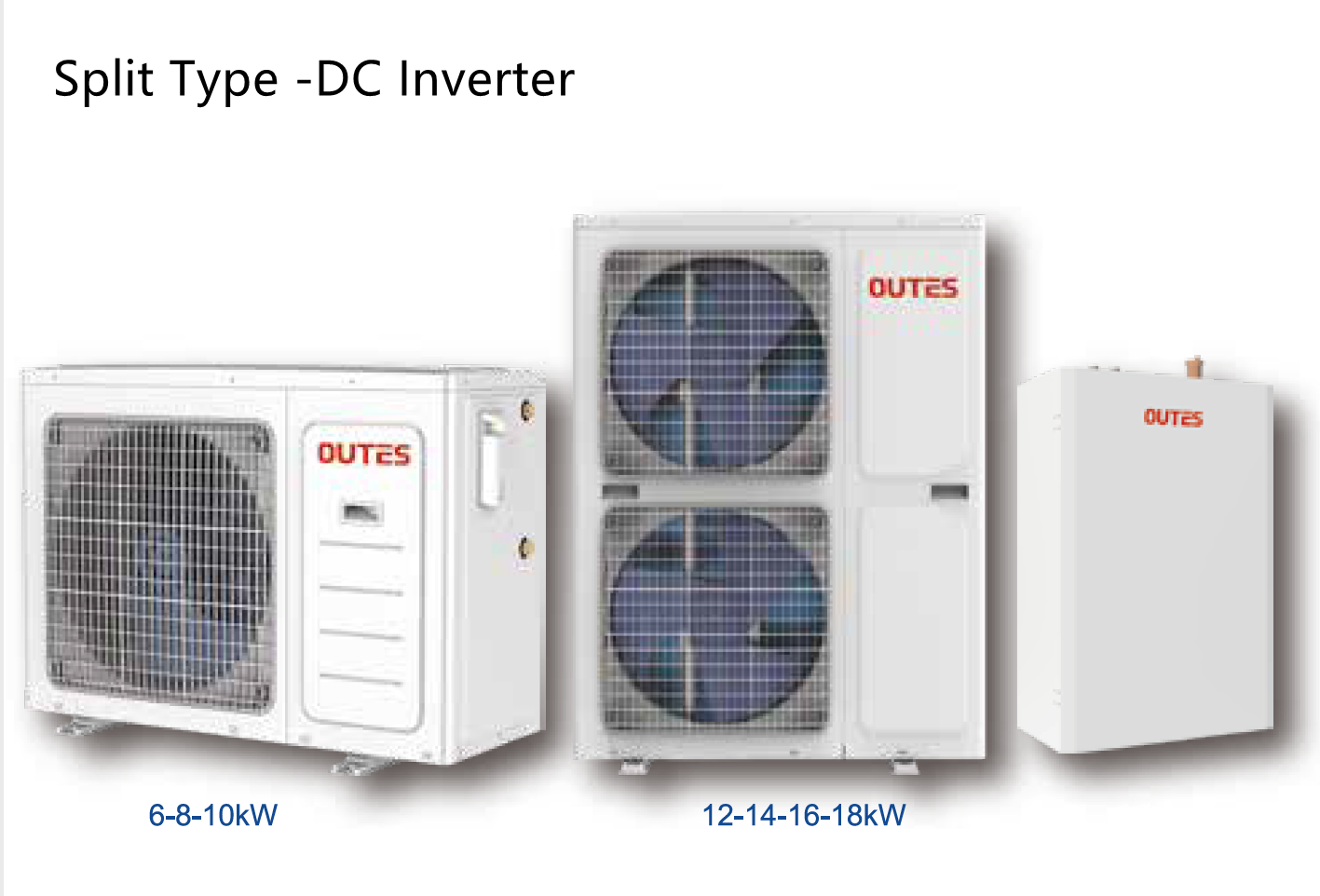

AIR SOURCE HEAT PUMP SPLIT TYPE?
DC Inverter EVI Compressor workable at -25℃
PRODUCT OVERVIEW
PRODUCT SPEC
Model | AHbS06D/IOP | AHbS08D/IOP | AHbS10D/IOP | AHbS12D/IOP | AHbS14D/IOP | AHbS16D/IOP | AHbS18D/IOP | |||
Power Supply | / | 220V~240V/50Hz | 220V~240V/50Hz | 220V~240V/50Hz | 220V~240V/50Hz | 220V~240V/50Hz | 220V~240V/50Hz | 220V~240V/50Hz | ||
Heating (A7℃/W35℃) | Heating Capacity Range | kW | 2.4/6 | 3.2/8 | 4.2/10 | 5.0/12 | 5.4/14 | 6.3/16 | 7.31/17.5 | |
Heating Power Input Range | kW | 1.48 | 2.02 | 2.43 | 2.73 | 3.33 | 3.95 | 4.43 | ||
Cooling(A35℃/W7℃) | Cooling Capacity Range | kW | 1.8/4.5 | 2.4/6.0 | 3/7.5 | 3.6/9 | 4.11/10 | 5.1/12 | 5.8/14 | |
Cooling Input Power Range | kW | 1.48 | 2.32 | 2.90 | 3.25 | 3.80 | 4.60 | 5.76 | ||
ERP Level (35℃) | / | A++ | A++ | A++ | A++ | A++ | A++ | A++ | ||
SCOP(35℃) | W/W | 4.0 | 4.05 | 3.9 | 4.07 | 4.05 | 3.95 | 4.26 | ||
Water Flow | m3/h | 1.03 | 1.38 | 1.72 | 2.06 | 2.41 | 2.75 | 3.01 | ||
Refrigerant/Proper Input | / | R32/R410A/1.7kg | R32/R410A/2.1kg | R32/R410A/2.1kg | R32/R410A/3.5kg | R32/R410A/3.5kg | R32/R410A/4.2kg | R32/R410A/4.2kg | ||
Operating Ambient Temperature | ℃ | -25~43 | -25~43 | -25~43 | -25~43 | -25~43 | -25~43 | -25~43 | ||
Water Connection | inch | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
Outdoor Unit | Net Dimension((L×W×H) | mm | 1090×485×770 | 1090×485×770 | 1090×485×770 | 1095×485×1410 | 1095×485×1410 | 1095×485×1410 | 1095×485×1410 | |
Packing Dimension(L×W×H) | mm | 1155×505×800 | 1155×505×800 | 1155×505×800 | 1086×500×1540 | 1086×500×1540 | 1086×500×1540 | 1086×500×1540 | ||

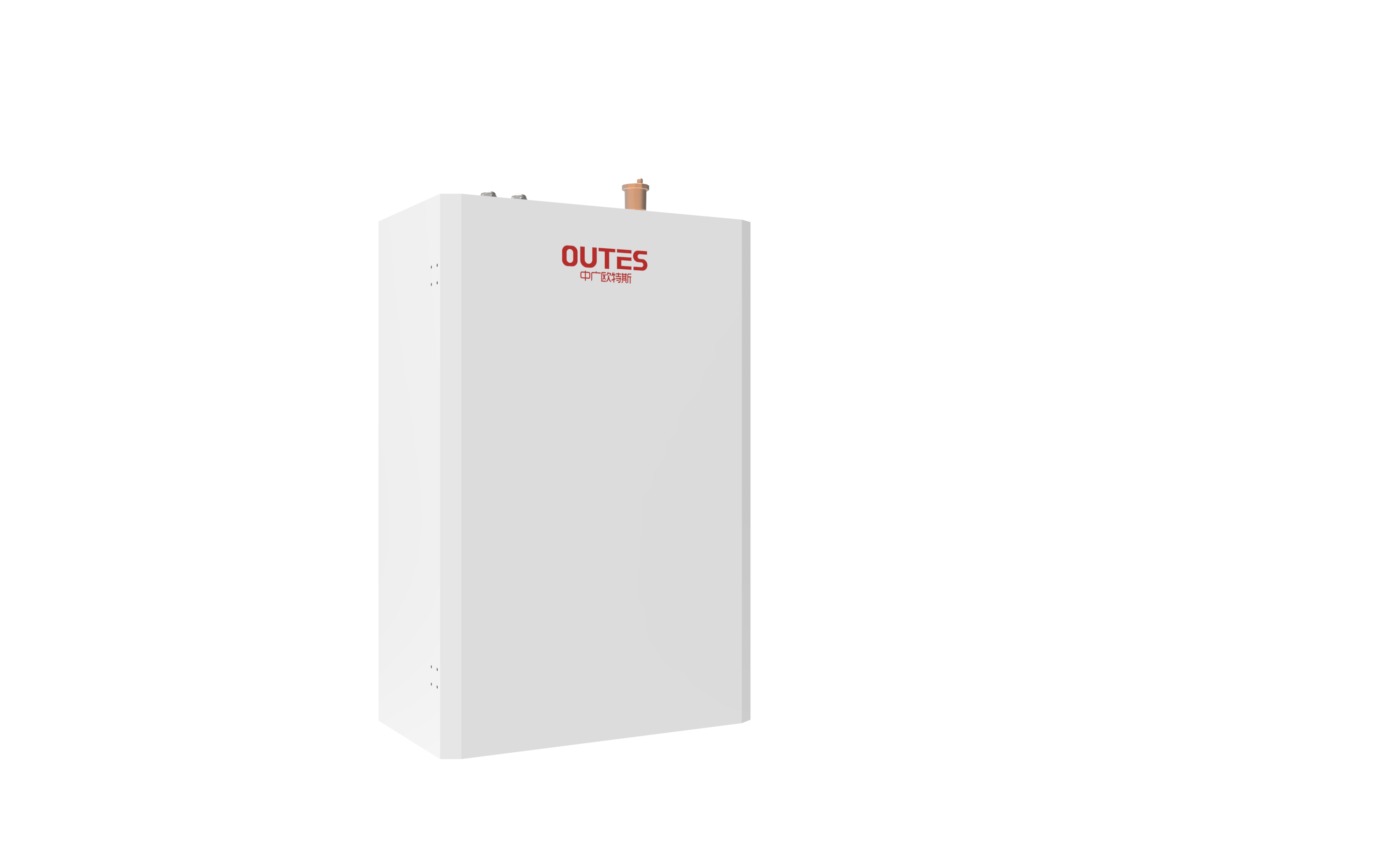

Indoor Unit | Net Dimension(L×W×H) | mm | 1015×527×297 | 1015×527×297 | 1015×527×297 | 1015×527×297 | 1015×527×297 | 1015×527×297 | 1015×527×297 | |
Packing Dimension(L×W×H) | mm | 1210×638×456 | 1210×638×456 | 1210×638×456 | 1210×638×456 | 1210×638×456 | 1210×638×456 | 1210×638×456 | ||
Max. Water Outlet Temperature | ℃ | 55 | 55 | 55 | 55 | 55 | 55 | 55 | ||
Container Loading（20'/40‘H） | Sets | 54/162 | 54/162 | 54/162 | 27/54 | 27/54 | 27/54 | 27/54 | ||
Remark：
1、Testing Condition：
Heating condition : Ambient Temp.(DB/WB):7℃/6℃，Water Temp.(In/Out):30℃/35℃.
Cooling condition :Ambient Temp.(DB/WB):35℃/24℃，Water Temp.(In/Out):12℃/7℃.
Hot water condition : Ambient Temp.(DB/WB):20℃/15℃，WaterTemp.(In/Out):15℃/55℃.
2、The above data test reference EN14825:2016
3、The data above is for reference only, Specific data is subject to the nameplate

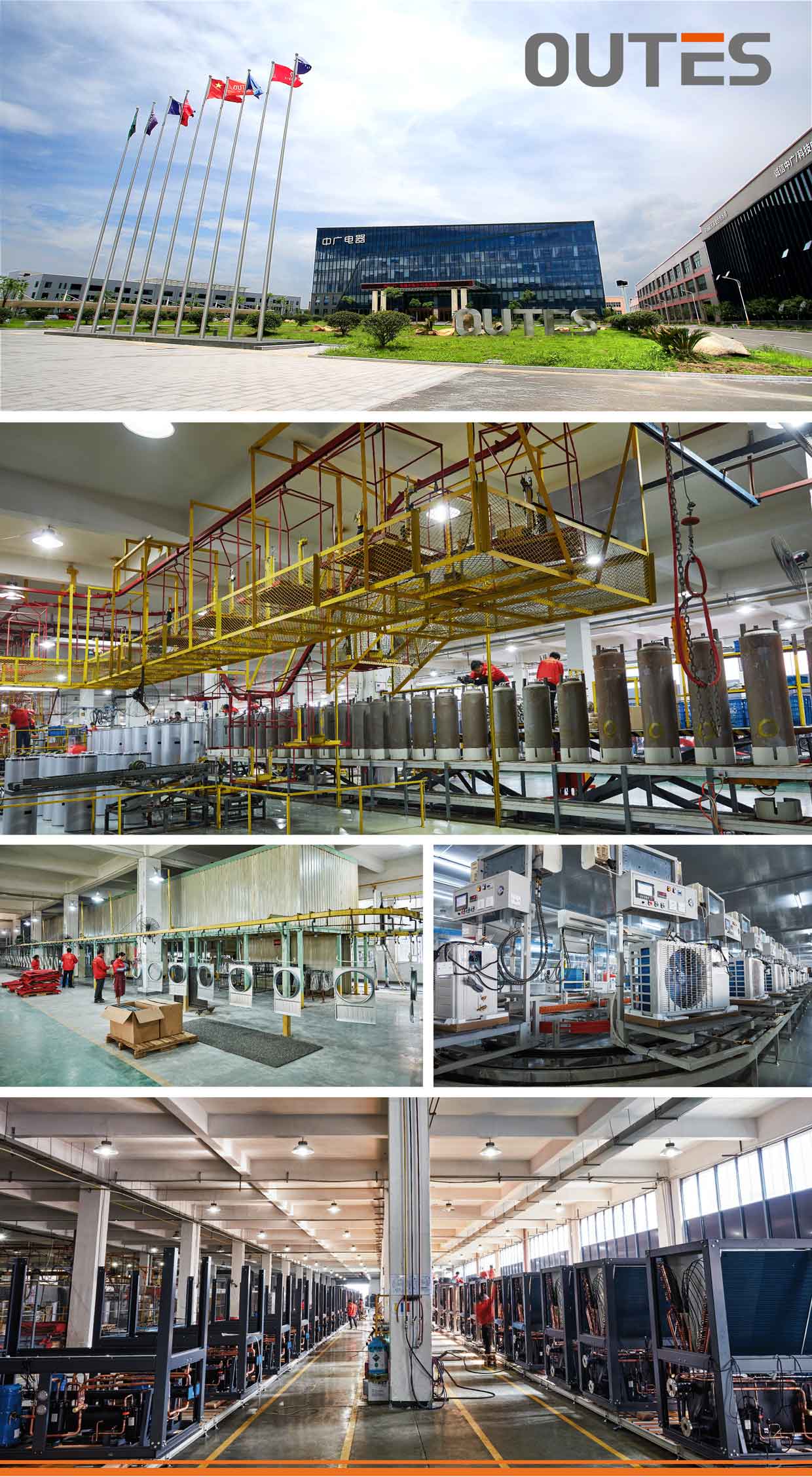

ABOUT OUTES
Q1: How about your delivery time ?
A1: Generally, it will take 35 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2: How about your delivery time ?
A2: EXW, FOB,...etc.
Q3: How about your delivery time ?
A3: Generally, we pack the heat pump in brown cartons or plywood. If you have legally registered patent, we can pack the heat pump in your branded boxes after getting your authorization letters.
Q4: What is your sample policy?
A4: We accept the sample order, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A5: Yes, we have 100% test before we pack the goods for delivery.
Q6: How about your delivery time ?
A6: 2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts free of charge for maintenance according to order cost during the warranty period.
A1: Generally, it will take 35 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2: How about your delivery time ?
A2: EXW, FOB,...etc.
Q3: How about your delivery time ?
A3: Generally, we pack the heat pump in brown cartons or plywood. If you have legally registered patent, we can pack the heat pump in your branded boxes after getting your authorization letters.
Q4: What is your sample policy?
A4: We accept the sample order, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A5: Yes, we have 100% test before we pack the goods for delivery.
Q6: How about your delivery time ?
A6: 2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts free of charge for maintenance according to order cost during the warranty period.
