Partial Discharge Compr ehensive Analyzer

$770.00 ~ $15397.00 / Set/Sets

Get Latest Price

Basic Info

Model No.
Brand Name	gdmk
place of origin	China

Product description

Product description：

Partial discharge comprehensive analyzer is the dedicated product to measure and analyze the insulation ability of electrical equipment. This system adopts modern electronic and computer integrated technology with the functions of signal amplification(analog signal, electronic signal, digital signal), filtration, data sampling, data processing, figure display, test report generation automatically so that it may finish the measurement, location and analysis of the partial discharge.

Technical index：

Technical characteristics
Number of interfaces	Free-running 4 interfaces
Sampling rate	1M. 5M. 10M selected
Sampling accuracy	12bit
Range changing	-40dB, -20dB, 0dB, 20dB, 40dB ,60dB, totally 6 types
Measurement frequency range	3db bandwidth 10kHz～1MHz
Digital filtering	10kHz～1MHz freely selected
Program controlled filter subsection	Low frequency: 10kHz，20kHz，40kHz，80kHz High frequency: 100kHz，200kHz，300kHz，400kHz
Nonlinear error in the range	10%
Measurement range	0.1pC~100,000pC
Sensibility	0.1pC
Capacity range of the measured product	6pF～250μF
Frequency range of test power	50～500Hz
Display
Display screen	12’’ TFT true color touchable LCD screen
Resolution	1024×768
Interface
USB	3 types, use of external mouse, keyboard or other USB devices.
Power mode	AC 220V; Frequency 50Hz; Power 300W
Electric signal interface	4 BNC interfaces, use of signal input.
Optical signal interface	4 types, use of signal input
Network interface	1 type
Landing button	External landing
General instruction
CPU	Basic frequency 1.60GHz
Ram	2.0GB
Hard disk	128GB SSD
System	Windows Xp
Operating environment	Environment ambient: -10～45℃ Humidity: ≤95%RH
Size	Length×width×height: 474mm × 288mm × 370mm
Weight	15.8kg

Structure：

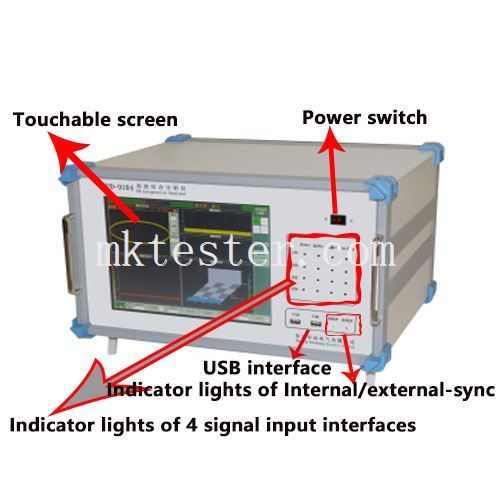

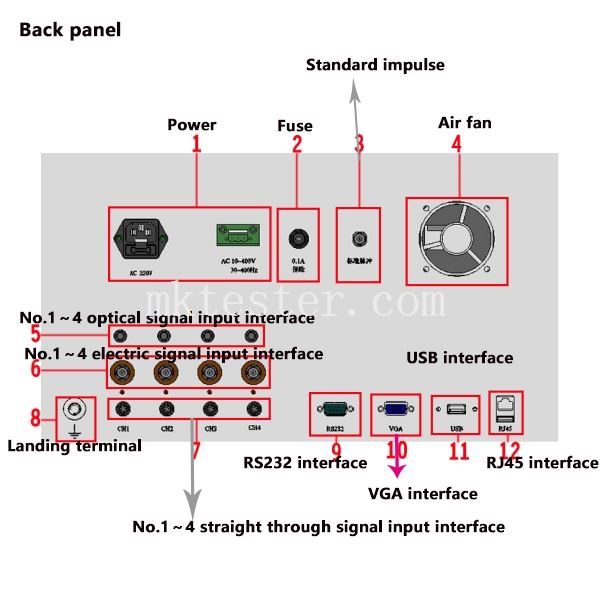

Partial discharge comprehensive analyzer (2)

System accessories introduced

Input unit

series input unit structure is RLC type, is a kind of tuning impedance, used for the conventional PD detection, with high detection sensitivity. Input unit is divided into several types, in the detection of weak discharge signal, should select the appropriate input unit, in order to ensure adequate sensitivity.

Series input unit has 12 independent input units, each input unit has a tuning capacitor (Ct '), as long as the resonant capacitance Ct of the detection loop falls within the range of the tuning capacitance (Ct'), it suffices to meet the requirements of the test selection.
