Patent central control stationary concrete batching plant
Basic Info
| Model No. | HZS25 |
|---|---|
| Brand Name | zeyu |
| Applicable industry | Manufacturing Plant, Building Material Shops, Construction Works |
| Out-of-warranty service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Where to provide local services (in which countries are there overseas service outlets) | Pakistan, Algeria, Peru, Argentina, Russia, Viet Nam, Canada, Saudi Arabia, South Korea |
| Core components | Plc, Engine, Gearbox, Motor, Pressure Vessel |
| Vibrating Amplitude | 2.2mm |
Product description

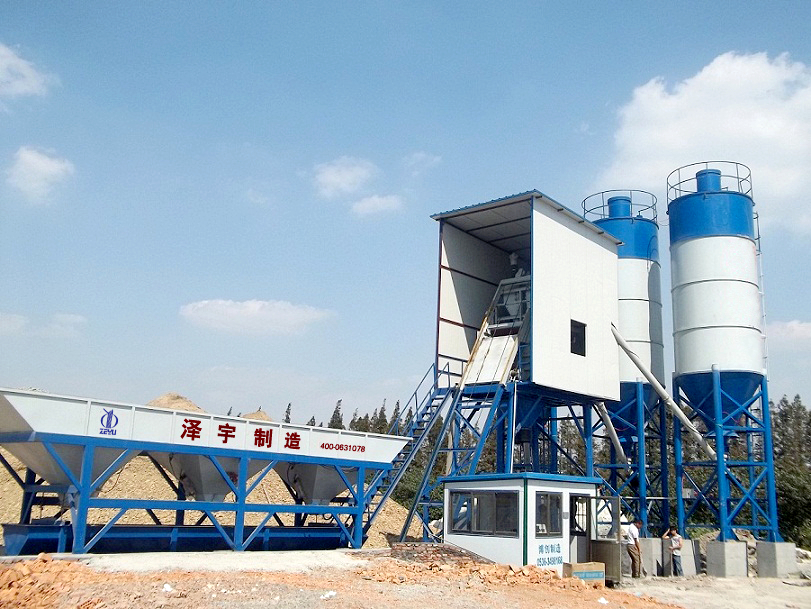

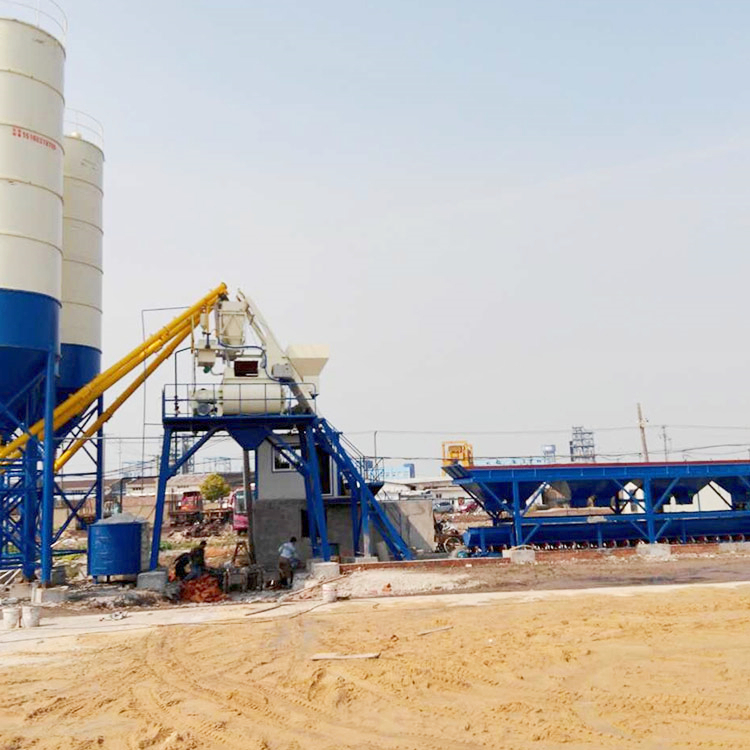

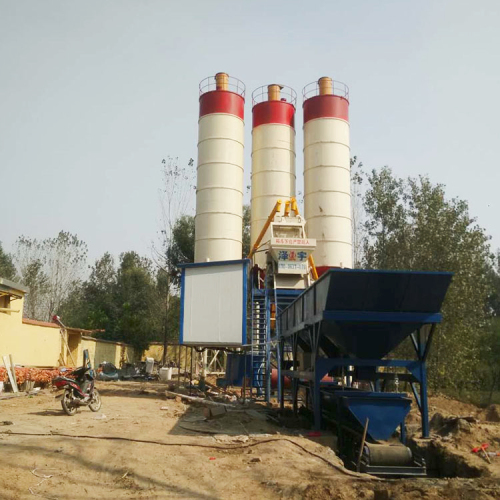

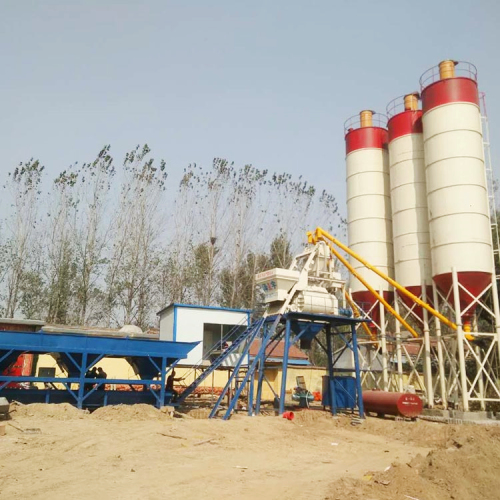

Patent central control stationary concrete batching plant
The js series double-shaft forced mixer equipped with this product adopts the design of closed shaft end device, which can effectively prevent the phenomenon of slurry leakage. The blades and lining plates are made of alloy wear-resistant materials to prolong the service life.This product concrete mixer uses js series twin-shaft forced mixer with stirring by a self-loading function and forced two, stirring effect, good wear resistance, low energy consumption.
25 M3/h Concrete Batching Plants Technical Parameter:
|
No. |
Name of parameter |
Model |
|
|
|
HZS25 |
|
1 |
Theoretical productivity |
25 M3/h |
|
2 |
Model of mixer |
JS500 |
|
3 |
Mixing motor power |
18.5Kw |
|
4 |
Cycle period |
60s |
|
5 |
Volume of mixer |
500L |
|
6 |
Aggregate |
≤80mm |
|
7 |
Volume of cement silo |
2x100t |
|
8 |
Capacity of batching plant |
800L |
|
9 |
Volume of aggregate bins |
3x4M3 |
|
10 |
Quantity of aggregate |
3 |
|
11 |
Productivity of aggregate belt conveyor |
100t/h |
|
12 |
Max. productivity of screw conveyor |
40t/h |
|
13 |
Unloading height |
1.6m |
|
14 |
Total power of the plant |
55Kw |
Export to Russia 50 M3/h Concrete Batching Plants
China 25 M3/h Concrete Batching Plants
Export to Philippines 90M3/h Concrete Batching Plant
Company Information
Shandong Zeyu Heavy Industry Science and Technology Co., Ltd. is a CE and ISO certificate high quality 25 M3/h Concrete Batching Plants manufacturer. With our 16 years' research and study,modular concrete batching plant have been widely used in many industrial fields. Now, the company has more than 100 employees,more than 10 R&D personnel in australia concrete batching plant for sale and all team leaders and above.Factory area is 3000-5000 meters.And engaged in foreign trade export for many years.Otherwise we also have 25 M3/h Concrete Batching Plants ,JS series concrete mixer,JZC series drum concrete mixer,cement silo,screw conveyor,belt conveyor machine,batching machine,WCB (mobile) stabilized soil mixing plant.
We can also customize according to the special requirements of customers.
Professional Certificate
FAQ
Q: What kind of products do you have?
1. Stationary concrete batching plant arranges from HZS25 to HZS180.
2. Mobile concrete batching plant.
3. Concrete mixer machine.
4. Portable drum concrete mixer with diesel engine.
5. Spare parts including screw conveyor and bolted cement silo.
Q: What`s your advantages?
A:Zeyu is a company focused on technology developing, industrial machine manufacturing and trading. The company has devoted itself in concrete mixing machine industry for 16 years. Now, the company has more than 100 employees while all team leaders and above.Factory area is 3000-5000 meters.And engaged in foreign trade export for many years.
