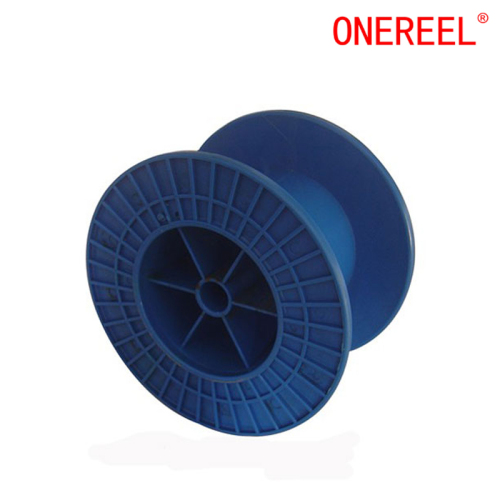

Plastic Empty Wire Spool

Product Description

Product De

sci

Material	ABS
Size	Flange dia.(d1): 500mm, , Barrel dia.(d2): 250mm, Outside width(H2): 300/310/320/375mm, Inside width(H1): 250/270/280/315mm, Middle hole dia.(d3): 56mm
Color	Black or can be customized
Packing	Industrial Packing
Delivery time	Within 15 days after receiving the payment

Our advantages
1. High Quality & Competitive Price & Good Service
2. Prompt reply and the experienced engineers to track all the process
3. Advanced equipment and excellent R&D Team.
4. Highly skilled manufacturing process & Strict quality Control System.
5. Small orders supported.


Significant product benefits:
1. mainly used for winding electric wire , rope packing etc.
2. for packing and delivery.
3. flange ABS ,white PVC pipe .
4. assemble with screws.
5.traverse width can be made to order .
6.we can provide unassembled parts, it can save much space for transportation.

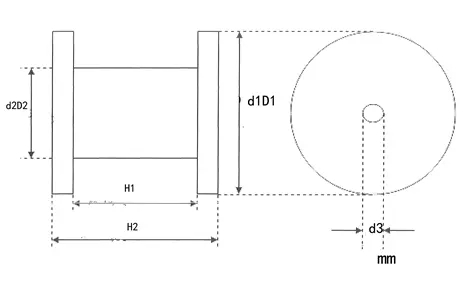

Type	Net Weight (g)	Top Flange Dia.(mm)     d1	Bottom Flange Dia. (mm)     D1	Top Barrel Dia.  (mm)    d2	Bottom Barrel Dia. (mm)     D2	Inside Width (mm)   H1	Outside Width (mm)     H2	Middle Hole Dia. (mm)   d3	Top Flange Thickness (mm)       A1	Bottom Flange Thickness (mm)       A2	Carrying Hole Size (mm)      d4	Distance between Middle Hole and Carrying Hole (mm)       E
PC-70	40	70		38		70	85	20	7	7	No	No
PC-80	70	80		50		64	80	20	8	8	7	20
PC-83	70	83		45		100	120	20	10	10	No	No
PC-100A	110	100		45		70	88	20	9	9	No	No
PC-100B	100	100		45		100	120	20	10	10	No	No
PC-125A	180	125		65		100	120	20	10	10	7	20
PC-125B	170	125		70		100	120	20	10	10	No	No
PC-130A	200	130		65		100	120	22/25	10	10	No	No
PC-130B	210	130		65		100	120	22	10	10	No	No
SH-16	230	150		90		100	124	30	12	12	12	26
PC-185A	400	185		128		155	178	30	11	11	No	No
PC-185B	500	185		128		155	178	30	11	11	No	No
PC-185C	500	185		130		160	180	30	10	10	No	No
PC-220A	660	220		110		155	185	40	15	15	12	42
PC-220B	660	220		110		155	185	38	15	15	15	38
PC-220C	660	220		110		155	185	30	15	15	14	38
PC-250	870	250		110		155	185	40	15	15	12	42
PC-300A	1400	300		180		170	200	32	15	15	17	45
PC-300B	1400	300		180		170	200	100	15	15	20	125
PC-355	1950	355		224		160	200	36	20	20	26	50~80
PC-410	4550	410		310		180	228	70	24	24	No	No
PC-500A	8450	500		315		180	250	40	35	35	26	70~100
PC-500A1	8450	497		315		180	250	40	35	35	26	70~100
PC-500B	8600	500		250		250	300	56	25	25	26	70~100
PC-500B1	9020	500		250		240	290	40	25	25	26	70~100
PC-500C	8600	500		250		235	300	56	20	20	26	70~100

Packaging & Shipping

1. Packaging: Industrial Packing
2. Shipping: International Express, By Sea and By Air

ONEREEL is specialized in the design and manufacture Steel Wire Spools, Plastic Wire Spools, Stainless Steel Spools, Warp Knitting Beam, Cable Drum Stand, Corrugated Wire Spool, Collapsible Cable Reel, Customer Spool, Aluminum Spool, Punching Wire Spool, Skeleton Cable Reel, Pulley Block, Hose Reel, Nylon Spool, Yarn Bobbin, and Flat Wire Spool in the industry since 1991. All of our customer spool and wire carrier are engineered and manufactured in our 120,000 square foot state-of-the-art manufacturing plant located in Ningbo, Zhejiang.

Customer Visit

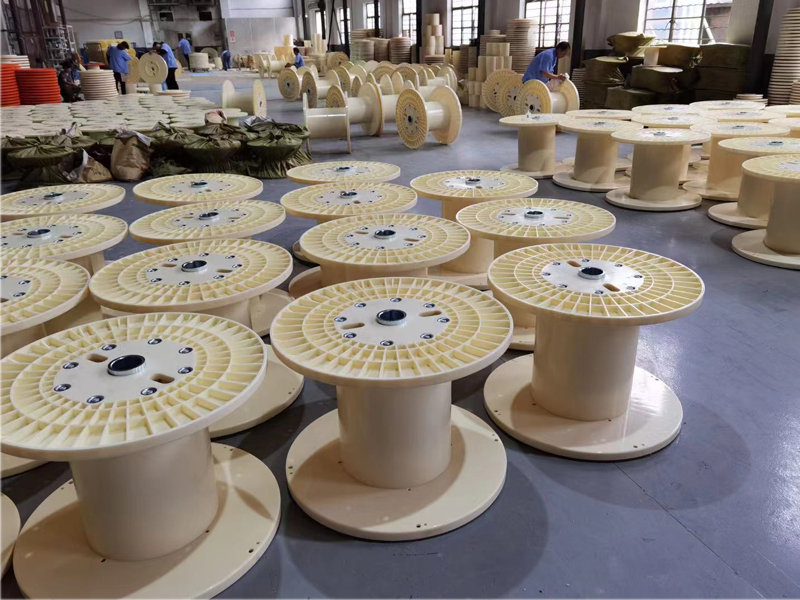

Factory Exhibition

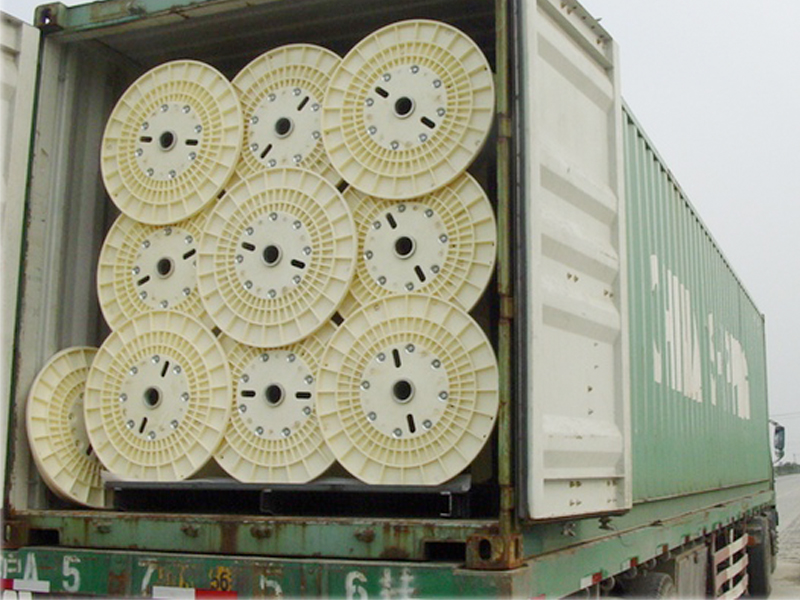

Packing&Shipping

Certification Authority

FAQ

Q: Can I get samples?
A: According to spool model and material, we will advise.
Q: How long is the sample LEAD TIME?
A: For existing samples, it takes 2-3 days. If no stock, we will advise lead time.
Q: Can you develop new products?
A: Yes, we have new products developing ability and we are good at developing new mold.
Q: How much is the freight charge?
A: It depends on spool package volume, if small quantity, volume and urgent goods,
we may advise FEDEX or other couriers' charge for your check.

If volume bigger and by seaway suitable, we provide FOB or CIF price to you.
Q: What format of the file do you need if I want my own design?
A: We have our own mound workshop and can provide spool or other plastic product developing and injection service.
