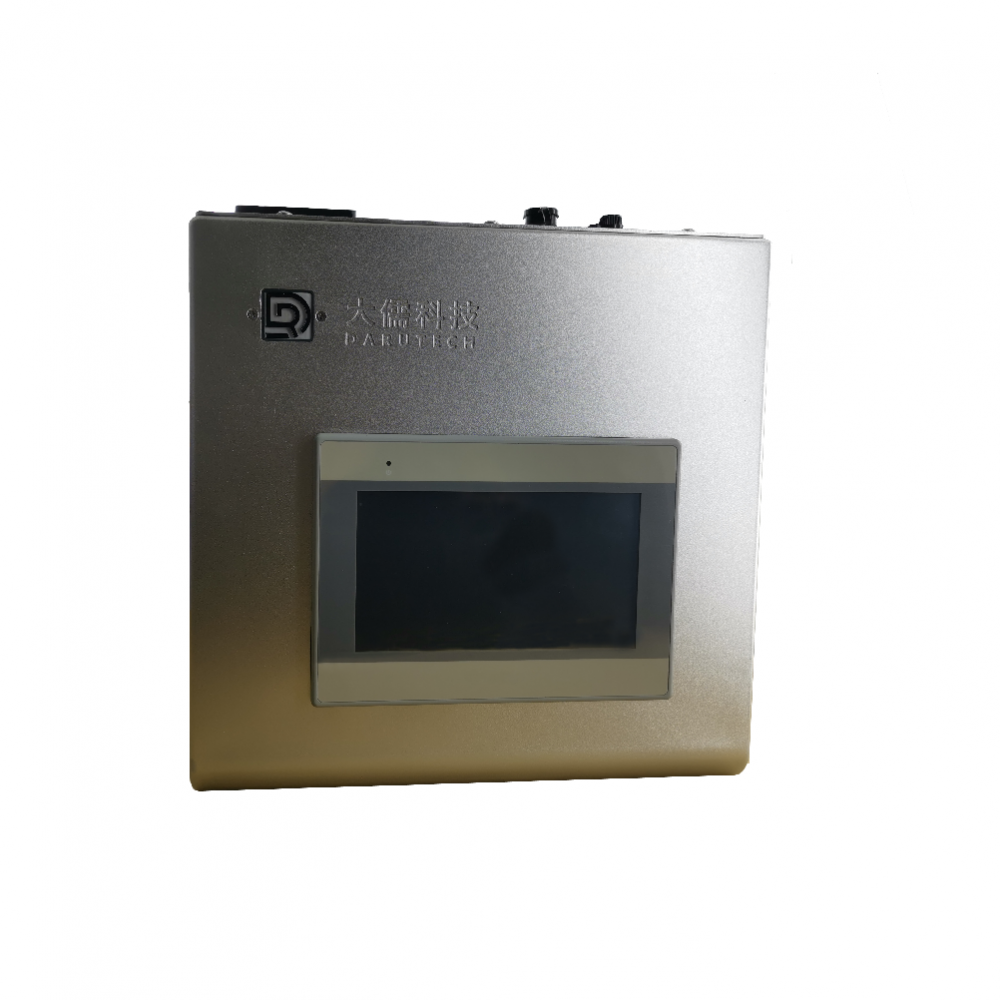

Plastic Force Control System
Basic Info
Product description
Using force control system, its active adaptability will be adjusted instantly according to the size difference between the workpieces, and the control force can be controlled within the required range to ensure the consistent effect of grinding, and the production yield can be guaranteed.
The
force control system for grinding and polishing has the advantages of
flexibility, fast response speed, instantaneous adjustment, suitable for
any angle in three-dimensional space, and is not affected by component
force. It is suitable for any brand robot, high versatility, suitable
for different grinding and polishing work scenarios.
The force control system is suitable for different grinding and polishing work scenarios.
The force control system is dedicated to robot polishing and grinding.
The
force control system currently has multiple models, suitable for
different grinding and polishing work scenarios. The force control
system flexibly controls the grinding process, which can be adjusted
instantaneously according to the tolerance of the workpiece and the
slight position offset. The size of the holding force is within the set
range, ensuring the consistency of the surface effect. The perfect
integration with the robot can significantly reduce the commissioning
threshold. The robot only needs to control the grinding path, and the
force control system controls the grinding force, so that the grinding
force can be quantified. For sheet metal, stamping, plastic parts, etc.
with large tolerances or deformations, It can ensure the same effect and
high mass production achievability.
Founded in 2020, Daru Technology (Suzhou) Co., Ltd. is located in the Suzhou Industrial Park of the Yangtze River Delta. It is composed of a professional team led by a postdoctoral researcher. It takes 4 years to develop and design a power control system (for robot polishing and polishing), which fills the domestic gap. At present, it mainly provides enterprises with automated grinding and polishing systems, automated loading and unloading systems for research and development, design, sales and perfect after-sales service.
|
Basic parameters |
||||
| Product specification | DFC311 | DFC481 | DFRC481 | DFRC1201 |
|
Maximum force (n) (horizontal direction) |
31 | 48 | 48 | 120 |
| Adjustable range of mill speed（r/min） | - | - | 4000~10000 | 4000~10000 |
| Effective stroke（mm） | 30 | 30 | 30 | 30 |
| Contour diameter（mm） | ?124 | ?124 | ?124 | ?124 |
|
Outline height (mm) (including zero stroke of flange) |
174 （Mill size not included） |
174 （Mill size not included） |
287 （Including mill size） |
287 （Including mill size） |
| Net weight（Kg） | 3.1 | 3.3 | 4.6 | 4.6 |
| control accuracy（N） | 1 | 2 | 2 | 2 |
| response time（ms） | 10 | |||
|
Air consumption （L/min） |
5~10 | |||
| communication interface | Standard：ProfiNet , TCP/IP | |||
Active contact flange function:
Flexible control: When the grinder is in contact with the workpiece and during operation, the active contact flange actively adapts to the changes in the surface size of the workpiece in a flexible floating manner, and always controls
Active contact flange currently has multiple models, suitable for different grinding and polishing work scenarios. Active contact flange flexibly controls the grinding process, which can be adjusted instantly according to the workpiece tolerance and subtle position deviation. The size of the h
