PLC control Busbar Processing Machine
Basic Info
| Model No. | BM303-S-3-8P |
|---|---|
| Brand Name | Euro-Asia/Gaoji |
| Customized | Yes |
| Working Voltage | 380V |
| Machine Weight | 1460KGS |
| Number Of Motors | 3+1 |
| Total Motor | 11.37KW |
Product description
Advantages Of PLC control Busbar Processing Machine :
1.The shearing unit adopts overall structure, its design is new and unique, proper stress, which
guarantees long time usage without deformation.
2.The Bend Unit adopts overall structure,angular CNC method, operation is simple and highly accurate.
3.The machine adopts dual layer platforms design scheme,three units can be operated at the same
time.
4.The machine is equipped with auto refueling and draining system.
5.The machine adopts stainless steel oil tank,so no corrosive degeneration of the hydraulic oil and extension the usage life span of hydraulic oil and each sealing parts.
6. PLC control,stable and reliable.
Main functions and features
1.The shearing unit adopts overall structure, its design is new and unique, proper stress, whichguarantees long time usage without deformation.
2.The Bend Unit adopts overall structure,angular CNC method, operation is simple and highly accurate.
3.The machine adopts dual layer platforms design scheme,three units can be operated at the same
time.
4.The machine is equipped with auto refueling and draining system.
5.The machine adopts stainless steel oil tank,so no corrosive degeneration of the hydraulic oil and extension the usage life span of hydraulic oil and each sealing parts.
6. PLC control,stable and reliable.
| Configuration of the machine | ||||||
| Work Bench Dimension (mm) | Machine Weight (kg) | Number of Motors | Total Motor Power (kw) | Working Voltage (v) | Number of Hydraulic Units (MPa) | Control Mode |
| Layer Ⅰ:1500*1200 | 1280 | 3+1 | 11.37 | 380 | 3*31.5 | PLC+CNC angle bending |
| Layer Ⅱ:840*370 | ||||||
| Main technical parameters: | ||||
| Description | Material | Machining W*H (mm) | Max Punched Hole | Max Output Force (kn) |

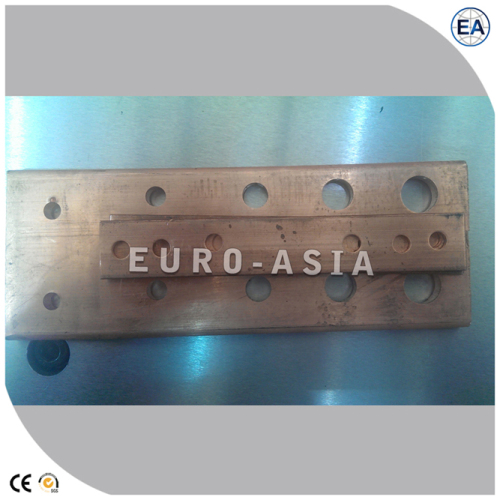

| Punching unit | Copper/Aluminum | H:15 |
?32(H≤10mm) ?25(H≤15mm) |
350 |

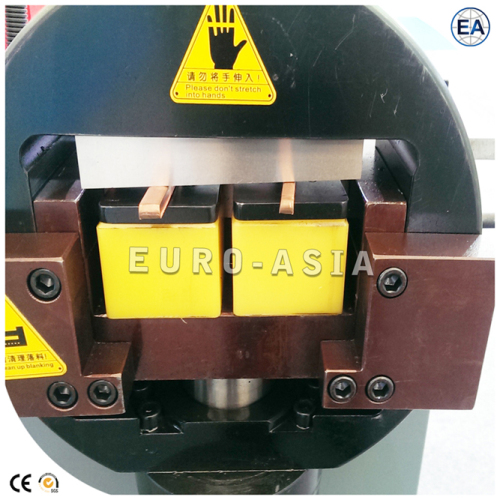

| Shearing unit | Copper/Aluminum |
Punching and shearing:12*160 Simple shearing:15*160 |
350 | |

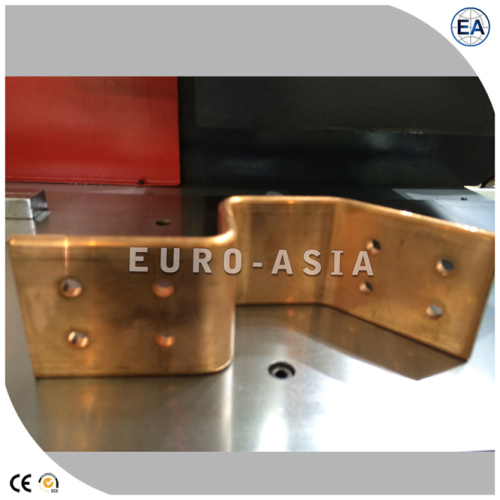

| Bending unit | Copper/Aluminum |
Level bending:15*160 Vertical bending:12*120 |
350 |
|
Packing details:
1) Applying Anti-Rust Oil
2) Covering with stretch film
3) Covering aluminum air bag
4) Vacuuming air bags
5) Boxing all the pallet
6) Loading to the container
