PLC pad printer with pad clean system
Basic Info
| Model No. | LC-HP1-100T |
|---|---|
| Brand Name | LC |
| Color & Page | Single-Colour |
| Transmission Type | Single-Colour Pad Printer |
| Automatic Grade | Semi-Automatic |
| Operation | Pneumatic |
| Max. Printing Area | 80*90mm |
Product description

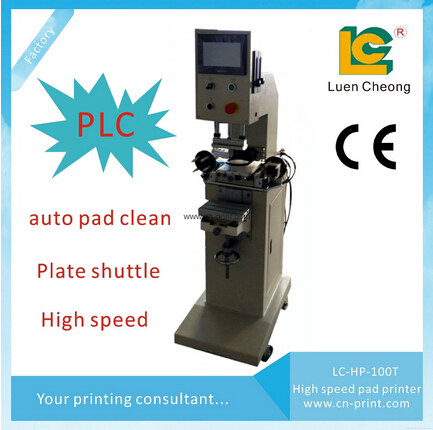

PLC pad printer with pad clean system
Product discription:
PLC pad printer with pad clean system LC-HP1-100T,This machine equipped with PLC touch screen ,automatic pad clean system, steel plate shuttle. The wolfram steel scraper is made by the newest Nanotechnology. It also have high resistance and can be used for almost 3,000,000 times. This type of the machine is more environmental and safe, which can save more ink when compare with the traditional ink-well pad printer.
Advantage:
1. Controlled by PLC, easy operation, running stably and accurately.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.
Parameter:
1. Model No: LC-HP1-100T
2. Operation: Pneumatic
3. Printing Colors: 1
4. Max. Printing area: 80*90mm
5. Plate area: 100*200 mm2
6. Sealed ink cup diameter: 60 or 90 mm
7. Max printing speed: 2000PCS/H
8. Wattage: 220V/ 50Hz 110V/60Hz
9. Air pressure: 6 Bar
10. Machine size: 960×460×1400mm
11. Machine weight: 125kg
comparison:
Model No
LC-HP1-100T
LC-HP1-150T
LC-HP1-200T
LC-HP1-250T
LC-HP1-
100-2T
LC-HP1-
150-2T
LC-HP1-
200-2T
Printing Colors
1
1
1
1
1
1
1
station
1Pcs
1Pcs
1Pcs
1Pcs
1Pcs
1Pcs
1Pcs
Plate area
100×200mm
100×250mm
100×300mm
150×400mm
100×200mm
100×250mm
100×300mm
Workbench size
200×125mm
250×125mm
300×125mm
400×165mm
400×125mm
400×125mm
400×125mm
Sealed ink cup diameter
60 or90mm
60or90mm
60or90mm
140mm
60or90mm
60or90mm
60or90mm
Max printing speed
3000pcs hr
2800 pcs hr
2500 pcs hr
2200 pcs hr
3000 pcs hr
2800 pcs nhr
2500 pcs hr
Air pressure
6bar
6bar
6bar
6bar
6bar
6bar
6bar
Wattage:
AC110V/220V
AC110V/220V
AC110V/220V
AC110V/220V
AC110V/220V
AC110V/220V
AC110V/220V
Machine size
960×460×1400
1300×460
×1400
1300×530
×1420
1450×560
×1470
960×460
×1400
1300×460
×1400
1300×530
×1400
Machine weight
125kg
130kg
145kg
180kg
110kg
120kg
130kg
Printing samples:

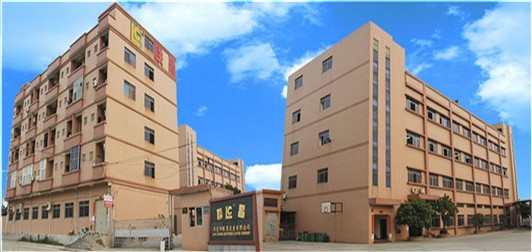

Company information
Luen Cheong Printing Equipment Group Limited has manufactured LC brand color printing machines for more than 25 years, including various pad printer, silk screen printer, hot foil stamping machine, UV Curing machines and pre-post printing machine.We have passed ISO-9001-2000 certification in 2001 and are a member of SGIA and all of our industrial printers have EURO'S CE standard.

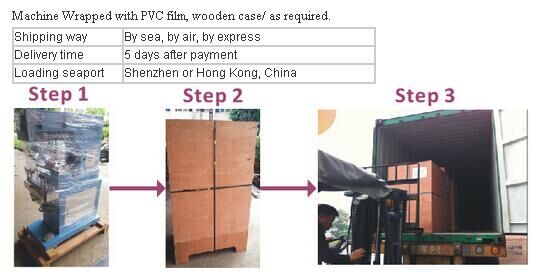

Packing & shipping
