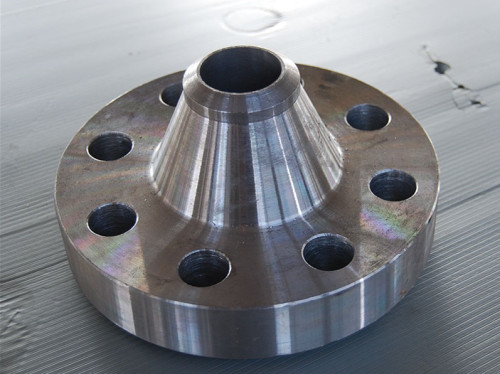

ASME FLANGE B16.5 FLANGE PN600 DN150 Welding Neck

Weld neck pipe flanges attach to the pipe by welding the pipe to the neck of the pipe flange. This allows for the transfer of stress from the weld neck pipe flanges to the pipe itself. This also reduces high stress concentration at the base of the hub of the weld neck pipe flanges. Weld neck pipe flanges are often used for high pressure applications.

Quality:High Quality Welding Neck

Size:DN150 Welding Neck

Pressure:PN600 Welding Neck

The industrial processes come into die forging,and machining,we can provide a wide range of flanges,following on standards like ASME B16.5 Flange, ASME B16.47 Flange, DIN 2573 Slip On Flange, DIN 2631 Welding Neck Flange, JIS Flange 5K SOP Flange and JIS Flange 10K SOH Flange. Flange is a type of flange that extends steel pipes, pipe fittings, etc into the flange and connects with equipment or pipelines through fillet welds. This flanges have short neck, which increases the strength of the flange and improves the bearing capacity of the flange. So it can be used on higher pressure pipelines.

ASME Flange include ASME B16.5 Flange, ASME B16.47-A Flange, ASME B16.47-B Flange, this standard system include slip on flange, blind flange, welded neck flange, threaded flange, lapped joint flange (loose flange), socket welded flange, B16.36 Orifice Flange, long weld neck flange and special flange, sizes from 1/2 inch to 60 inch, class 150, class 300, class 600, class 900, class 1500, class 2500.
