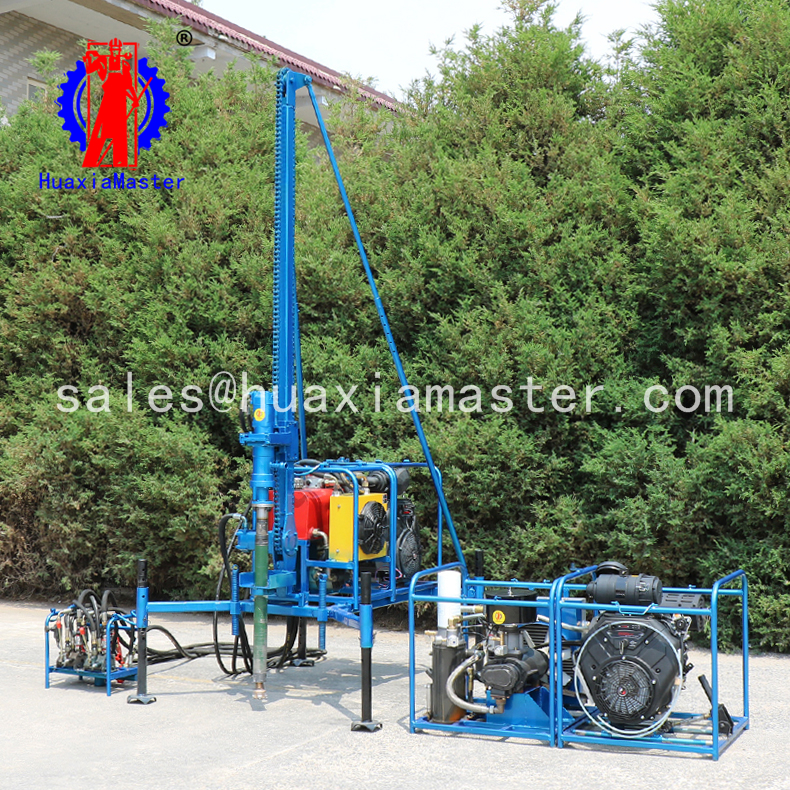

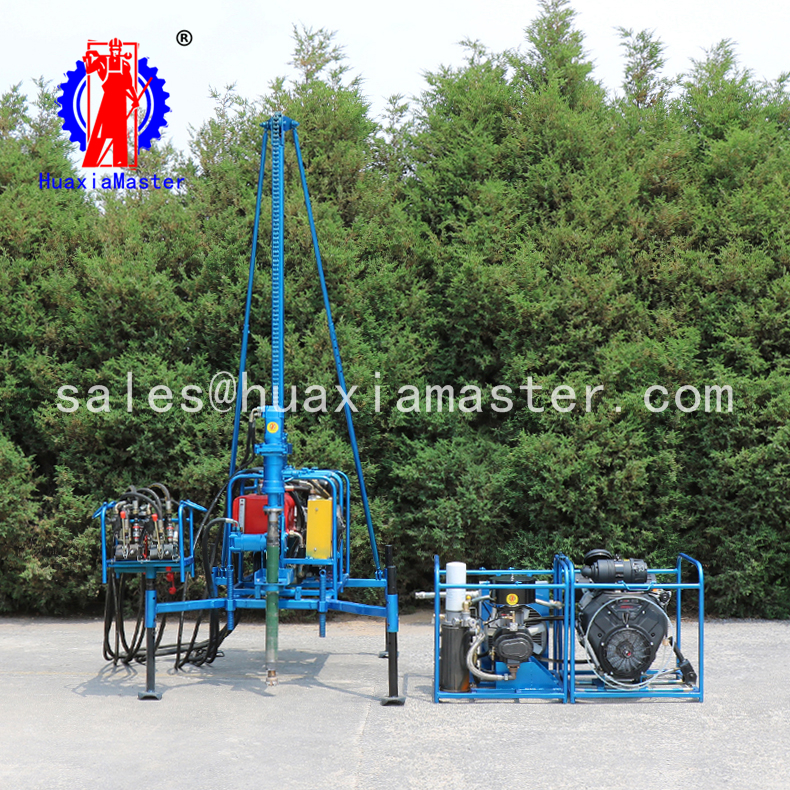

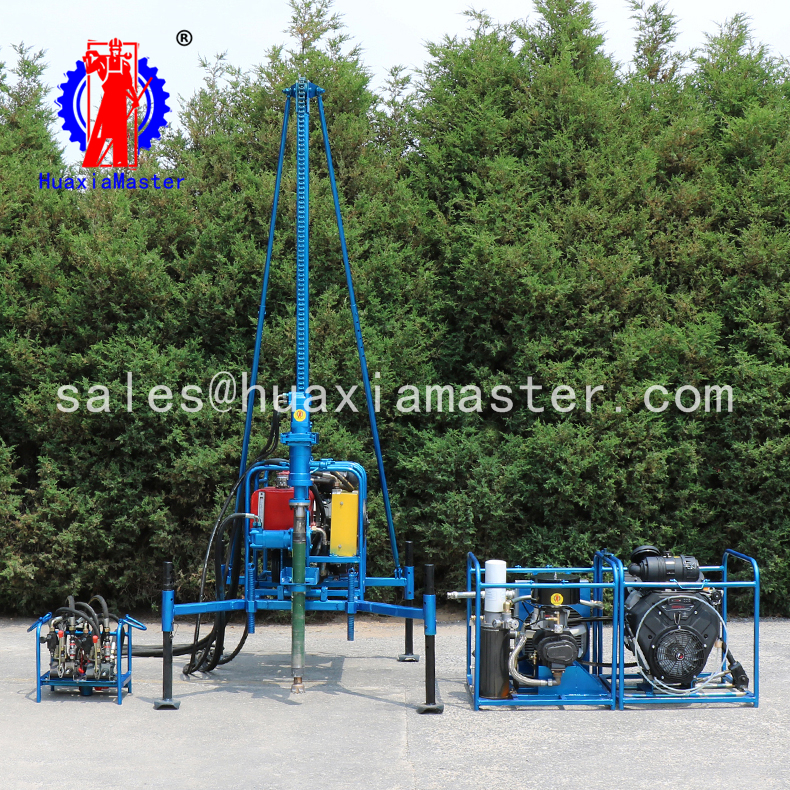

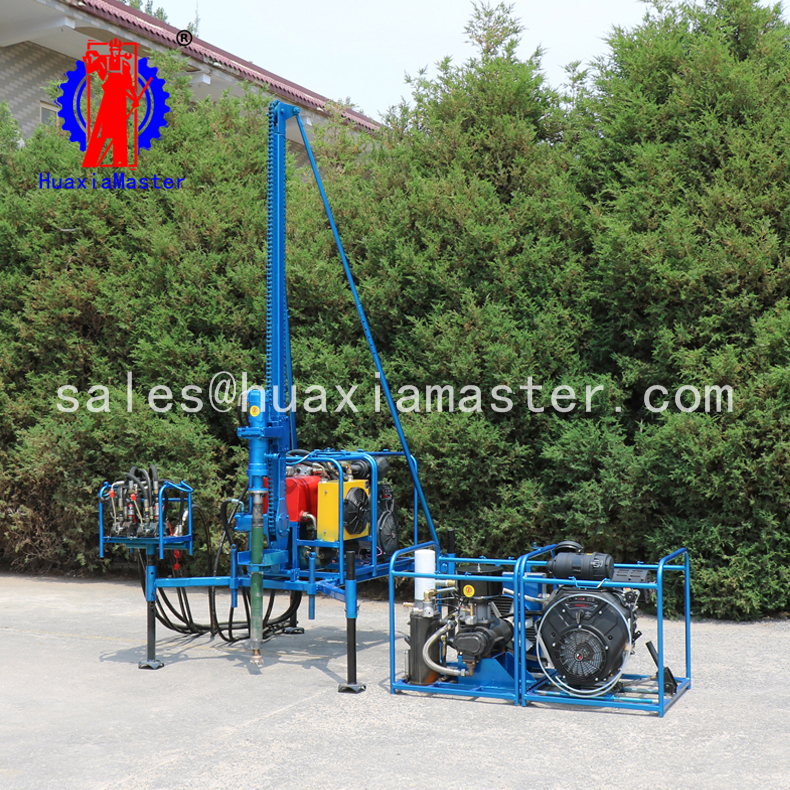

Pneumatic rock drilling rig SDZ-30S / hamer drill / geophysical equipment
Basic Info
| Model No. | SDZ-30S |
|---|---|
| Brand Name | HuaXia Master |
| Structure | Vertical Drilling Machine |
| Layout | Vertical |
| Controlling Mode | Artificial |
| Number of Shaft | 5 |
| Hole Diameter | <50mm |
Product description
1. Brief introductions of SDZ-30S Pneumatic Mountain Drilling Rig
SDZ-30S pneumatic mountain drilling rig is developed by Shandong Master Machinery Group Co.,Ltd combined with our company`s years of geophysical exploration drilling rig experience and the integration of foreign excellent mountain rig. SDZ-30 pneumatic mountain drilling rig is a upgraded version mountain drilling rig. The rig has a optimization design and is a cost-effective product with great value. The SDZ-30S pneumatic mountain drilling rig can meet the construction requirements of air shock drilling and so on; so it can adapt to different geological environments. The SDZ-30S pneumatic mountain drilling rig geophysical drilling rig is now widely used in the mountainous, jungle, hills, gobi, loess plateeu, seasonal farmland and other complex areas without water source, such as oil and gas seismic exploration, field investigation, geological structure investigation and other drilling engineering construction work.
2. Applications of SDZ-30S Pneumatic Mountain Drilling Rig
· Geotechnical engineering investigation; environmental soil survey; agricultural soil survey.
· Ground water survey; coastal geological survey; wetland environment investigation.
· Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.
3. Features of SDZ-30S Pneumatic Mountain Drilling Rig
· compact & portable
· simple to operate
· easy to assemble and disassemble
· convenient to move
· ideal choice to work in remote location

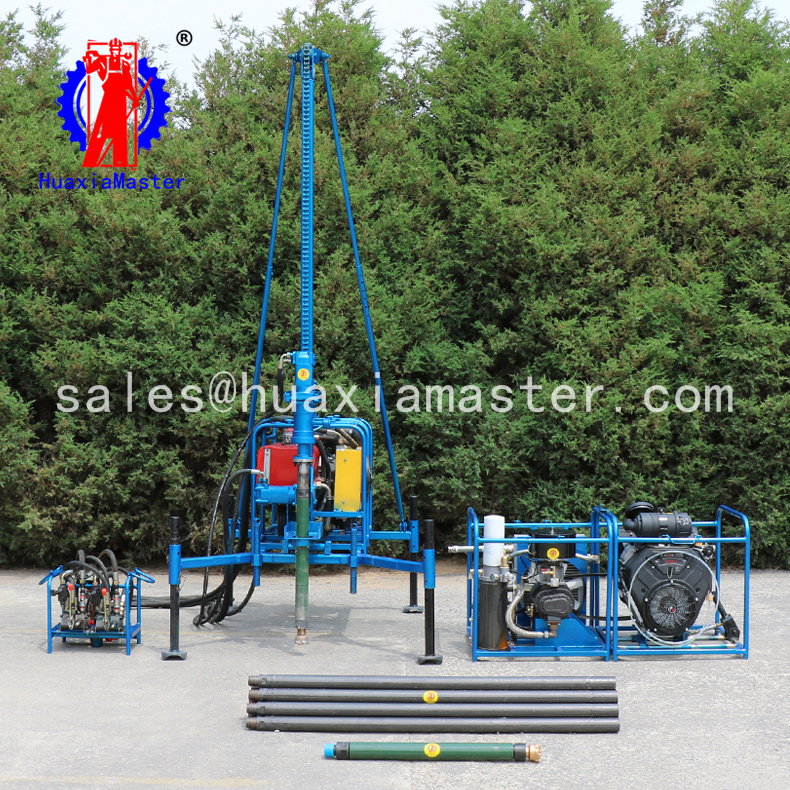

4. Configuration list of SDZ-30S Pneumatic Mountain Drilling Rig
|
SDZ-30S pneumatic mountain drilling rig specifications
Capability
Drilling mode
air shock drilling
Borehole diameter
mm
76
Drilling depth
m
30
Drilling pipe diameter
mm
60*1500
Stroke
mm
1850
Hydraulic pump
Gasoline engine power
hp
35
Rated pressure
mpa
20
Rated flow rate
l/min
60
Power
Torque
n.m
1000
Rotating speed
r/min
0-140
Lifting system
Rated pressure
kn
7.5
Rated lifting power
kn
15
Speed of lifting
m/s
0.77

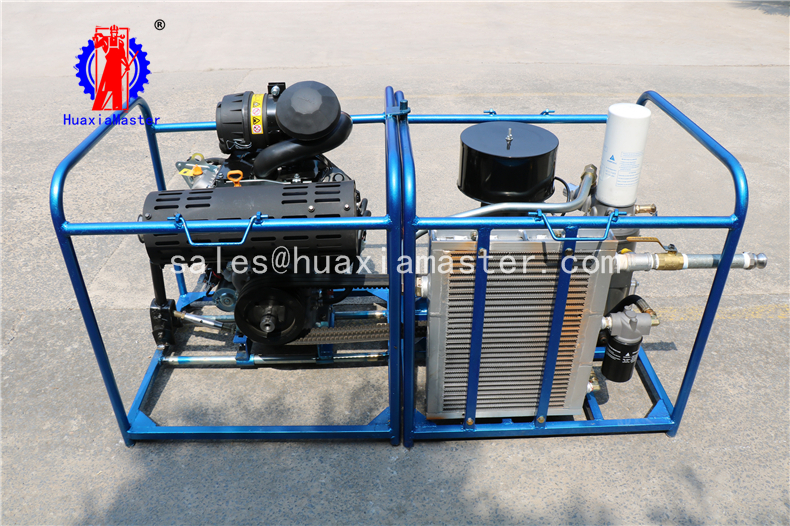

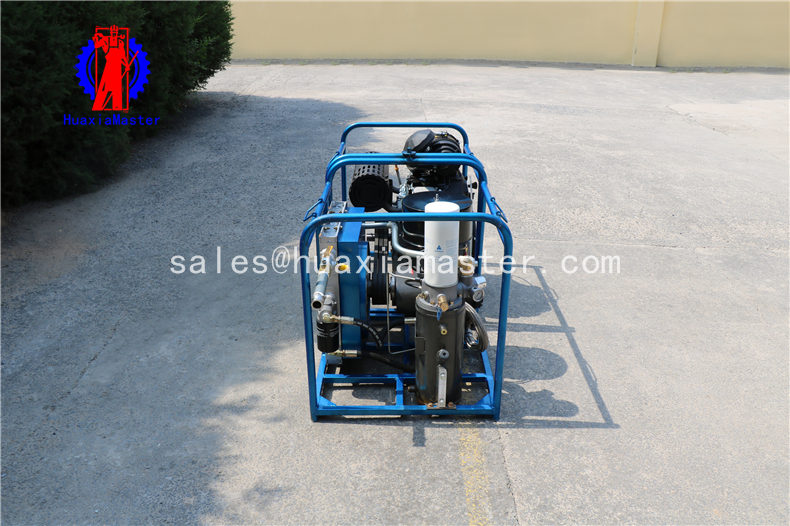

Screw air compressor
Gasoline engine power
hp
35
Displacement
m3/min
35
Discharge pressure
mpa
0.8
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
600mm*450mm*1900mm
600mm*450mm*1900mm
Weight: 25kg
Due to continuous product improvement, please ask us for the latest data.
