Basic Info
| Model No. | FY260 |
|---|---|
| Brand Name | huaxiamaster |
| Usage | Water Well |
| Power Type | Electric |
| Type | Rotary Drilling Rig |
| Condition | New |
Product description

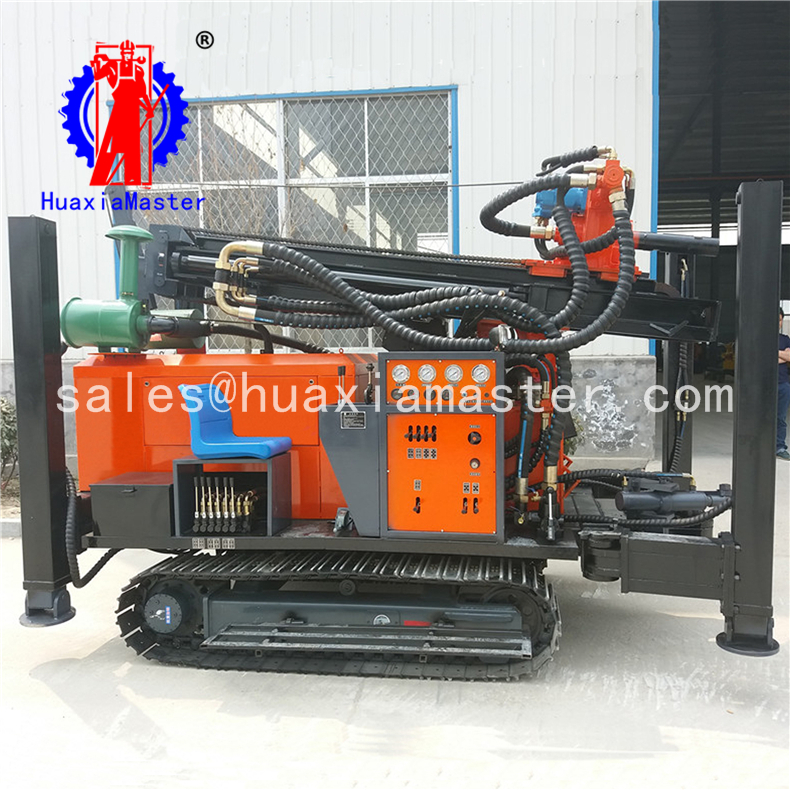

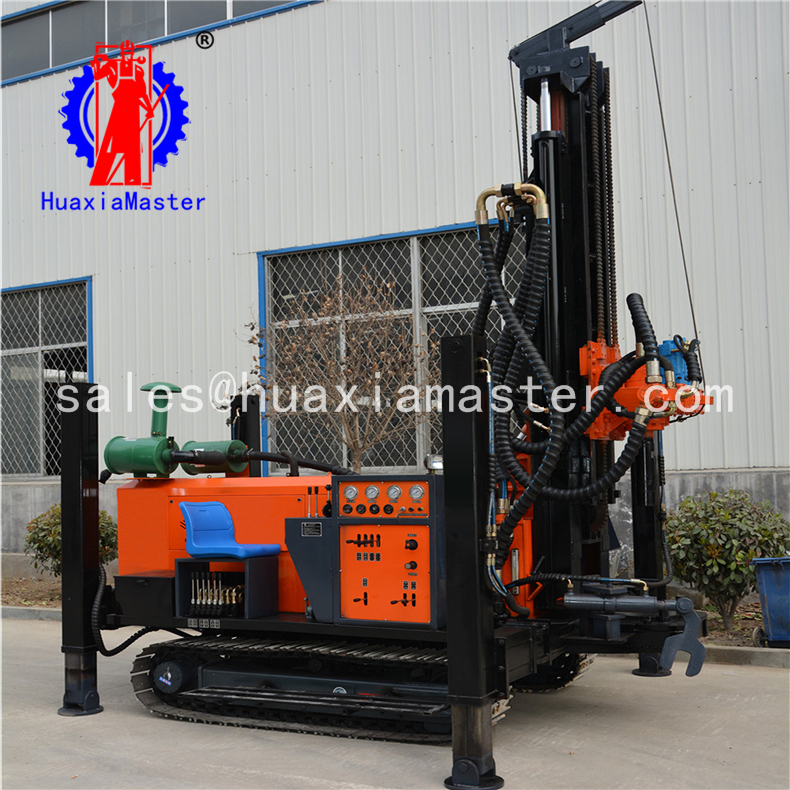

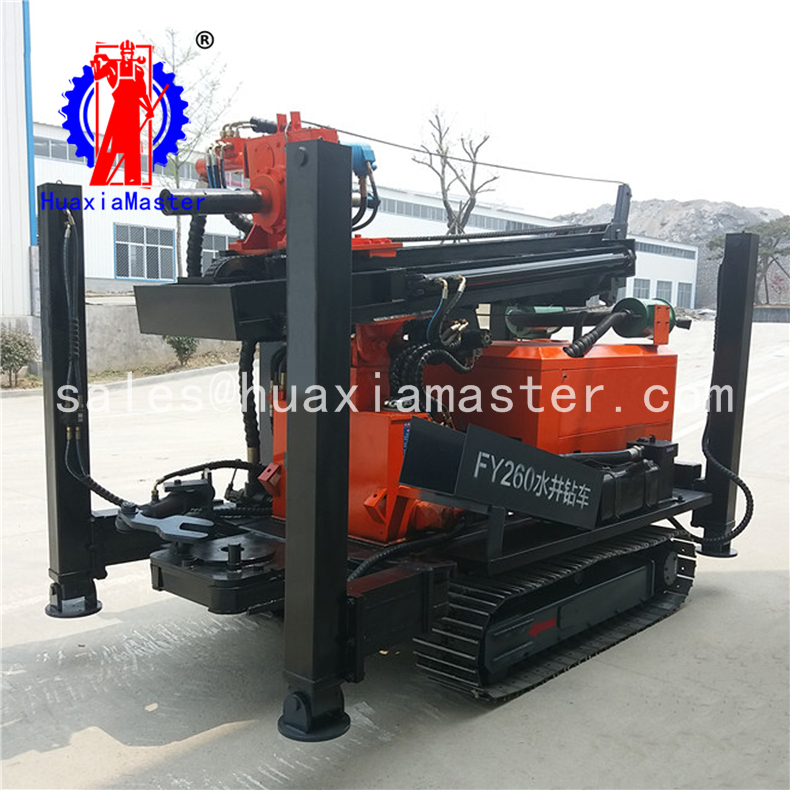

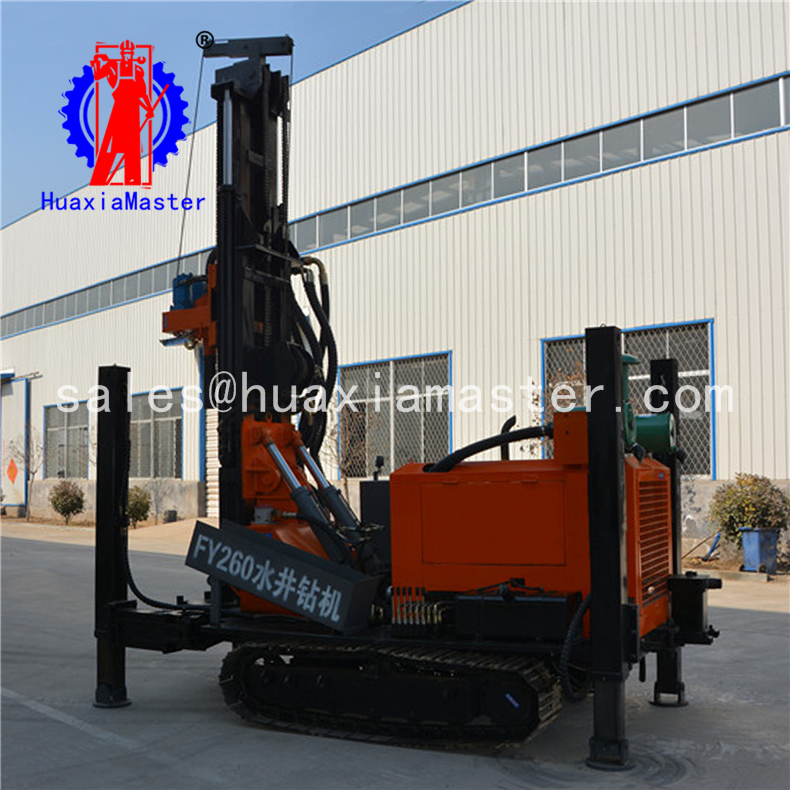

FY260 crawler pneumatic water well drilling rig
1. The applications of FY260 crawler pneumatic water well drilling rig
· civil engineering drilling
· geothermal drilling,
· drilling with large diameter
· deep drilling footage
· fast, flexible and efficient.
2. The specifications of FY260 crawler pneumatic water well drilling rig
|
Model |
FY260 |
|
|
Gross weight |
t |
6.2 |
|
External dimension |
mm |
3900*1950*2550 |
|
Aperture |
mm |
140-325 |
|
Drilling depth |
m |
260 |
|
Feed stroke |
mm |
3000 |
|
Travel speed |
km/h |
2.5 |
|
Grade ability |
max. |
30° |
|
Rising height from ground |
mm |
250 |
|
Wind pressure |
mpa |
1.7-3.0 |
|
Air consumption |
m3/min |
17-35 |
|
Engine power |
kw |
85 |
|
Rotary speed |
rpm |
40-70 |
|
Rotation torque |
n.m |
7000-9000 |
