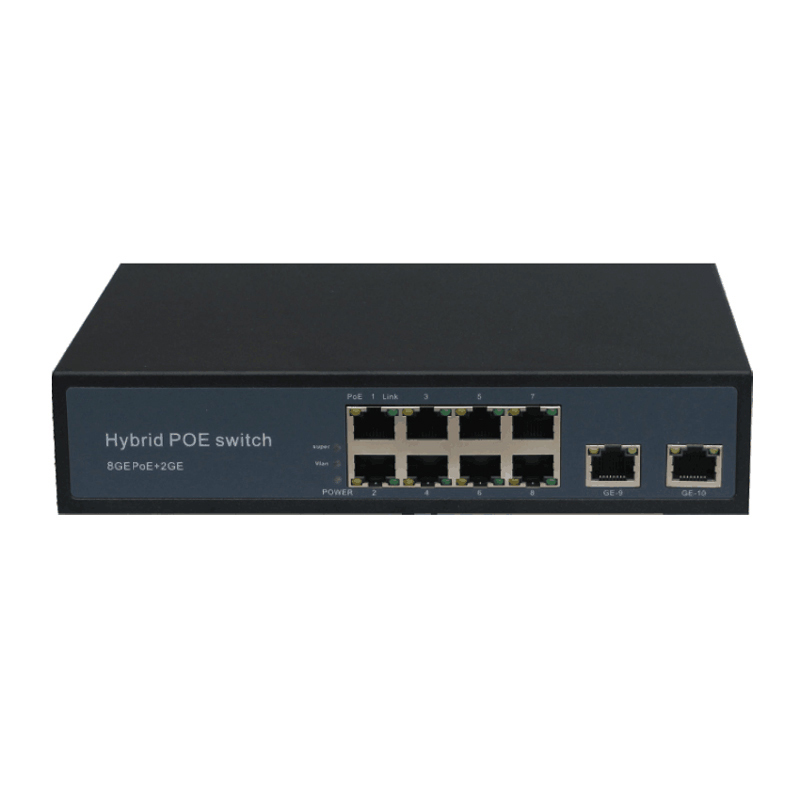

Model

POE0820B-3

Hardware

Ports

8 Ports 10/100/1000Mbps PoE ports

2 Ports 1000Mbps RJ-45 Uplink ports

All ports support MDI/MDIX adaptive

Transmission Method

Store and forward

Buttons

Reset button

LED Indicators

S-SUMP mode, V-VLAN mode, P-Power; PoE/Link: status of each port

Power Input

100~240V AC, 50-60 Hz

Total Power Budget

150W

Dimension

210mm*140mm*45mm (L*W*H)

Warranty

1 years

Performance

Switching Capacity

20 Gbps

MAC Address

1 KB

Power over Ethernet

Standard

IEEE 802.3af, IEEE 802.3at

Power Output

Up to 30W per port

Pin Assignment

1/2(+), 3/6(-)

PSE Type

End-Span

Smart Features

One-key Smart

N-Normal: All ports are free to communicate
V-VLAN: The downs ports are isolated from each other

S-SUMP: ultra long distance mode; downlinks (Port1-8) speed limited to 10M, to achieve Maximum 250M signal transfer, and PoE power supply

Environment

Temperature

Operating: -20°~65°C
Storage: -40°~70°C

Humidity (Non-condensing)

Operating: 10~90%
Storage: 5~95%

Standards Compliance

Standards

IEEE 802.3

IEEE 802.3i 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x
IEEE 802.3af/at

IEEE 802.1q

Certifications

CE, FCC, RoHS
