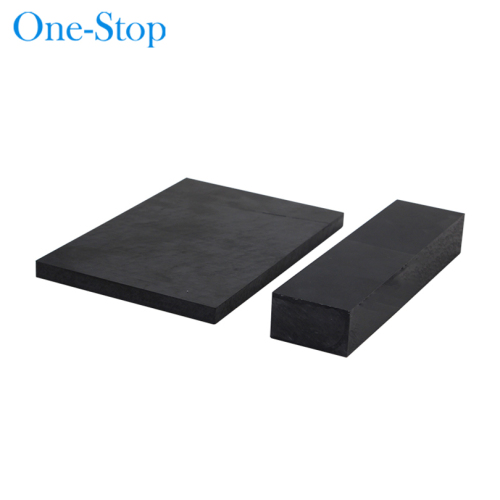

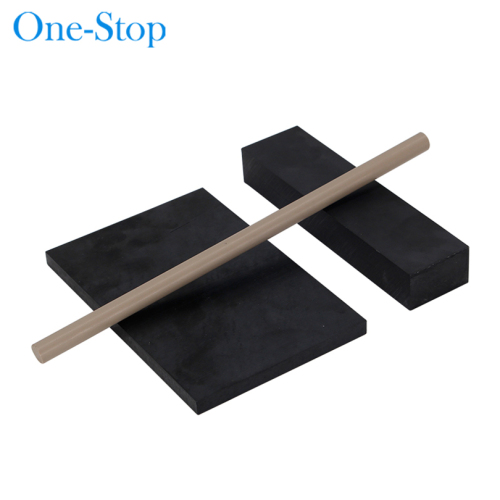

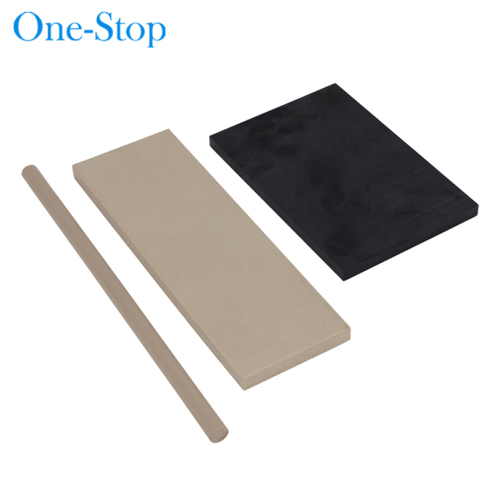

Polyether Ether Ketone Peek board

PEEK Product Performance

1.Divestiture resistance

Can be used under harsh conditions.

2.fatigue resistance

good fatigue resistance

3.Irradiation resistance

High radiation resistance

Property	Item No.	Unit	PEEK-1000	PEEK-CA30	PEEK-GF30
1	Density	g/cm3	1.31	1.41	1.51
2	Water absorption(23℃ in air)	％	0.20	0.14	0.14
3	Tensile strength	MPa	110	130	90
4	Tensile strain at break	％	20	5	5
5	Compressive stress(at 2%nominal strain)	MPa	57	97	81
6	Charpy impact strength (unnotched)	KJ/m2	No break	35	35
7	Charpy impact strength (notched)	KJ/m2	3.5	4	4
8	Tensile modulus of elasticity	MPa	4400	7700	6300
9	Ball indentation hardness	N2	230	250	270
10	Rockwell hardness		M105	M102	M99

PEEK fiber (including monofilament) industrial filter cloth, industrial brushes and other products. In the field of composite materials, the charm of PEEK fiber lies in its thermoplasticity and high temperature resistance. In addition to heat resistance in industrial filter cloths and industrial brushes, its charm lies in its chemical resistance and abrasion resistance.

For plate rod tube, the products will be sent for 1 day. And we support OEM and ODM.

PEEK Product Typical Characteristics

1: high temperature performance

2: excellent mechanical properties

3: flame retardancy and low smoke

APPLICATIONS
