Pop Rivet Making Machines: Automatic Pneumatic Forming Semi-Automatic Spin Riveters

Video

1 / 7

Pop Rivet Making Machines: Automatic Pneumatic Forming Semi-Automatic Spin Riveters

$1130.00

≥1 set
$940.00

≥3 set
$451.00

≥500 set

Options:

CW-141

Get Latest Price

You might also like

Pneumatic Hollow Automatic Feed Orbital Riveting Machine

1 set (MOQ)

Pneumatic Hollow Automatic Feed Orbital Riveting Machine

1 set (MOQ)

Efficient Bench Pneumatic Riveting Machine for Various Industries

1 set (MOQ)

Precision Orbital Riveting Machine at Competitive Price

1 set (MOQ)

Top-Quality Pneumatic Riveting Machine for Fast and Efficient Riveting

1 set (MOQ)

Affordable Orbital Head Riveting Machine for Smooth and Reliable Riveting

1 set (MOQ)

Efficient Pneumatic Automatic Riveting Machine for Diverse Applications

1 set (MOQ)

High Quality Orbital Riveting Machine for Efficient and Precise Riveting

1 set (MOQ)

Pneumatic Hollow Automatic Feed Orbital Riveting Machine

1 set (MOQ)

Pneumatic Steel Riveting Machine

1 set (MOQ)

Basic Info

Model No.
Brand Name
Place of Origin	Guangdong, China
Power Source	Pneumatic
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Core components	Engine
Brand Name	CO-WIN
Weight (KG)	125
Power (kW)	0.37
Warranty	1 Year
Key Selling Points	High Productivity
Machine Type	pneumatic riveting machine
Product name	Pneumatic Riveting Machine
Key Word	Orbital Riveting Machine
Stroke of Spin Head	5~40 mm
Riveting capacity	solid Dia 1~8mm
Throat depth	130mm
Motor	1HP 1 or 3 phase
Gauge Pressure	2~8 kgf/cm2
Max Output	800 kgf
Working Cycle Time	0.1~1s
Net weight	125 kg

Product description

Main Features

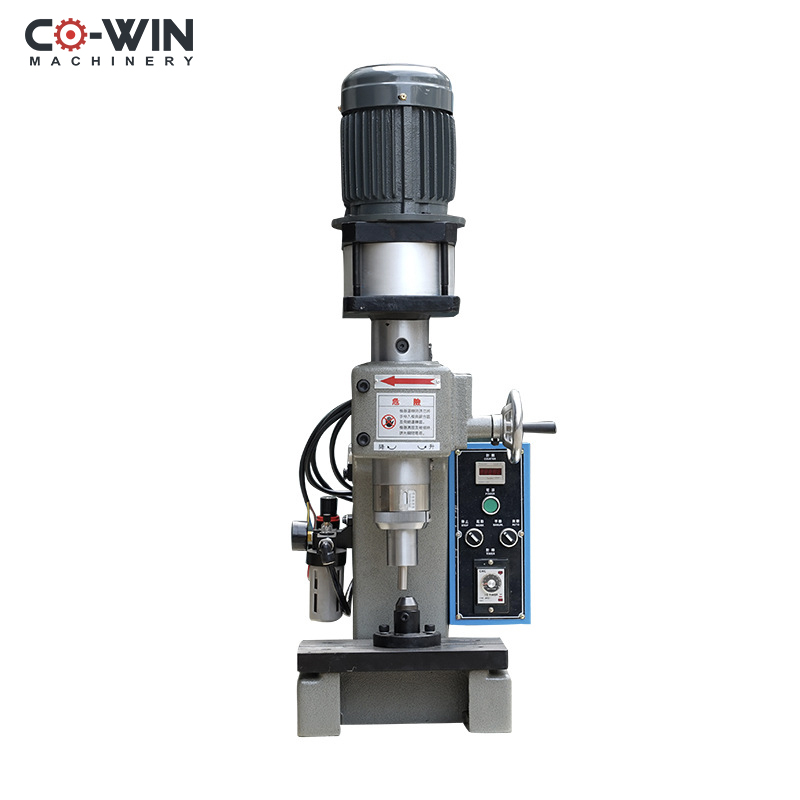

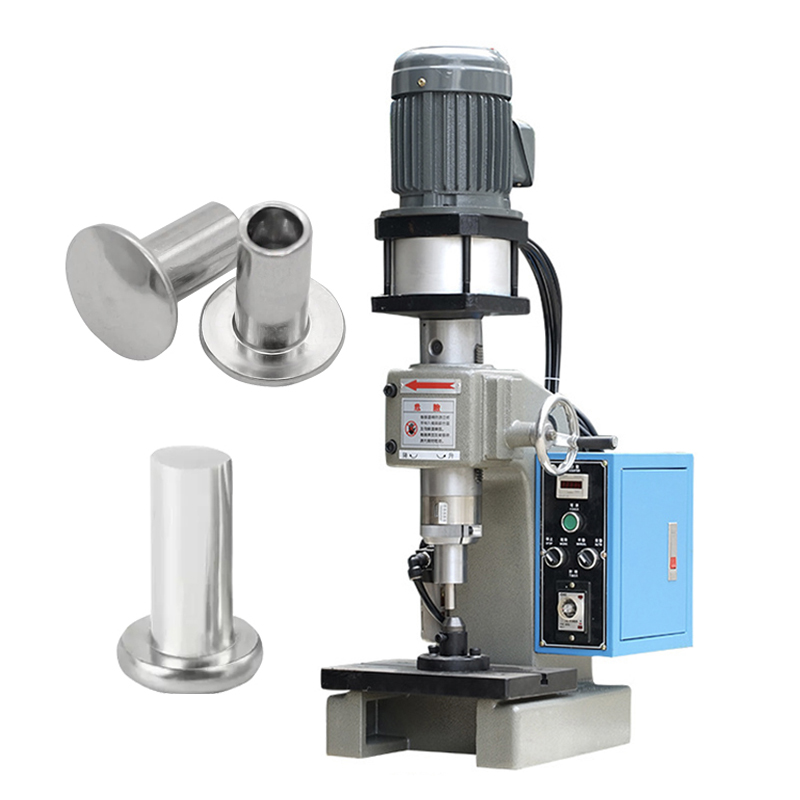

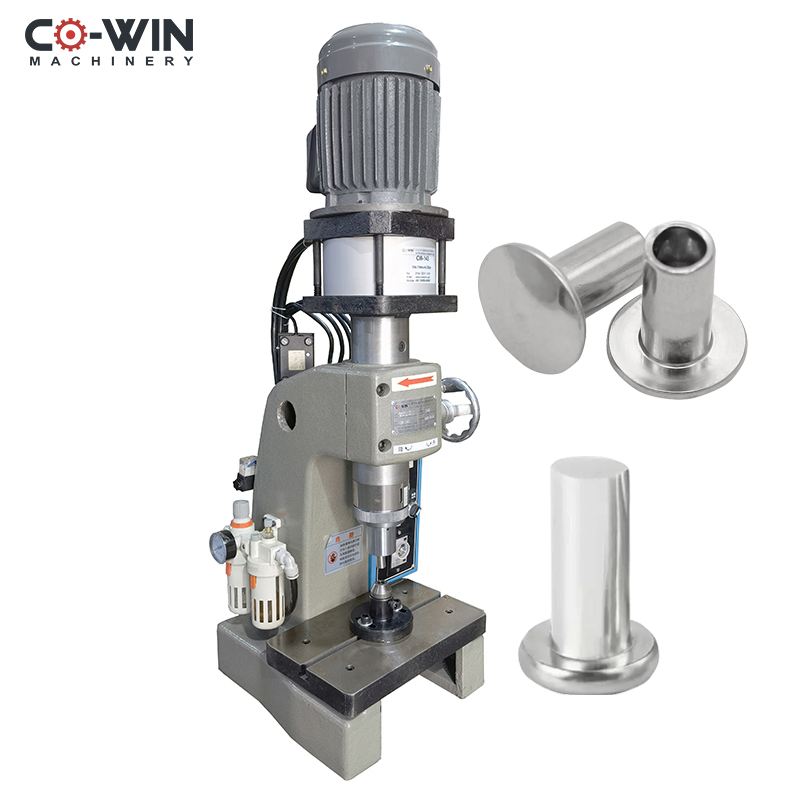

Bench Type Pneumatic Orbital Riveting Machine is a standard orbital riveting machine, which driven by pneumatic air, designed as workbench type.

This model of rivet machine is specializing in riveting solid rivets with iron or steel.

The maximum capacity is solid rivets with diameter 8mm.

1.This is the latest forming and fastening process which instead of spinning, hammering, pressing, welding, upsetting, the riveting result is a very smooth surface on metal, it will increase much production and save power.

2.Increase much production and save labor cost. Rivet will be processed within 0.5 seconds.

3. The good quality of all units on this machine ensures the smooth surface of work piece and stability of processing

4.The double air regulators can be used to control riveting speed effectively.

5. The air pipe was equipped the with the air filter for preventing moisture

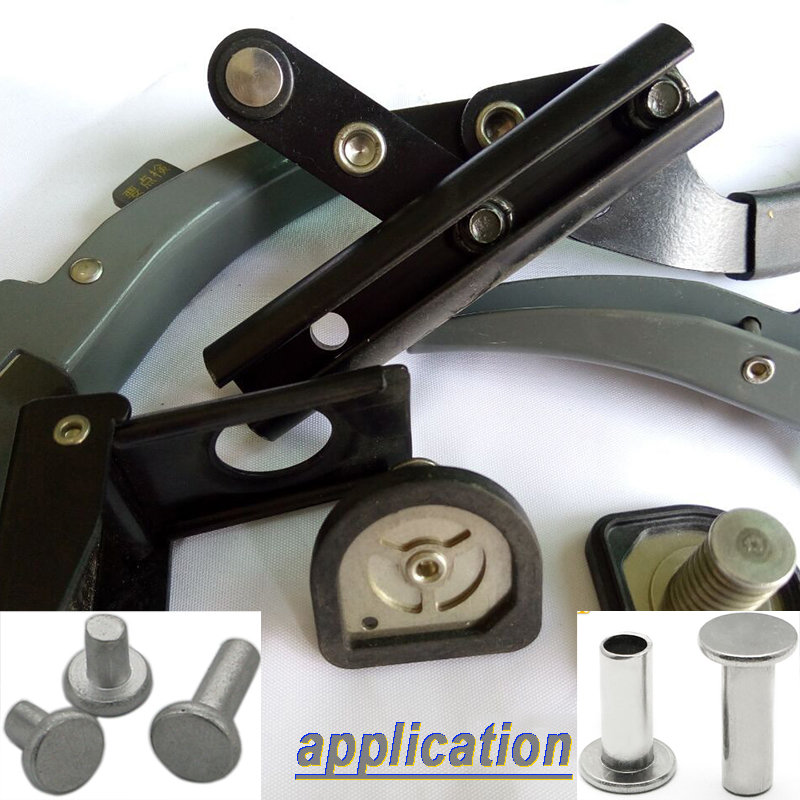

6.Acceptable for hollow rivets, semi-tubular rivets, solid rivets.

7.Easy operation. Workers operate the machine by stepping foot pedal.

8.Vertical Type, workbench designing, to make worker relax and comfortable.
