PORTABLE SINGLE PHASE ENERGY METER TEST BENCH

$8000.00 ~ $8000.00 / Set/Sets

Get Latest Price

Basic Info

Model No.	GF102
Brand Name	gfuve
Class	0.05
Current	0-120A
Voltage	0-500V
Phase Angle	0-360.000
Frequency	45-65Hz
Harmonics	2-51th

Product description

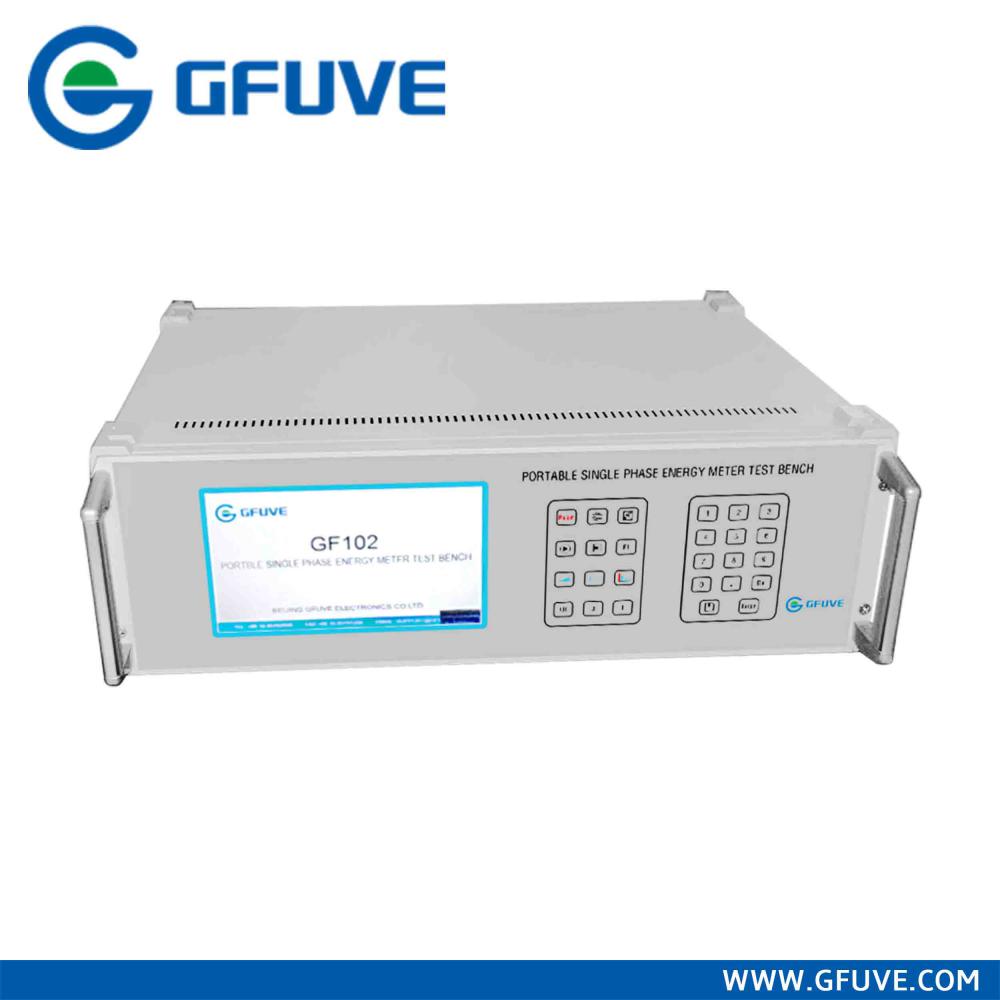

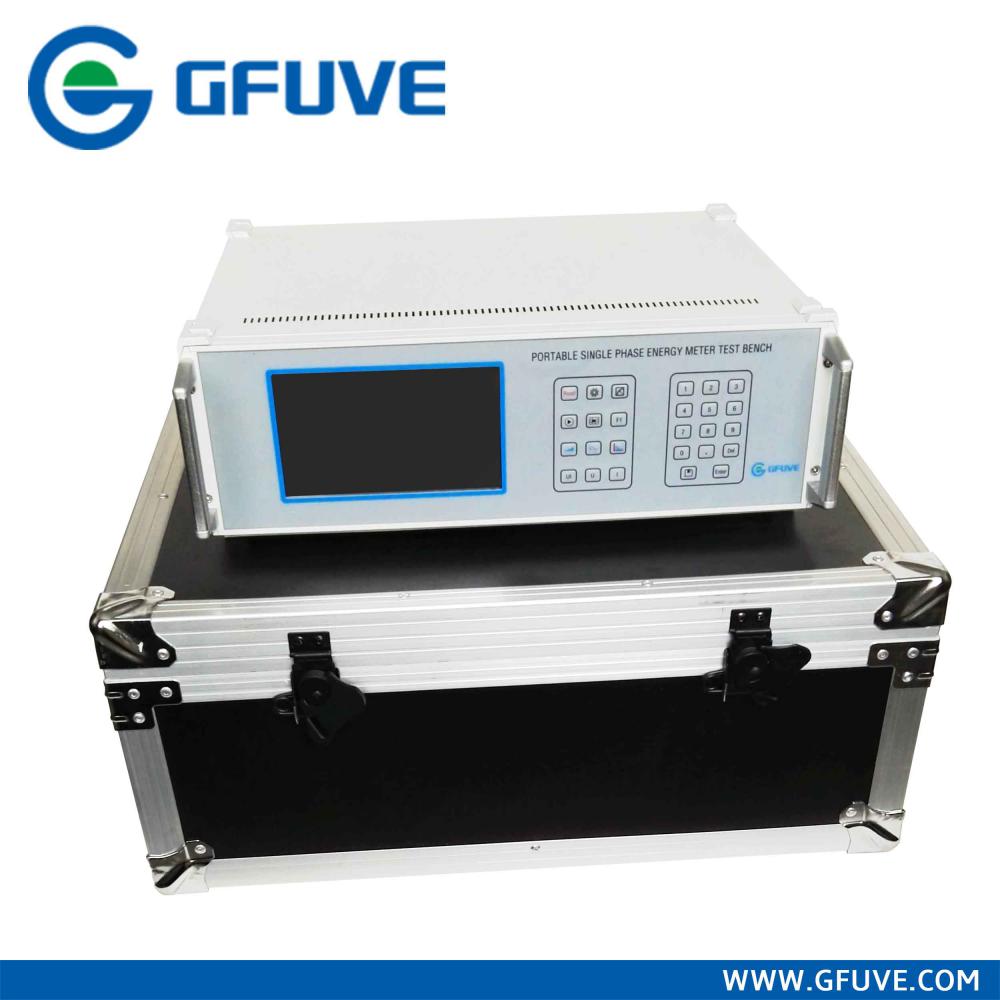

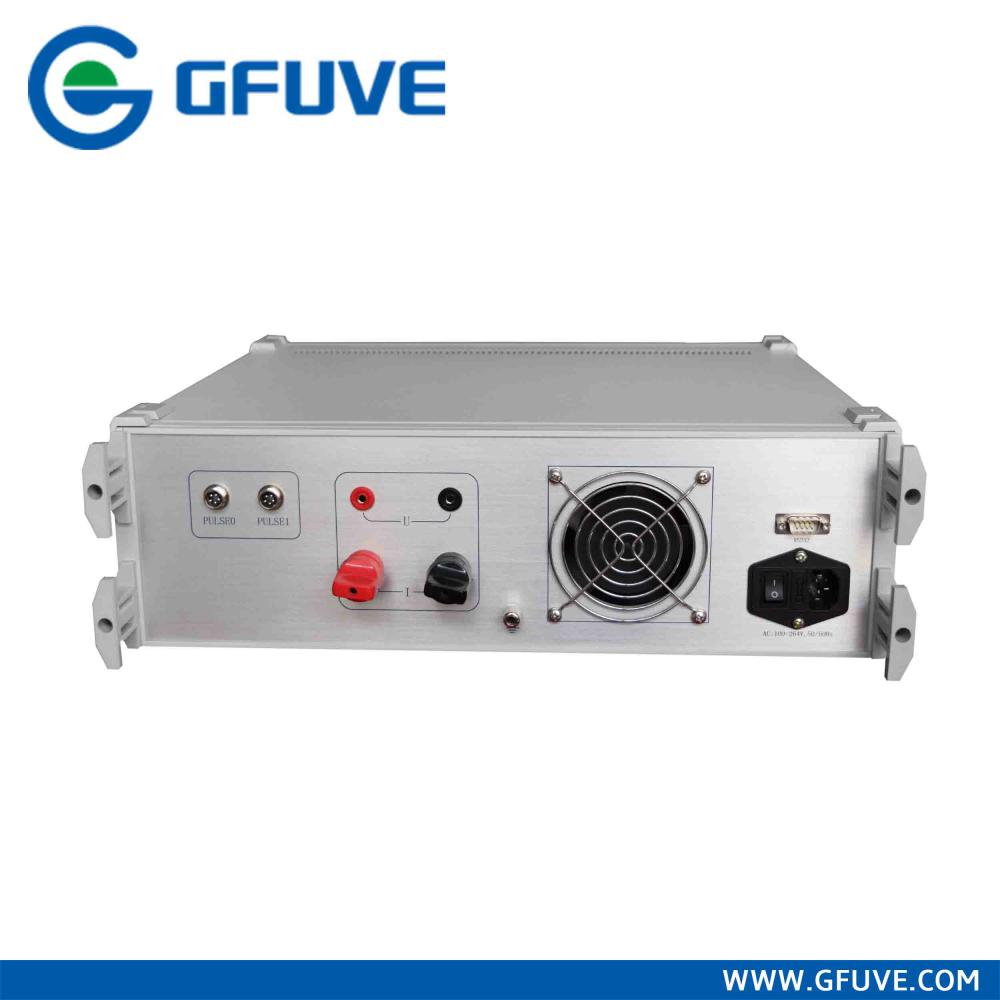

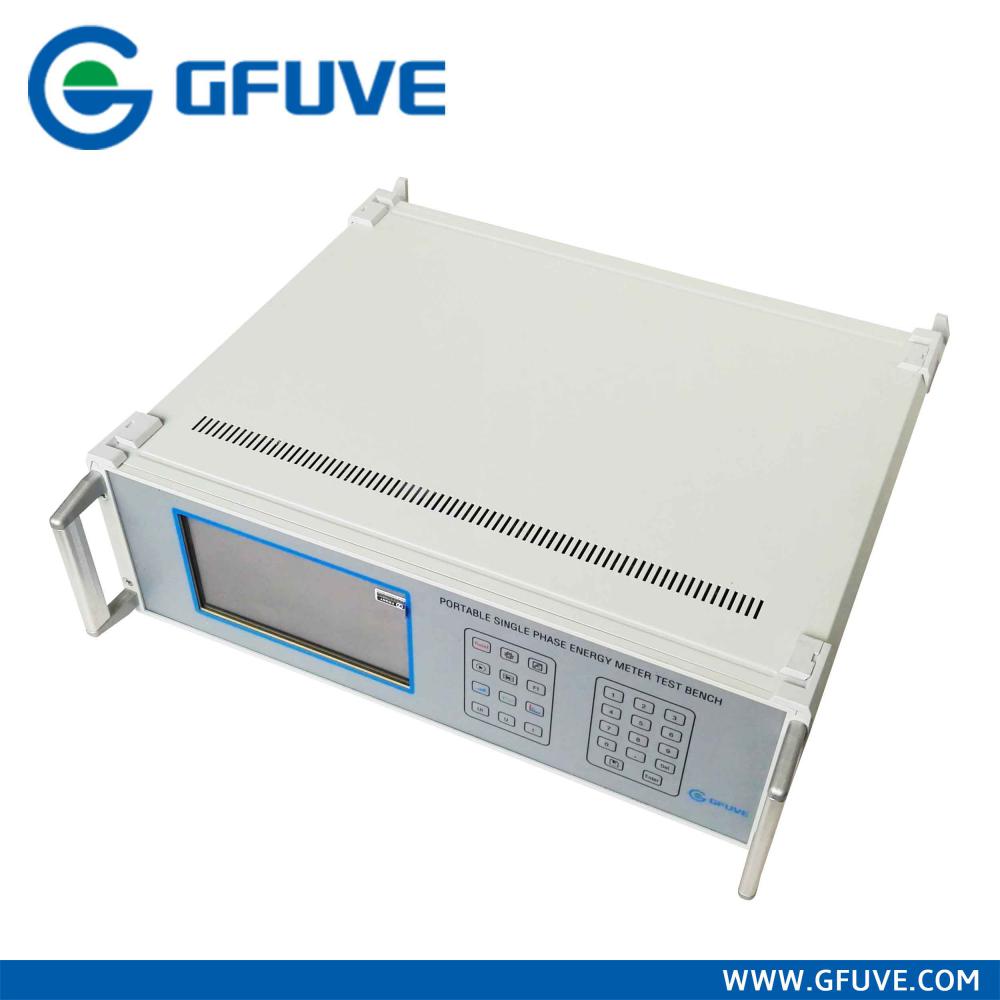

GF102 PORTABLE SINGLE PHASE ENERGY METER TEST BENCH

Product Description

GF102 portable single phase energy meter testing bench used to test single phase energy meter. Adopt mature signal synthetic and power amplifier technology, high precision voltage and current output. Widely used in lab and field, and then as single phase standard source.

Features

Meter under testing: 1P2W

Electrical parameters
Accuracy class	0.05%, 0.1%
Power supply	One Phase AC 100-265V, frequency 50/60Hz.
AC Voltage Output
Range	57.7V, 100V, 220V, 380V; max 500V
Adjustment range	(0-120)%RG(1)
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	0.01%/120s
Distortion	0.1% (Non-capacitive load)
Output load	max 25VA
Measuring accuracy	0.05%RG
AC Current Output
Range	200mA, 1A, 5A, 20A, 100A; max 120A
Adjustment range	(0-120)%RG
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	<0.01%/120s
Distortion	≤0.1% (Non-capacitive load)
Output load	max 50VA
Accuracy	0.05%RG
Power Output
Active power output stability	<0.01%RG/120s
Reactive power output stability	<0.02%RG/120s
Active power measuring accuracy	0.05%RG
Reactive power measuring accuracy	0.1%RG
Phase Output
Output adjustment range	0°-359.999°
Output adjustment fineness	10, 1, 0.1, 0.01 as optional.
Resolution	0.01°
Accuracy	0.05°
Power Factor
Adjustment range	-1 ~ 0 ~ 1
Resolution	0.0001
Measurement accuracy	0. 0005
Frequency Output
Adjustment range	40Hz-70Hz
Output adjustment fineness	5Hz, 1Hz, 0.1Hz, 0.01Hz as optional.
Resolution	0.001Hz
Accuracy	0.005Hz
Voltage /Current/Harmonic Setting
Harmonic number	2-51times
Harmonic content	0-40%
Harmonic phase	0-359.99
Harmonic setting accuracy	(10%±0.1%)RD(2)
Power Energy Measurement Error
Active power energy	0.05%RG
Reactive power energy	0.1%RG
Power Pulse Output
Power pulse type	active pulse, reactive pulse
Active power pulse output	5V,10mA
Power Pulse Input
Energy pulse type	support active and reactive pulse, the highest frequency power pulse input is 180K.
Mechanical parameters
Dimensions (W×D×H) (mm)	455x440x150
Weight (kg)	12
Environmental conditions
Ambient temperature	-10°C to +40°C
Relative humidity	35%-85%
(1)RG means range, the same as below; (2)RD means the setted harmonic content, harmonic can be a single output,also multiple output.

2Testing mode: active power, reactive power

Test 3pcs or 2pcs meter synchronously

Start testing and creep testing

Reference standard and power source integrated, easy to carry

Measuring mechanical meter and electric meter

Operating by manual keyboard or PC software

With keyboard shortcuts

Internal large capacity storage device for mass memory

Local checking the testing result

Overload, short circuit, open circuit protection

With self-checking function

PARAMETERS

Electrical parameters

Accuracy class 0.05%, 0.1%

Power supply One Phase AC 100-265V, frequency 50/60Hz.

AC Voltage Output

Range 57.7V, 100V, 220V, 380V; max 500V

Adjustment range (0-120)%RG(1)

Adjustment fineness 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.

Stability 0.01%/120s

Distortion 0.1% (Non-capacitive load)

Output load max 25VA

Measuring accuracy 0.05%RG

AC Current Output

Range 200mA, 1A, 5A, 20A, 100A; max 120A

Adjustment range (0-120)%RG

Adjustment fineness 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.

Stability <0.01%/120s

Distortion ≤0.1% (Non-capacitive load)

Output load max 50VA

Accuracy 0.05%RG

Power Output

Active power output stability <0.01%RG/120s

Reactive power output stability <0.02%RG/120s

Active power measuring accuracy 0.05%RG

Reactive power measuring accuracy 0.1%RG

Phase Output

Output adjustment range 0°-359.999°

Output adjustment fineness 10, 1, 0.1, 0.01 as optional.

Resolution 0.01°

Accuracy 0.05°

Power Factor

Adjustment range -1 ~ 0 ~ 1

Resolution 0.0001

Measurement accuracy 0. 0005

Frequency Output

Adjustment range 40Hz-70Hz

Output adjustment fineness 5Hz, 1Hz, 0.1Hz, 0.01Hz as optional.

Resolution 0.001Hz

Accuracy 0.005Hz

Voltage /Current/Harmonic Setting

Harmonic number 2-51times

Harmonic content 0-40%

Harmonic phase 0-359.99

Harmonic setting accuracy (10%±0.1%)RD(2)

Power Energy Measurement Error

Active power energy 0.05%RG

Reactive power energy 0.1%RG

Power Pulse Output

Power pulse type active pulse, reactive pulse

Active power pulse output 5V,10mA

Power Pulse Input

Energy pulse type support active and reactive pulse, the highest frequency
power pulse input is 180K.

Mechanical parameters

Dimensions (W×D×H) (mm) 455x440x150

Weight (kg) 12

Environmental conditions

Ambient temperature -10°C to +40°C

Relative humidity 35%-85%

(1)RG means range, the same as below;
(2)RD means the setted harmonic content, harmonic can be a single output,also multiple output.
