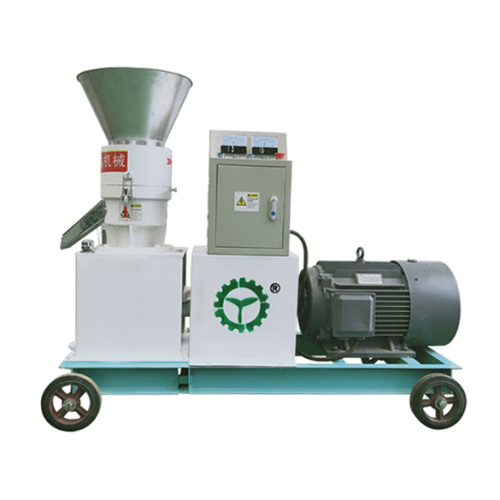

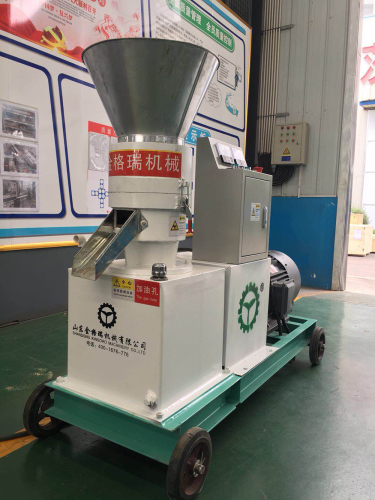

The Feed Pellet Making Machine

The Feed Pellet Making  Machine is frequently driven by electric motor or diesel engine.
It is energy saving pellet machine for making feedstuff for animals such as feed for rabbits, chicken, pigs, sheep, cattle, etc.
A variety of raw materials like all grains such as corn, broomcorn, barley and wheat,etc.can be processed into feed pellets.
The pelletizing process is easy in operation and low in cost, with a high survival rate of biomass microorganism bacterium >90%.
Different from electric motor type,diesel pellet mill can be widely used in the regiones which are short of electricity.
Simply turn on the switch, the diesel engine can start up and work independently.

The  Features of Feed Pellet Making Machine:

1) Raw materials are such as corn,bran,bean, grass,hay ,etc.used for making poultry feed pellet and livestock feed pellet .

2) Stable performance, and low consumption. Easy for maintance, easy operation.

3) The whole body with strong structure,the flat die and rollers is Wear-resisting,heat-resistant, alloy steel, all are processed by our own complete processing facilities,

can control every parts quality , pellet machine's quality is assured.

4) Pellet healthy and long strage. because of high molding rate, high density ,high heat, powder feed, grass powder don't need or a little liquid can be added for granulating,
so the moisture content .

5) Simple structure ,small space covering , low investment and fast return and conveinient.

Applicable Raw Material For Chiken Feed Pellet Machine:(powder)

Soybean,Soybean meal, wheat, soybean meal, cottonseed meal, rice bran, corn/maize, grain, bean pulp, alfalfa, straw, grass, rice husk, oat, barley etc.

Specification of Poultry Feed Pellet Machine:

Model	Power (kw)	Capacity (kg/h)	Weight (kg)
SKJ120	3	70-100	98
SKJ150	7.5	100-300	135
SKJ200	11	300-500	387
SKJ250	15	500-700	485
SKJ300	22	700-900	542

Product advantage:

1, Good adaptability, large animal feed intake.
This machine is adapted to large scale of raw materials. It is suitable for different kinds of complete feed production line. While processing the material, this machine's temperate is moderate which could keep the microelement with the material. The feed is tasty and digestible. Animals love it and the intake is large.

2, Surface is smooth and density is big.
The pellets coming out from this machine are neatly in shape with smooth surface and big density, which is easy to restore and transport. The finished pellets' diameter is among 2-6mm (according to different die), and the length could be among 10-40mm. Different sizes of pellets meet the requirement for the different growing period of the animals.

3, Stable, Lower Noises
The transmission part adopts high accuracy gear transmission, whose efficiency is 20-25% higher than belt transmission; the whole machine (includes the motor) adopts the highest quality bearing which could enable the high-efficient transmission, stability and lower noises.

4, Innovative Structure
The whole body of the large-scale intensified feed modulator is made of stainless steel. It adopts variable frequency speed control system to ensure the high quality of the pellet feed. The complementary snake-like spring coupling is international standard which is innovative in structure, tight in shape and safe. The noise is low and the fault rate is small.
