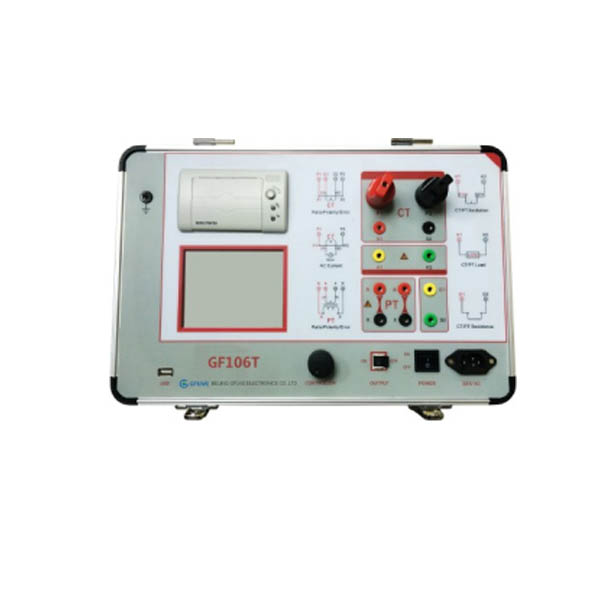

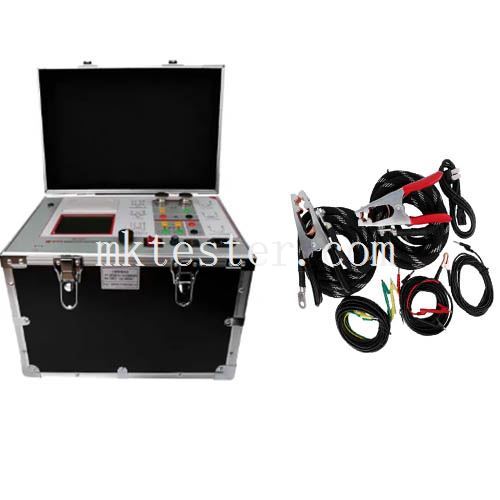

Power frequency analyzer is mainly used for ?eld testing of P class CT and PT. The test items mainly include excitation characteristic, transformation ratio, polarity, degauss, 5% and 10% error curves, secondary circuit check, withstand test of power frequency alternating current and secondary load. Adopting LCD, self-equipped mini type printer supporting ?eld printing; supporting to use USB ?ash disk to dump data, with simple and convenient operation.

Technical index

Electrical parameters

Accuracy 0.2%, 0.5%

Power supply AC 220V±10% or AC 110V±10%, 50/60Hz

Excitation voltage output 0-2500Vrms,

Excitation current output 0-5Arms (20A peak-value)

Large current output 0-1000A
