Features

·Wide voltage input range: 100-264V

·Working frequency: 50/60HZ

·Water proof level: IP54

Application

·Outside Fountain

·Outside landscape lamp

·Outside Garden light

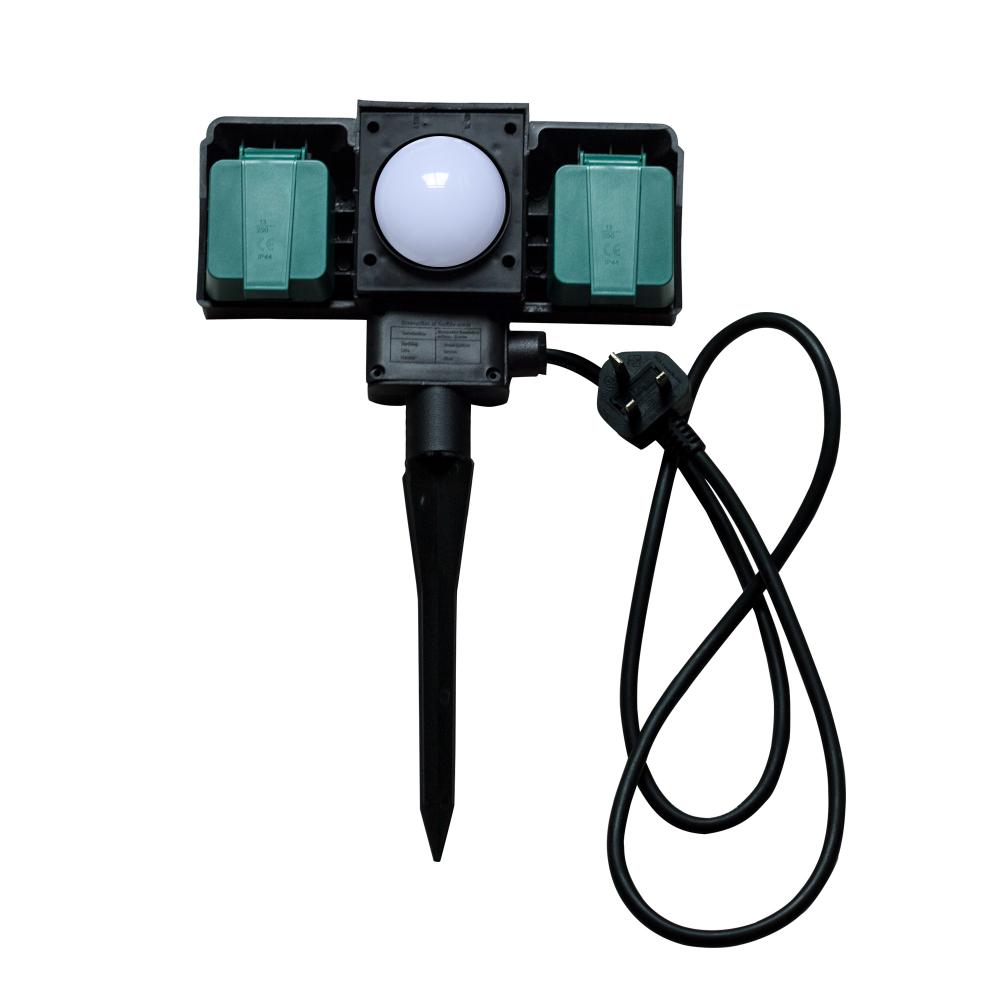

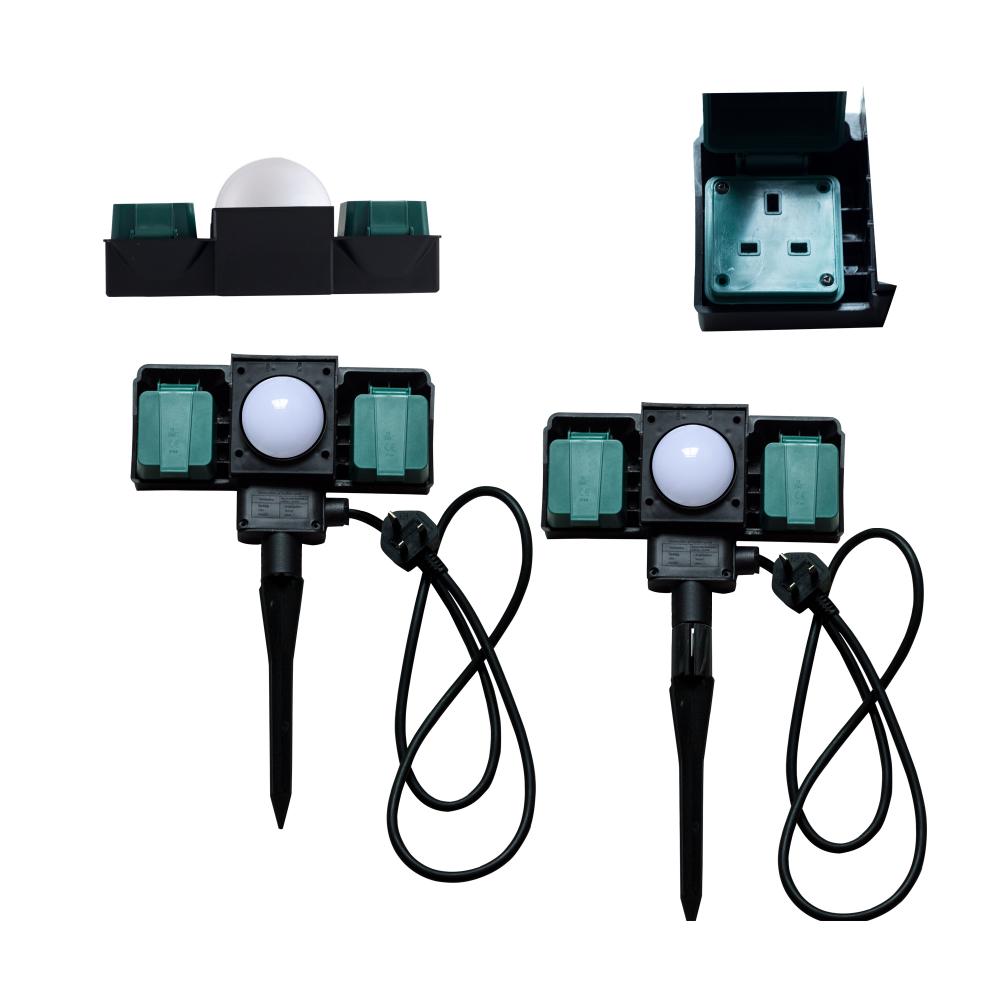

Two Way Outdoor Garden Sockets

Parameters

AC Working voltage range: 100V~264V

AC Working frequency: 50/60HZ

AC Rated output current: 10A(2PCS sockets total 10A)

AC Max output current: 16A(2PCS sockets total 16A)

Waterproof level: IP54

AC wire diameter: 1.5mm2

Working temperature: -35℃~+65℃

Installation

·  Carefully unpack contents and check to make sure all parts are present. Following this insert the plastic stake plug into the bottom hole of the sockets.

·  Choose a suitable location for the AC socket giving careful consideration to the nearest suitable outlet, trip hazard etc. Push the socket firmly into the ground and plug in the socket.

·  Lastly, insert the appliance into the 2 sockets.

·  There are two different power options, with the switch on the backside.

  On: The power will always be on.

  Sensor: The power will only be on from dusk till dawn.

Attention

·  This product has a waterproof level of IP54, this means it can with stand splashes of water, but not large bodies of water.

·  This product contains 2 built-in sockets. If you are only using one socket the rated current can reach 10A, with a max. current of 13A, but reaching 13A for extended periods of time can damage the socket and internal components, therefore must be avoided.

·  If you use 2 sockets at a time the max. current should not exceed 16A.
